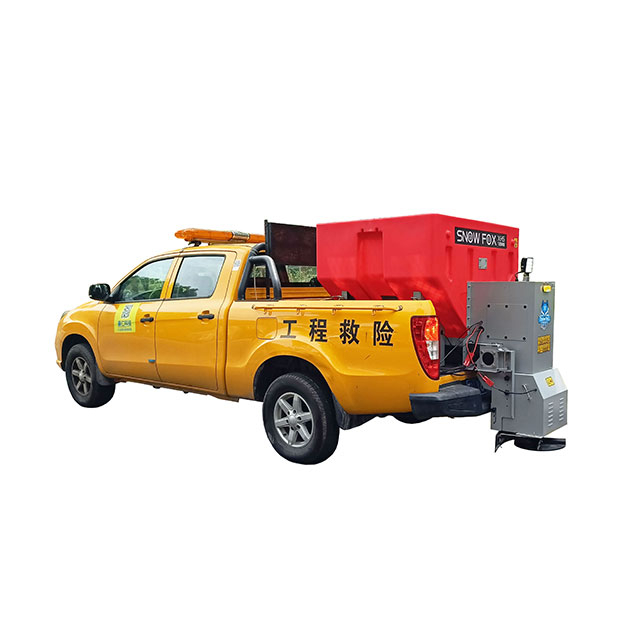

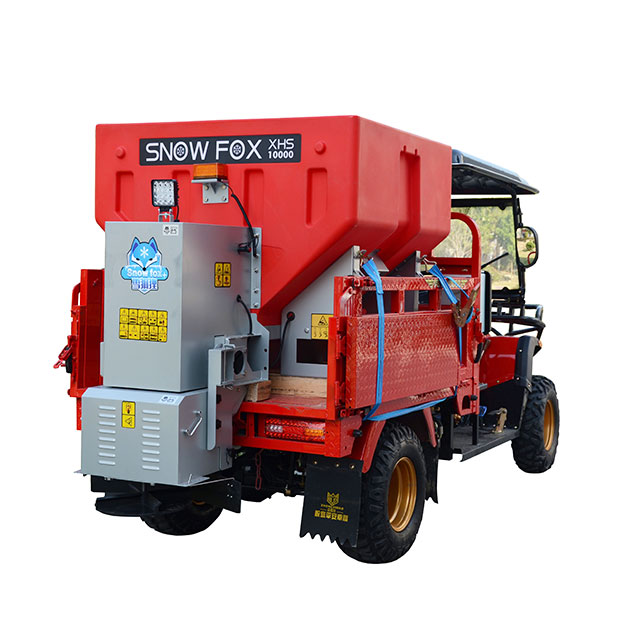

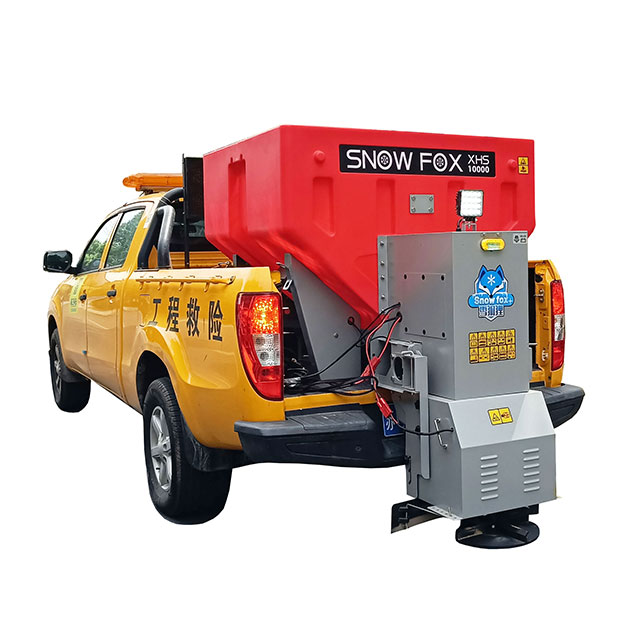

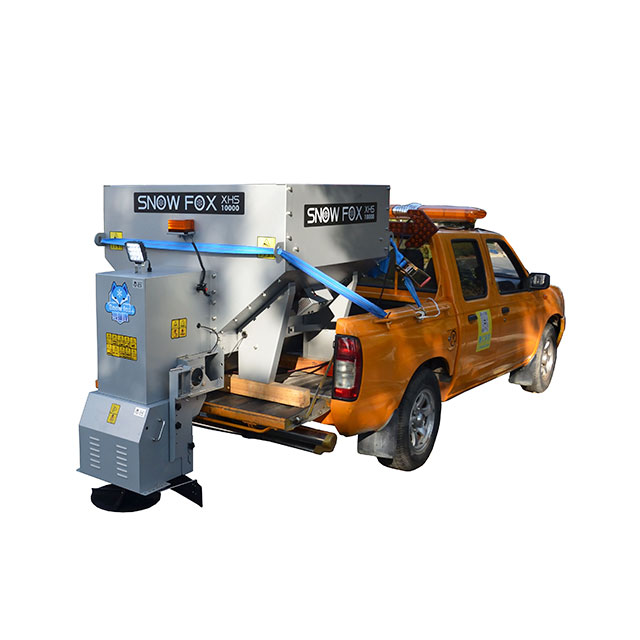

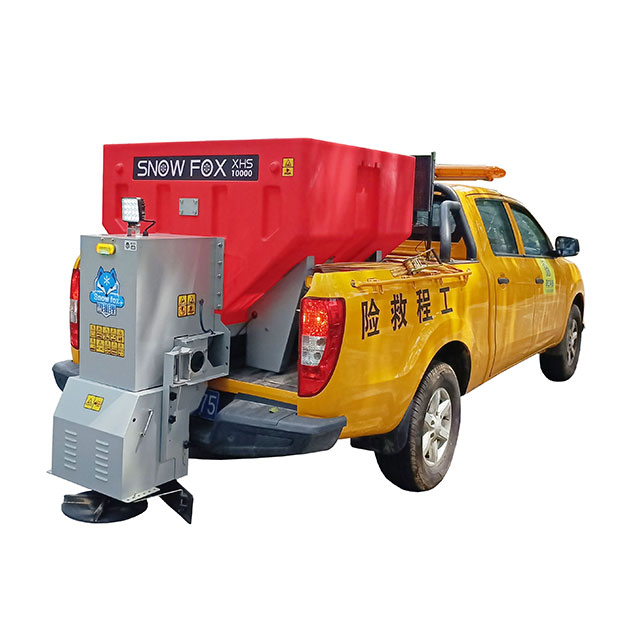

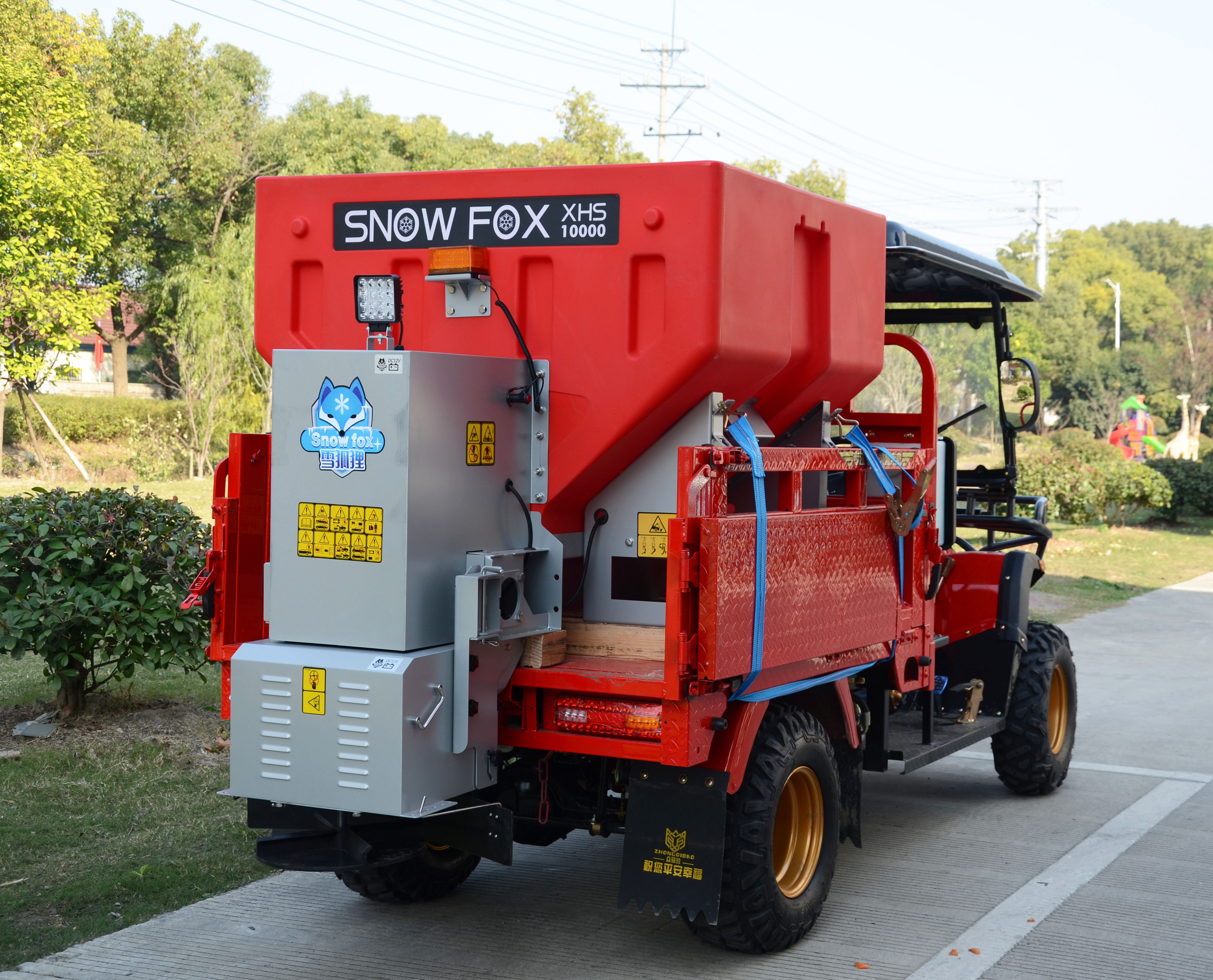

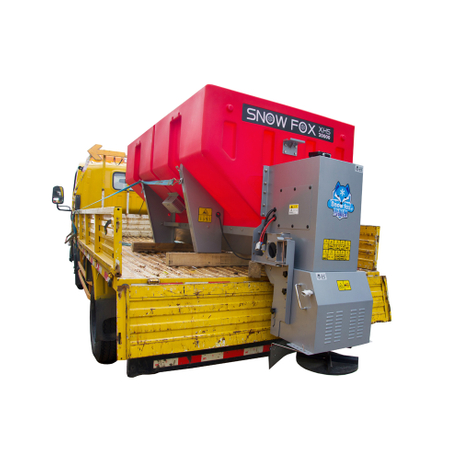

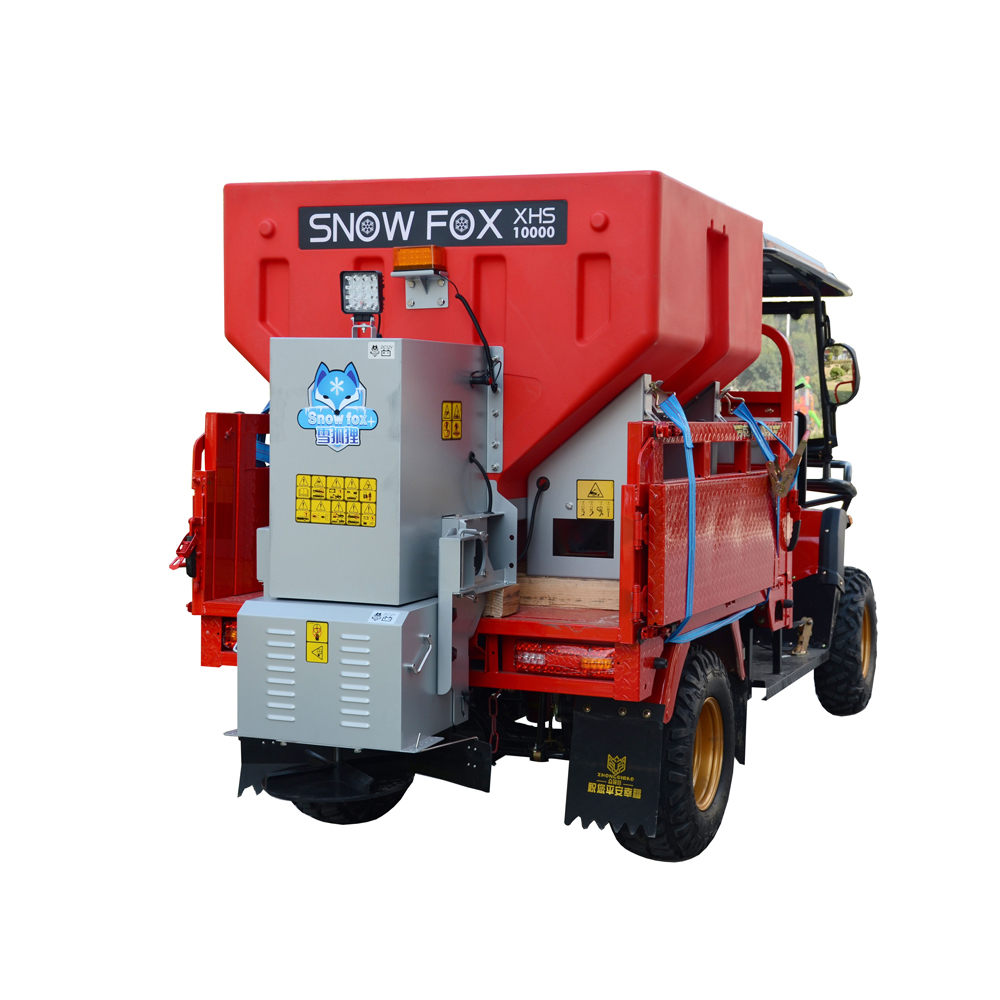

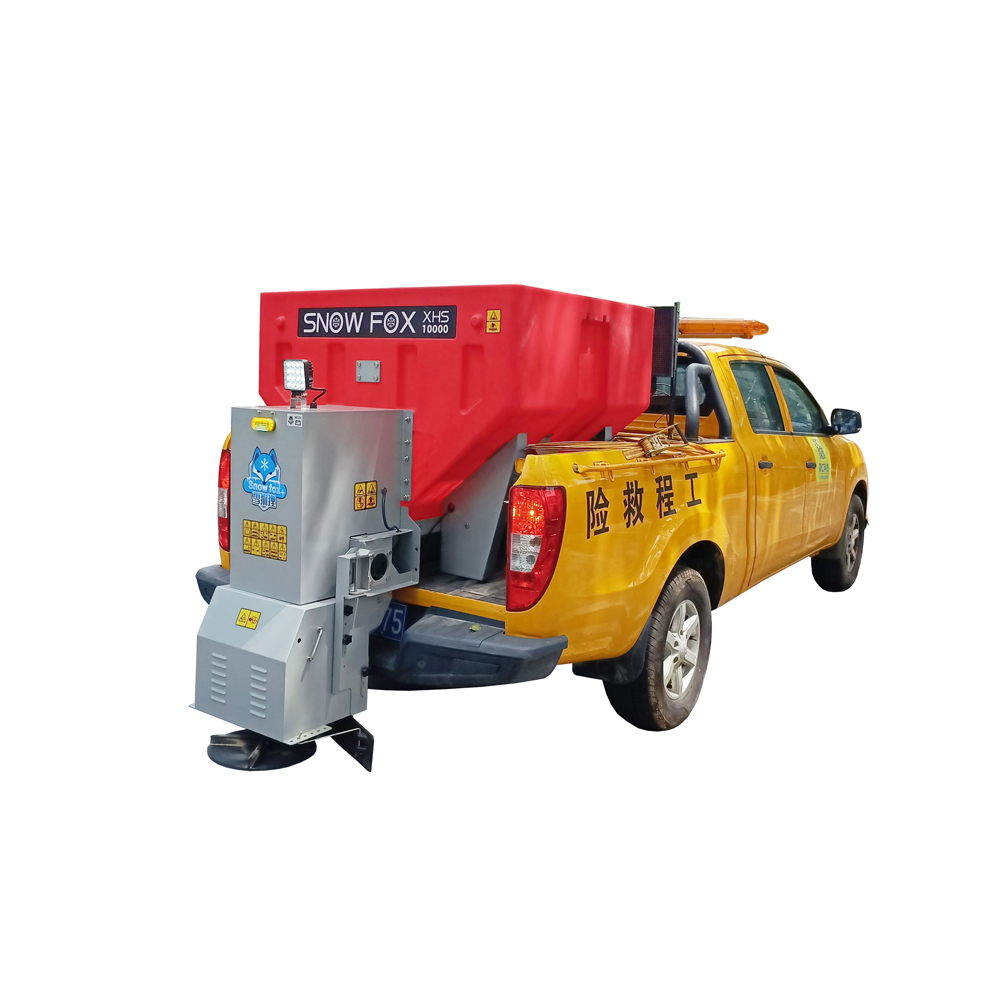

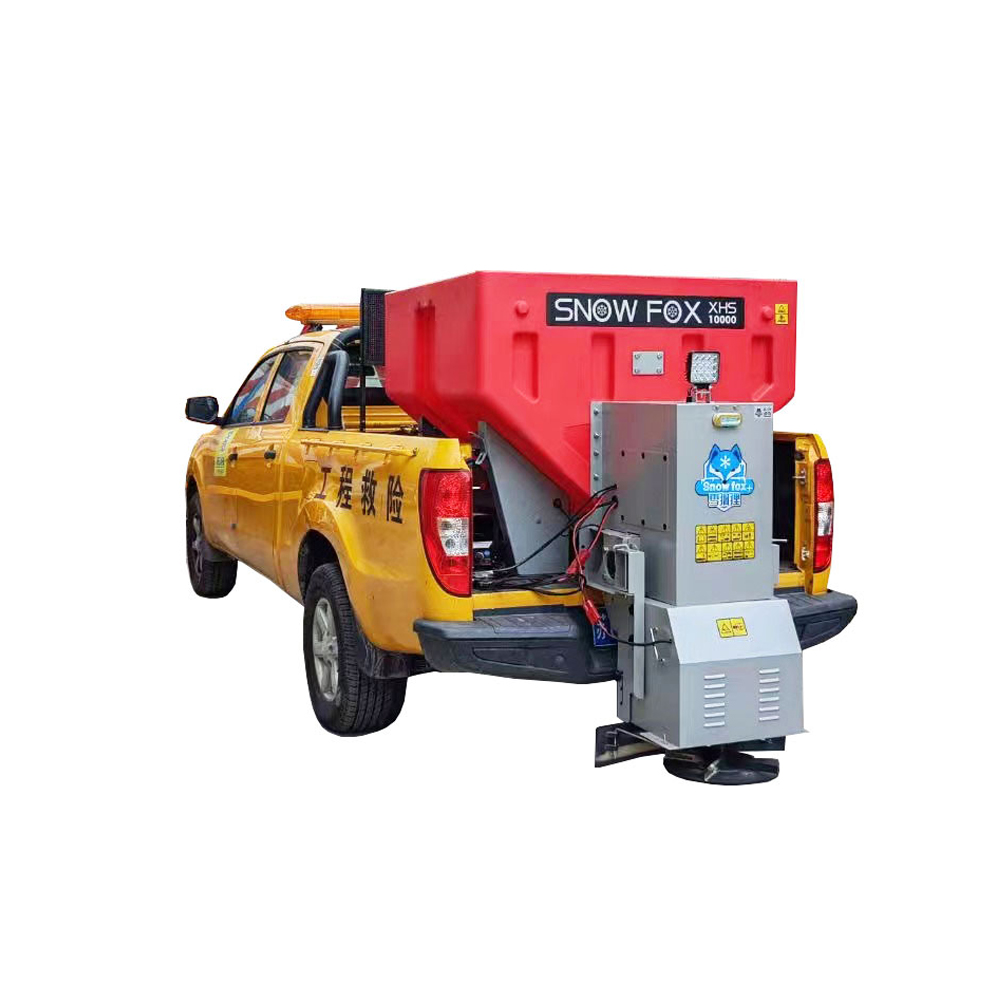

XHS-10000 Salt Spreader for Pick Up Truck

The rear mounted salt sand spreader is mainly used for emergency salt spraying and snow melting operations on roads such as highways, residential areas, and airports in winter. Our electric salt spreader is made of imported polyethylene material, driven by a DC reduction motor, and powered by the car's built-in battery power supply. The spreading width can be adjusted infinitely through speed regulation. Its main features are low power consumption, energy saving and environmental protection, no harmful gases, corrosion resistance, and durability, which solves the problem of corrosion in traditional salt spraying equipment.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

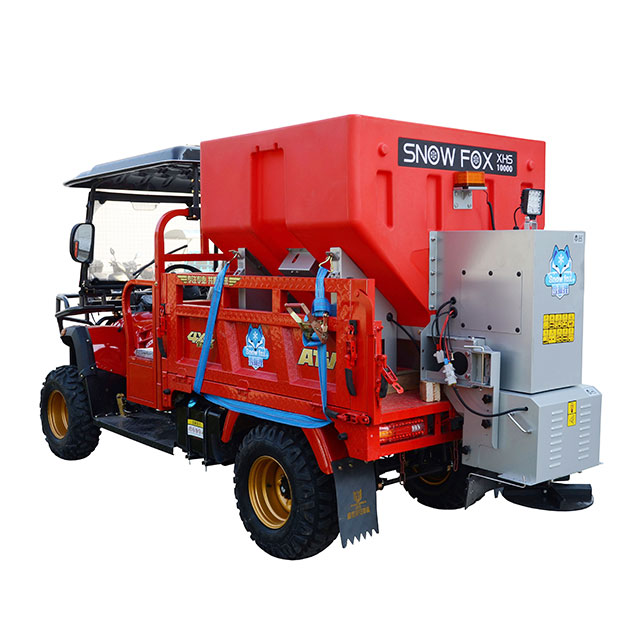

未标题-15-

1.1m³ golden hopper capacity. Longer working range per fill‑up, fewer frequent refills compared with 0.3m³ compact spreaders for higher winter de‑icing efficiency. Optimized total weight, perfectly fits most pickup trucks and light‑duty trucks, avoiding excessive weight of large‑volume spreaders.

2. Heavy‑duty polyethylene hopper. Excellent corrosion resistance against rock salt and de‑icing chemicals, anti‑cracking under freezing temperature. Smooth inner surface minimizes material residue, longer service life than metal hoppers in harsh winter conditions.

3. Balanced multi‑scene compatibility. Suitable for urban arterial roads, suburban highways, residential compounds, parking lots and narrow country roads. Handles large‑area spreading while avoiding access limitations of oversized spreaders. One unit covers multiple winter maintenance tasks.

4. Bolt‑on mounting without chassis modification. Quick hoisting removal in non‑winter seasons, so the carrier truck returns to normal cargo transport for higher equipment utilization rate.

5. Stepless adjustable spreading width & application rate. Real‑time adjustment for thin ice or heavy snow conditions. Works for rock salt, de‑icer, sand and salt‑sand mixtures.

6. V‑shaped hopper prevents material bridging. Stable material feeding, reduces block‑down caused by damp and caked de‑icing agent, reliable performance in cold‑humid regions.

7. Low‑center‑of‑gravity design. Better driving stability on icy & snowy roads for long‑distance winter patrol spreading.

8. Optional wired / wireless in‑cab controller. All spreading operations inside cabin, no outdoor manual work in freezing weather.

9. Easy maintenance. Smooth hopper interior for simple salt residue cleaning. General‑purpose wearing parts reduce overseas after‑sales cost.



Project Location: Olds, Alberta, Canada, with a population of approximately 9,000.

Local Working Conditions: The snow season lasts from November to March of the following year. Night-time snowfall occurs frequently, with temperatures ranging from -10℃ to -25℃. The road network includes urban arterial roads, narrow residential alleys, school access roads, hospital parking lots and suburban rural highways. The local municipal authority adopts light-duty pickups for snow-removal operations. Large truck-mounted spreaders are too bulky to pass through numerous narrow lanes, while 0.3 m³ compact spreaders feature small hopper capacity and have to return to refilling stations for salt replenishment every few kilometres, resulting in low operating efficiency. The municipal government of this small town purchased 3 units of this 1 m³ spreader.

After an overnight snowfall, de-icing operations commence at 4:00 a.m. Filled with industrial de-icing salt, the 1 m³ hopper enables continuous operation covering 12-15 kilometres per unit. Unlike 0.3 m³ models which require returning to salt refilling stations every 3-4 kilometres, it substantially cuts transit time for round trips.

Operation Route Allocation: One unit is assigned to urban arterial roads with increased spreading width and material output. The other two units operate in narrow inner residential streets and surrounding roads of primary and secondary schools with reduced spreading width for precise salt distribution, avoiding salt waste and ensuring travel safety for residents and students.

Public Site Coverage: Salt-sand mixtures are spread on open-air hospital parking lots, town shopping-centre parking lots and bus terminals to melt thin ice and prevent vehicle skidding.

Pre-spreading operations are carried out ahead of cold-wave warnings. De-icing agents are pre-applied on suburban rural highways to prevent road-surface icing.

Highlights of Equipment Performance: The polyethylene hopper resists rust even under long-term exposure to highly corrosive industrial salt in winter. Given humid winter air that tends to cause salt caking, the V-shaped hopper structure mitigates material bridging and blockages, minimizing on-site breakdowns in field operations.

Upon the end of the snow season, municipal staff can directly hoist and remove the spreaders. The pickups resume regular cargo transportation. Each pickup supports both snow-removal tasks and daily municipal material transport, improving equipment utilization and avoiding additional vehicle-procurement costs.


Model

XHS-10000

External dimensions

1640*1300*1080MM

Net weight of spreader

272KG

hopper capacity

1M³/1200KG

Material of hopper

Polyethylene/Stainless Steel

Feeding mechanism

Internal spiral screw conveyor, adjustable speed (16CM spiral outer diameter * 23CM spiral spacing)

Spreading motor

High torque DC12V (24V optional) 200W

Vibration motor

Dual vibration motor DC12V (24V optional)

Receiver hook

4 categories

Swing disk assembly

Easy to disassemble

Controller

Dual speed control with explosion-proof function and overload protection

Minimum carriage length

168CM

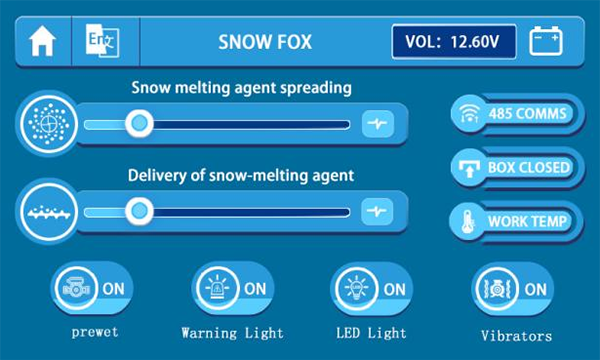

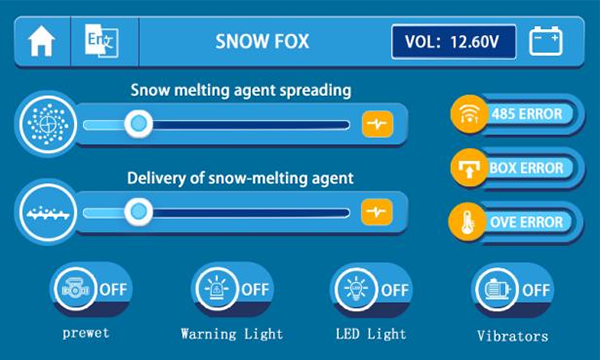

Polyethylene spreader controller:

图片1 图片2


FAQ

1.Are you road maintenance machine factory or trading company?

We are a professional direct factory focusing on road maintenance machinery. All of our 1m³ snow melting spreaders are independently produced in our factory. We can provide factory competitive prices, stable quality control and support OEM customized service.

2. Do you supply spare parts for long‑term after‑sales?

Yes, we provide permanent long-term spare parts supply for our 1m³ de-icing spreader. All wearing parts and core components are always in stock to support your local after-sales maintenance for many years.

3. What discount for full container FCL order?

We support good quantity discount for FCL full container orders. The more quantity you order, the more favorable the price. We will provide you with the best exclusive FCL quotation according to your actual order quantity.


The equipment warranty period is 12 months, calculated from the date of equipment exfactory. For product quality defects, the Supplier shall provide maintenance guidance via telephone; onsite service is not included under warranty. Should onsite service be required, it shall be subject to mutual negotiation between both parties, and the Buyer shall bear all relevant travel and accommodation expenses. For componentrelated quality failures occurring within the warranty period, free repair or replacement shall be available upon mutual agreement with the Supplier. Wearandtear parts are excluded from this warranty.


The Supplier shall arrange logistics to deliver the equipment to the location designated by the Buyer. Freight costs shall be borne by the Buyer. The Buyer shall be responsible for the unloading and acceptance of the equipment.


Operation process of spreader controller:

f7f5044664be249eef27f7fa3cf3a145c720f76c1520b-tkSti1

Power on:

Press and hold the power button for 3 seconds. Open the screen, display the control interface, and show real-time voltage.

Turn on the power indicator light. When the power supply voltage is abnormal, the indicator light flashes.

cb5c90dc939a9315e96b4b2acf17b519f7ec163a13415-Jmq6is

Vibration, pre wetting, warning lights, lighting: switch

The above correspond to the four relay switches on the driver. Activate and deactivate through signal transmission commands. Feedback status information after normal opening or closing. The controller receives status information corresponding to the activation indicator light and screen display. The screen displays three states: 1 off, 2 on, and 3 abnormal.

8d994f3de70dc51e26e7f24530c4a83623edec5715784-GXArVR

Conveyor belt and spreading motor:

The above are controlled by two speed control knobs. The speed control knob has the same functions as vibration, lighting, etc. Rotating EC11 corresponds to an increase in PWM speed regulation in the clockwise direction. The speed regulation will have 50 gears. Corresponding to 50 level PWM speed regulation of the driver. The screen displays 10 levels from 1 to 10.

When the motor experiences overcurrent, the driver receives an overcurrent signal. The driver shuts down the corresponding motor. Send abnormal motor commands to the controller. The corresponding prompt of the controller is abnormal.

b98d9d9722592e05c1ee1214d58bbeab8e07334a147d2-NcTSCF

Overheating protection and emergency stop signal:

When the driver receives an up signal, all functions are turned off. And provide feedback to the controller

e9820a96ef4c0a96b963b8e80d174d299ac2a2c91355d-Q9P7iK

Controller box door open detection:

The external emergency stop IO of the controller receives a low signal indicating that the box door is open. At this time, all motors are turned off, leaving only the warning lights and illumination lights unchanged.

0a86f1049da4f5cc27b966ad79229c174f7e590a13cd9-wou8Zi Shutdown:

Press and hold the power button for 1 second to turn off the device. The controller and driver enter low-power sleep mode. Short press the power button to turn off all functions.
