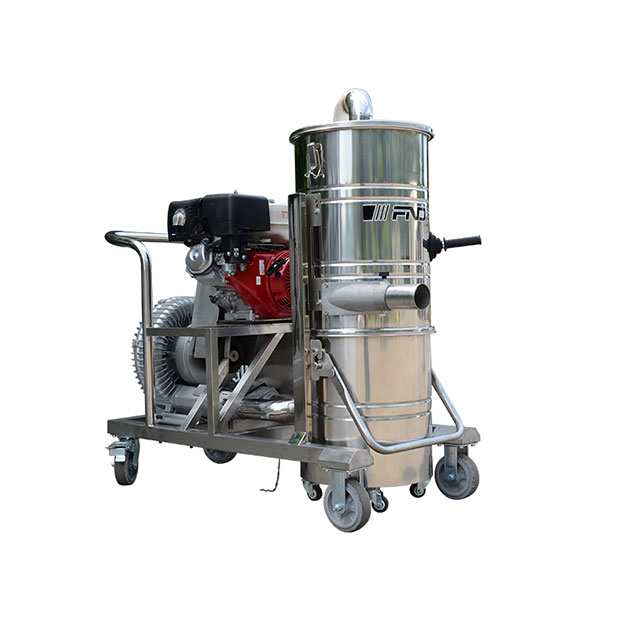

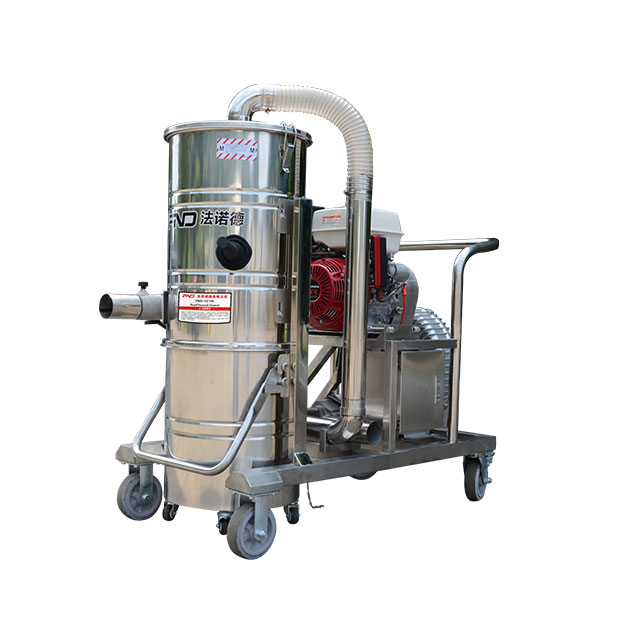

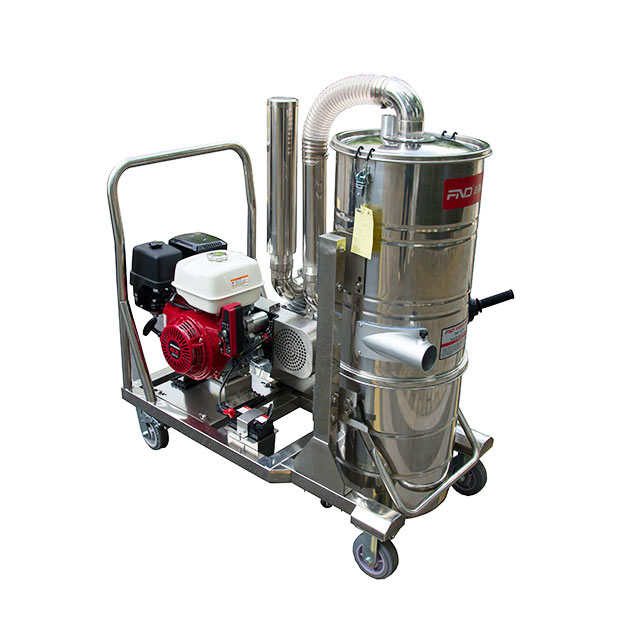

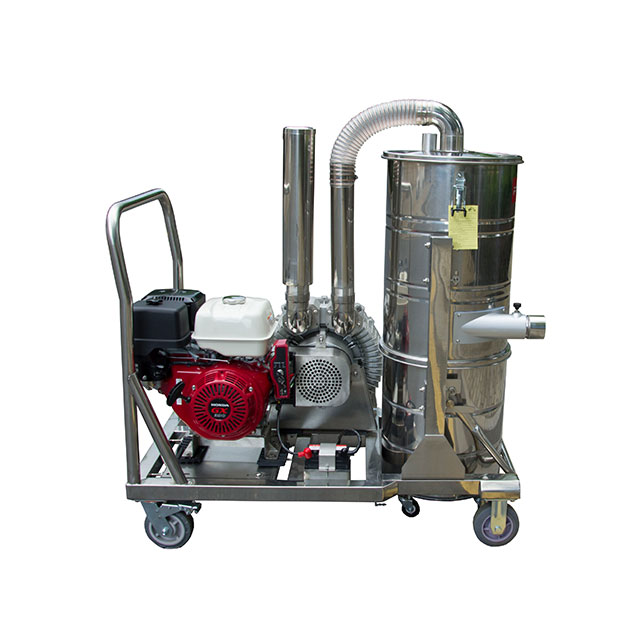

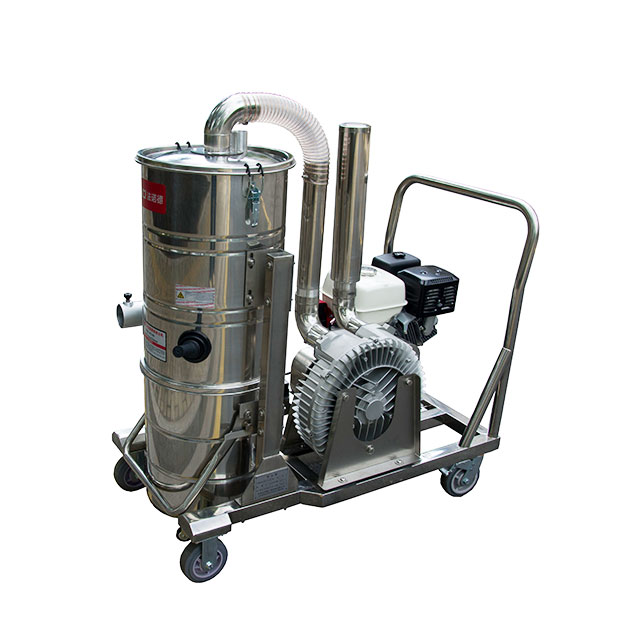

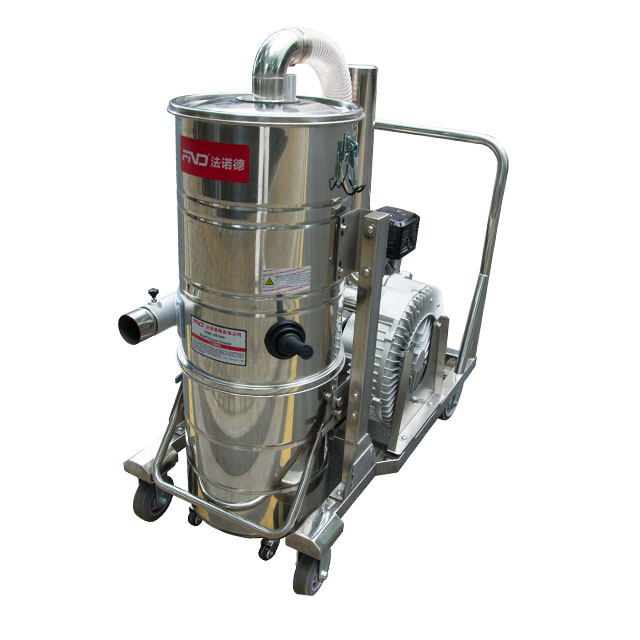

![]() | 1. Gasoline-powered without mains supply, ideal for off-grid field operations Equipped with Honda GX390 13HP gasoline engine with electric start and recoil pull-start dual modes. No external power supply is required, perfectly suited for overseas highway maintenance and remote job sites without electricity, free from power-source constraints. 2. Powerful and consistent suction for long-duration continuous operation Adopting German-technology high-pressure vortex pump. The air-cooled engine enables non-stop long-time running with low vibration and noise. It delivers stable suction of 300 mbar and air flow of 1000 m³/h without performance drop during extended work, efficiently removing grit and dust from road cuttings and cracks. 3. Multi-stage washable filter plus pulse-blow cleaning system to cut overseas maintenance costs Fitted with non-woven fabric filter and FPPR filter cartridge with maximum filtration precision up to 0.3 μm. Built-in air back-blow device removes residual dust from filters. Reusable wash-able filters reduce overseas consumable purchasing frequency and spare-part expenses. 4. Stainless-steel trolley-type modular dust bin for convenient on-site waste disposal Constructed with stainless-steel trolley frame and 100L detachable dust tank with smooth inner surface for easy cleaning. Independent handle facilitates effortless dumping of construction debris. Rear storage rack accommodates nozzles and hoses for convenient site mobility. Suction inlet diameter can be customized from φ50 mm to φ100 mm upon project requirements. 5. Robust build for harsh outdoor working conditions Reinforced pressure-bar design provides high load-bearing capacity. Weighing 80 kg, the machine features impact-resistant construction. Supplied with a 5 meter extended suction hose, it works in tandem with road cutters and grinders, widely applicable for overseas municipal & highway maintenance as well as factory floor construction projects. |
Model | FND-XC100 |
External Dimensions | 1200*658*1390 mm L*W*H |
Net Weight | 80KG |
| Engine Section | |
Engine | Honda GX390 13hp |
Starting Method | Electric start/manual kickback start |
Exhaust volume | 270.1ML |
Power | 9.5KW |
Air Volume | 1000 M³ |
Suction | 300mbar |
| Storage Tank | |
Volume | 100L |
Tracheal Combination | 5-meter-long extended trachea |

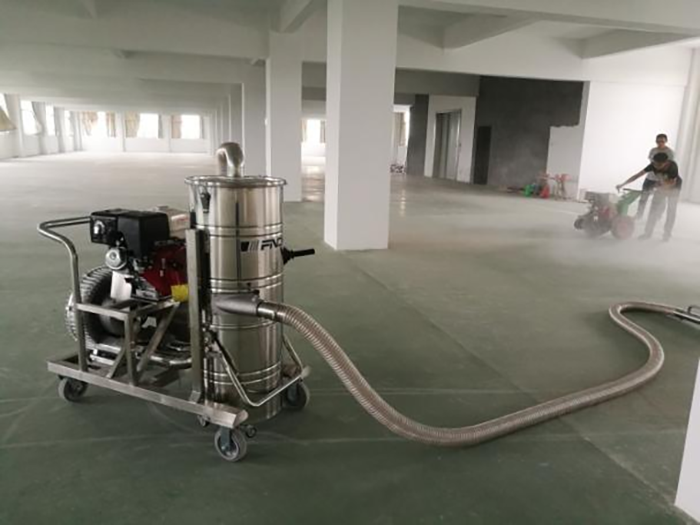

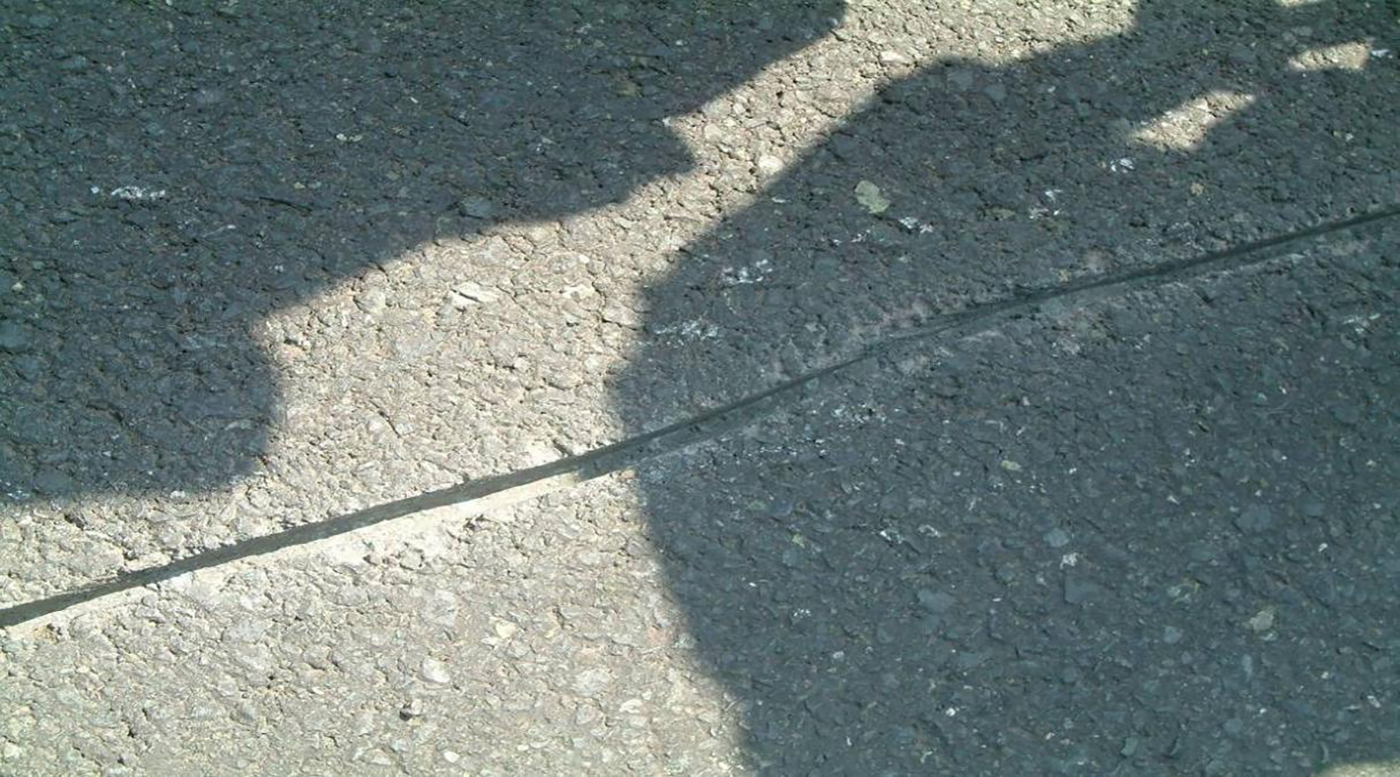

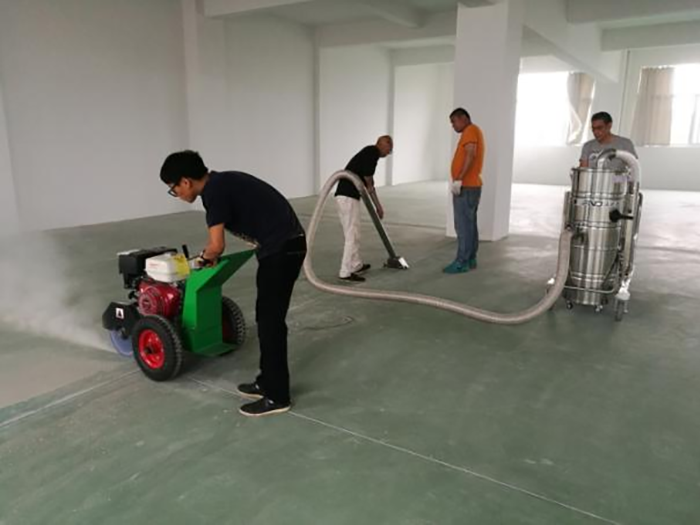

A spring asphalt‑crack maintenance project was carried out on the Hof‑Bayreuth section (KM128‑KM134) of Highway A93 in Bavaria, Germany. This mountainous motorway includes multiple work zones far from public power grids, where mains electricity supply was unavailable on‑site. A local road‑maintenance contractor deployed the gasoline‑powered FND‑XC100 road industrial vacuum cleaner to remove debris and dust after crack cutting with road groove cutters.
During site operation, driven by the Honda GX390 gasoline engine, the machine worked continuously throughout full shifts without external power supply. Stable negative‑pressure suction of 300 mbar thoroughly extracted asphalt fragments, grit and fine dust from crack grooves. The built‑in air back‑blow cleaning device together with washable FPPR filter cartridges extended filter service life and greatly reduced consumable procurement costs on‑site. The 100‑litre detachable stainless‑steel dust tank enabled easy waste dumping, and the rear storage rack kept suction nozzles and 5‑metre suction hose well organized.
Compared with traditional high‑pressure air blowing, the FND‑XC100 eliminated fugitive dust emissions, complying with strict German construction‑site environmental regulations and protecting workers’ respiratory health. The integrated workflow of grooving and vacuum cleaning cut working hours by approximately 22 percent per kilometre of cracks. Upon project completion, the contractor placed a follow‑up order for three additional FND‑XC100 units for routine pavement maintenance across federal and state highways in Bavaria.
![]() | ![]() |
![]() | |
We are FANUODE, an original-equipment manufacturer with our own factory, not a trading intermediary.
We adopt tiered pricing for bulk purchases. Favourable rates are negotiable for bulk orders. Larger purchasing quantity brings more price margin, and FCL full-container orders enjoy particularly prominent advantages. OEM service is also available. Please advise your target order quantity, and we will work out our best quotation for you. We look forward to establishing long-term win-win cooperation.
The equipment warranty period is 12 months, calculated from the date of equipment exfactory. For product quality defects, the Supplier shall provide maintenance guidance via telephone; onsite service is not included under warranty. Should onsite service be required, it shall be subject to mutual negotiation between both parties, and the Buyer shall bear all relevant travel and accommodation expenses. For componentrelated quality failures occurring within the warranty period, free repair or replacement shall be available upon mutual agreement with the Supplier. Wearandtear parts are excluded from this warranty.
