Asphalt Crack Filler Machines

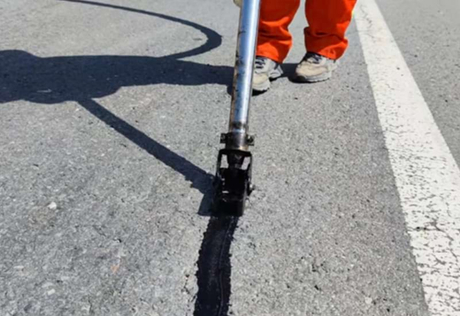

This best machine to fill asphalt cracks is used to seal cracks in asphalt pavement, preventing water from seeping into the cracks and flowing into lower roadbeds, accelerating the expansion of cracks and causing them to evolve into road pits. This equipment can effectively repair pavement cracks, extend the service life of roads, and improve road safety and comfort.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

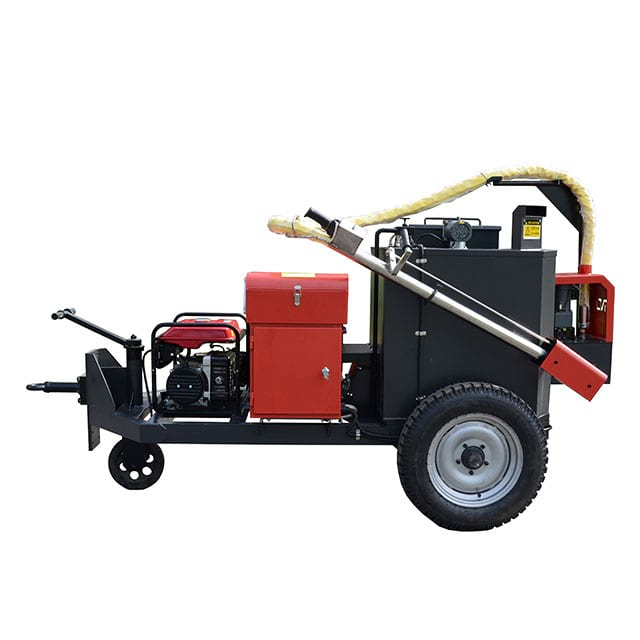

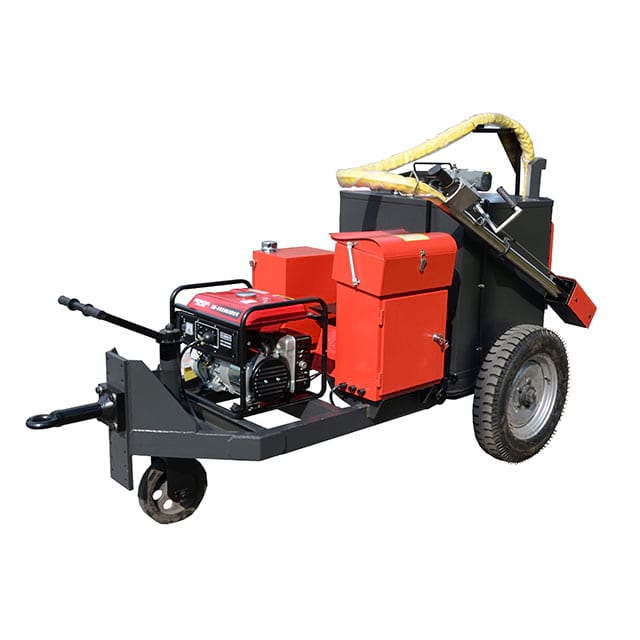

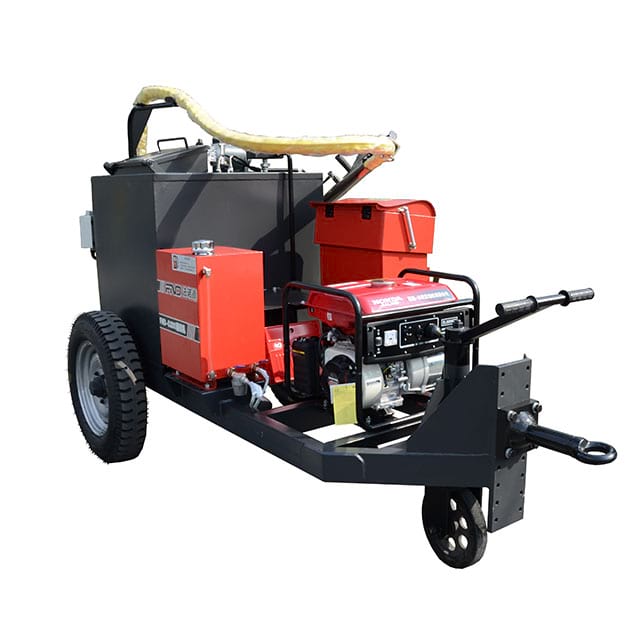

  • FND-TG200

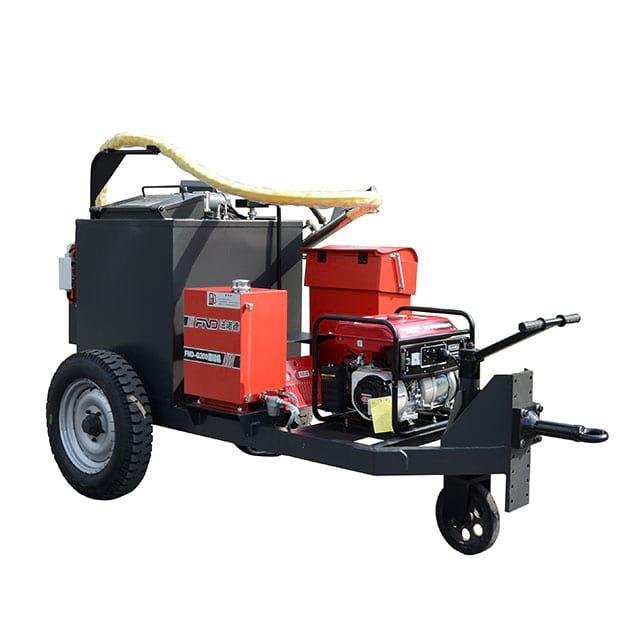

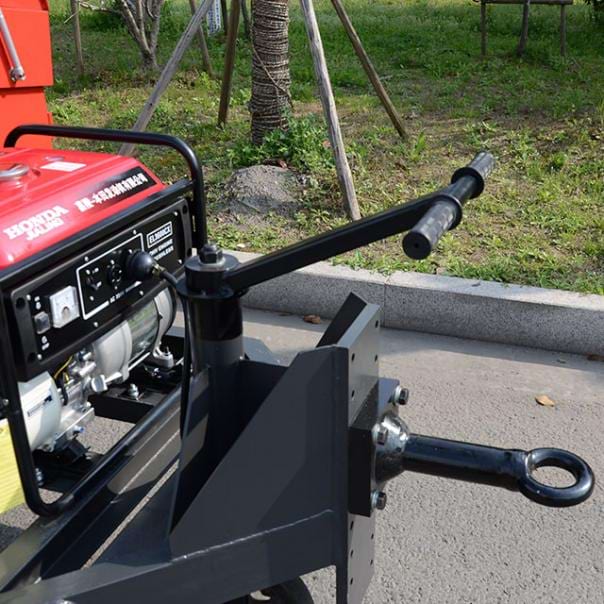

1. Core Highlight:Dual Trailer-towed / Manual-push Travel Mode, 200L Large-capacity Melting Tank for Highway Maintenance Built on heavy-duty trailer chassis. Long-distance job-site transfer can be realized via vehicle towing, while short-range on-site movement can be done by manual pushing, eliminating repeated hoisting and disassembly work and greatly improving transit efficiency for multi-section highway maintenance. The 200L large-volume melting tank reduces material-refilling shutdown intervals and supports continuous large-scale crack repair on highways and provincial roads. Heavy-duty truck tires deliver good trafficability and stable running performance on rough off-road construction sites.

2. Indirect Thermal-oil Heating & Dual Digital Intelligent Temperature Control, Prevent Asphalt Sealant from Over-burning Indirect closed thermal-oil heating together with specially-designed 45° downward-blow combustion chamber ensures sufficient combustion and high heat-utilization rate. Dual digital LCD thermostats monitor and adjust three-channel temperatures of thermal oil, hot-pour sealant and discharge hose in real-time. Automatic constant-temperature control avoids local over-heating, carbonization and burning of asphalt sealant and keeps stable material performance during construction.

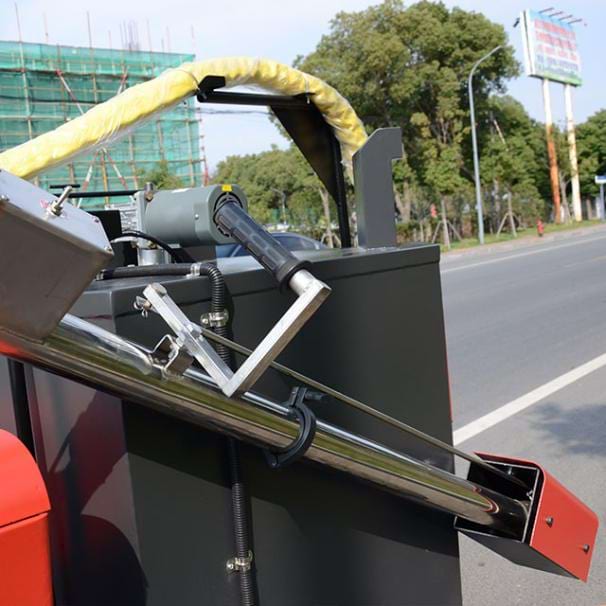

3. Electric Trigger on Sealing Gun Handle, 5.5m Electric-heated Hose with 270° Free Rotation The sealing gun handle integrates electric pump-control trigger. Operators can start or stop feeding pump directly at gun-tip, minimizing waste of hot sealant. The imported 5.5-meter full-length heating hose can rotate 270° freely with excellent anti-bending performance, adapting to both longitudinal and transverse pavement cracks and covering wide working range. Thermal-insulation layers are applied on hose and tank outer surface to reduce scald-risks for operators.

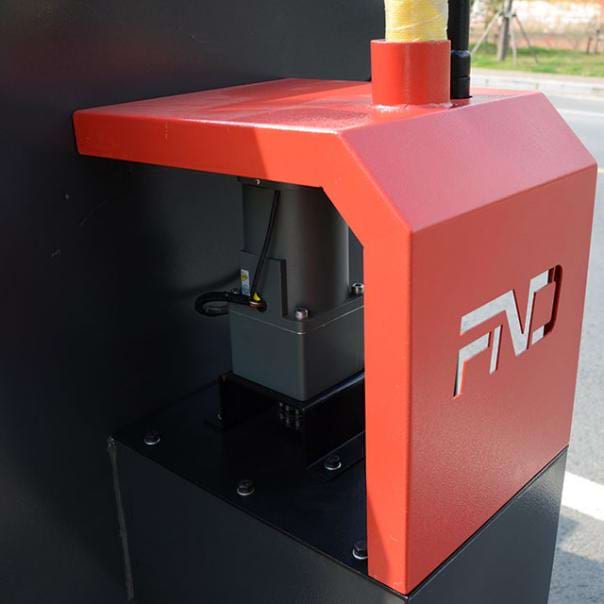

4. Human-friendly Low-height Filling Port & Integrated Electric Agitation System Low-position filling opening with anti-splash baffle improves safety during material feeding. A 400-watt Taiwan-brand electric stirring motor keeps sealant circulating inside tank to avoid local material sedimentation and solidification. External oil-circulation heating pump features infinitely-variable speed and forward-reverse rotation function. Feeding flow can be flexibly adjusted and pump blockage risk is lowered.

5. Self-contained Full Power-system for Independent Field Operation & High Integration Level Equipped with Honda ER3600CX gasoline generator for self-power supply, no external mains power is required on construction site. Built-in toolbox stores all on-board tools. A dedicated gun-warming storage compartment is arranged at rear of melting tank. The sealing gun can be placed inside for heat-preservation during work breaks to prevent pipeline blockage caused by cooled solidified sealant.

Project Name

Specification parameters

Model

FND-TG200 Asphalt filler

Gasoline generator

Honda ER3600CX

Feeding pump

Imported oil circulation heating type material pump 2CG-2

Burner

Light oil burner(RIELLO)

Length*width*height

3000mm*1250mm*1800mm

Weight

750KG

Output hose

Imported 5.5M fully electric heating hose

Temperature Control System

Microcomputer automatic control, dual digital display screen

Heating method

Indirect heating of thermal oil and external pump oil circulation heating

Feed mechanism

External material pump, stepless speed control, can move forward and backward

Feed motor

Taiwanese brand 400 watts

Volume of melt tank

200 liters

Quantity of heat transfer oil

60 liters

Material heating time

45 minutes at room temperature

Specification of feeding port

280*480

Glue pump

Continuously variable transmission

Mixing method

Electric mixer

Mixing motor

Taiwanese brand 400 watts

Enclosure

Built in toolbox and accompanying tools




We are professional manufacturer for pavement-maintenance machinery with self-owned in-house production workshop. OEM modification service is available. All machines are CE certified. We support single-unit retail, bulk purchase and FCL full-container export for global customers.

· ✅OEM Customization: Working voltage, hose length, temperature-control parameters, trailer-hitch interface and control module can be modified according to international project requirements.

· ✅CE Certification: Full set of CE documents are provided for customs clearance and international project tender submission.

· ✅Full-machine Warranty: Complete-unit warranty is offered, special warranty covers core assemblies including generator, burner and material pump.

· ✅Global Spare-parts Supply: Long-term cross-border supply of wear-parts and replacement components.

· ✅Overseas On-site Technical Service: Overseas engineers are available for on-site commissioning and installation guidance.

· ✅FCL Full-container Wholesale Discount: Special volume discount for bulk full-container project orders.

· ✅Tender Document Support: Supply technical datasheets, brochures and factory qualification documents for bidding projects.

· ✅Clear Production Lead-time: Confirm production schedule for wholesale & project orders to guarantee on-time delivery for road-maintenance projects

ISO2ISOISO3


Scenario 1: Large-scale Crack Repair & Maintenance for Highways & Provincial Highways

Challenges: Highway and provincial-road networks stretch for long distances with scattered crack positions. Machines need frequent transit between multiple working spots. Small-volume crack sealers require frequent shutdown for refilling and reduce overall construction efficiency. Remote field sites have no mains-power supply. Improper heating may burn asphalt sealant and ruin material performance. Pavement contains both transverse and longitudinal cracks of various shapes.

Our Proposed Solution: Adopt FND-TG200 trailer-mounted 200L asphalt crack sealer. Trailer chassis can be towed by service trucks for fast long-distance transit without hoisting work. The 200L large-capacity melting tank cuts refilling frequency and enhances continuous construction output. Self-contained Honda generator enables independent operation at off-grid sites. Indirect thermal-oil heating plus dual-channel digital temperature control precisely avoid asphalt burning. The 5.5-meter rotatable electric-heated hose fits multi-direction pavement cracks to finish full-line highway crack-sealing rehabilitation.

Scenario 2: Concentrated Crack Repair for Municipal & Airport Pavements

Challenges: Crack-repair work spots for municipal roads and airport aprons are widely scattered. Some narrow zones cannot be accessed by towing vehicles, requiring manual short-distance machine relocation. High temperature feeding operation brings potential scald hazard. Hot sealant inside sealing gun tends to cool down and solidify during work breaks and blocks pipelines. Bulk purchase and parameter customization may be required for certain projects.

Our Proposed Solution: Deploy FND-TG200 trailer-mounted crack sealer. Trailer-towed for long-haul transport, switch to manual push-mode for narrow-zone on-site relocation. Low-height filling port with anti-splash baffle plus multi-point thermal-insulation structure reduce operator scald risks. Rear gun-warming compartment keeps sealing gun heated during intermissions and prevents pipeline blockage from cooled sealant. Forward-reverse function of external pump helps clear minor blockages. OEM parameter adjustment is supported to adapt different airport and municipal project conditions.

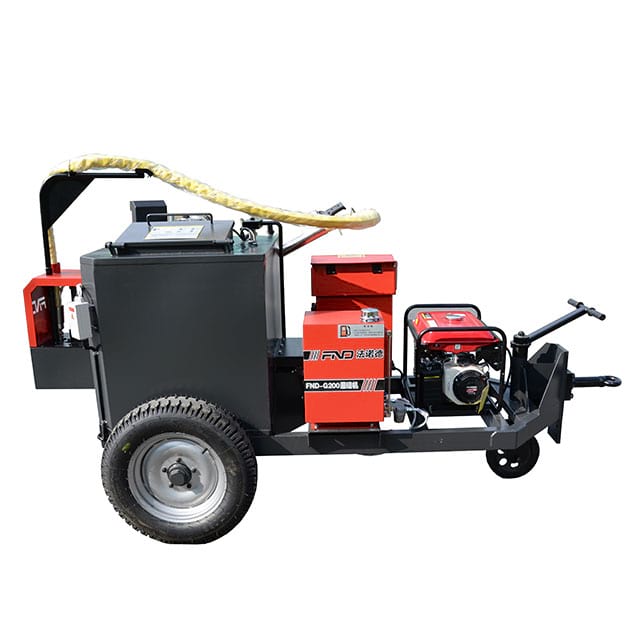

FND-TG200 (2)


1. Machine Trial Test: Domestic customers can witness machine trial-run at our factory. Overseas buyers can receive full trial-run videos and real-site operation footage.

2. Export Container Packing: Export orders are secured in fumigated solid wooden export crates, suitable for FCL full-container or LCL less-than-container sea shipment to avoid transit damage.

3. After-sales Spare-parts Support: Long-term supply for full range of wearing parts including burner, generator, feeding pump, electric-heating hose and temperature-control module. Spare-parts-only cross-border orders are acceptable.

4. Technical Assistance: Chinese & English operation manuals are supplied. Free remote video commissioning support is available. Overseas engineer on-site service can be arranged upon request.

5. Negotiable Price for Large-volume Orders: Prices are negotiable for large purchase quantities. Please send your procurement list for further business discussion.


https://www.szfanuode.com/Crack-Grooving-Machine-for-Roads-pd585024548.html

https://www.szfanuode.com/Asphalt-Mixing-Machine-pd529914548.html

https://www.szfanuode.com/Asphalt-Crack-Filler-Machines-pd549334348.html


Technical Questions

Q1: What travel modes does FND-TG200 crack sealer support- What is melting-tank capacity?

A: This machine supports dual travel modes: trailer-towed long-distance hauling and manual push-movement on-site. Melting tank volume reaches 200 liters, ideal for large-area crack-repair projects on highways.

Q2: What are the advantages of indirect thermal-oil heating-Will it burn asphalt sealant?

A: Thermal-oil indirect heating avoids direct flame contact with melting tank. Cooperated with dual-channel digital temperature controller, temperature can be precisely regulated to effectively prevent local over-heating, carbonization and burning of hot-pour asphalt sealant and preserve material performance.

Q3: Can discharge hose rotate?Is the hose equipped with heating function?

A: It is fitted with imported 5.5-meter full-length electric-heating hose which can rotate 270° freely, adapting to longitudinal and transverse pavement cracks of all kinds.Q4: Can this crack sealer work at sites without external power supply?

A: Equipped with Honda ER3600CX gasoline generator for self-power supply. It can independently complete melting, stirring and crack-sealing procedures at remote field sites without mains electricity.

Q5: How to handle minor blockage inside material pump?

A: The external feeding pump supports forward-reverse rotation. Minor blockage can be cleared by reversing pump rotation.

B-End Procurement FAQ

Q1: Can you offer CE certificate for customs clearance & project tender?

A: Yes, full CE certification documents can be provided for customs clearance and international tender bidding.

Q2: If I have special requirements, can we discuss and adjust the machine accordingly?

A: Yes. Please share your workin-site conditions and special requirements, we can communicate and adjust machine configuration as per your demands.

Q3: What is MOQ for bulk order of this asphalt crack repair machine?

A: MOQ: 1 unit. Special wholesale discount is available for FCL full-container bulk orders.

Q4: Do you support OEM custom machine configuration?

A: Yes, OEM modification is available for hose length, trailer-hitch interface, temperature-control parameters and working voltage according to client requirements.

Q5: Can your engineer provide overseas on-site installation guidance?What is the cost?

A: Overseas on-site technical support can be arranged. Service cost will be calculated individually based on destination country and service duration. Free remote video commissioning is also provided.

Q6: What discount for FCL full-container project order?

A: Discount depends on order quantity, machine configuration and destination port. Please send inquiry for formal quotation.

Q7: How long is production lead-time for wholesale project orders?

A: Production schedule is subject to order quantity. Normal lead-time:7-15 working days. Please confirm lead-time in advance during peak road-maintenance season.
