Crash Truck

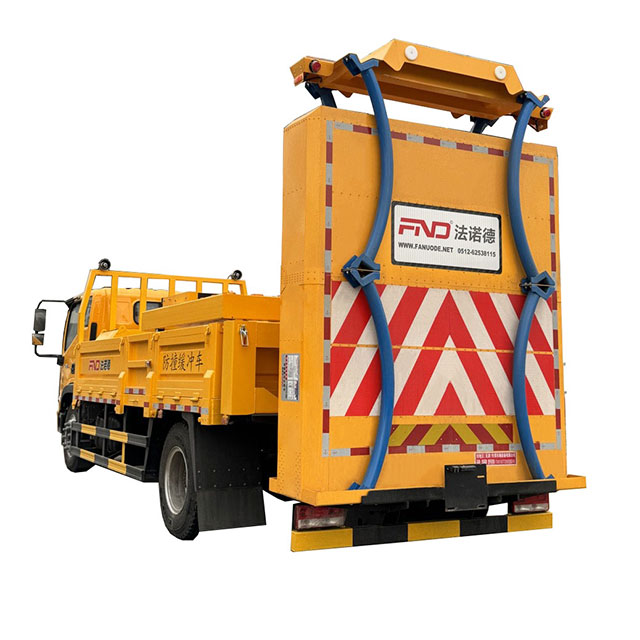

The 100K crash truck is a special vehicle designed for road construction and maintenance operations. It absorbs up to 70% of the impact energy through the rear anti-collision buffer energy absorbing module (honeycomb aluminum combined with curved structure), and can withstand a maximum impact of 2 tons of vehicles at a speed of 100 kilometers per hour. It is equipped with LED arrow screens, flashing lights, and electronic warning screens visible from 500 meters away, achieving multi-level active warning. The hydraulic system can deploy the buffer module within 22 seconds, suitable for scenarios such as highways and tunnel construction.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

1. High-level Crash-energy Absorption Performance Equipped with CANSINGA-TMA 100K anti-collision cushion. The cushion shell adopts lightweight aluminum alloy plate filled with honeycomb energy-absorbing material. It can absorb impact kinetic energy from a 2-ton vehicle running at a maximum speed of 100 km/h, providing reliable safety shielding for on-site construction personnel and equipment.

2. Premium Foton Chassis with Strong Power Output Built on Foton special construction-truck chassis complying with European technical standards. Powered by Weichai WP4.1NQ190E61 engine meeting China National Ⅵ emission standard. It delivers strong power, low fuel consumption, low noise and stable driving performance to adapt to complicated working-site conditions.

3. Efficient Hydraulic Flip System Driven by dual folding hydraulic cylinders under electronic control, the anti-collision cushion completes full lifting or lowering within only 22 seconds. One-key startup function is supported. The cushion connects to truck rear via special quick-coupling connectors for fast installation and replacement, greatly improving transition efficiency between working sites.

4. Full-range Visual Monitoring & Forensic Function 360-degree panoramic cameras are arranged around the vehicle, paired with an in-cab display monitor. Drivers can observe surrounding real-time conditions at all times, realizing driving safety monitoring and video forensics for unexpected traffic incidents.

5. All-weather Warning Guidance System High-brightness LED luminous tubes and two groups of large-size LED arrow indicator lights (1960-520 mm) are installed on the warning light frame. Clear long-distance visual warning effect is guaranteed both day and night for road-construction zones.

6. Robust Body Structure & Complete Special Equipment Protective box is fabricated of national-standard Q235 steel with 3 mm thick diamond-plate bottom plate. The whole vehicle is fitted with standard warning lights, police display screen and reflective-cone storage box. It is applicable for highway, national-provincial trunk highway and municipal-road daily maintenance as well as emergency rescue safety protection.


Project Location:
North-South Expressway Section, Vinh Long City, Vinh Long Province, Vietnam
ProjectBackground:
This section belongs to Vietnam’s key national expressway renovation and expansion project. Frequent short-term lane-closure maintenance and night-time pavement repair work brought high collision risks for road-construction crews. Multiple units of  anti-collision buffer trucks were introduced to serve as mobile safety barriers for work zones.
On-site Application Effect:
Deployed at the rear of temporary closed construction sections. When accidental rear-end intrusion of social vehicles occurred, the honeycomb anti-collision cushion effectively absorbed crash energy. During 10-month continuous operation, zero casualties of on-site workers were recorded. The fast hydraulic flip function supported frequent site transfers for scattered segmented maintenance tasks. 360-degree panoramic monitoring helped local traffic-management departments complete accident-scene video forensics. The vehicle’s National Ⅵ-emission power unit also satisfied local environmental-protection requirements for engineering machinery.

Chassis:

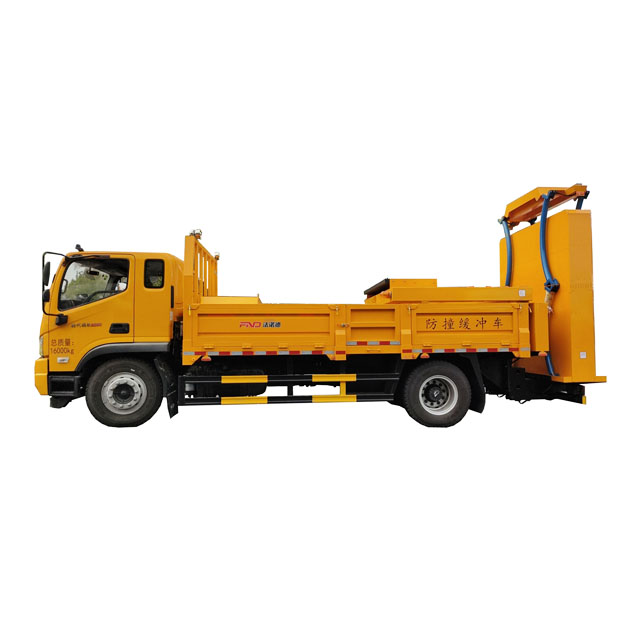

The Foton engineering vehicle special chassis adopts European technical standards, with strong load-bearing capacity, good reliability, and suitable for complex working conditions. Equipped with Weichai WP4.1Q190E61 engine, the emissions meet the national standard 6, with strong power, low fuel consumption, low noise, and smooth driving.


Vehicle structure:

The vehicle consists of a collision avoidance package, hydraulic system, and operating system.

Protective box: Made of Q235 national standard edge 3mm bottom plate pattern plate 3mm thick, the rear anti-collision package of the box adopts the well-known domestic company CANSINGA-TMA 100K model, with high-performance hydraulic system, which can meet the fast rising and falling operation, facilitate equipment transportation and site change, one click start function, equipped with high flashing warning lights, LED warning display screens and other basic warning equipment.


Vehicle assembly:


>> Imaging system:

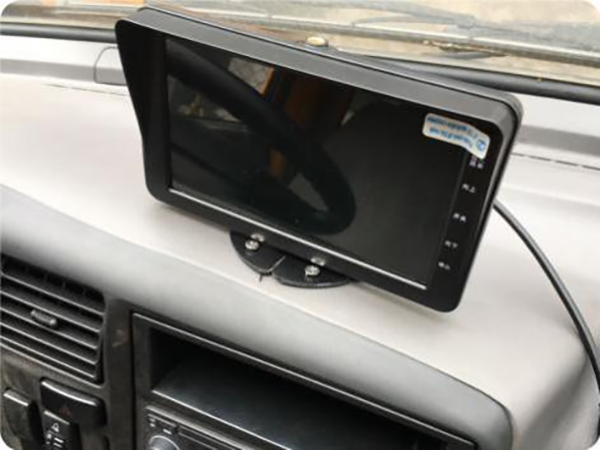

360 degree panoramic cameras are installed around the vehicle, and a display screen is installed in the driver's cabin for monitoring the surrounding environment and video evidence collection, ensuring driving safety and providing video evidence in case of emergencies.


>> Easy installation:


The truck mounted attenuator connects the cushion to the rear of the vehicle through a dedicated connector, making it simple and convenient to connect with the vehicle. The connection between the cushion and the vehicle can be completed in a short time. The replacement of the buffer pad is simple, convenient, and fast, and it comes with a built-in power unit to easily flip the buffer pad. It can absorb the energy of a vehicle with a weight of 2 tons and a maximum speed of 100 kilometers per hour for collision.



>> Warning induction system:

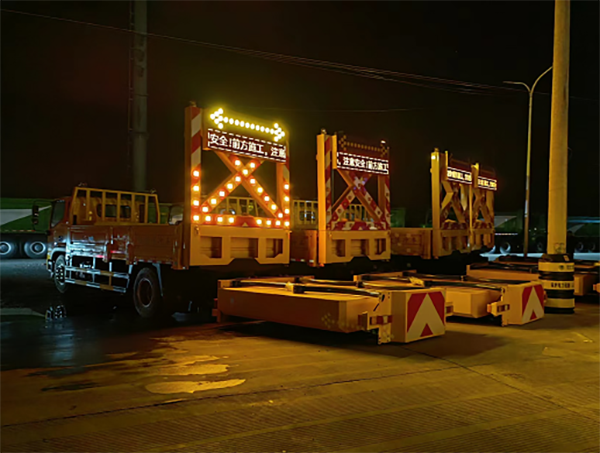

The folding hydraulic dual cylinder is used for flipping, and the oil cylinder is controlled by electronic control. The chassis vehicle obtains the electric drive source. The display screen on the light frame adopts high brightness LED light-emitting tubes, with a long viewing distance and clear display. Two sets of large LED arrow indicator lights (1960-520) mm provide good warning effect during day and night.


Technical parameters of the entire vehicle

Product name

100K anti-collision buffer vehicle

Product model

TSW5160TFZB6

Total weight (Kg)

16000

Dimensions (mm)

8360x2530x3940

Curb weight (Kg)

15805

Cargo compartment size (mm)

xx

Approach angle/departure angle (°)

18/10

Front suspension/rear suspension (mm)

1260/2600

Axle load (Kg)

5500/10500

Maximum speed (Km/h)

90

Notes

Optional driver's cab and new logo with chassis. The car only uses a wheelbase of 4500mm and specialized devices such as collision cushions, surveillance screens, and reflective cone storage boxes This vehicle is used for mobile construction, temporary lane closure, traffic accident handling, and emergency rescue sites, increasing safety protection in urban road construction, highway maintenance, and other operations.

Chassis technical parameters

Chassis Model

BJ1164VKPFA-01

Chassis brand

Foton

Number of axles

2

Number of tires

6

Wheelbase

4500,4800,4300,3800

Tire Size

9.00R20 16PR,10R22.5 16PR

Number of steel plate springs

8/10+6,10/12+9

Front wheelbase (mm)

1740,1760,1780

Rear wheelbase (mm)

1724

Fuel type

Diesel oil

Emission standards

GB3847-2005,GB17691-2018 National Ⅵ

Engine model

Engine Manufacturer

Displacement (ml)

Power (Kw)

WP4.1NQ190E61

Weichai Power Co Ltd

4088

140


1.Are you road maintenance machine factory or trading company?

We are a professional direct factory focusing on road maintenance machinery. All of our 1m³ snow melting spreaders are independently produced in our factory. We can provide factory competitive prices, stable quality control and support OEM customized service.

2. Do you supply spare parts for long‑term after‑sales?

Yes, we provide permanent long-term spare parts supply for our 1m³ de-icing spreader. All wearing parts and core components are always in stock to support your local after-sales maintenance for many years.

3. What discount for full container FCL order?

We support good quantity discount for FCL full container orders. The more quantity you order, the more favorable the price. We will provide you with the best exclusive FCL quotation according to your actual order quantity.

The equipment warranty period is 12 months, calculated from the date of equipment ex-factory. For product quality defects, the Supplier shall provide maintenance guidance via telephone; on-site service is not included under warranty. Should on-site service be required, it shall be subject to mutual negotiation between both parties, and the Buyer shall bear all relevant travel and accommodation expenses. For component-related quality failures occurring within the warranty period, free repair or replacement shall be available upon mutual agreement with the Supplier. Wear-and-tear parts are excluded from this warranty.
