Multi-Purpose Hedge Trimmer Truck

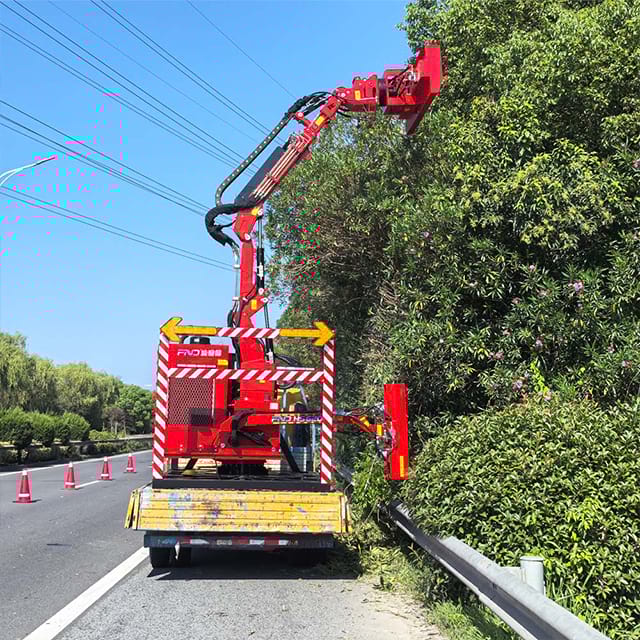

FND-HS620 intelligent dual arm fully hydraulic green comprehensive pruning machine is suitable for greening and maintenance operations on highways, national and provincial roads, etc. It can be used for pruning roadside shrubs, lawns, and trees in highway median strips. This hedge trimmer truck adopts a main and auxiliary dual arm mechanism, which can achieve simultaneous pruning of the flat side of the median strip, as well as pruning of high branches on the right side, grass cutting on slopes, platform pruning and other construction operations. It meets the requirements of different working conditions such as road greening and maintenance of hedgerows, slopes, shoulders, and high branches, and has the advantages of multifunctionality, high efficiency, safety and reliability, and flexible maneuverability.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

The professional hedge trimming truck is independently developed by Fanuode Company and has independent intellectual property rights. It is suitable for various working conditions such as median strip, roadside shrub, lawn, and tree pruning on national and provincial highways and expressways.

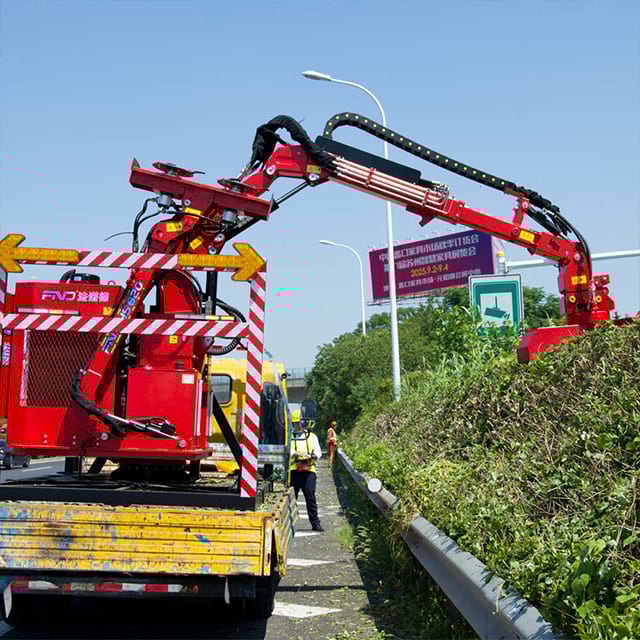

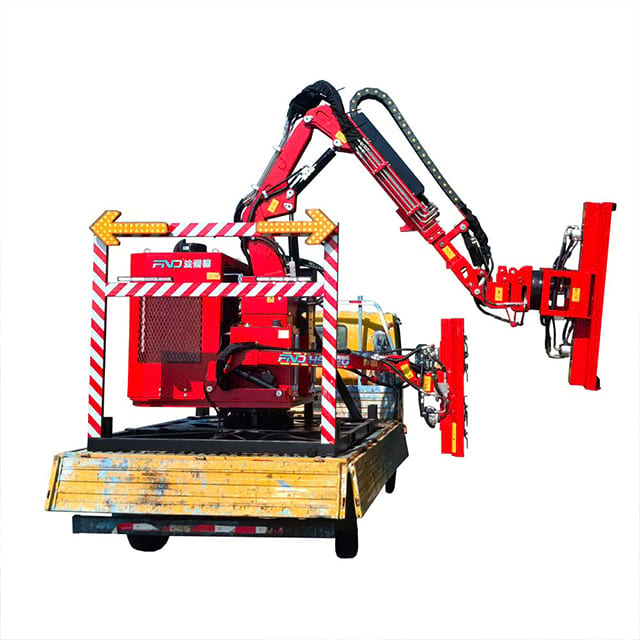

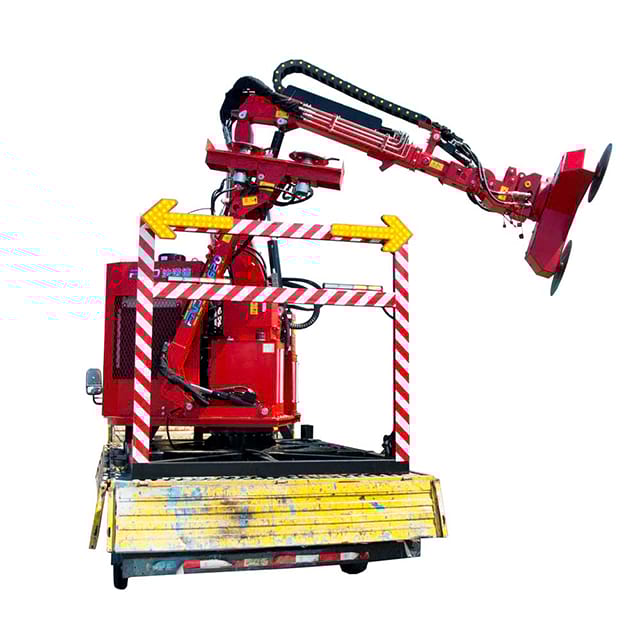

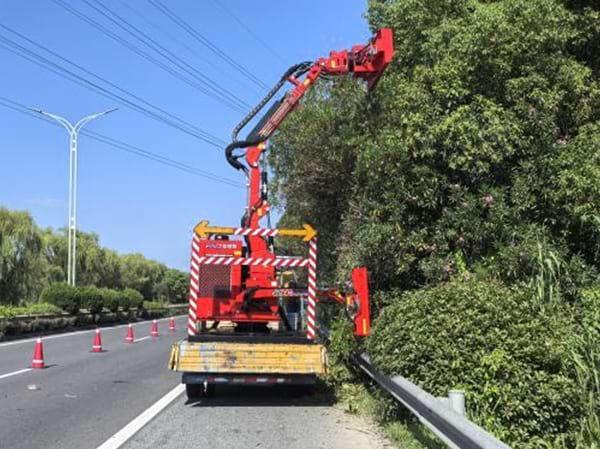

This hydraulic hedge trimming truck has dual working arms, 360 ° rotation, 210 ° folding, 1-meter extension, wireless remote control, full hydraulic drive and other functions, which can achieve simultaneous trimming of flat, side/inclined surfaces.


The hedge trimmer is designed through innovative research and development, using a fully hydraulic control system and a fully automatic three section folding telescopic arm. It has the advantages of stable performance, fast trimming speed, and low noise.

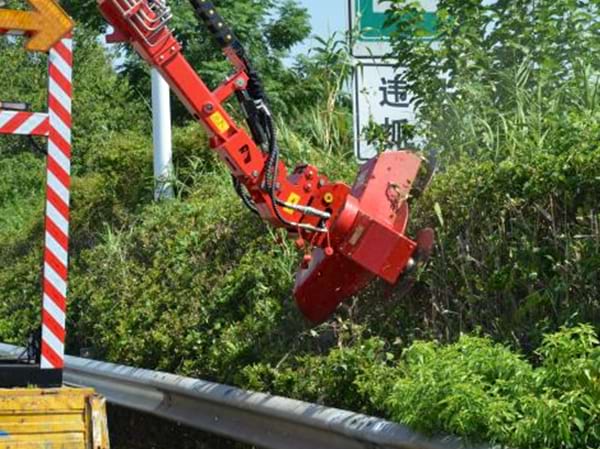

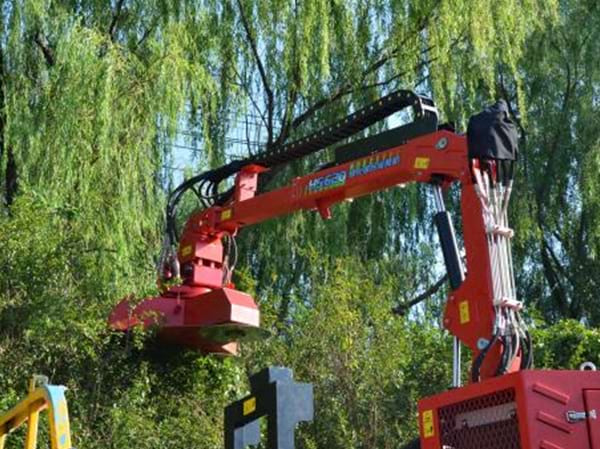

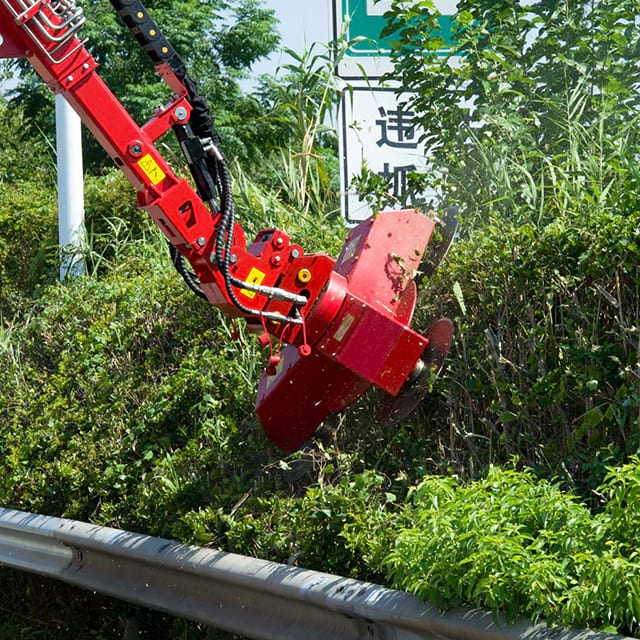

This hedge trimmer truck is equipped with specialized pruning tools for shrubs, tall branches, lawns, slopes, etc. The blades are connected in a movable manner and rotate at a high speed of 3000 revolutions per minute, ensuring safety and efficiency.


The green pruning truck has remote control operation function, which improves the safety and mobility of construction workers.




Dual arm green pruning machine

Trimmer model


FND-HS620


Driving power


Yuchai diesel engine


Control method


Wireless remote control with LCD display


Dimensions (L*W*H)

mm

3680x2100x2880


Total mass

kg

2580


Rotation angle

°

360

Main pruning device

Structural form


Three folding sections+one telescopic arm


Maximum trimming height

mm

6500


Trim width

mm

1500


Telescopic arm stroke

mm

1000

Auxiliary trimming device

Structural form


2 folds+(telescopic arm/customized)


Maximum trimming height

mm

2000


Trim width

mm

1500


Trimming diameter range

mm

0-20

Hedge trimmer (for main arm)

Model

-

CS1500


Effective working width

mm

1500


Weight

kg

198


Work pressure

MPa

18


Maximum speed

r/min

3000


Knife disk drive mode


3 sets of hydraulic motors

Hedge trimmer (for auxiliary arm)

Model

-

CS1000


Effective working width

mm

1000


Weight

kg

128


Work pressure

MPa

18


Maximum speed

r/min

3000


Knife disk drive mode


2 sets of hydraulic motors

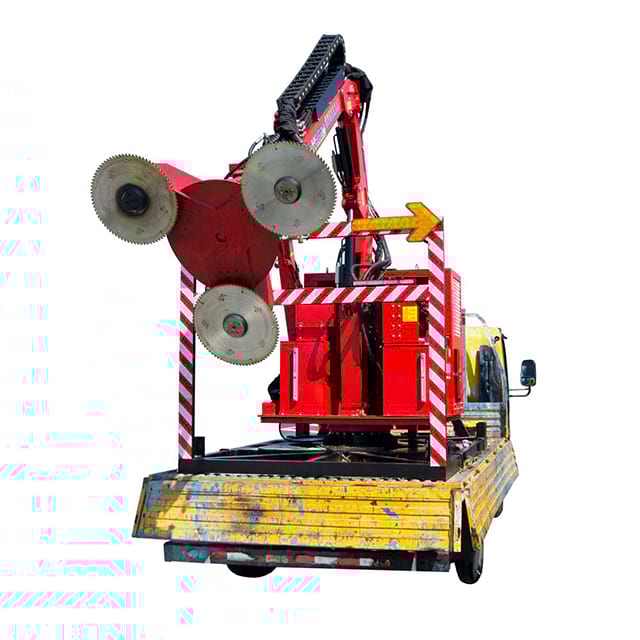

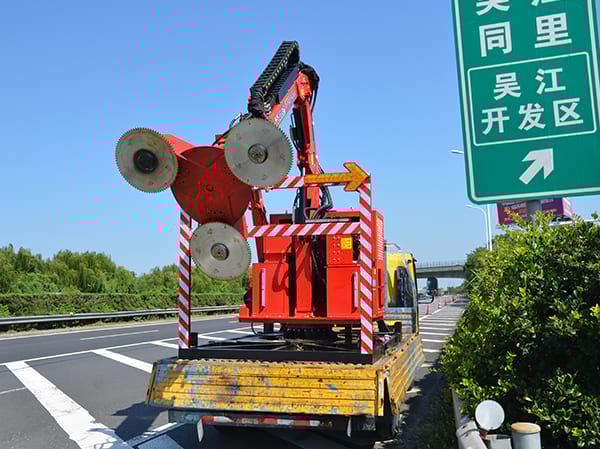

High branch pruning tool (for main arm)

Model

-

RDS1500


Effective working width

mm

1500


Weight

kg

220


Work pressure

MPa

18


Maximum speed

r/min

2800-3000


Knife disk drive mode


3 sets of hydraulic motors

Slope grass trimmer (for main arm)

Model

-

MT1250


Effective working width

mm

1250


Weight

kg

240


Work pressure

MPa

18


Maximum speed

r/min

2600-2800


Blade drive mode


Hydraulic motors
