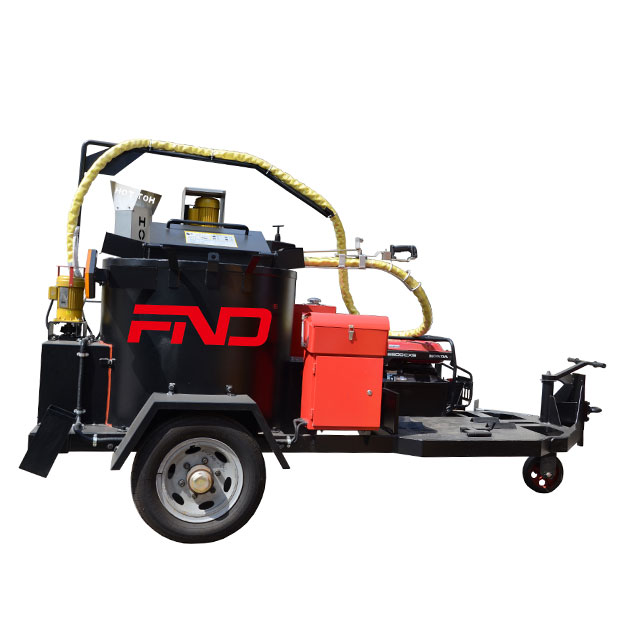

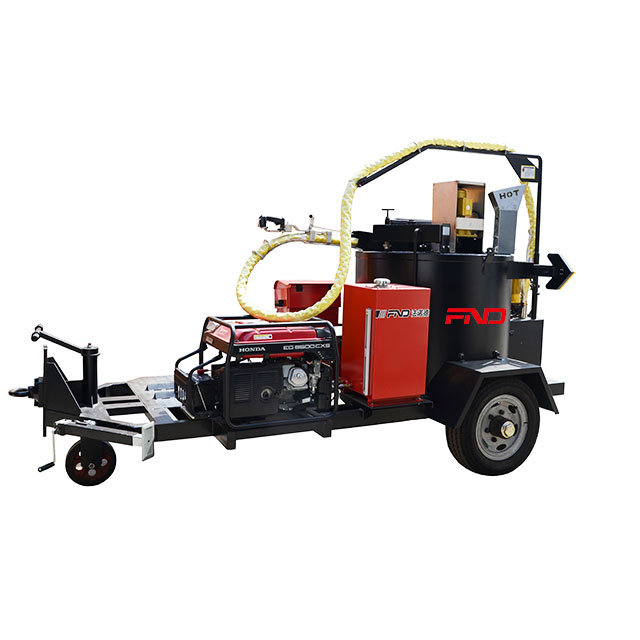

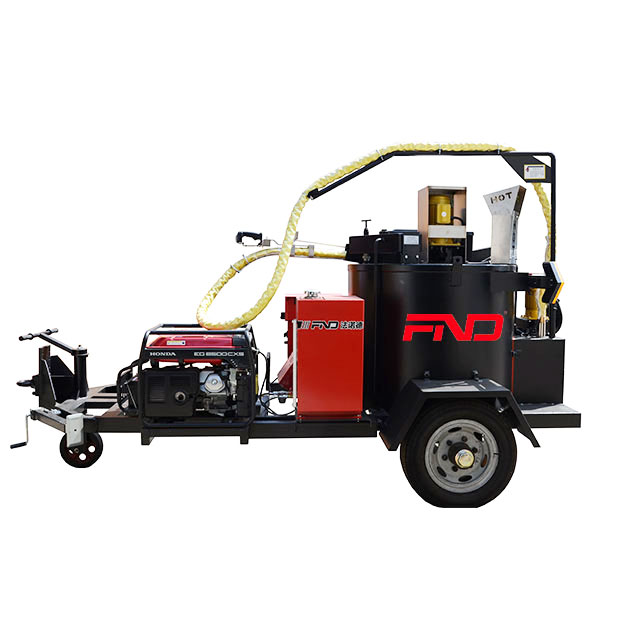

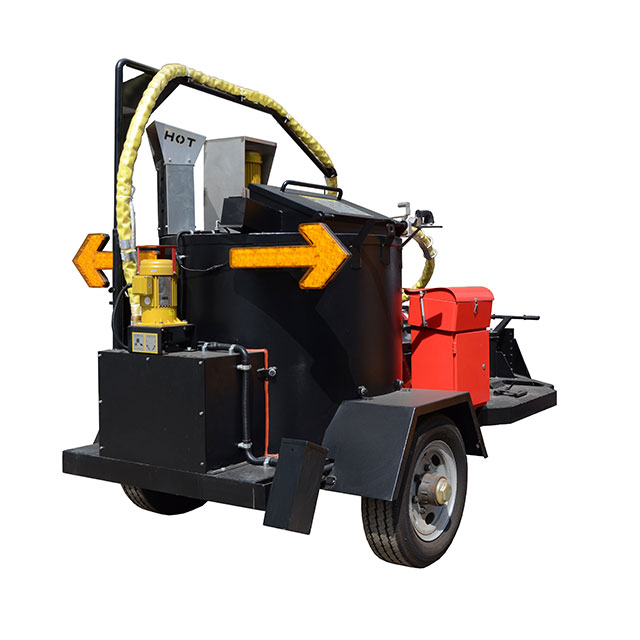

High Capacity Asphalt Crack Filling Machine

Cracks are one of the main forms of early diseases on highways, among which linear cracks such as transverse and longitudinal cracks are the most common. Grouting technology refers to the treatment techniques for these diseases, covering aspects such as grouting materials, grouting equipment, and grouting processes. The high capacity asphalt crack filling machine is the core equipment of grouting technology. The function of the hot asphalt crack filler machine is to heat the crack after the slotting and cleaning steps, and use a grouting gun to evenly pour the sealant into the groove to complete the patching work.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

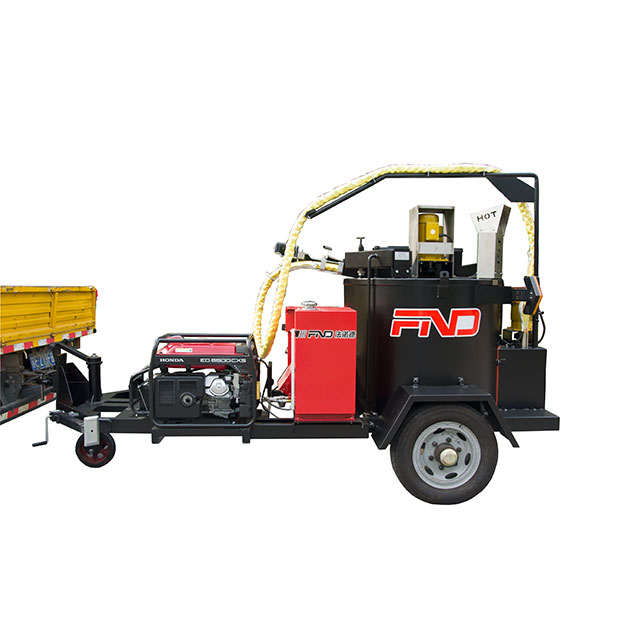

  • FND-TG500

1.Omron intelligent dual‑digital temperature‑control system independently monitors and adjusts temperatures of thermal oil, sealant and heating hose in real‑time. It prevents sealant carbonization under high temperature and keeps stable performance of filling material.

2. Unique recirculation heating design. Melted sealant at kettle bottom flows back to upper section for secondary heating, shortening melting waiting time and supporting long‑hour continuous field operation.

3. External discharge pump features higher material throughput than submersible pump. Easy disassembly, maintenance and part replacement reduce after‑sales operation cost.

4. Heat‑transfer‑oil interlayer kettle requires less thermal oil than competing products. It realizes faster heating speed and longer oil replacement interval to cut consumable expenses.

5. Specially‑structured combustion chamber with 45‑degree oblique‑down flame. Flame never directly contacts melting kettle. Complete combustion brings high heat efficiency and longer tank service life.

6. 7‑meter anti‑bending electric heating hose fitted with high‑temperature movable sealing joints at both ends. Electric filling gun with self‑lock supports adjustable output flow. Wide working radius adapts to complex pavement crack conditions.

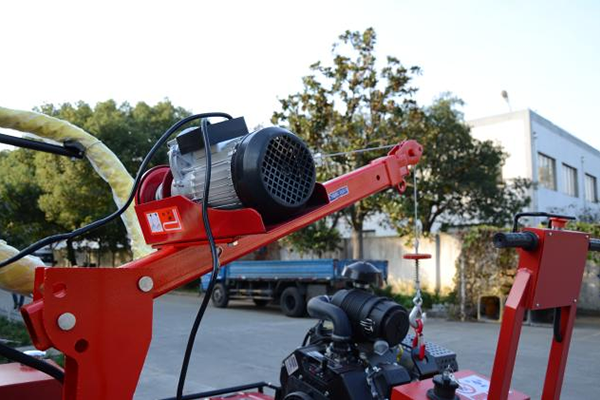

7. Built‑in lifting boom (500KG lifting capacity) for quick mounting & dismounting of groover. One trailer chassis finishes both crack grooving and sealing, lowering equipment investment and transportation cost.

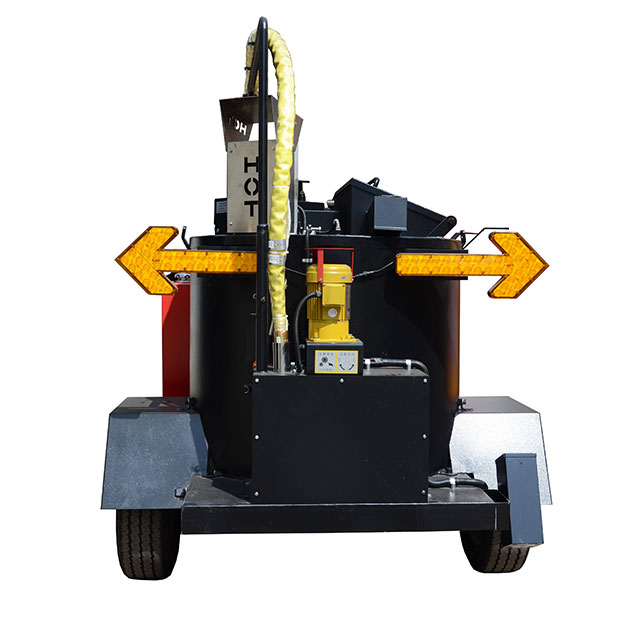

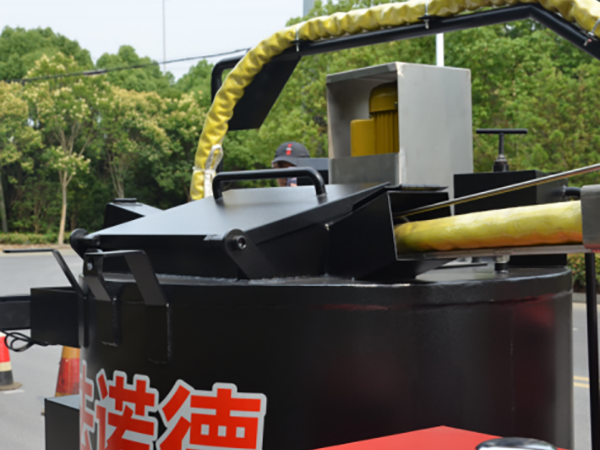

8. Low feeding height for labor‑saving and safe material loading. Equipped with arrow warning indicator lights to enhance on‑site safety for road maintenance crews.

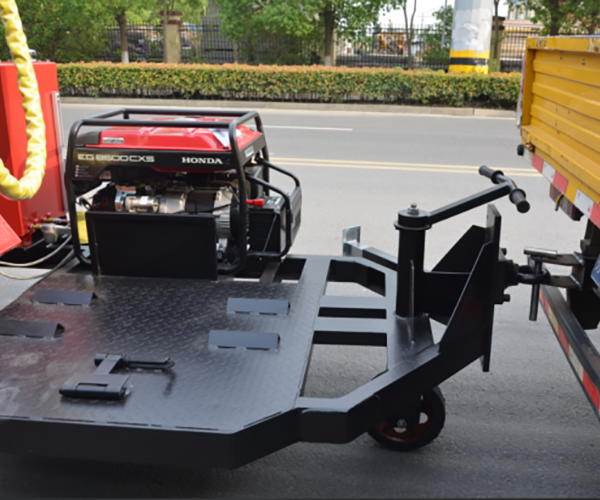

9. Equipped with original Honda generator for stable power supply. The machine can perform full sealing work independently at remote sites without external grid power.


Model

FND-TG500

External dimensions

3400*1800*2100  L*W*H

Container capacity

500L

Melting time

45mins

Whole mac

https://www.szfanuode.com/Crack-Filling-Machine-Asphalt-pd541843448.html

https://www.szfanuode.com/Asphalt-Crack-Filler-Machines-pd549334348.html

hine weight

1600KG  1850KG(Weight with grooving machine)

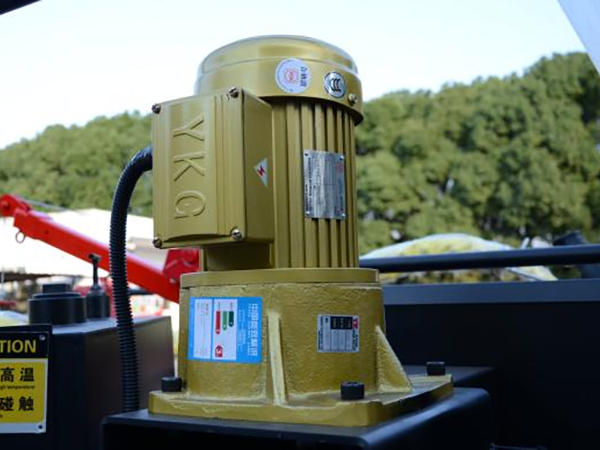

Mixing motor

750W (Yongkun, Taiwan) Mixing in both directions

Discharge motor

400W (Taiwan Yongkun) Operation panel with frequency display and stepless speed regulation

Engine Part

Engine

Honda EG6500

Rated power

5.5KW

Fuel tank capacity

82L

Thermal oil quantity

90L

Heating System

Burner

RIELLO  220V/AC  105000-350000Btu / h

Electric heating hose

220V/AC,1.65KW ,7M

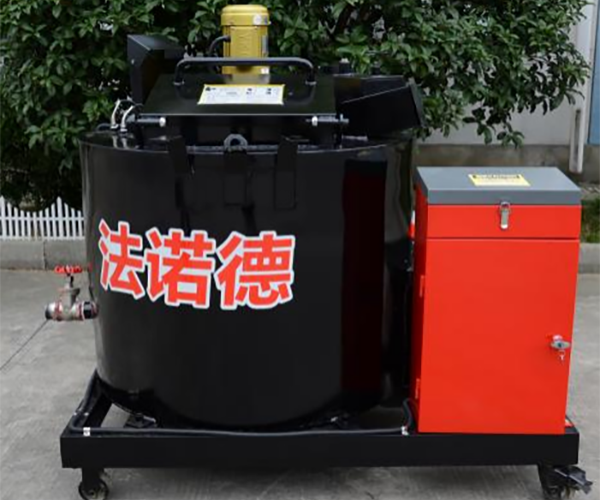

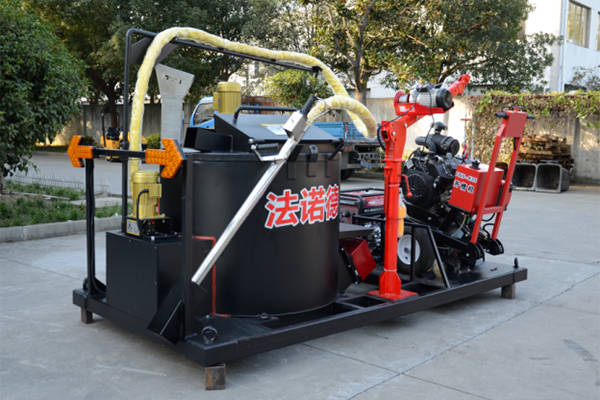

图片1 图片2




https://www.szfanuode.com/Crack-Filling-Machine-Asphalt-pd541843448.html

https://www.szfanuode.com/Asphalt-Crack-Filler-Machines-pd549334348.html


Project Location: Phonmoungkhun -Thasi Section of National Highway 21, Pakxan City, Bolikhamsai Province, Laos

Project Background: National Highway 21 of Laos is a vital north-south transportation artery. Subject to heavy rainfall and heavy-truck traffic, the pavement suffers frequent transverse and longitudinal cracks. Water infiltration continuously damages road base. Delayed preventive sealing will lead to massive pavement failure and costly full-scale rehabilitation. The local road-service contractor purchased multiple FND-TG500 trailer-type crack filling machines for regular crack routing and sealing, aiming to improve maintenance efficiency and control overall road-operation budget.

On-site Application Effect: The lifting arm with 500KG lifting capacity quickly mounts the grooving machine for integrated grooving-sealing workflow. Separate transport vehicles for attachments are no longer required, cutting rental and transfer expenditure. The circulating re-heating system finishes sealant melting within only 35-minutes and reduces downtime for material heating. The external discharge pump supports easy on-site disassembly and inspection without tank emptying, minimizing schedule interruption caused by equipment breakdown. The 7-meter extended bend-resistant electric-heating hose enlarges working coverage and cuts frequent machine repositioning to raise daily construction mileage. Omron intelligent temperature-control system together with 45-degree diagonal-flame combustion chamber prevents sealant coking and material waste. Built-in arrow warning lights guarantee safety for day-and-night lane-occupying work. During the 9-month maintenance period, crack grooving and sealing was completed for 113 kilometers of pavement. Preventive sealing blocks rainwater intrusion and slows pavement deterioration, saving substantial reconstruction budget for the road authority. The low-position feeding port also relieves physical workload for field operators.

客户来访


Machine Technical FAQ

Q1: How long does FND-TG500 take for one-batch sealant melting? A: Standard melting time is 35 minutes. Independent thermal oil heating system realizes faster heating performance comparing with peer machines.

Q2: What is hose length? Is the discharge hose heatable? A: Standard 7-meter electric heating hose, built-in heating & insulation to avoid sealant solidification inside pipeline. The hose is anti-bending for complicated construction sites.

Q3: What is max lifting weight of integrated lifting arm? A: Lifting arm rated load is 500KG, enables fast crack router assemble & disassemble without extra hoisting equipment.

B-End Procurement FAQ

1. Q: Are you road maintenance machine manufacturer or trading company? A: We are real manufacturer owning full-scale road machinery workshop, all machines are produced in-house, no middleman markup.

2. Q: Can you offer CE certificate for customs clearance & project tender? A: Yes, full set of CE certification documents are available, supporting customs clearance and government project tender submission.

3. Q: What is MOQ for bulk order of asphalt crack repair machine? A: MOQ is 1 unit; FCL full-container bulk order will get better wholesale price.

4. Q: Do you support OEM custom machine configuration? A: OEM service is available. We can adjust tank volume, generator brand, hose length, lifting arm setup as your site requirement, also support private label.

5. Q: Can your engineer provide overseas on-site installation guidance? What is the cost? A: Overseas on-site engineer support is available. Service fee, flight ticket, accommodation shall be borne by buyer. We also provide free remote video guidance.



1. Machine Trial Run Service: Domestic customers can book factory on-site trial to test melting speed, temperature control accuracy and full routing-sealing workflow. Overseas clients can obtain complete trial-run video records.

2. Container Export Packing: Anti-rust treatment and steel frame reinforcement for FCL full-container and LCL less-than-container shipment, preventing collision and rust during long-sea transportation.

3. After-sales Spare-parts: Accept bulk spare-parts purchasing for project stock. Overseas spare-part supply channel shortens lead-time for replacement parts. Complete spare-part BOM document offered for buyers.

4. Technical Support: Supply operation manual and service drawings. Free remote video commissioning guidance. Overseas engineer on-site service is available with corresponding service charge and travel expense covered by buyer.





We are genuine manufacturer with our in-house complete road machinery workshop. We serve global engineering contractors and international traders without middlemen.

· Provide full OEM custom service: modify tank capacity, lifting arm configuration, hose length, generator brand and machine setup according to project site demand, private label available.

· Complete CE certification documents for customs clearance and overseas government tender submission.

· Full-unit warranty service; support bulk spare-parts supply via global spare-part warehouse for after-sales operation.

· Overseas engineer on-site technical support is available for machine commissioning and operator training.

· Special wholesale discount for FCL full-container bulk project orders. Complete tender supporting documents including factory qualification papers can be provided for bidding clients.

· Clear production lead-time for wholesale orders to guarantee overseas project timeline.
