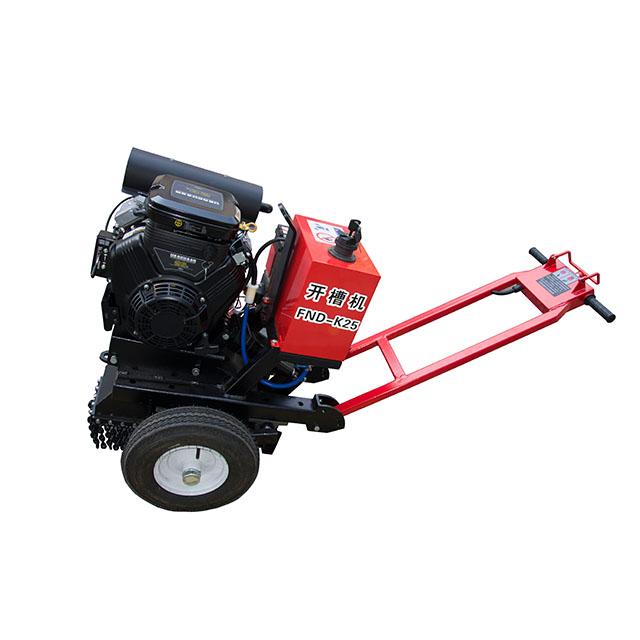

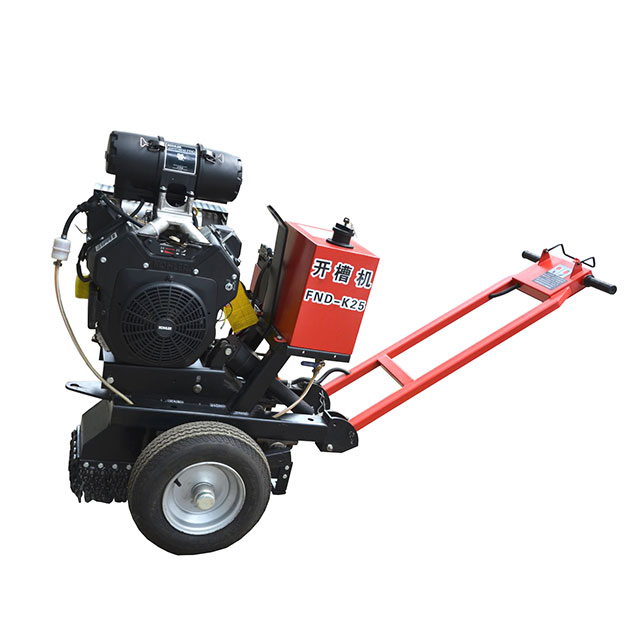

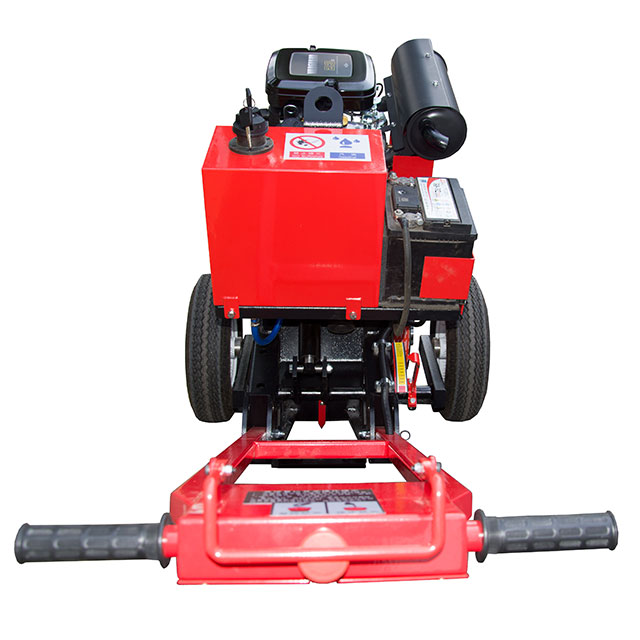

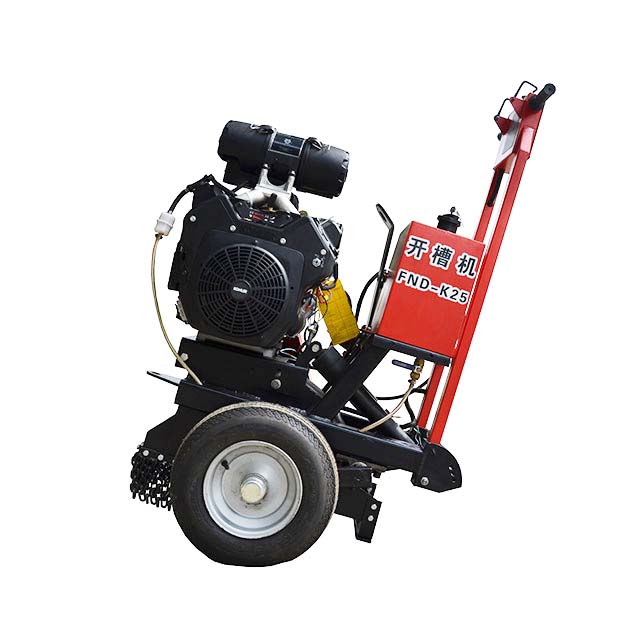

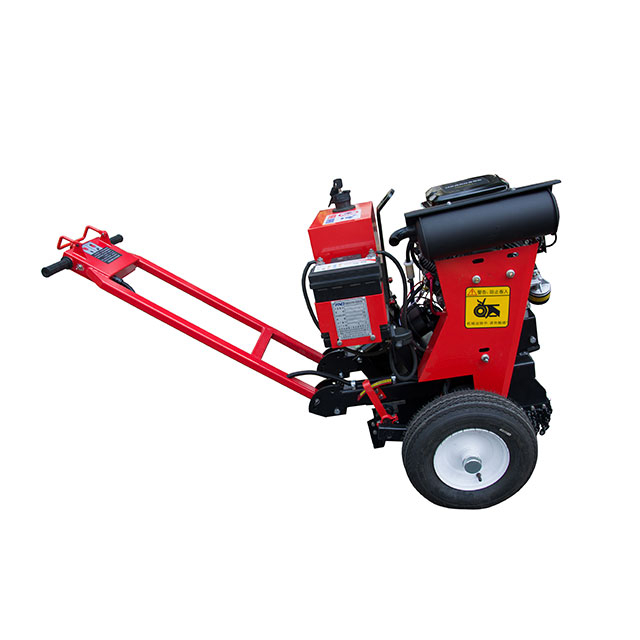

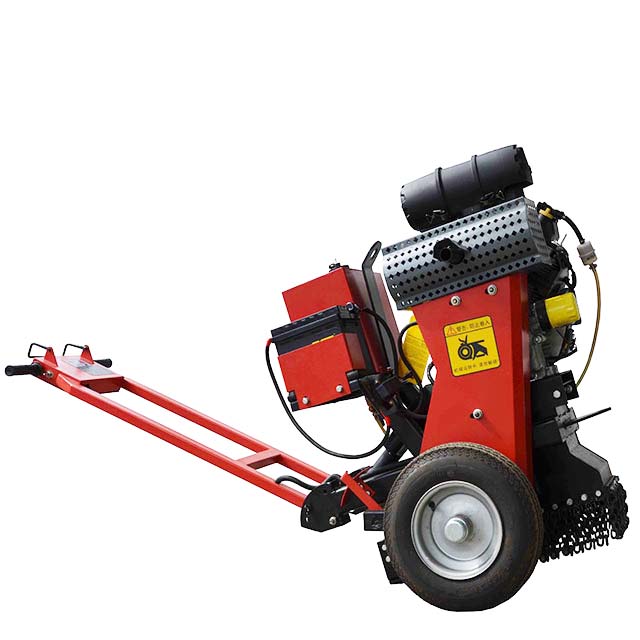

FND-K25
1. Adjustable cutting width & depth, compliant with municipal & highway crack‑repair standards

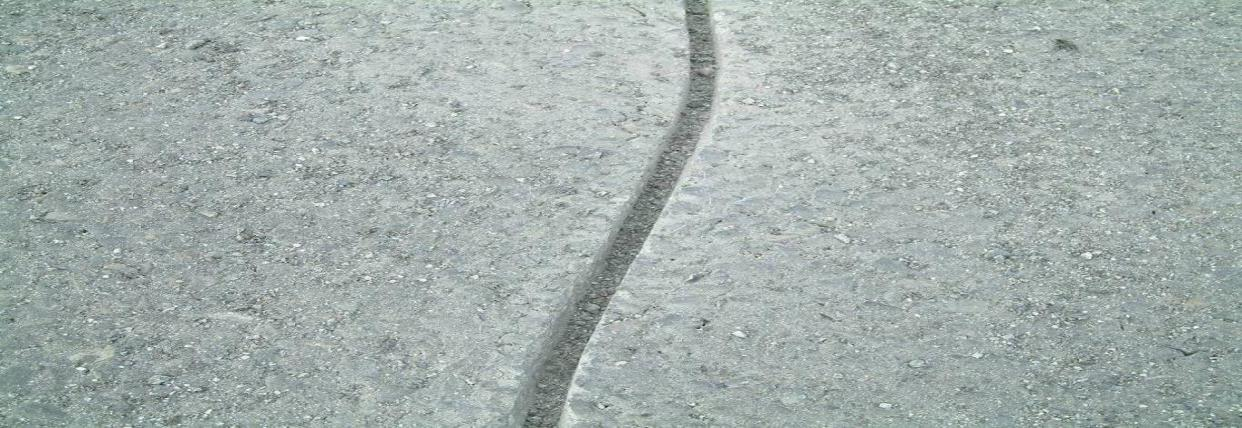

Cutting depth:0‑30 mm, cutting width adjustable 10‑50 mm for standard repair grooves. Narrow‑slot setting for fine municipal cracks; wider cutting for aged alligator cracking and wide highway cracks, complying with various regional construction specifications. Precisely follows original crack tracks without extra marking for high‑efficiency operation.
2. Powerful imported Briggs & Stratton V‑twin engine with 5‑stage cyclonic air filtration for reliable field performance
Equipped with imported Briggs & Stratton V‑twin gasoline engine rated 18.4 KW (25 HP). Stable power output when cutting hard aged asphalt and concrete pavement. Five‑stage cyclonic air filter blocks heavy field dust, reduces mechanical wear and extends service‑life for long‑duration open‑air jobs.
3. Tilt‑trigger emergency braking system, 7‑seconds fast shutdown for lane‑occupying safety
Tilt‑impact emergency‑stop switch is fitted. When operator slips and loses machine control, physical impact triggers brake and stops machine within 7 seconds. It lowers personal‑injury risk for highway lane‑occupying work and meets international site‑safety regulations.
4. Compact hand‑push design, standardized spare‑parts, fully compatible with full repair workflow

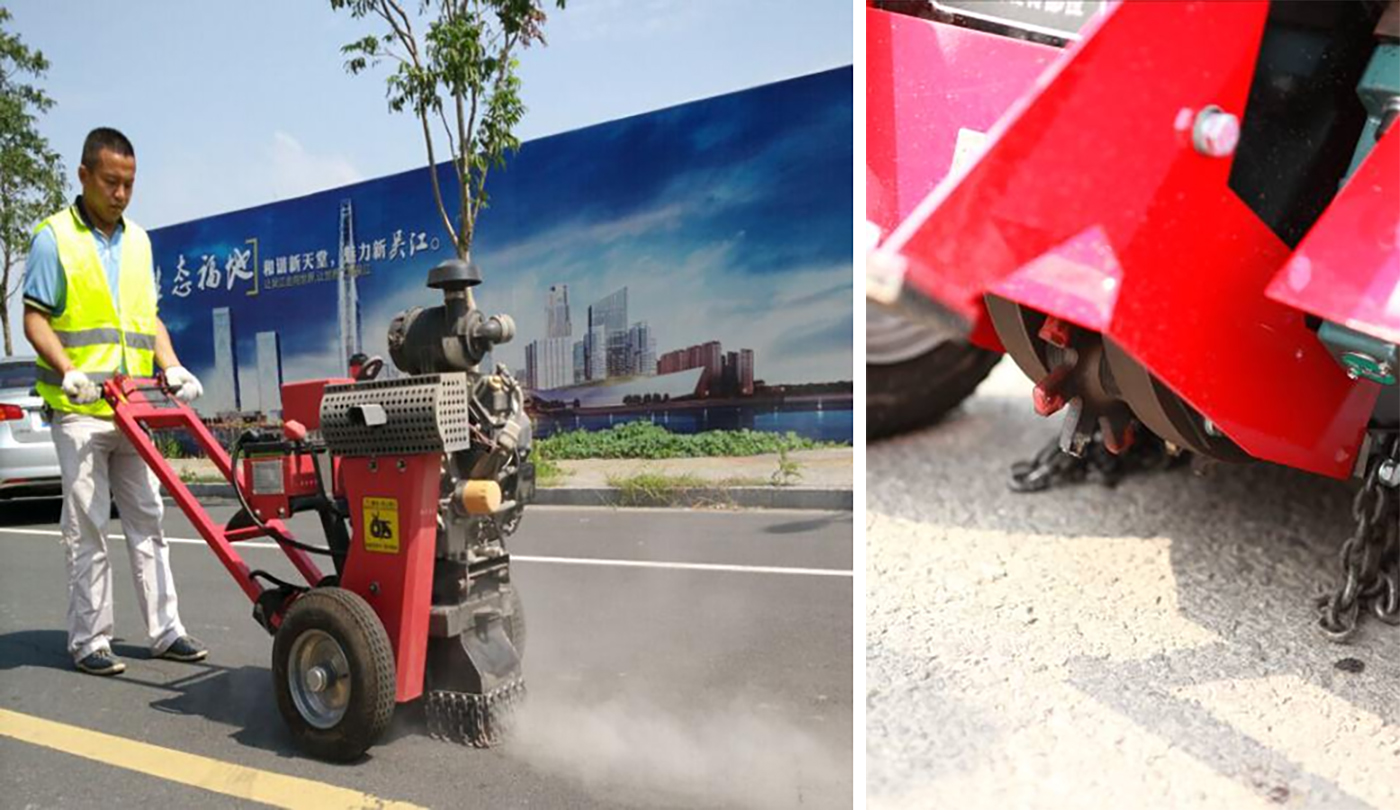

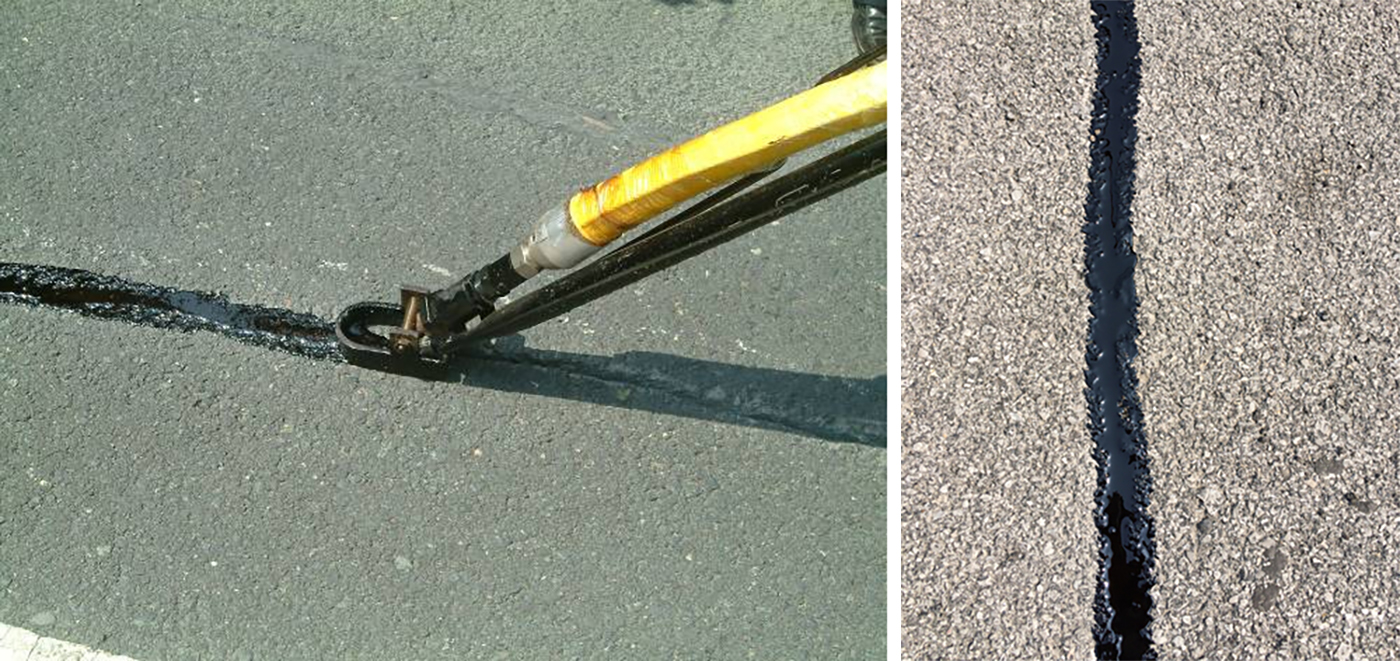

Flexible hand‑push relocation for long‑distance remote‑road jobs. Cutter discs can be quickly replaced for different specifications. Grooves machined by this router work seamlessly with crack sealing machine and bitumen sprayer for complete routing‑cleaning‑sealing workflow.
5. Cost‑effective basic version with low maintenance cost
Dust‑collection assembly is removed to cut purchase cost. Fewer components mean fewer failure points, easy on‑site maintenance for remote budget‑constrained projects with loose dust‑control requirements.
Model | FND-K25 |
External dimensions | 1100*850*1500MM L*W*H |
Whole machine weight | 235kg |
Engine part | |
Engine | CH740 |
rated power | 25HP |
Fuel tank capacity | 25L |
Control and cutting system | |
Slot depth control | Imported lifting controller |
Storage battery | 12V 55AH |


Project Background: Rural road crack-treatment project in suburban Buenos Aires, Argentina. Total crack-routing length 18 km. Tight procurement budget, loose local dust-control requirements for countryside sites. Both asphalt and concrete pavements with widely scattered cracks. Works consist of routing followed by preventive crack sealing.
Project Location: Suburban county-town road network, Buenos Aires, Argentina
Challenges
1. Limited capital budget, dust-collection function not required, target to lower equipment purchase cost.
2. Crack depth & width varied. Old machines with fixed groove size produced poor-quality cuts, leading to high sealant peeling & re-repair rate.
3. Legacy machines had no emergency stop. Operator-slipping created mechanical-injury hazards for hand-push operation.
4. Crack spots were widely scattered. Heavy equipment caused long transfer delays. Lightweight hand-propelled router was required.
5. Both asphalt and concrete pavement existed on-site, single-machine multi-surface capability was expected.
Solution: Four units of FND-K25 basic crack router were deployed. Kohler engine with 3-stage air filter handled dusty field environment. Adjustable 0-3 cm depth & 1-5 cm width created qualified sealing grooves. Tilt-activated 7-second emergency brake protected operators. Hand-push mobility served scattered work locations. Each unit performed routing on asphalt and concrete and cooperated with crack fillers.
Project Outcome: Full routing scope completed with lower procurement investment. Emergency-brake function mitigated injury risk. Well-shaped grooves guaranteed sealing quality. Compact hand-push design fitted scattered rural sites. 18 km routing work finished on schedule. Post-repair sealing performance was qualified and re-repair rate dropped obviously.


We are professional manufacturer of road maintenance machinery with full‑scale in‑house production workshop.
✅ OEM custom modification available: cutter specification, hand‑push frame and engine configuration can be adjusted to satisfy worldwide local working‑condition requirements.
✅ CE certification for customs clearance and international project tender compliance.
✅ Standard whole‑machine warranty and global genuine spare‑parts supply.
✅ Overseas engineer on‑site technical support service available.
✅ Support FCL full‑container bulk order with project‑oriented wholesale discount.
✅ Complete tender document package support for overseas bidding projects.
✅ Clear confirmed production lead‑time to guarantee overseas project schedule.
✅ Special requirements from clients are welcome for communication; machine configuration can be adjusted per project demands.
https://www.szfanuode.com/Vehicle-type-Asphalt-Hot-Box-pd598914548.html
https://www.szfanuode.com/Crack-Grooving-Machine-for-Roads-pd585024548.html
1. Pre‑shipment factory test: Complete machine functional test covering cutting performance, engine and emergency‑brake system; full test video will be delivered to customers.
2. Container‑grade export packing: Anti‑rust export packaging compatible with FCL full‑container & LCL less‑than‑container ocean freight.
3. After‑sales spare‑parts supply: Long‑term supply of genuine wearing parts including cutter discs, Briggs & Stratton engine filters and emergency‑stop switches. Spare‑parts can be shipped by separate containers.
4. Technical support: Complete English‑language operation manual and online video training; overseas engineer on‑site training can be arranged upon project evaluation.
5. Price policy: Better price can be negotiated for large‑volume purchases, welcome to contact sales for bulk‑project quotation.
B‑End Procurement FAQ
1. Q: Are you a road‑maintenance‑machine manufacturer or trading company?
A: We are original manufacturer with self‑owned road‑machinery production workshop. All machines are manufactured in‑house, factory inspection visit is welcomed.
2. Q: Can you offer CE certificate for customs clearance & project tender?
A: Yes, complete set of CE documents is supplied for customs clearance and international tender submission.
3. Q: What is MOQ for bulk order of asphalt crack repair machine?
A: Single‑unit order is acceptable. Wholesale discount is available for FCL full‑container bulk purchase, please contact sales for detailed quotation.
4. Q: Do you support OEM custom machine configuration?
A: Yes. Cutter disc, engine selection and protective accessories can be OEM‑modified according to site project conditions.
5. Q: Can your engineer provide overseas on‑site installation guidance? What is the cost?
A: Overseas on‑site technical support is available. Service cost will be calculated separately based on target country and service duration.
6. Q: Do you supply long‑term spare‑parts for road repair equipment?
A: Yes, full‑range genuine wearing spare‑parts including original Briggs & Stratton engine filter components are supplied long‑term and can be exported independently.
7. Q: What discount for FCL full‑container project order?
A: Discount depends on machine list and purchase quantity inside container. Better price can be negotiated for large‑volume orders, please contact sales for project‑specific offer.
8. Q: How long is production lead‑time for wholesale project orders?
A: Standard lead‑time for single unit:10‑15 working days. Lead‑time for FCL bulk orders will be confirmed against production schedule and notified in advance.
9. Q: Can machine be adjusted if I have special functional requirements?
A: Yes, clients can communicate special requirements with our business team, machine configuration can be adjusted in accordance with actual project requirements.
Q1: What pavement types can FND‑K25 crack router work on?
A: Suitable for asphalt and concrete pavement for crack pre‑treatment. Without dust‑collection, it is better for remote sites with loose dust‑emission requirements.
Q2: What is cutting depth & width adjustment range?
A: Depth:0‑30 mm; Width:10‑50 mm, adjustable according to actual crack condition.
Q3: How does emergency braking work?
A: The machine will shut down within 7 seconds once operator’s body tilts and hits the trigger switch to protect operator safety.
Q4: How to clean groove dust without dust‑collector?
A: Blow or sweep debris manually after routing before crack‑sealing procedure.
