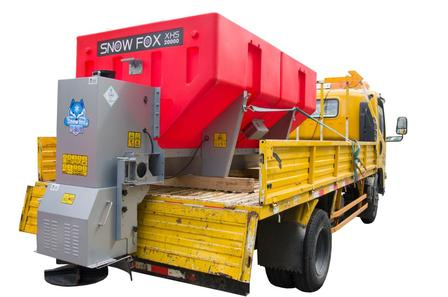

XHS-20000 Polyethylene De-Icing Spreader | Full Range of Powerful Advantages for Municipal Winter Snow Removal

 XHS-20000 Polyethylene De-Icing Spreader | Full Range of Powerful Advantages for Municipal Winter Snow Removal

Introduction

Snowfall, freezing rain and icy pavements are year-round challenges for municipal administrations, airports, industrial parks and highway maintenance departments worldwide. Traditional steel salt spreaders suffer severe corrosion after long-term contact with de-icing salts, leading to frequent breakdowns and high replacement costs. Shanghai Yinhu Machinery launches the XHS-20000 Polyethylene De-Icing Spreader, upgraded comprehensively in six core dimensions: anti-corrosion polyethylene integrated hopper, DC electric drive, anti-clog feeding structure, safety protection, intelligent control system and low-temperature resistance design. This unit thoroughly solves common industry defects of conventional spreaders including rusting, material blockage, high power consumption, complicated operation and cold-temperature malfunctions.

As a standard winter emergency snow removal attachment compatible with 1-4 ton light trucks and pickup trucks, it supports multiple spreading materials such as rock salt, fine sand, solid de-icing agents and anti-slip gravel. It is widely deployed on highways, airport runways, residential compounds, parking lots, viaducts and scenic roads for ice and snow disposal.

1. Anti-Corrosion Polyethylene Integrated Structure: Eliminate Rust Issues of Traditional Equipment

Conventional spreaders mostly adopt carbon steel hoppers. De-icing salt is highly corrosive, causing perforation, weld rust and material leakage within 1-2 years, with a service life shorter than 3 years. The XHS-20000 features a one-piece rotomolded high-density polyethylene hopper matched with stainless steel load-bearing brackets, delivering exceptional acid, alkali and salt resistance. It will not oxidize or rust even with prolonged exposure to de-icing chemicals, extending the overall service life to 8-10 years and drastically cutting equipment procurement and maintenance costs for clients.

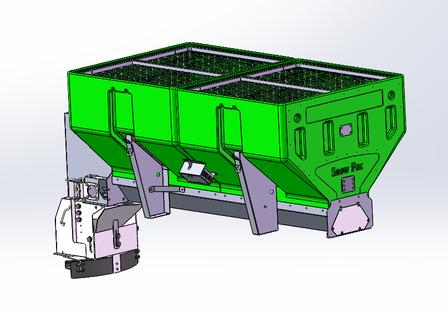

1. Stable Dual-Tank Combined Structure: The machine adopts a dual 1m³ compartment design with a total 2m³ hopper capacity, holding a maximum load of 2200kg of snow-melting materials. Compared with single-piece hoppers from competitors, the dual-compartment structure bears weight evenly, resisting deformation and cracking under full loads and bumpy transportation, with superior stability under heavy-duty working conditions.

2. Lightweight Low-Load Design: The total machine weight is only 360Kg. Polyethylene material weighs far less than steel hoppers of equal volume, without occupying excessive truck load capacity. It fits all 1-4 ton light trucks and pickups perfectly, retaining the vehicle’s original cargo capacity and driving performance, ideal for narrow rural lanes and community roads.

3. High-Visibility Safety Appearance: The hopper is available in red or yellow high-warning polyethylene shells, fully covered with reflective safety strips to maximize visibility during night shifts and low-visibility snowy weather, reducing road collision risks.

2. Patented Anti-Clog Feeding System: Stop Auger Blockage & Material Bridging

Ordinary spreaders in the market frequently face auger overload, caked de-icing agent bridging and feeding shutdowns, which delay emergency snow removal operations. The XHS-20000 optimizes the conveying structure from the source to eliminate blockages:

1. Triangular Umbrella Baffle & Side Feeding Design: A triangular diversion baffle is installed above the auger, delivering materials from both sides instead of vertical top loading. This reduces auger pressure significantly, preventing material compaction, caking and empty bridging inside the hopper, enabling continuous, uniform material feeding without frequent shutdowns for clearing during heavy snow emergencies.

2. Staggered Dual High-Frequency Vibrators: Generic spreaders only use one-sided vibrators, resulting in uneven material discharge and residual caked materials. Our unit adopts a front-left & rear-right staggered dual vibrator layout, breaking up damp salt and de-icing agents across the entire hopper without dead zones, ensuring smooth feeding even with heavily caked materials.

3. Heavy-Duty Conveying Auger: The auger features a 16cm outer diameter and 23cm pitch, with a maximum feeding rate of 0.06 cubic meters per minute. It delivers stable, large-volume transport compatible with coarse gravel, rock salt and industrial deicers, avoiding fine material leakage or coarse particle jamming.

3. DC Low-Voltage Electric Drive: Energy-Saving, Eco-Friendly & Zero Emissions

Traditional hydraulic or fuel-powered spreaders require separate fuel engines, leading to high fuel consumption, exhaust pollution, cold-start failures and expensive hydraulic maintenance. The XHS-20000 runs purely on DC motors powered by vehicle batteries, fully complying with global environmental road maintenance regulations:

1. Dual 12V/24V Vehicle Battery Compatibility: Directly connects to the truck’s original battery, no extra generator or fuel power assembly required. It matches the factory power supply of all 1-4 ton light trucks and pickups with nearly zero modification costs.

2. Independent High-Torque Motors: A 600W DC high-torque motor drives the feeding auger, paired with a separate 200W DC motor for the spreading disc, plus two independent vibrator motors. Separated power circuits avoid mutual interference, delivering sufficient torque under low-speed and full-load conditions without stalling.

3. Low-Temperature Anti-Freeze Grease for Gearboxes: All auger and spreader motor gearboxes are filled with special cold-resistant lubricant, preventing gear freezing and jamming under extreme temperatures down to -30°C, delivering stable operation in frigid regions such as Northern Europe and Northeast China.

4. Zero Emission & Low Power Consumption: No fuel combustion or toxic exhaust during operation, meeting strict environmental standards for airports, residential zones and scenic areas. DC motors consume far less power than hydraulic/fuel alternatives, cutting long-term operating electricity costs for maximum energy efficiency.

4. Intelligent 4.3-inch LCD Controller: Multi-Circuit Protection & User-Friendly Operation

The electronic control system determines equipment stability. Low-cost generic spreaders lack circuit protection, resulting in burnt wiring and motors once stones or caked materials jam the auger, creating costly repairs. Our unit is equipped with an independently developed chip-based intelligent control system with multi-layer protection and real-time visual monitoring, operable by new staff with minimal training:

1. 4.3-inch HD LED Touch Screen: Real-time display of working status for pre-wetting, lighting, warning, vibration, spreading and feeding systems. Built-in voltage monitoring automatically cuts power under low voltage to avoid draining the vehicle battery and damaging on-board circuits.

2. Full-Circuit Multi-Safety Protection: Integrated overload, overcurrent, reverse current and communication fault protection. If foreign objects jam the auger or spreading disc, the controller instantly cuts motor power to prevent burnout and short circuits, drastically reducing breakdown maintenance frequency.

3. Dual Independent Stepless Speed Regulation (10 Gears Each): Separate 10-level stepless speed control for auger feeding and spreading disc rotation, with infinitely adjustable spreading width from 0 to 12 meters. Matched with a 6-position polyester adjustable baffle, operators can precisely control material dosage according to road width and ice thickness, cutting de-icing agent waste and long-term maintenance material expenses.

4. 485 Communication Expansion Port: Reserved 485 interface connects to fleet management and on-board intelligent terminals, enabling municipal authorities to unify equipment operation data monitoring for digital smart road maintenance upgrades.

5. Simplified Operating Logic: The control panel features intuitive operation logic with no professional training required, shortening staff learning curves and reducing corporate labor training costs.

5. Low-Temperature Wear-Resistant Spreading Assembly: Modular & Easy Maintenance for All Scenarios

1. 36.8cm Low-Temperature Polyester Spreading Disc: The throwing disc is constructed from special cold-resistant rubber polyester, resisting abrasion and cracking during long-term high-speed spreading of sand and rock salt, free from rust and deformation compared with steel discs. The modular quick-release spreading assembly can be detached and replaced by a single worker without tools, saving hours on daily maintenance.

2. Multi-Material Compatibility: Capable of dry spreading industrial salt, fine river sand, anti-slip gravel and granular de-icers, the machine delivers year-round utilization for winter de-icing and spring/autumn anti-slip road maintenance.

3. 6-Position Adjustable Polyester Baffle: Lightweight polyester baffle with 6 angle adjustments precisely controls material throwing range, switching seamlessly between narrow residential lanes and wide highways to eliminate material waste and environmental pollution from over-spreading.

6. Rear Safety Lighting & Warning Kit: Dual Protection for Driving & Working

Most competing spreaders lack dedicated night safety accessories, while our unit integrates an all-in-one lighting and warning assembly at the rear:

1. Rear LED Work Light: Delivers clear rear illumination for night and early morning snow removal operations, helping operators inspect hopper material levels and avoid collisions with obstacles during reversing.

2. Strobe Safety Warning Light: Continuous flashing under fog, rain and snow low-visibility conditions reminds following vehicles to maintain safe distances, reducing rear-end collisions and scratches and boosting overall winter road operation safety.

3. Full-Body Reflective Strips: High-visibility reflective tapes cover the hopper and frame to enhance vehicle recognition 24/7, complying with municipal road operation safety standards.

7. Strong Vehicle Mounting Compatibility: Lightweight & Fast Installation

1. 4 Standard Mounting Hooks: Four universal hook specifications fit most flatbed 1-4 ton light trucks and double-cab pickup beds without customized frame modification. Full installation can be completed within 30 minutes upon delivery for immediate operation.

2. Reinforced Stainless Steel Base: Thickened stainless steel support brackets under the entire machine carry the polyethylene hopper, delivering high impact resistance and load-bearing strength without deformation during bumpy transit, extending total service life.

3. Compact Optimized Dimensions: Overall size 2770mm(L)×1300mm(W)×1080mm(H), compact enough to fit within truck bed width without overhang. It navigates tight rural turns and narrow internal park roads with excellent flexibility for small yards and industrial compound operations.

Core Technical Specification Table

Conclusion

The XHS-20000 Polyethylene De-Icing Spreader overcomes core drawbacks of traditional spreading equipment including rust, blockage, high power consumption, complex operation and frequent cold-temperature failures. Supported by five core advantages – corrosion-resistant polyethylene material, anti-clog conveying structure, intelligent electronic control system, low-temperature specialized components and integrated safety accessories – it delivers a low-cost, long-life and high-efficiency winter snow removal solution for municipal authorities, airports, property management firms and road maintenance companies globally.

Shanghai Yinhu Machinery specializes in R&D and manufacturing of winter road maintenance equipment. All machines undergo full factory inspection before shipment, supporting bulk customized orders for overseas markets, fully adapted to snow and ice operation demands in cold regions worldwide.

This article introduces the XHS-20000 Polyethylene De-Icing Spreader from Shanghai Yinhu Machinery, an anti-corrosion truck-mounted snow removal device for light trucks & pickups. It features 8 core strengths: rotomolded polyethylene rust-proof hopper, anti-clog auger & staggered dual vibrators, eco-friendly 12/24V DC battery drive, intelligent 4.3-inch LCD controller with multi-protection, wear-resistant quick-disassembly polyester spread disc, rear warning & lighting safety kit, fast universal mounting and compact size. It works with salt, sand, deicers and gravel, solves common defects of traditional steel spreaders, and comes with exclusive SEO English keywords & full English product copy for overseas independent websites, supporting bulk export customization for cold regions globally.
