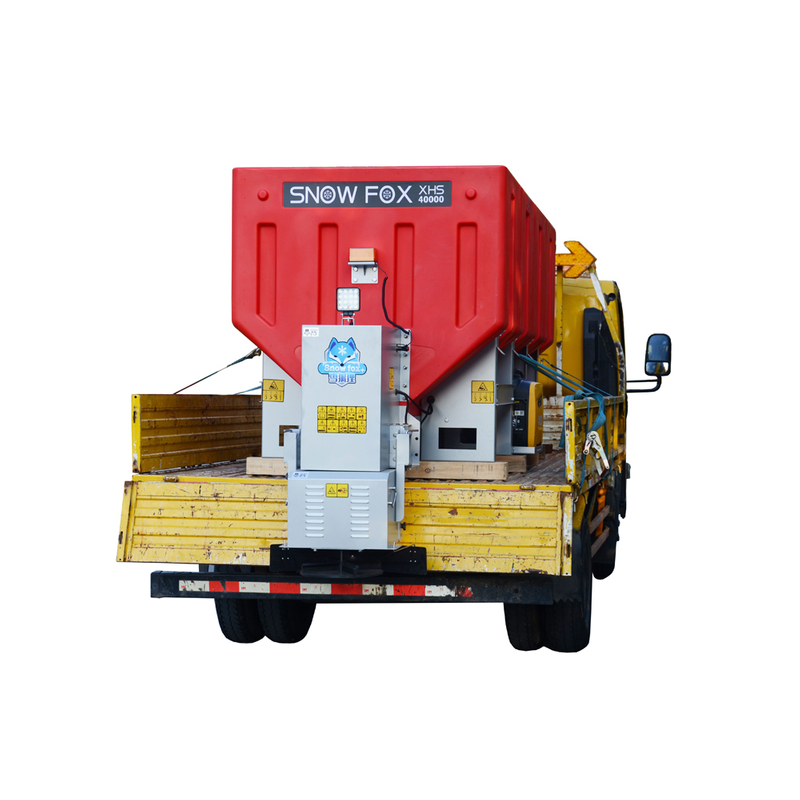

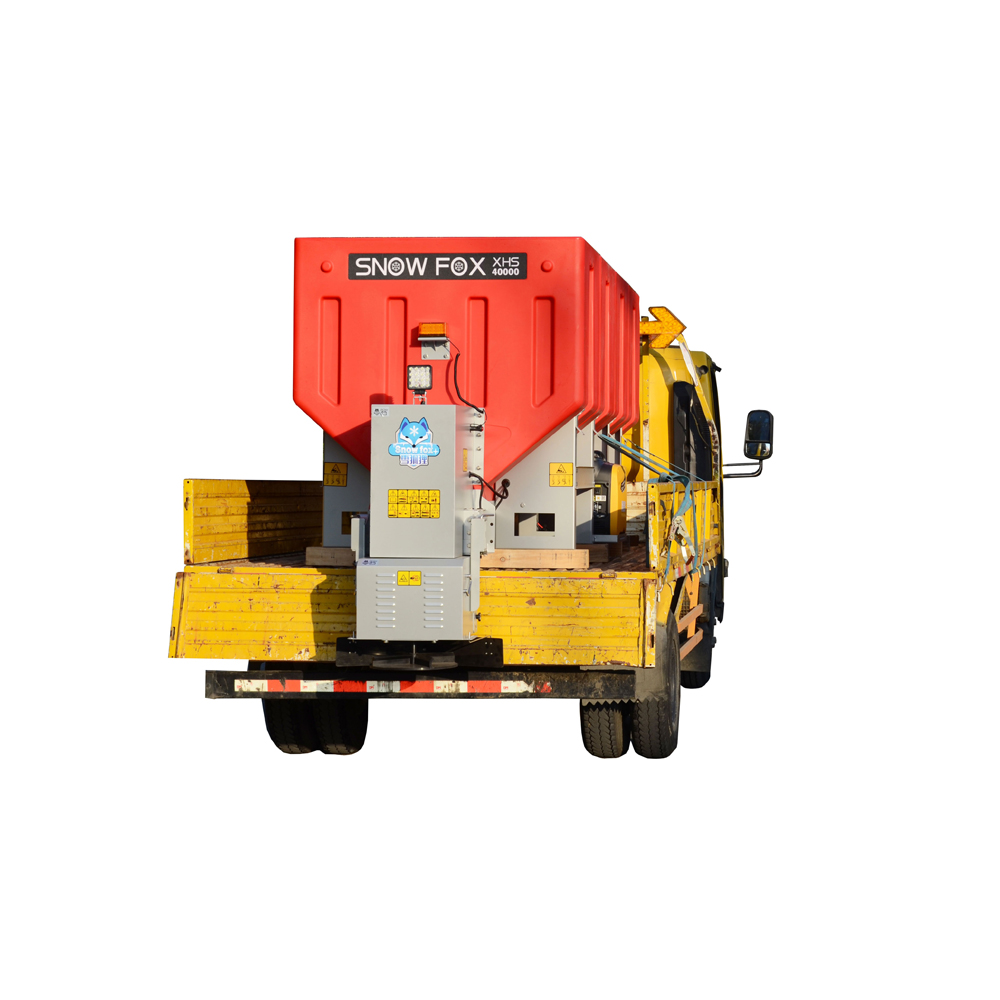

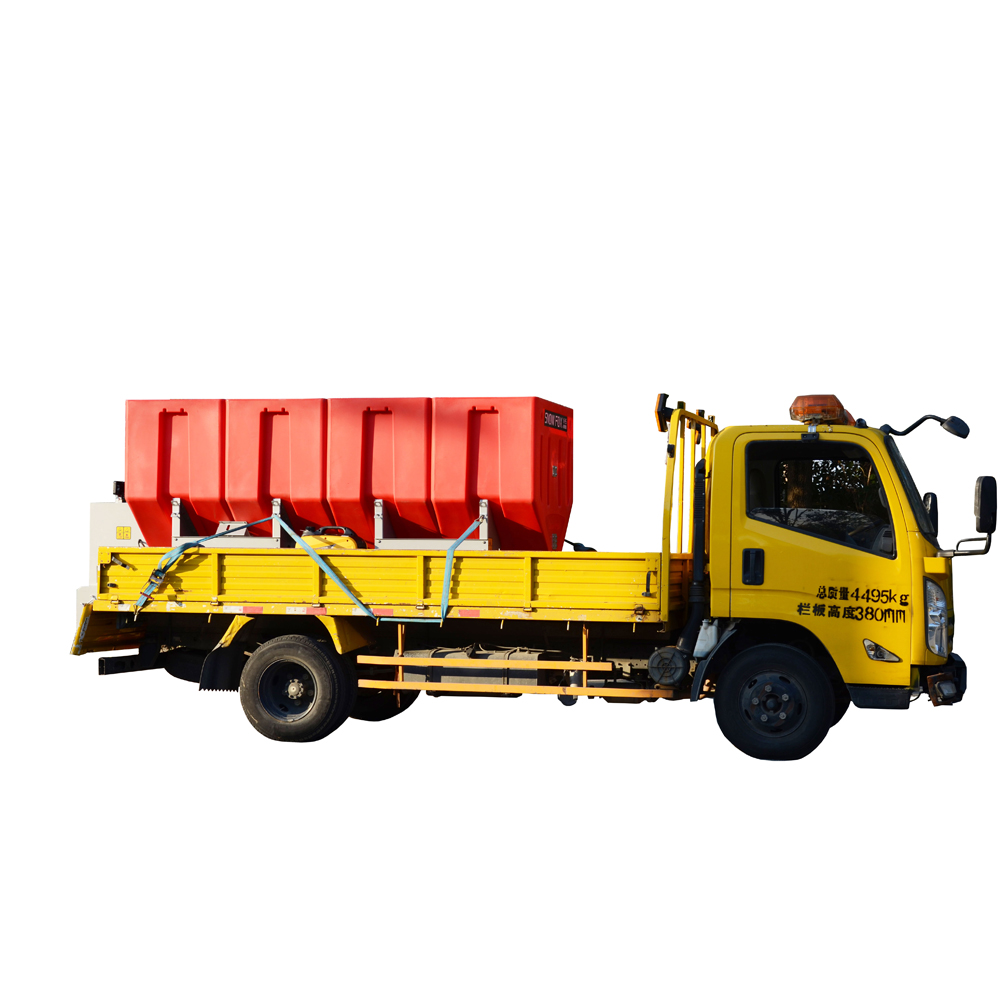

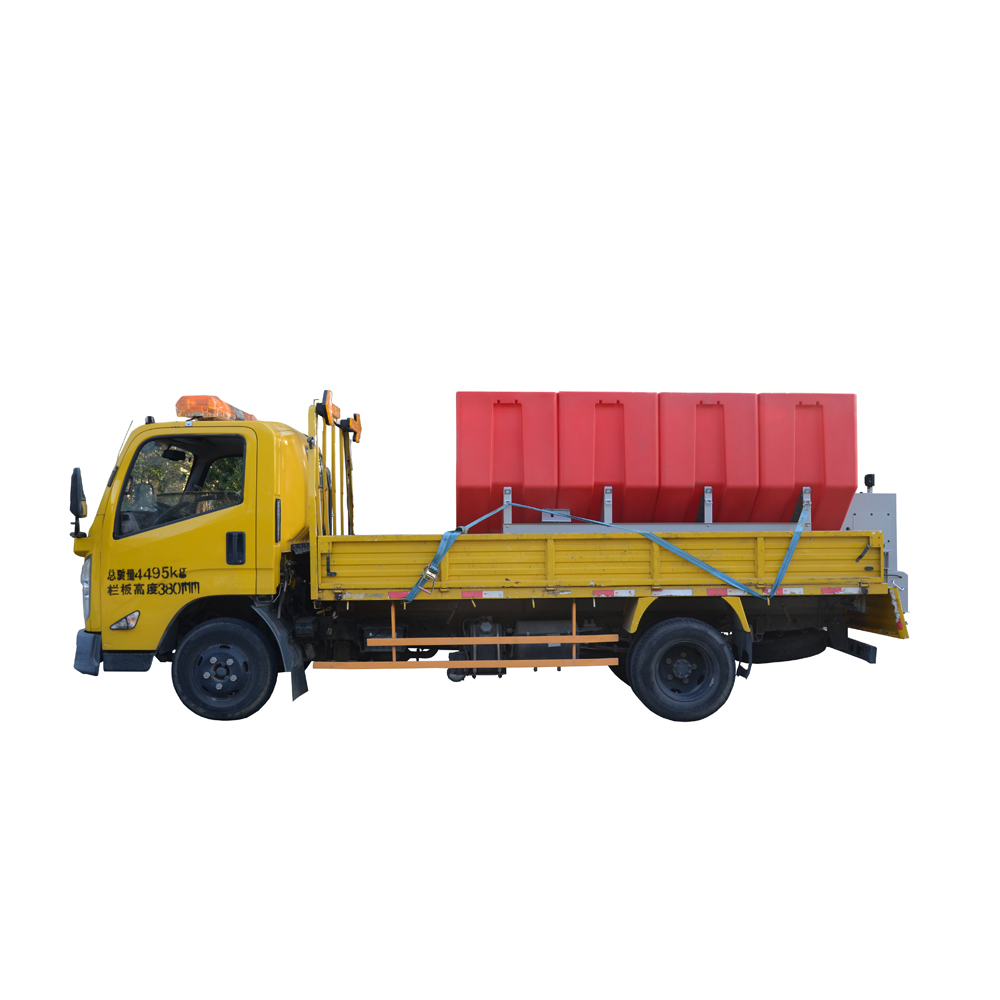

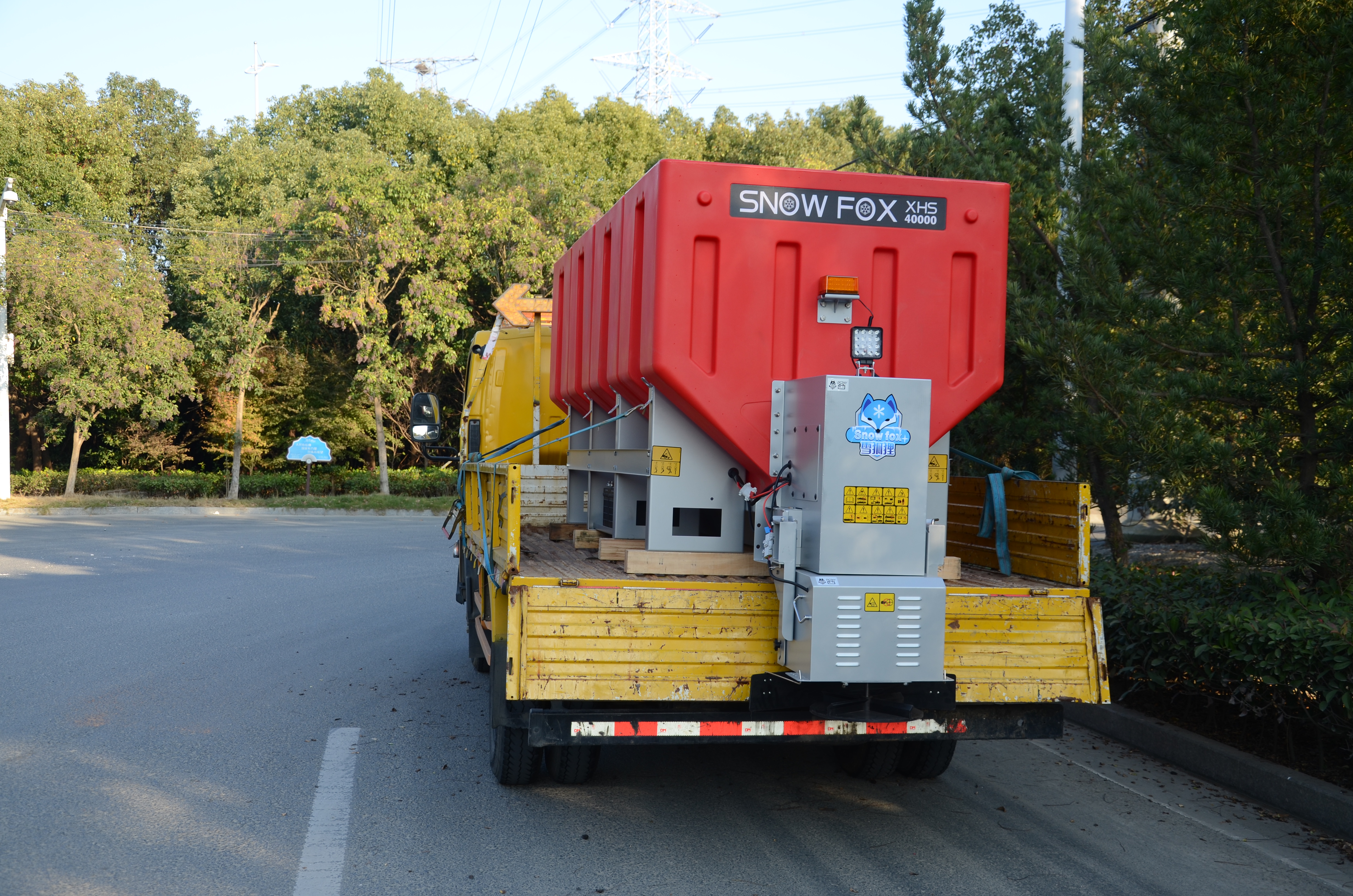

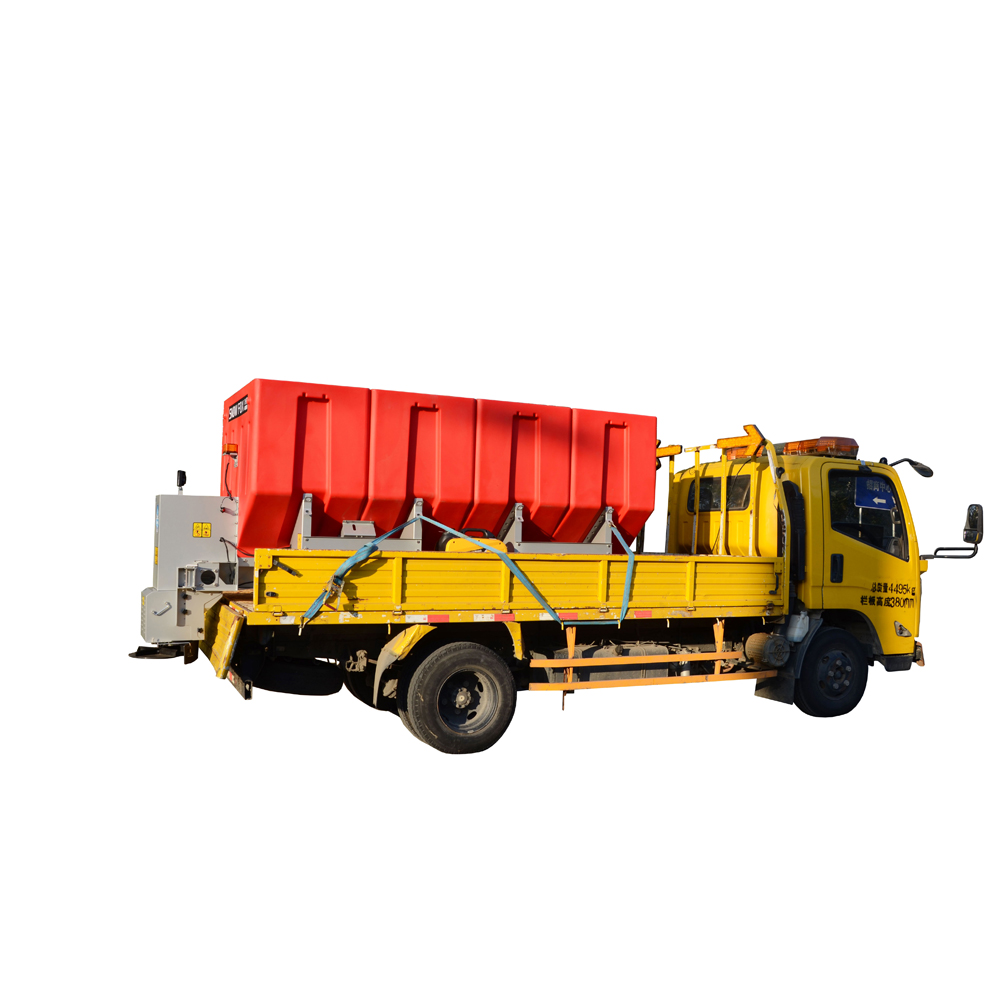

XHS-40000
FND
1. 4m³ large‑capacity hopper, ideal for high‑consumption working conditions. Minimize frequent refilling and improve continuous operation efficiency.
2. Hopper made of high‑density polyethylene (HDPE), excellent corrosion‑resistance against de‑icing salt and melting agents, low‑temperature & impact resistant, rust‑free with lighter overall weight.
3. Equipped with high‑efficiency vibrator to eliminate material bridging and caking, prevent blockage and guarantee smooth and consistent material feeding.
4. Compatible with various materials: coarse salt, fine salt, calcium chloride, dry sand, multi‑function for large‑scale de‑icing on highways, municipal roads, plazas and parks.
5. Continuously adjustable spreading width and application rate for uniform spreading, reduce waste of de‑icing agents.
6. Integrally‑molded seamless polyethylene hopper, no weld leakage, low material residue, easy cleaning and maintenance.
7. On‑demand vibrator system, performs outstandingly for damp and caking materials, ensures stable feeding under heavy‑duty conditions.
8. 4 cubic‑meter large volume design for long‑distance continuous snow removal, greatly cut down material‑refill round trips.
9. Modular whole‑machine structure, easy installation & disassembly, compatible with multiple truck chassis, convenient for storage and transport off‑season.
10. Robust frame combined with anti‑corrosive PE hopper, extended service life under harsh winter conditions, lower long‑term maintenance costs。
Model | XHS-40000 Polyethylene Spreader |
Overall Dimensions | 3600mm (L) × 1345mm (H) × 1380mm (W) |
Spreader Net Weight | 640Kg |
Hopper Capacity | 4m³ / 4600kg |
Spreading Materials | Salt, Sand, Granular Stone, De-icing Agent |
Hopper Material | Polyethylene |
Feeding Mechanism | Internal Screw Auger Conveyor, Adjustable Speed (Screw Outer Diameter: 16cm; Screw Pitch: 23cm) |
Maximum Feeding Rate | 0.06 m³ Per Minute |
Gearbox Reduction Ratio | 1:80 |
Auger Motor | High-torque DC12V (24V Optional), 800W |
Spreading Motor | 200W (12V/24V) |
Spinner Disk | 36.8cm Polyester |
Spreading Width | 0.6–12m |
V-Groove | Stainless Steel |
Adjustable Baffle | Polyester Material |
Receiver Hitch | Class 4 |
Spinner Assembly | Easy to Disassemble |
Control System | LCD Liquid Crystal Controller with 485 Communication Protocol, Dual Variable Speed Control, with Explosion-proof Function and Overload Protection |
Minimum Cargo Box Length | 168cm |
Vehicle Compatibility | 1-4 Ton Light Truck |
Generator | DC24V 2000W |
Battery | 80A*2 |
Vibration Motor | Standard Configuration |
LED Rear Lighting | Standard Configuration |
LED Warning Light | Standard Configuration |
Control Method | Cab Control |
The equipment warranty period is 12 months, calculated from the date of equipment ex-factory. For product quality defects, the Supplier shall provide maintenance guidance via telephone; on-site service is not included under warranty. Should on-site service be required, it shall be subject to mutual negotiation between both parties, and the Buyer shall bear all relevant travel and accommodation expenses. For component-related quality failures occurring within the warranty period, free repair or replacement shall be available upon mutual agreement with the Supplier. Wear-and-tear parts are excluded from this warranty.

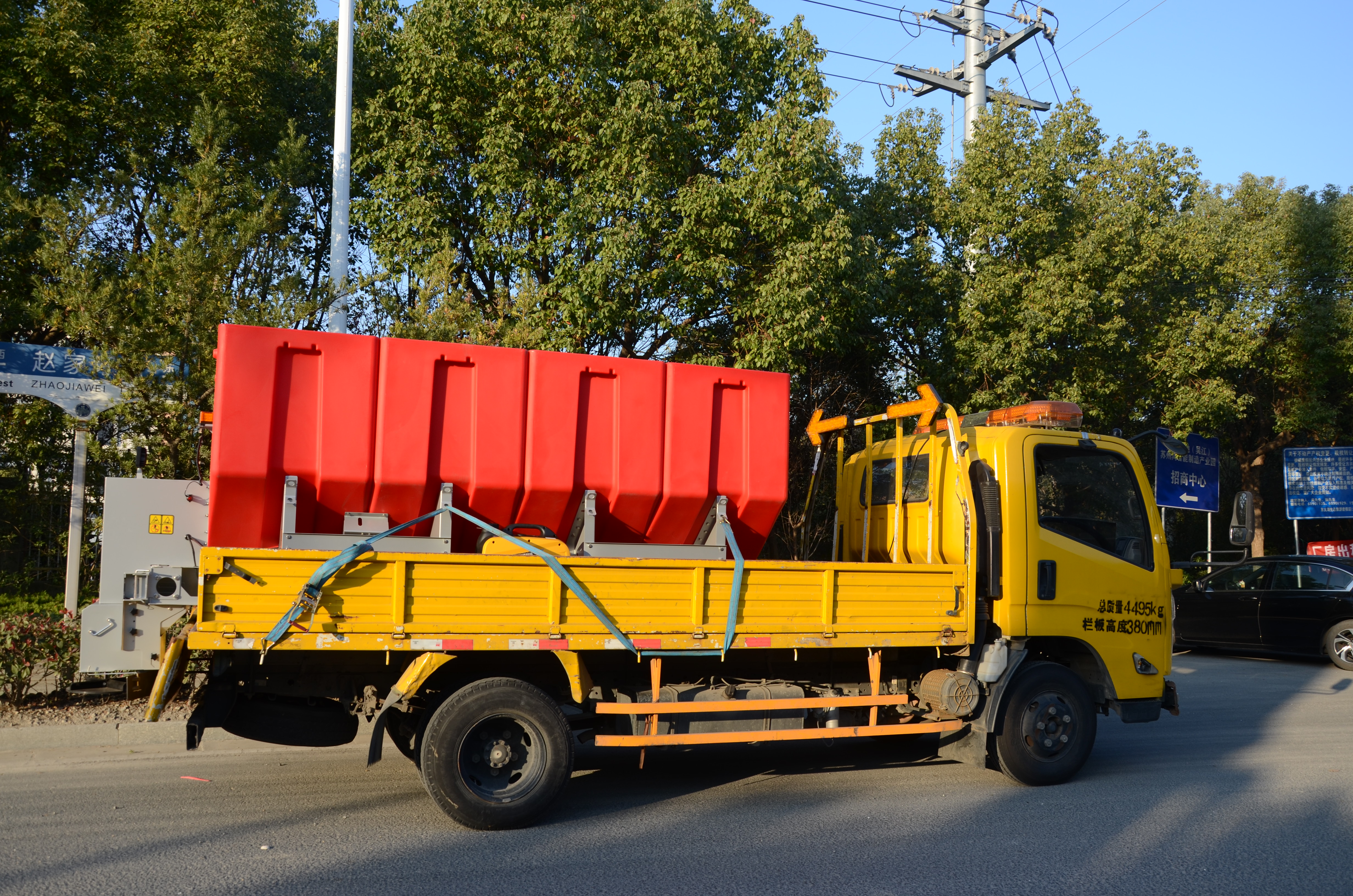

Leipzig features a temperate continental climate with frequent snowfall and prolonged low temperatures in winter. The city has extensive urban arterial roads, ring expressways and park roads with large operation areas. Traditional small-sized spreaders have limited hopper capacity, requiring frequent refilling trips and leading to low operational efficiency. They are also prone to salt caking, material blockage and uneven discharging, making them inadequate for large-scale, high-intensity winter de-icing and road traffic maintenance.
Local municipal sanitation departments have purchased batches of 4m³ polyethylene snow melting spreaders for year-round winter snow and de-icing operations on full-range urban roads. Fitted with an extra-large 4m³ capacity hopper, the equipment is highly suitable for heavy-consumption operation scenarios for large-area road maintenance in Germany. A single full load enables continuous spreading over ultra-long road sections, greatly reducing refilling frequency and substantially improving overall snow removal and road clearing efficiency.
The hopper is integrally molded from high-density polyethylene (HDPE), featuring excellent resistance to corrosion caused by snow-melting salt, calcium chloride and other de-icing agents. It delivers superior low-temperature tolerance, strong impact resistance and complete rustproof performance. The seamless structural design prevents material leakage and residue buildup. It maintains far better stability than conventional metal-hopper spreaders in extreme cold conditions. Meanwhile, its lightweight construction lowers vehicle energy consumption and reduces chassis abrasion during operation.
Equipped with a dedicated vibration anti-blocking system, the equipment effectively eliminates material bridging and caking under Germany’s humid winter snow conditions where de-icing materials tend to compact. It ensures consistent, uniform and smooth material discharging throughout operation and completely avoids blockage-induced shutdowns. Compatible with multiple spreading materials including coarse salt, fine salt, dry sand and snow-melting powder, the spreader supports infinitely adjustable spreading width and output for precise on-demand feeding, which significantly saves de-icing materials and cuts municipal operation and maintenance costs.
After full-season high-intensity field application throughout the winter, the 4m³ snow melting spreader operates stably with an extremely low failure rate. It fully adapts to local heavy-duty, long-duration and high-stability operation requirements. The equipment effectively safeguards winter traffic safety on urban arterial roads, highways and park roads, serving as the core emergency snow removal equipment for local municipal authorities and gaining widespread professional recognition.
The Supplier shall arrange logistics to deliver the equipment to the location designated by the Buyer. Freight costs shall be borne by the Buyer. The Buyer shall be responsible for the unloading and acceptance of the equipment.
1.Are you road maintenance machine factory or trading company?
We are a professional direct factory focusing on road maintenance machinery. All of our 1m³ snow melting spreaders are independently produced in our factory. We can provide factory competitive prices, stable quality control and support OEM customized service.
2. Do you supply spare parts for long‑term after‑sales?
Yes, we provide permanent long-term spare parts supply for our 1m³ de-icing spreader. All wearing parts and core components are always in stock to support your local after-sales maintenance for many years.
3. What discount for full container FCL order?
We support good quantity discount for FCL full container orders. The more quantity you order, the more favorable the price. We will provide you with the best exclusive FCL quotation according to your actual order quantity.
