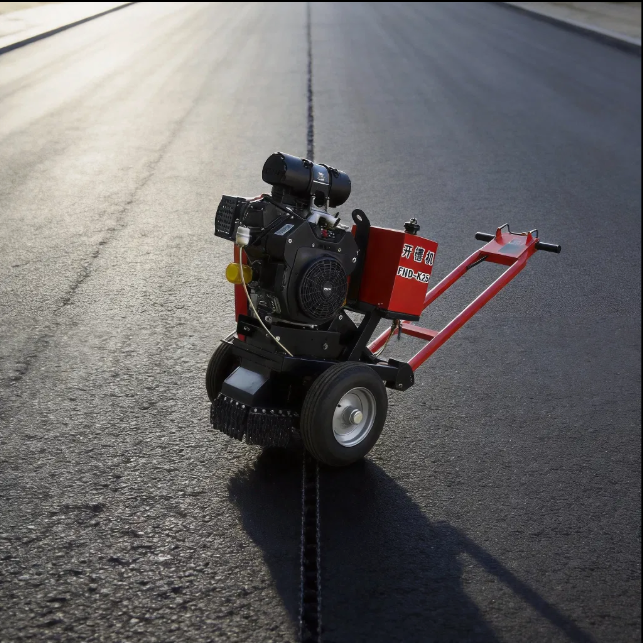

While grooving machines often process sheet metal or cardboard packaging, a Crack Grooving Machine serves a vastly different purpose. It operates as a specialized, heavy-duty piece of engineering equipment. Industry professionals use it exclusively for pavement, asphalt, and concrete maintenance. This machine provides a critical first step in road preservation and structural repair. Applying sealant directly over irregular, un-routed surface cracks causes serious problems. It leads to premature sealant failure, rapid water ingress, and expensive substrate degradation. Freeze-thaw damage can destroy underlying base layers quickly. This article objectively evaluates crack grooving applications, technical parameters, and procurement criteria. You will discover practical strategies for engineering contractors. We will explore how to select reliable machinery, evaluate blade configurations, and improve operator safety. You will learn the best practices for extending infrastructure lifespan. You will also understand how to shortlist a reliable manufacturing partner for your fleet.
Crack grooving machines standardize irregular pavement fractures into uniform U- or V-shaped channels to maximize sealant adhesion.
They function as part of a collaborative three-step workflow: cut, clean, and seal.
Equipment evaluation should prioritize engine power, depth/width adjustability (typically 1-50mm), and operator safety (rapid braking and dust control).
Selecting the right Crack Grooving Machine manufacturer depends on consumable blade availability, and compliance with local safety regulations.
Unpredictable pavement crack geometry prevents adequate sealant penetration. Road surfaces naturally fracture due to thermal expansion and heavy traffic loads. These fractures rarely form clean, straight lines. They create jagged, oxidized edges. Weakened asphalt fragments cling to the sides of these fissures. If you apply surface-level patching directly over these un-routed cracks, the repair fails quickly. Traffic friction and weather exposure strip the sealant away. Most un-routed surface patches fail within one to two years. Water then penetrates the sub-base. This trapped water freezes, expands, and destroys the road structure from within.
Mechanical routing offers a definitive solution to this problem. The machine removes oxidized, weakened material from the crack edges. It strips away degraded asphalt and debris. This mechanical action creates a fresh, uniform reservoir. The new channel provides an ideal environment for hot-pour sealants. The sealant can pool properly inside this standardized geometry. It adheres strongly to the newly exposed, clean aggregate sides. The channel also protects the sealant from direct tire impact. Snowplows slide harmlessly over the recessed sealant material.
Proper grooving fundamentally changes the repair timeline. It extends the lifespan of the repair to four to seven years. This dramatically reduces lifecycle maintenance frequency for municipalities and facility managers. You spend less time revisiting the same repair sites. The initial labor investment pays off through long-term structural stability.
Repair Method | Surface Preparation | Sealant Penetration | Expected Lifespan |
|---|---|---|---|
Overband Patching (Un-routed) | Minimal (Air blowing only) | Poor (Sits on top) | 1 - 2 Years |
Mechanical Grooving | Aggressive mechanical routing | Excellent (Deep reservoir bonding) | 4 - 7 Years |
Common Mistake: Operators sometimes groove too shallow to save time. A shallow groove fails to provide enough side-wall surface area for the sealant to bond effectively.
Municipal crews rely heavily on these machines for daily asphalt maintenance. Highways develop wandering longitudinal and transverse cracks. Longitudinal cracks run parallel to the traffic flow. Transverse cracks cut across the lanes. Both types require immediate attention to prevent pothole formation. The grooving equipment easily tracks these meandering fissures. Operators guide the cutting head along the natural path of the fracture. The machine widens the crack uniformly, preparing it for heavy-duty rubberized asphalt sealants.
Concrete surfaces demand specialized grooving applications. Bridge decks and airport runways face immense friction requirements. Safety and water displacement are critical here. Machines cut precise drainage channels into the concrete. This prevents dangerous water accumulation. It significantly reduces the risk of vehicle hydroplaning. For airport runways, compliance with FAA transportation standards is mandatory. The grooves must meet strict width, depth, and spacing guidelines. These channels enhance tire friction during aircraft landings. They ensure safe braking in wet conditions.
You cannot use this equipment in isolation. It functions within a strict operational reality. Industry experts refer to this as the "Three Swordsman" collaborative process. This workflow ensures maximum sealant adhesion and repair longevity.
Step 1: Grooving. The operator standardizes the crack. They use the machine to cut a uniform U-shaped or V-shaped channel. This removes dead material and defines the repair area.
Step 2: Cleaning. Debris now fills the newly cut channel. Operators must use a heat lance or a high-pressure blower. They remove all dust, loose aggregate, and moisture. The channel walls must be completely dry.
Step 3: Sealing. Crews inject a hot-pour asphalt sealant into the clean reservoir. They strictly control the material temperature between 180°C and 200°C. This specific temperature range ensures optimal thermal bonding with the existing pavement.
Best Practice: Always perform Step 2 immediately before Step 3. If you leave a cleaned groove exposed overnight, morning dew will compromise the sealant adhesion.
The cutting head determines the quality of your channel. You must evaluate blade configurations carefully. Diamond blades perform best for hard concrete infrastructure. They withstand extreme friction without dulling rapidly. Carbide-tipped tools work exceptionally well for standard asphalt. They rip through softer aggregates efficiently. You should also prioritize adjustable cutting widths. Most quality machines allow adjustments from 1mm to 50mm. You need this flexibility to match diverse project specifications. Adjustable depth controls let operators adapt to varying crack severities.
Engine power dictates your cutting speed and consistency. Gas or diesel dual-cylinder engines provide massive torque. Consistent torque prevents blade stalling when hitting dense aggregates. If an engine bogs down, the blade chatters. This chatter damages the groove walls. Electric equivalents offer quieter operation for indoor or emission-restricted zones. However, combustion engines remain the standard for heavy highway work. They deliver the continuous raw power needed for deep asphalt routing.
A machine's physical build influences its performance. Heavy-duty steel frames provide vital operational stability. This stability keeps the cutting head locked on track. A low center of gravity prevents blade wobble. Blade wobble degrades the groove quality and creates uneven walls. A stable chassis also drastically reduces operator fatigue. The operator does not have to fight the machine to keep it straight. It tracks smoothly along the pavement fracture.
Modern worksites demand strict safety compliance. You must look for specific safety features during equipment evaluation. A 7-second emergency fast brake is a crucial mechanism. It stops the spinning blade instantly during an emergency. Splash guards protect the operator from flying debris and hot aggregate. Patented filtration and dust suppression systems are also essential. These systems capture hazardous silica dust. They ensure compliance with OSHA or equivalent local respiratory safety regulations.
You must acknowledge the reality of blade wear. Cutting through pavement destroys metal over time. Harder aggregates will naturally increase the replacement frequency of cutting heads. You cannot run a dull blade effectively. It burns the asphalt instead of cutting it. You must track how many linear feet a blade typically yields. Factor these consumable replacements into your operational planning. Keeping spare belts and carbide tips on hand prevents sudden work stoppages.
Operating a walk-behind or self-propelled groover requires specific techniques. You cannot simply hand the machine to an untrained worker. Poor alignment represents a massive implementation risk. If the operator fails to track the crack accurately, they widen the channel unnecessarily. This mistake exponentially increases sealant consumption. It inflates material costs for the entire project. Operators must learn how to read the pavement. They must understand how to adjust their walking speed based on engine feedback.
Equipment failure mid-project ruins timelines. You must implement strict preventative maintenance protocols. These routines protect the drive mechanisms and the engine block.
Filter Changes: Inspect and replace heavy-duty air filters weekly. Dust easily chokes the engine intake.
Belt Tensioning: Check the drive belts for proper tension. Loose belts slip and reduce cutting torque.
Cooling System Checks: Verify the cooling systems are clear of debris. Overheating warps engine components.
Bearing Lubrication: Grease all main bearings daily to handle the high-vibration environment.
Best Practice: Log every maintenance action in a dedicated equipment ledger. This simple habit prevents catastrophic engine failures and extends equipment life.
You must evaluate the engineering background of your supplier. Does the manufacturer specialize exclusively in road maintenance equipment? Some companies merely import outsourced white-label products. They slap their logo on generic machinery. Specialized engineering firms understand the brutal realities of pavement maintenance. They design machines specifically to handle extreme vibrations and abrasive dust. You want a partner who innovates their own drive systems and chassis structures.
Operational downtime drains your project budget. You cannot wait four weeks for a replacement drive belt. Prioritize manufacturers with robust domestic or regional spare part distribution networks. Proprietary belts and customized cutting heads must ship overnight. Ask the supplier about their inventory fill rates. Ensure they stock critical wear items locally. Fast parts availability keeps your crews working and your projects on schedule.
Projects in different regions face different constraints. Your supplier should offer customization options. You might need to modify blade configurations for specific local aggregates. You might also need specific engine types to meet regional environmental regulations. Strict emissions standards require compliant engine models. A capable supplier will adapt the machine to fit your exact operational environment. They will not force a one-size-fits-all solution onto your fleet.
Examine the warranty documents carefully. Look for transparent terms covering core structural elements and drive components. Avoid warranties filled with complex loopholes. The warranty should cover the main chassis and the engine block comprehensively. You also need accessible technical troubleshooting. When a machine throws a belt on a remote highway, your operator needs answers fast. A manufacturer with a dedicated technical support hotline provides immense field value.
Mechanical routing remains a non-negotiable step for long-lasting infrastructure repair. Ignoring this step guarantees premature repair failure and wasted budget. By standardizing pavement fractures, you create the perfect environment for hot-pour sealants. We advise buyers to audit their typical job site conditions carefully. Document your ratio of asphalt to concrete work. Calculate your average crack volume per season. Use this data to determine your required engine power and blade specifications. Armed with these details, you can request accurate quotes and procure the perfect machine for your maintenance fleet.
A: A crack grooving machine is heavy construction equipment used for road repair. It cuts irregular pavement fractures into uniform channels. A V-grooving machine is typically stationary, CNC-operated factory equipment. Manufacturers use V-grooving machines in sheet metal fabrication or cardboard packaging to create precise folding lines.
A: Some machines support wet cutting. This injects water to cool the blade and suppress hazardous silica dust. However, the resulting crack must be completely dried before repair. Crews typically use a specialized heat lance to evaporate all moisture before applying any hot-pour sealant.
A: Operating speed depends on material density, aggregate hardness, and engine power. However, operator accuracy dictates the actual linear speed more than sheer engine output. Tracking highly irregular, wandering cracks requires a slower, controlled pace to prevent unnecessary pavement damage and excess sealant use.
