Truck Mounted Attenuator Vehicle

The 70k anti-collision buffer vehicle is mainly used for safety protection in road maintenance and construction operations. The vehicle is parked behind a temporarily closed construction area and absorbs the kinetic energy of vehicles colliding from behind through anti-collision buffer pads, providing effective protection for workers and equipment in the construction area, while maximizing the personal safety of personnel in rear impact vehicles.

The collision avoidance system of the vehicle can absorb the energy of a vehicle with a weight of 2 tons and a maximum speed of 70 kilometers per hour. The equipment is safe, reliable, and easy to operate, suitable for daily maintenance and emergency protection of highways, national and provincial highways, and municipal roads.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Equipped with 70K‑grade honeycomb aluminum energy‑absorbing crash cushion, it can absorb impact energy generated by a 2‑ton vehicle at a speed of 70 km/h. The lightweight aluminum‑alloy shell realizes energy absorption through controlled deformation, fully protecting construction workers and occupants of rear‑ending vehicles. It is suitable for safety protection of highway and municipal road construction overseas.

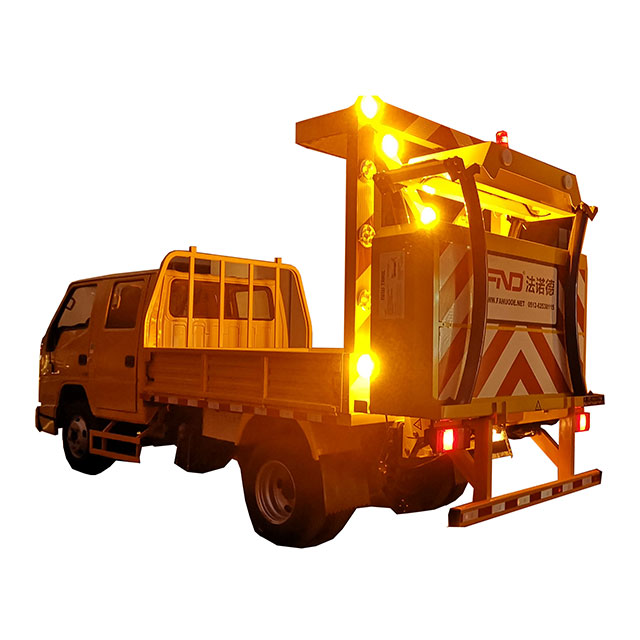

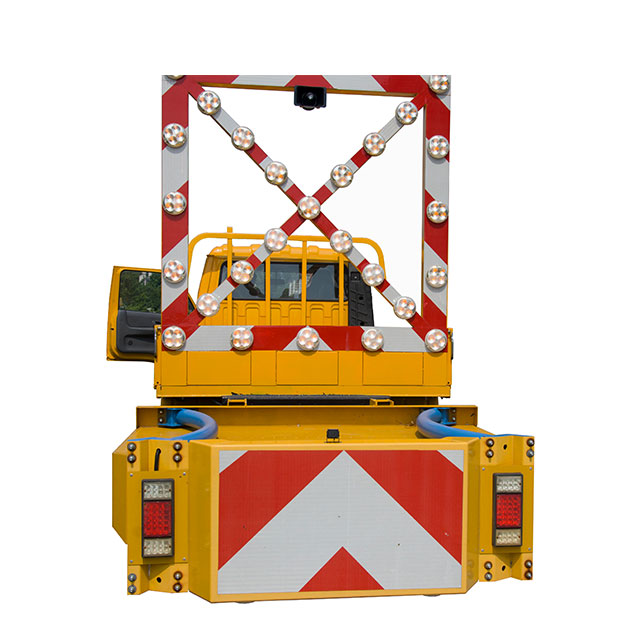

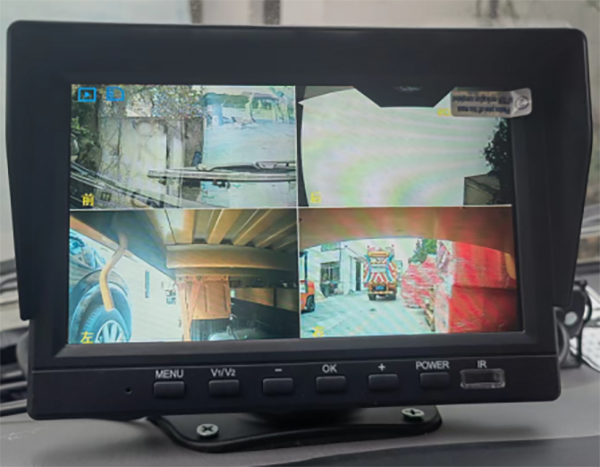

Standard‑fitted with a 360° panoramic 4‑channel monitoring and recording system and a 7‑inch LCD screen. Combined with brightness‑adjustable high‑brightness LED arrow warning lights, it records on‑site videos in real time and provides clear traffic guidance for following vehicles, satisfying traceable safety‑management requirements of overseas construction sites.

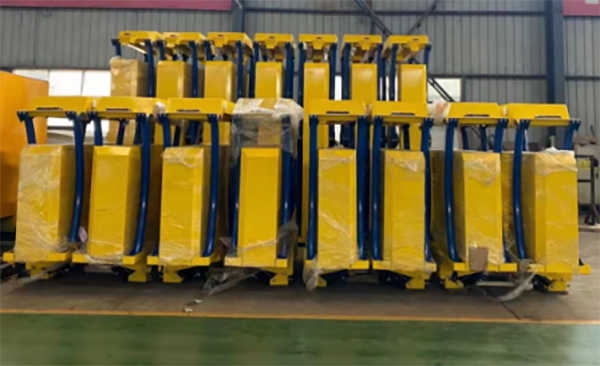

The crash cushion adopts a modular quick‑assembly structure with special connectors. The cushion can be installed and replaced quickly without plenty of special tools. The on‑board integrated power unit and highly universal spare parts allow convenient local maintenance for overseas users and reduce equipment downtime.



Built on JMC JX1041TSG26 Class‑II chassis. The diesel engine features strong power, low noise and low fuel consumption. With excellent load‑bearing performance and high reliability, the vehicle adapts to complicated road conditions and long‑distance transit in various overseas regions. Its 4495 kg gross vehicle weight complies with light‑duty commercial vehicle regulations in most countries.

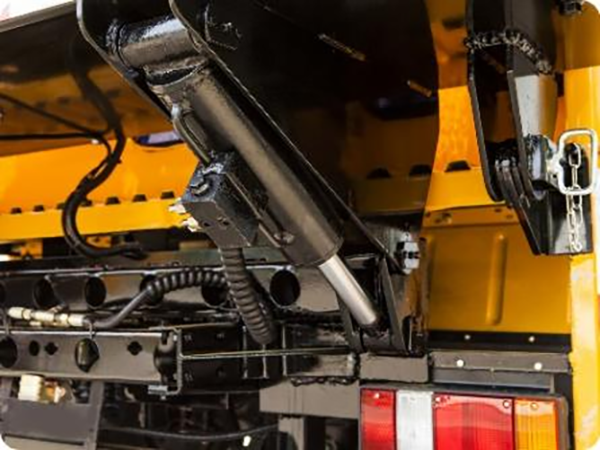

Fitted with an electronically‑controlled hydraulic flipping mechanism. The full lifting and lowering cycle of the crash cushion only takes 22 seconds with one‑key start‑stop function. It enables rapid switch between transit mode and construction protection mode without complex tools, greatly improving site transfer efficiency for overseas work sites.



Technical parameters of the entire vehicle

Product name

70K anti-collision buffer vehicle

Product model

KS5040TFZ13

Total weight (Kg)

4495

Dimensions (mm)

5990x2040x3180

Curb weight (Kg)

4170

Cargo compartment size (mm)

2410,2370,2330x1860,1825x380,300

Approach angle/departure angle (°)

20/14,20/15

Front suspension/rear suspension (mm)

1075/1555,1095/1535

Axle load (Kg)

1725/2770

Maximum speed (Km/h)

100

Chassis technical parameters

Chassis Model

JX1041TSG26

Chassis brand

JMC

Manufacturing enterprise

JMC

Production address

Nanchang City, Jiangxi Province

Number of axles

2

Number of tires

6

Wheelbase

3360

Tire Size

7.00R16LT 10PR

Number of steel plate springs

7/4+6,7/5+6,4/4+6,3/4+6,4/4+4,3/4+4,5/4+6,5/4+4

Front wheelbase (mm)

1385,1370

Rear wheelbase (mm)

1425,1440

Fuel type

Diesel oil

Emission standards

GB3847-2005,GB17691-2018 National Ⅵ

Engine model

Engine Manufacturer

Displacement (ml)

Power(Kw)

JX4D30B6H

JMC

2892

85


We are a professional manufacturer of road-maintenance machinery with in-house workshop. We provide OEM modification & custom configuration service. CE certification is available.

· Complete machine warranty, global spare-parts supply chain, overseas on-site engineer technical support are available.

· FCL full-container bulk order with wholesale discount.

· Full-set tender documentation is offered for engineering bidding projects.

· Production lead-time is confirmed upon formal order.

· If you have special configuration requirements, please contact our sales team. Custom adjustments can be made according to client requirements.

ISO3ISO2ISO


1. Machine Trial Service: Trial run can be arranged to verify performance matching your project requirement.

2. Export Packing for Container Shipment: Anti-rust reinforced packing for sea freight FCL full-container export.

3. After-sales Spare-parts & Technical Support: Long-term genuine spare-parts supply; operation manuals & video training available; overseas on-site technical service on request.

4. Price Policy: Better price is negotiable for large-volume purchase.

5. Custom Adaptation: Custom configuration adjustments are negotiable for special site conditions.




Technical Questions

Q1: What is the maximum impact resistance rating of crash truck?

A: The 70K TMA buffer absorbs impact energy from a 2-ton vehicle up to 70 km/h.

Q2: How long does it take to raise / lower the buffer cushion?

A: The electro-hydraulic flip mechanism completes full raise or lower cycle within 22 seconds.

Q3: Is replacement of damaged anti-collision cushion complicated?

A: Quick-coupling connectors enable fast disassembly and independent cushion replacement without modifying other truck components.

B-End Procurement FAQ

Q1: Are you road maintenance machine manufacturer or trading company?

A: We are direct manufacturer of road-repair machinery with our own production workshop for full machine assembly.

Q2: Can you offer CE certificate for customs clearance & project tender?

A: Yes, CE certification documents are available for customs clearance and international project bidding.

Q3: What is MOQ for bulk order?

A: Single-unit order is acceptable; more favorable commercial terms apply for full-container bulk purchase.

Q4: Do you support OEM custom machine configuration?

A: OEM custom service is supported. Contact our sales, adjustments can be made according to client requirements.

Q5: Can your engineer provide overseas on-site installation guidance? What is the cost?

A: Overseas on-site engineer support is available. Service cost will be quoted separately based on project location and service duration.

Q6: Do you supply long-term spare-parts for road repair equipment?

A: Yes, we maintain a global spare-parts supply channel for long-term genuine spare-parts provision.

Q7: What discount for FCL full-container project order? How long is production lead-time for wholesale project orders?

A: Wholesale discount applies for FCL full-container orders, price is negotiable for large quantity. Production lead-time will be finalized after contract signing, subject to order quantity & custom modifications.
