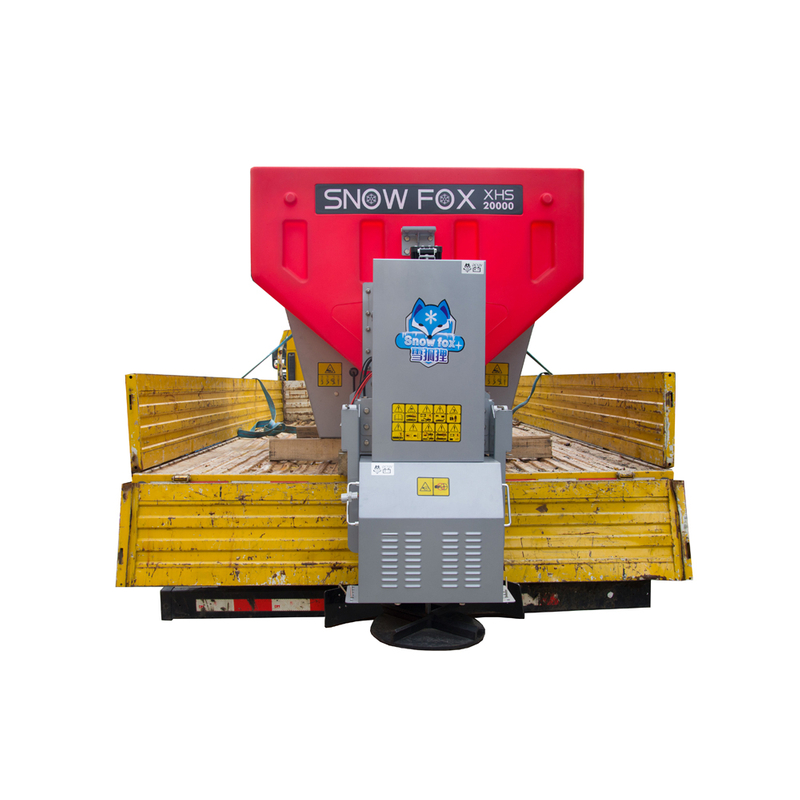

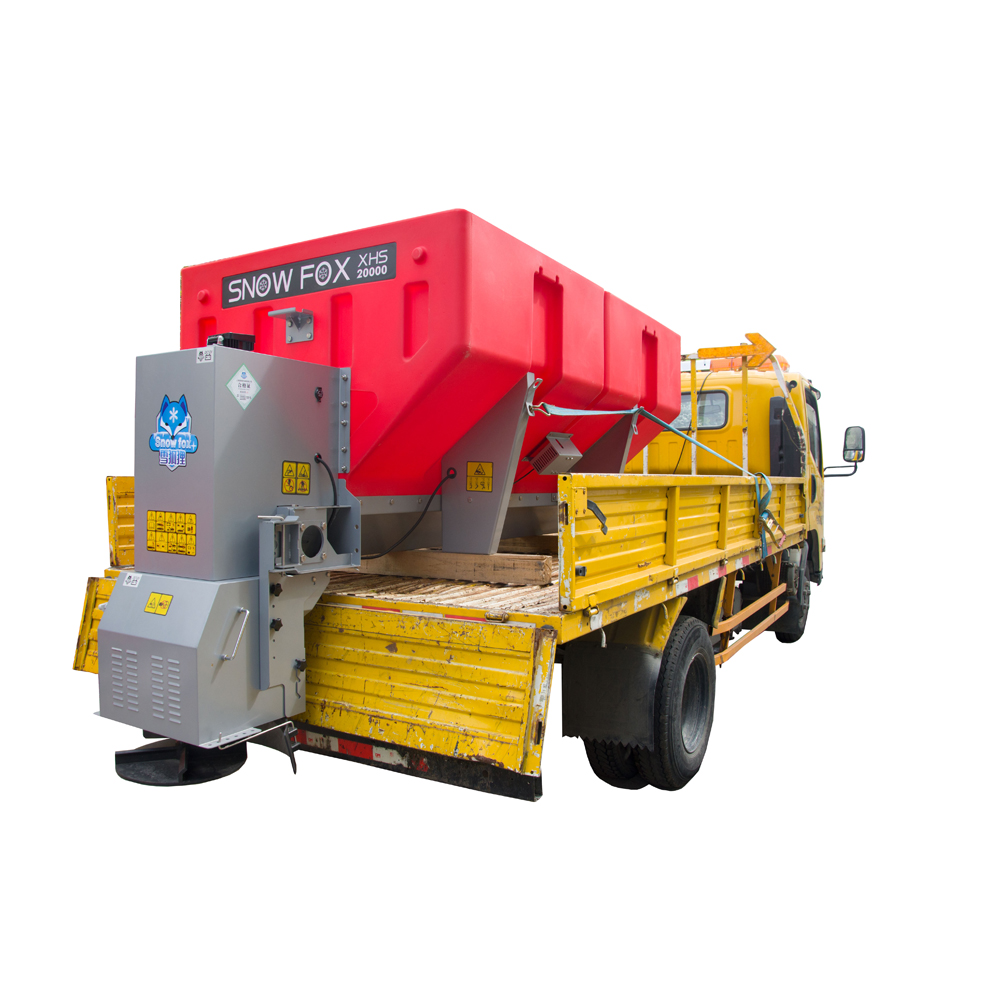

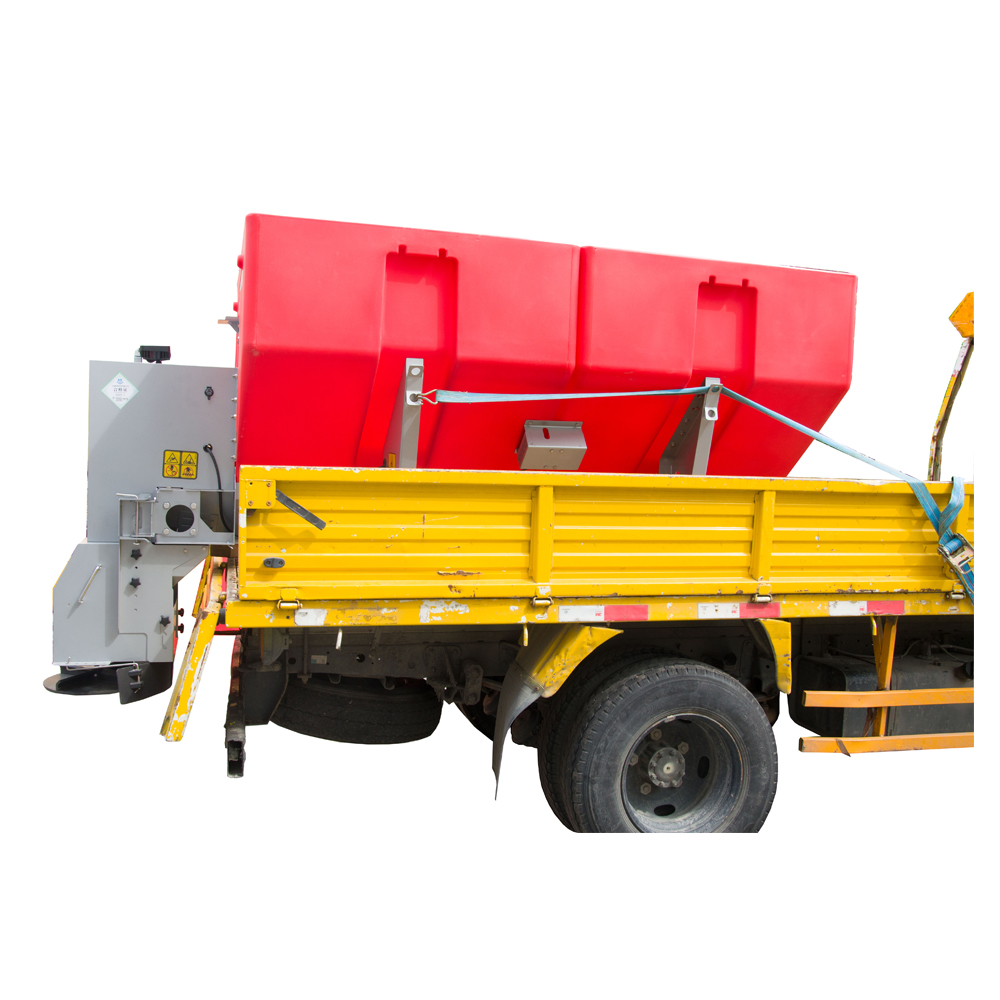

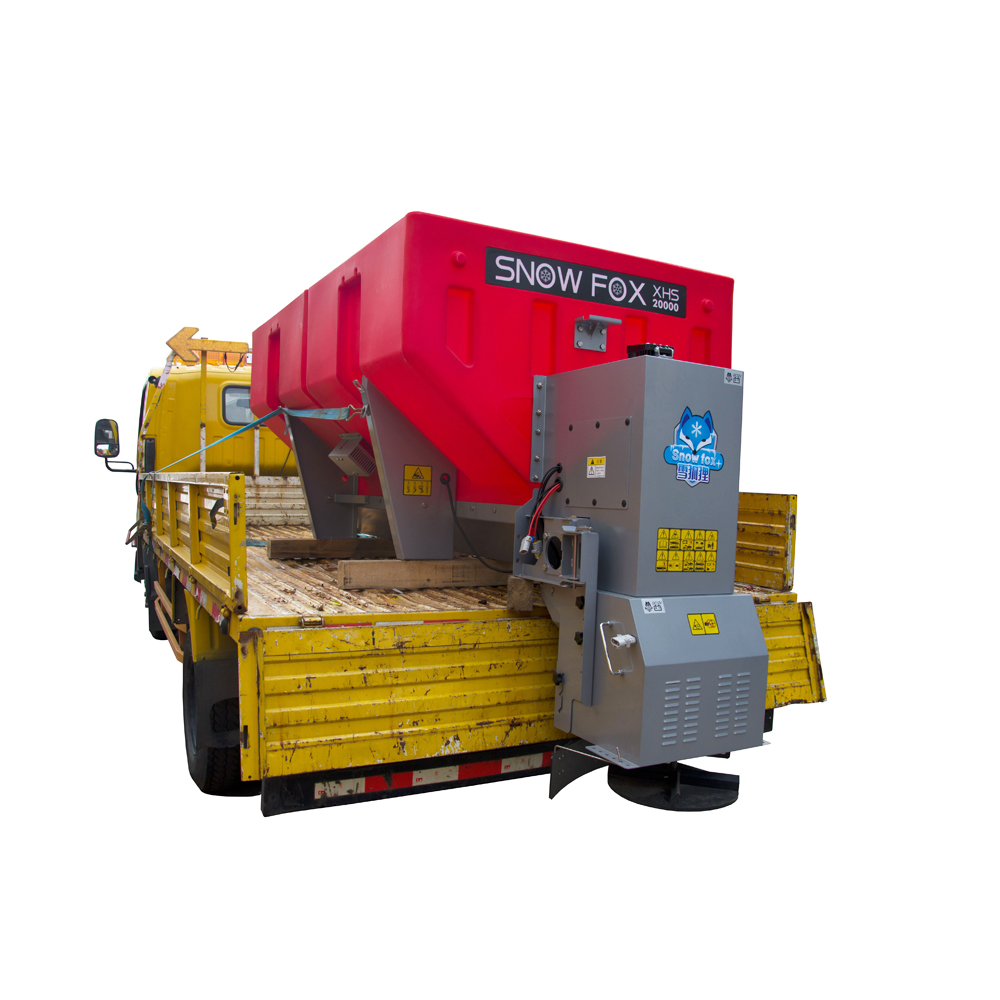

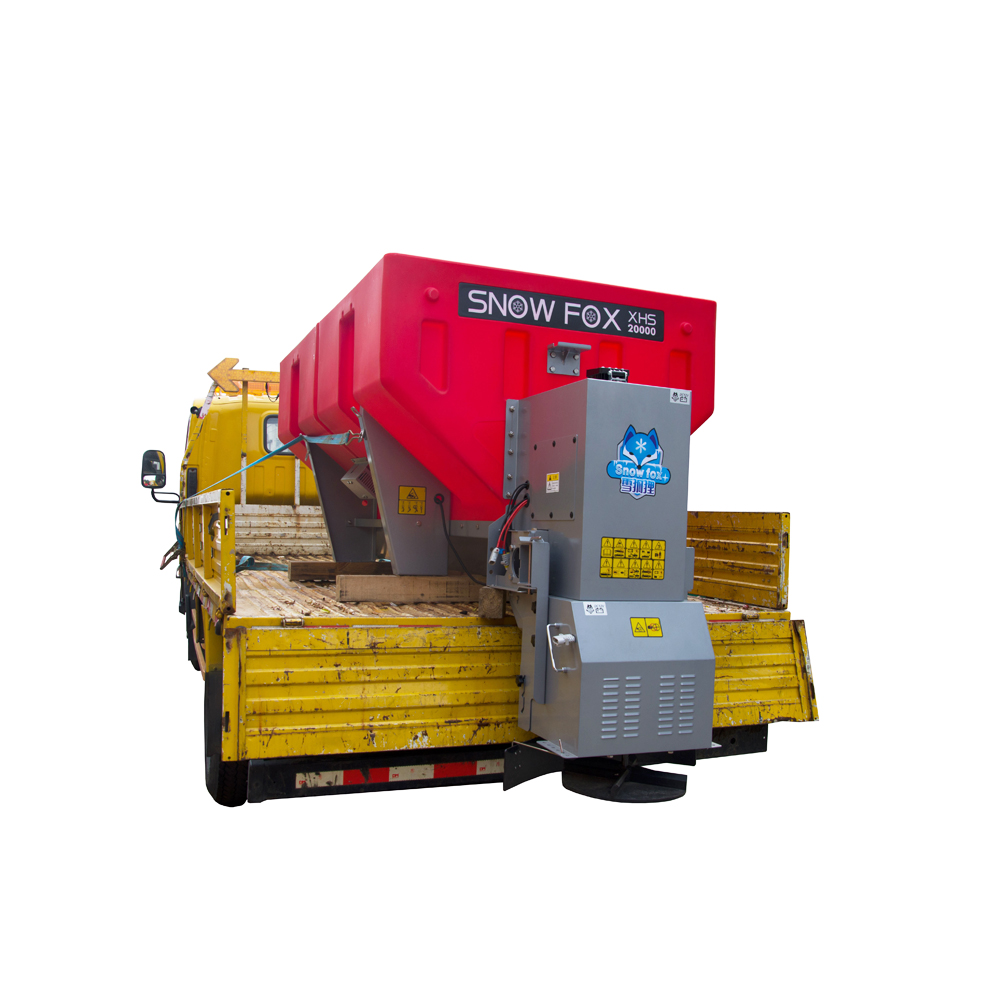

XHS-20000 Polyethylene De-icing Spreader

yethylene snow melting spreaders are mainly used for winter emergency salt spreading operations on roads such as highways, residential areas, and airports. Our spreaders are manufactured using polyethylene material processing technology, driven by DC reduction motors, and powered by the vehicle's built-in battery. They feature stepless speed control to adjust the spreading width. The main characteristics include low power consumption, energy saving, environmental protection, no harmful gas emissions, corrosion resistance, and long service life, effectively solving the corrosion problem of traditional salt spreading equipment.

Quantity:
Availability:





Inquire Add to Basket

Model:
XHS-20000
Brand:
FND

1. The upper part of the dragon uses a triangular umbrella-shaped baffle and adopts a side-leak feeding method to prevent snowmelt agents from pressing on the dragon for a long time, which could cause overload during dragon operation and hollowing after snowmelt agent compression.

2. The controller is equipped with overload and overcurrent protection to prevent equipment components from burning out when large objects enter the spreader and cause jamming.

3. The rear of the spreader is fitted with lighting and warning devices to prevent vehicles following too closely from the rear and reduce the occurrence of accidents.

4. The double-sided vibrator installation adopts a layout of left front and right rear to achieve the best vibration effect and avoid partial accumulation of snowmelt agents.

5. The controller is controlled by self-developed chips, with reasonable logic, simple and easy-to-learn operation, making it convenient for workers to operate.

6. The spreading disc is made of low-temperature resistant rubber material, which is wear-resistant and cold-resistant, with a polyester diameter of ≥36.8cm.

7. The dragon motor and spreader motor use low-temperature lubricating grease to prevent freezing and tooth jamming during low-temperature operations.

8. Our company adopts left and right dual high-frequency vibrators, which are superior to similar products.

Model	XHS-20000 Polyethylene Spreader
Overall Dimensions	2770mm (L) × 1300mm (W) × 1080mm (H)
Spreader Net Weight	360Kg
Hopper Capacity	2m³ / 2200kg
Spreading Materials	Salt, Sand, Granular Stone, De-icing Agent
Hopper Material	Polyethylene Hopper with Stainless Steel Support Frame at the Bottom
Feeding Mechanism	Internal Screw Auger Conveyor, Adjustable Speed (Screw Outer Diameter: 16cm; Screw Pitch: 23cm)
Maximum Feeding Rate	0.06 m³ Per Minute
Gearbox Reduction Ratio	1:80
Feeding Motor	High-torque DC12V (24V Optional), 600W
Spreading Motor	High-torque DC12V (24V Optional), 200W
Vibration Motor	Dual DC12V Vibration Motors
Spinner Disk	Low-temperature Polyester Material, Diameter 36.8cm
Spreading Width	0–12m
Adjustable Baffle	Polyester Material
Receiver Hitch	Class 4
Spinner Assembly	Easy to Disassemble
Control System	Dual Variable Speed Control, with Explosion-proof Function and Overload Protection
Baffle	Polyester Material, 6-speed Adjustable Mode
Controller	LCD Controller, Screen Size: ≥4.3 Inches; Dual Control with Weak Current Protection, Anti-reverse Current Protection; LED LCD Display, with Voltage Monitoring, Low Voltage Protection, Communication Protection, 485 Communication Function; Infinite Speed Adjustment for Auger Motor and Spreading Motor (1-10 Gears Respectively); LCD Real-time Monitoring of Working Status of Pre-wetting System, Lighting System, Warning System, Vibration System, Spreading System and Feeding System.
Color	Polyethylene Hopper in Red or Yellow, Other Parts in Stainless Steel Original Color, Equipped with Reflective Strips for Safe Operation
Warning Light	Warning Light and Lighting Lamp Equipped at the Rear of the Hopper
Vehicle Compatibility	1-4 Ton Light Truck or Pickup, Chassis Battery 12V or 24V
