Highway work zones present a rapidly escalating risk for modern infrastructure crews. Recent U.S. data reveals a staggering 891 fatalities in a single year inside work zones. Distracted and fatigued driving primarily drive this alarming trend across global highways. Standard traffic cones and static barricades fail against high-speed kinetic impacts. Unprotected work zones expose crews to catastrophic injuries. They also trigger massive equipment losses and severe liability claims.
Enter the Truck Mounted Attenuator. You should view it as far more than a regulatory checkbox. It serves as the definitive mobile fail-safe. Think of it as a heavy-duty "mobile airbag" for highway operations. It delivers critical dual-direction protection on the road. It thoroughly shields vulnerable road workers while simultaneously saving errant drivers from fatal blunt-force impacts. Deploying this system fundamentally transforms highway risk management.
TMAs operate via kinetic energy absorption and controlled structural deformation, significantly reducing G-forces during a collision.
Procurement decisions must be dictated by MASH (Manual for Assessing Safety Hardware) testing standards and speed-specific Test Levels (TL-2 vs. TL-3).
Effective deployment requires strict adherence to convoy configurations and calculated roll-ahead distances to prevent secondary impacts.
Partnering with a certified Truck Mounted Attenuator manufacturer ensures access to compliant OEM parts, vital for maintaining equipment integrity and visual warning efficacy.
Understanding these devices requires looking closely at kinetic energy. When a high-speed collision occurs, massive physical forces transfer immediately. The attenuator cartridge intercepts this energy before it reaches human bodies. It crushes systematically through controlled structural deformation. It absorbs and disperses extreme G-forces rapidly. These forces never reach the truck chassis. They also stay far away from the road workers stationed ahead. This mechanism dictates survivability in high-speed crashes.
This process provides essential dual-direction protection. Quality attenuators prevent fatal blunt-force trauma for the impacting driver. The crushable cartridge decelerates their vehicle safely. Simultaneously, the device acts as an impenetrable shield for your construction crew. You protect the instigator of the crash alongside your own personnel. This creates a holistic safety net around temporary work zones.
Fleet managers must frame this investment purely in risk management terms. Deploying compliant shadow vehicles prevents multi-million dollar injury claims. A catastrophic work zone injury easily bankrupts a contracting firm. Often, the equipment pays for itself during the very first major collision on high-volume roads. You protect human lives while mitigating catastrophic financial ruin for your organization.
Always match the shadow vehicle's weight to the attenuator manufacturer specifications.
Document every deployment to build an impenetrable defense against liability claims.
Never substitute an unballasted dump truck for a dedicated attenuator vehicle.
Regulatory bodies constantly update safety hardware evaluations to match modern realities. Older standards, like NCHRP Report 350, tested equipment against lighter vehicles. Today, the MASH (Manual for Assessing Safety Hardware) standard dictates compliance. Modern consumer vehicles weigh significantly more than they did twenty years ago. MASH reflects current traffic realities accurately. It uses heavier vehicle weights and varied impact angles during independent laboratory crash tests. You must transition your fleet to MASH-compliant hardware to ensure true impact readiness.
Procurement relies heavily on understanding specific Test Levels. You evaluate these levels based on local speed limits. You must differentiate between TL-2 and TL-3 classifications to avoid serious deployment errors.
Classification | Speed Rating | Primary Application Environments | Deployment Scope |
|---|---|---|---|
TL-2 Applications | Under 80 km/h (approx. 50 mph) | Local roads, urban streets, and residential work zones. | Designed for lower-speed impacts. Ideal for municipal fleets managing city infrastructure. |
TL-3 Applications | 90 km/h (approx. 55 mph) and above | Highways, interstates, and high-speed rural routes. | Mandatory for any high-speed corridor. Crucial for massive highway infrastructure projects. |
Guide your procurement managers to audit typical project environments carefully. Avoid under-specifying your fleet at all costs. Deploying a TL-2 unit on a 70 mph interstate invites lethal safety risks. Conversely, avoid over-specifying equipment for strictly urban fleets. Buying TL-3 units for 25 mph city streets results in unnecessary capital expenditure. Use a clear decision matrix based on your operational contracts to build a balanced fleet.
An attenuator never operates effectively in isolation. It belongs to a broader defensive configuration known as convoy architecture. You must structure your work zone vehicles sequentially to maximize reaction time for approaching drivers. This defensive formation saves lives daily.
Advance Warning Truck: Stationed furthest back. It provides early visual alerts to oncoming traffic.
Buffer Truck: Carries the attenuator device. It acts as the primary physical barrier.
Lead Truck / Work Crew: Positioned safely ahead, completing the actual infrastructure repairs.
Calculating the roll-ahead distance remains the most critical operational variable. When a heavy truck takes a 65 mph rear impact, it slides forward violently. You must define a critical buffer space between the buffer truck and your workers. We establish a standard benchmark of at least 150 feet for static operations. You must scale this distance based on the shadow vehicle's weight and the specific traffic speed. If you fail to calculate this, the shadow vehicle becomes a deadly projectile post-impact.
Operational risk spikes when crews rely on ad-hoc deployments. Never let untrained personnel guess the proper spacing. You must highlight the necessity of formal operator training across your organization. Training must cover precise positioning, the differences between static and mobile setups, and immediate emergency protocols. Proper training turns a heavy truck into an effective shield.
Visual warning optimization dictates how quickly approaching drivers react. Industry research, particularly VTRC data, proves traditional markings fall short. They tested specific back-panel markings meticulously. Green and black checkerboard patterns yield much higher lane-occupancy displacement than traditional orange and white chevrons. Drivers recognize the hazard earlier. They initiate speed reduction faster. Upgrading your back-panel markings offers an immediate safety dividend.
Optical warning systems require equal attention. Traditional rotating beacons often confuse drivers or blend into background city lights. We strongly recommend asynchronous flashing LED systems. These systems maximize daytime visibility piercing through bright sunlight. More importantly, you can dim them systematically to control night-time glare. Blinding an approaching driver actively causes the collision you aim to prevent.
We must also address cabin safety engineering. The driver of the buffer truck faces immense physical vulnerability. A high-speed rear-end collision violently throws the operator forward and backward. Traditional three-point seatbelts fail to secure them adequately. We emphasize the absolute necessity of 5-point or 6-point harness systems in these specific trucks. Furthermore, operators should wear head and neck support (HANS) devices. These critical countermeasures prevent severe whiplash, pelvic fractures, and spinal injuries during a sudden impact.
Structural integrity defines the exact performance of safety hardware. The effectiveness of the device relies entirely on precise physical deformation. Engineers design the internal struts and aluminum cells to crush at highly specific intervals. Using substandard or counterfeit replacement parts alters the crash physics completely. A repaired unit might feel solid, but it behaves unpredictably under kinetic stress. You risk catastrophic failure during subsequent impacts if you ignore OEM standards.
Welding cracked aluminum struts instead of replacing the entire sacrificial cartridge.
Mixing parts from different brands, voiding MASH compliance instantly.
Ignoring minor sagging, which changes the required impact height.
Warning sign visibility also degrades following improper repairs. Low-quality structural repairs inevitably cause the attenuator frame to sag over time. This sagging alters the deployment angle. It inadvertently obscures arrow boards or critical warning lights mounted above. Obscuring these lights constitutes a critical compliance violation. Inspectors will shut down your work zone immediately upon discovering this.
Safety managers must implement strict preventative maintenance schedules. You need to inspect hinges, hydraulic pins, and structural bolts weekly. Furthermore, you must secure reliable supply chains for certified replacement cartridges. Lifecycle management guarantees your fleet remains compliant, operational, and genuinely safe year-round.
Selecting the right vendor impacts your safety record directly. First, demand verified certification from any potential partner. The manufacturer must provide transparent documentation of independent MASH laboratory crash test results. Never accept internal testing claims. Look for official letters of eligibility from federal highway authorities. This documentation proves the equipment actually handles the forces it claims to absorb.
Evaluate their fleet scalability and form factors next. Assess whether the vendor offers versatile solutions tailored to varied operational needs. Consider these primary formats:

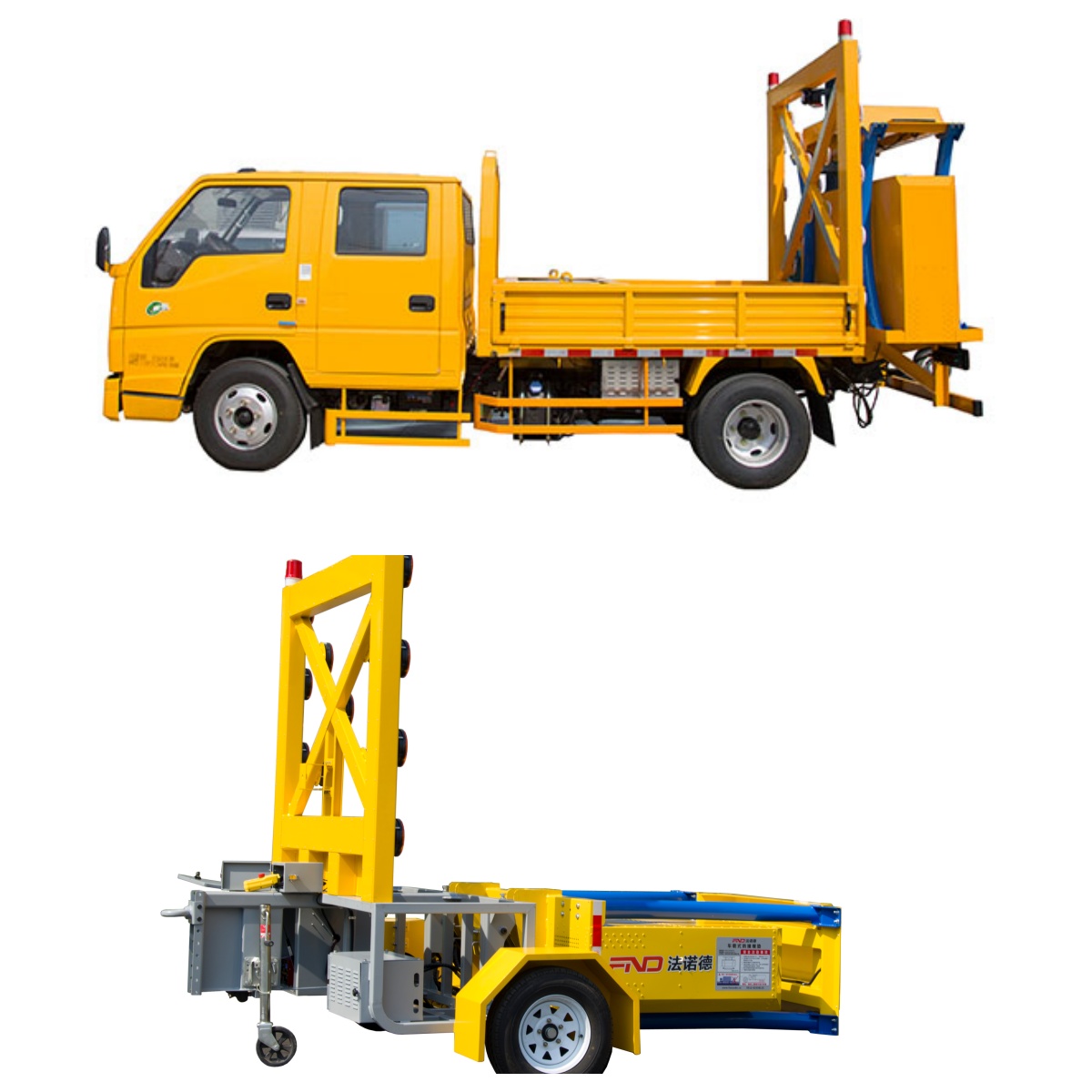

Traditional TMAs: Bolted directly to the truck chassis for permanent shadow vehicle dedication.
Trailer-Mounted Attenuators (TTMAs): Towed behind trucks, offering easier swap-outs and preventing direct chassis damage during minor bumps.
Automated TMAs (ATMAs): Utilizing leader-follower technology to remove the human driver from the line of fire entirely.
Finally, heavily scrutinize their post-sale support and training infrastructure. A credible Truck Mounted Attenuator manufacturer should act as a long-term safety partner. They must provide comprehensive operator training modules covering installation, transportation, and daily deployment. They also need a massive, reliable OEM parts distribution network. When a unit takes a hit, you need replacement cartridges shipped immediately. Extended downtime compromises your field teams and delays infrastructure projects.
Integrating advanced attenuators into traffic management represents a non-negotiable element of modern infrastructure projects. You cannot rely on static cones to stop modern highway traffic. The physics simply demand heavy-duty kinetic absorption to keep crews alive.
Evaluating safety hardware requires moving far beyond baseline compliance. You must consider holistic work zone configurations. Focus deeply on operator survivability inside the cabin. Enforce strict maintenance protocols using only verified OEM parts. This comprehensive approach builds a resilient safety culture.
Take immediate action to protect your field personnel today. Audit your current work zone safety compliance thoroughly. Verify the exact MASH status of every attenuator in your fleet. Finally, consult a qualified manufacturer to outline a strategic timeline for your fleet upgrades.
A: A traditional unit mounts directly onto a heavy truck's chassis. A TTMA (Trailer-Mounted Attenuator) operates as a towable trailer behind the host vehicle. TTMAs reduce direct structural damage to the main truck chassis during an impact. They also eliminate tire-related maintenance downtime since you can quickly swap the trailer to another truck.
A: You calculate this critical buffer space based on three main factors. First, consider the total weight of the shadow vehicle. Second, factor in the speed limit of the impacting traffic. Finally, determine whether your operation is static or mobile. Lighter trucks on faster roads require significantly longer roll-ahead distances to prevent secondary impacts.
A: Most transportation authorities enforce strict transition guidelines phasing out older equipment. While existing NCHRP 350 units might remain conditionally legal until their useful life ends, upgrading to MASH standards is heavily recommended. MASH-compliant equipment accounts for modern, heavier vehicle weights, drastically reducing your organizational liability during severe crash investigations.
