Pavement patching, crack sealing, line repainting and traffic incident clearance on expressways, national arterial roads and urban rapid transit routes constantly expose maintenance crews to severe risks of high-speed vehicle impact. Traditional protection methods relying solely on traffic cones and warning signs lack physical shock absorption barriers. Out-of-control vehicles can easily break into work zones, causing severe or fatal injuries to road maintenance staff. Global traffic safety statistics record tens of thousands of work zone collision accidents annually, nearly all stemming from the absence of professional rear-end energy dissipation rigs. Fanuode offers two dedicated roadwork safety shield vehicles: the lightweight 70K TMA shadow unit KS5040TFZ13 and heavy-duty high-speed impact dissipation wagon TSW5160TFZB6. Equipped with honeycomb energy-absorbing cartridges, fully automatic hydraulic retraction assemblies and full-vision early warning monitoring suites, these two categories of road safety machinery are mandatory equipment for highway repair contracts across Europe, North America and Southeast Asia. This article analyzes fatal work zone hazards, core collision dissipation mechanics, differentiated application scenarios for both models, full intelligent safety accessories and standardized on-site operation workflows, explaining how truck-mounted impact attenuation apparatus eliminates collision casualties from the root cause.
Road maintenance on high-speed carriageways carries three critical hazards: uninterrupted fast-moving traffic, workers operating inches from live lanes, and limited visibility especially during night shifts. Conventional safety measures carry fatal limitations: reflective traffic cones only deliver visual reminders with zero kinetic energy absorption capacity; ordinary service trucks feature crigid frames without crumple zones, transferring full impact force straight to crews and equipment behind them; temporary guardrails take hours to deploy and deliver poor visibility after dark, doubling accident rates for night repair shifts. When passenger cars or light commercial vehicles veer into closed work zones at 60–100km/h without a dedicated rear-end collision dissipation wagon as a barrier, the entire vehicle crashes into milling rigs, crack filling gear and field teams. Standard truck frames cannot dissipate crash energy, leading to total equipment loss, prolonged highway closures and life-altering worker injuries. Traffic regulatory standards worldwide now mandate honeycomb-cored rear impact attenuation apparatus for all road maintenance operations on carriageways with speed limits exceeding 70km/h.

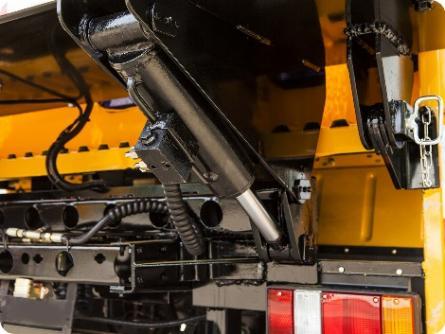

The core protective assembly fitted on both Fanuode road safety carriers is the CANSINGA-TMA modular collision cushion system, split into 70K lightweight energy-absorbing pods and 100K heavy-duty crumple chambers to match different highway speed limits. Each buffer unit features a lightweight aluminum outer shell layered with multi-stage honeycomb aluminum cores, outperforming single foam barriers on the market. The metallic honeycomb structure collapses progressively upon impact to disperse crash force gradually. The KS5040TFZ13 light-duty rear crash guard rig’s 70K cartridge safely neutralizes full kinetic energy from a 2-ton vehicle striking at 70km/h. The TSW5160TFZB6 heavy-duty highway impact neutralization lorry carries a larger 100K crumple pod, certified to withstand rear collisions by 2-ton vehicles traveling up to 100km/h. During impact, honeycomb layers compress sequentially to decelerate the striking vehicle slowly, avoiding lethal high G-forces for both motorists and road crews. The buffer housing stays intact without flying debris, eliminating secondary fragment injuries. Each energy-absorbing pod connects to a fully automatic hydraulic flip frame controlled via in-cab one-touch operation; full deployment or retraction finishes within only 22 seconds. For transit, the buffer assembly retracts completely to avoid width restrictions, enabling smooth passage through narrow county bridges and local lanes. Quick-disconnect latches secure the cushion pods; damaged cartridges can be replaced by a single operator without full vehicle workshop maintenance, drastically cutting long-term operational expenses.
This compact road safety support rig builds upon the JMC JX1041TSG26 Class II light truck chassis with a total gross weight of 4,495kg, operable with a standard Class C driving license. It excels for scattered minor repairs on urban ring roads, county national highways and suburban expressway branch lines, alongside daily pavement inspection patrols. The chassis runs on the Euro VI-compliant JX4D30B6H diesel engine delivering stable 82kW output with low fuel consumption and quiet operation, easily navigating tight interchanges and narrow suburban roads. Full visual safety suites come standard: four 360° panoramic surveillance cameras feed footage to a 7-inch dash touchscreen, continuously recording construction and crash footage for post-incident forensic evidence. An independent Senken LED warning controller in the cab allows stepless brightness adjustment for dual-direction arrow lamps, delivering kilometer-long visibility under bright sunlight, heavy rain or night snowfall. The vehicle’s protective cabinet uses 3mm diamond plate Q235 steel flooring resistant to gravel abrasion, resisting rust and deformation after years of outdoor field use. Ideal use cases: urban rapid transit crack sealing, small pothole repairs, road marking renewal and short-distance emergency debris clearance, perfect for multi-stop daily repair schedules requiring fast transit.

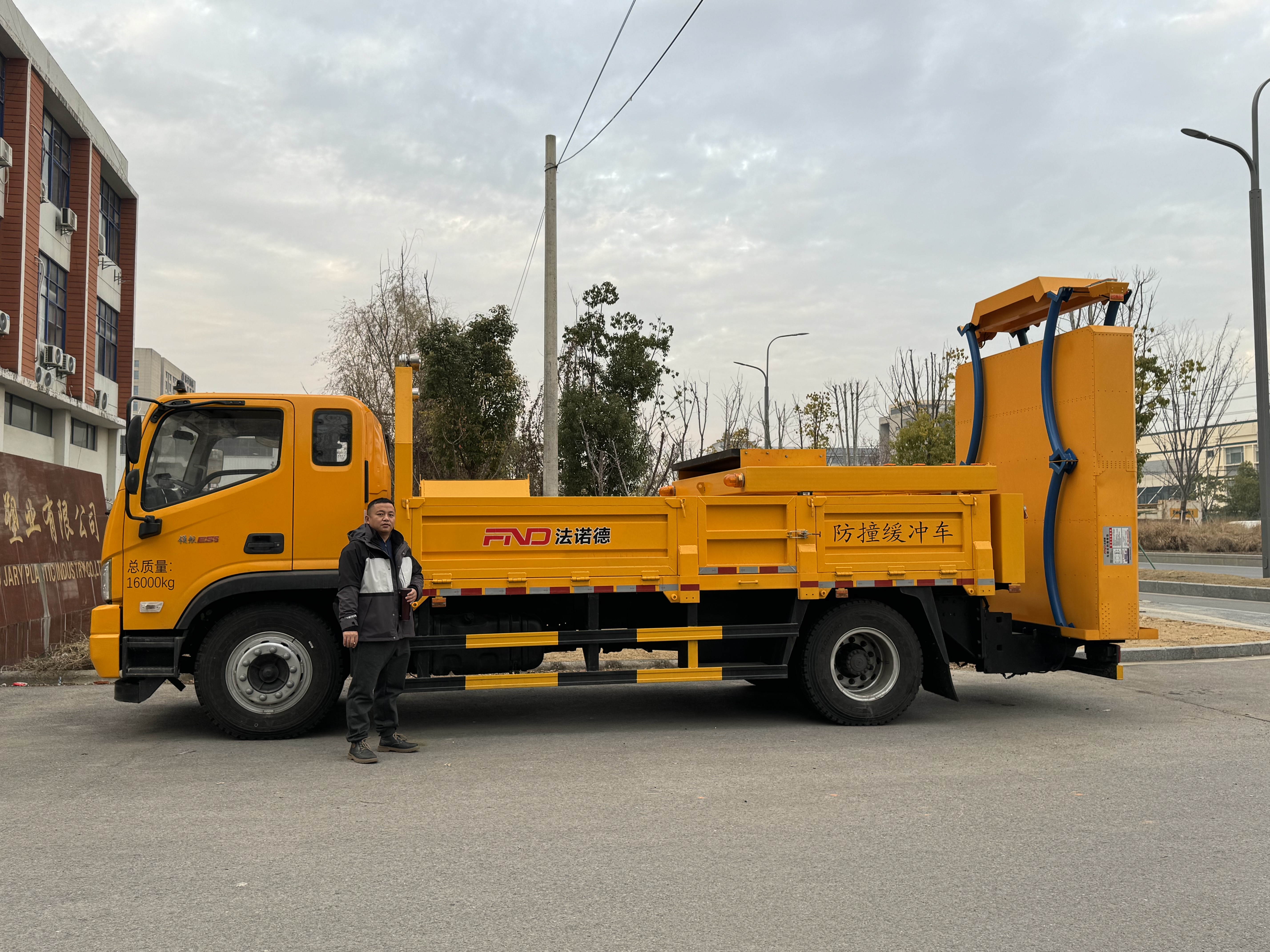

This large-scale roadwork safety barrier adopts the Foton BJ1164VKPFA-01 six-meter heavy chassis with a total mass of 16 tons, powered by the Weichai WP4.1Q190E61 Euro VI 140kW high-torque diesel engine. It is engineered for long-term full-lane maintenance on national cross-country expressways and airport high-speed corridors, with the premium 100K honeycomb pod meeting the strictest 100km/h crash protection standards for sustained lane closures. Upgraded wide LED directional light arrays double night-time warning coverage; dual hydraulic flip cylinders maintain stable pressure during heavy-load buffer lifting. Full side and rear guards use thick cold-formed Q235 steel bolted to the chassis, complying with international roadwork ground clearance standards, with optional on-board ETC equipment for seamless highway toll passage without pre-registration. Ideal use cases: full-depth expressway milling and resurfacing, long median hedge trimming, large-scale winter snow removal lane closures and multi-hour accident emergency road blockages, the primary safety vehicle for long-term large-scale maintenance contracts.
Panoramic Forensic Recording System: Four wide-angle cameras eliminate blind spots, capturing footage during transit, active repair work and collisions to simplify liability assessment without requesting highway surveillance footage.
Electric Hydraulic One-Touch Control Interface: Operators deploy or retract the energy-absorbing pods entirely from the cab without exiting, with emergency stop functions for quick hazard response; new drivers master full operation within five minutes.
All-Weather LED Pre-Warning Directional Lights: Dimmable bi-directional arrow lamps paired with body-mounted strobe beacons alert approaching traffic to lane shifts under fog, rain and low-light dusk conditions.
Reinforced Full-Vehicle Guard Structure: Thick standardized steel side and rear bumpers bolted to the chassis resist curb and rock scrapes to extend vehicle service life.
OEM Standard Brake Hardware: All models come factory-fitted with Asia Pacific / Ruili Kemi ABS anti-lock braking systems, shortening stopping distances during high-speed evasive maneuvers and boosting the carrier’s own crash resistance, with chassis power reserves for prolonged idle-site electrical supply.
Transit to Job Site: Fully retract the honeycomb buffer cartridge via hydraulic power, verify LED warning lights and panoramic monitors function, then drive slowly along the hard shoulder to the designated work zone.
Zone Setup: Reserve a 50-meter safety buffer space at the downstream end of the work area, park the TMA shadow rig between live traffic lanes and maintenance crews, then lower the honeycomb energy-absorbing pod to its working height via cab controls.
Active Repair Phase: Keep dual LED directional lights and continuous video recording active, assign a dedicated observer to monitor rear traffic and activate audible alerts for speeding vehicles.
Post-Repair Wrap-Up: After all machinery and personnel exit the work zone, retract the buffer pod from the cab, disable warning systems, inspect the cushion for impact damage before exiting the closed carriageway.
Post-Collision Handling: Immediately cut hydraulic power following a rear-end crash, inspect honeycomb pod deformation; replace damaged quick-disconnect cartridges directly, then check chassis and hydraulic pipe integrity before returning to service.
Urban & County Short-Distance Scattered Repairs: Select the KS5040TFZ13 light-duty rear collision prevention unit; light commercial licensing lowers entry barriers with reduced fuel and procurement overheads.
National Arterial & Airport Long-Term Full-Lane Maintenance: Opt for the TSW5160TFZB6 heavy-duty high-speed crash neutralization lorry, whose 100km/h crash rating satisfies strict international highway safety specifications.
Municipal Tender Project Requirements: Both variants hold complete official vehicle approval documentation. All honeycomb buffer cartridges pass international crash safety certification, with full test reports and technical datasheets available to meet global road maintenance equipment tender entry criteria.
Suzhou Fanuode Engineering Machinery offers full-unit warranties for both roadwork safety shield vehicles. Hydraulic assemblies, electric control panels, panoramic monitors and LED warning kits carry one-year free repair coverage. Replacement honeycomb energy-absorbing cartridges ship from in-stock inventory worldwide. 24/7 remote technical guidance is provided for international clients, alongside free hands-on training covering vehicle operation, pod replacement and fault troubleshooting. Customization for chassis, lighting and hydraulic functions is available, delivering all-in-one highway emergency repair safety solutions for global road maintenance contractors.
