Bitumen Emulsion Sprayer

Hand-push bitumen emulsion sprayer is used for spraying small area of emulsified bitumen, repair and maintenance of asphalt pavement, waterproofing of bridge pavement, construction of storage under cover, maintenance of manhole cover, etc.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • FND-RP160

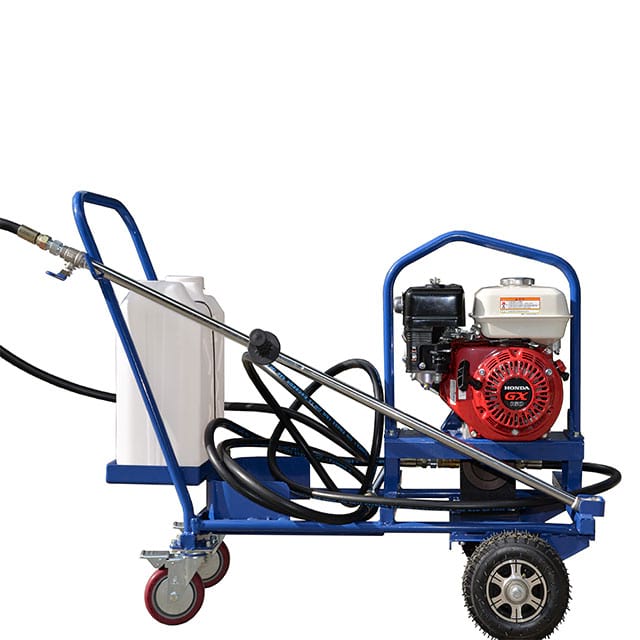

1. Hand‑push mobility, perfect for confined working conditions

Compact dimension: 1085×530×750 mm with net weight of 66 KG. Four‑wheel hand‑push design allows access to residential roads, narrow bridge corners, surroundings of manhole covers and country lanes where large truck‑mounted spreaders cannot reach. No truck carrier required for site transfer and relocation.

2. Direct material suction design, free from dedicated material barrel limits

The gear pump can directly draw emulsified bitumen from external barrels instead of transferring material into built‑in tank. It eliminates repeated material pouring, reduces raw‑material waste and shortens on‑site preparation time for multi‑barrel continuous operation.

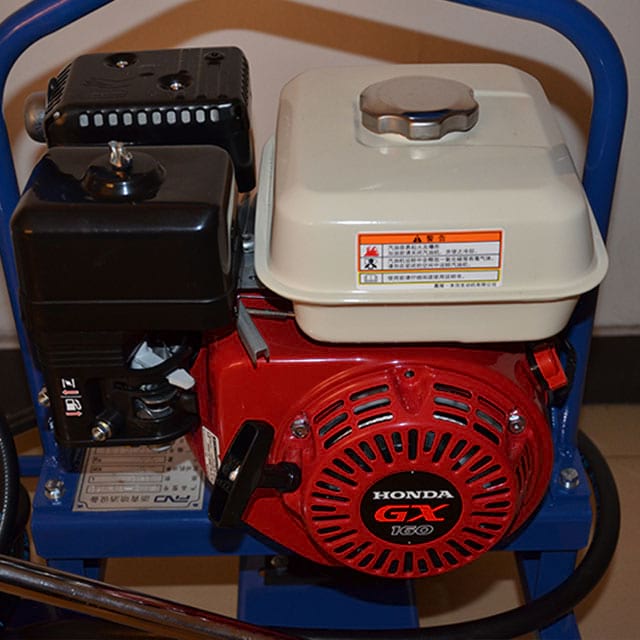

3. Honda GX160 genuine power for stable spraying performance

Powered by original Honda GX160 gasoline engine with 3.6 KW output. Gear‑driven bitumen pump with built‑in safety valve keeps working pressure steadily at 1 MPa, with max spraying capacity of 22 L/min for uniform non‑splashing output. The inlet filter fitted on bitumen inlet effectively blocks impurities and prevents nozzle & pipeline clogging to minimize unexpected downtime.

4. Fast diesel cleaning system for easy on‑site maintenance

Equipped with independent 20L polyethylene cleaning tank and dedicated diesel cleaning pump. After construction, pump, hoses and nozzle can be fully cleaned rapidly to avoid solidified emulsified bitumen inside pump cavity. Extend service life of pump and hoses. Single operator can finish the whole cleaning workflow on site.

5. Multi‑functional spray nozzle for diversified construction tasks

Dispersing sprinkler head is interchangeable. It supports waterproof spreading for small‑size surface, emulsion coating on cut crack surface and shoulder line spreading. One machine covers bridge waterproofing, manhole maintenance and crack pre‑treatment.

Model

FND-RP160 Bituminous spreader

Weight

64kg


Size

Full length

1085mm


Full width

530mm


Full height

750mm





Engine

Name

Honda GX160


Maximum power

3.6KW(4.9PS)


Using fuel

Unleaded gasoline for vehicles


Fuel tank capacity

3.1L


Using lubricating oil

10W-30(SE level or above)


Lubricating oil quantity

0.58L


Starting method

Recoil type

Spreading ability

Approximately 22L/min

Spreading pressure

1MPa

Number of nozzles

1

Pump

gear pump

Asphalt tank capacity

160L

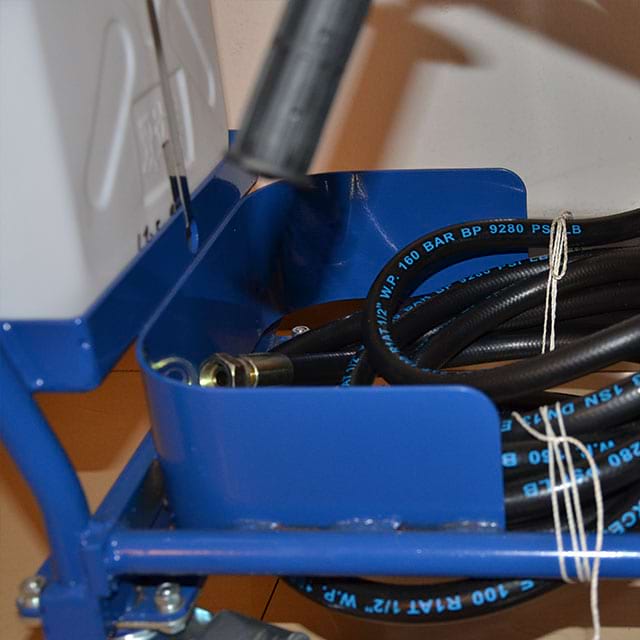

Oil pipe (fuel injection pipe/suction pipe)

5m/2.5m

Hydraulic pump cleaning

Oil cup

Whole machine cleaning

polyethylene container(20L)


未标题-13未标题-10

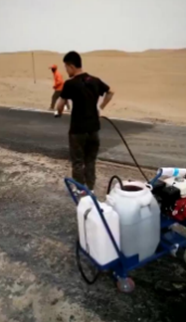

Solution 1|Sporadic Pavement Repair for Old Urban Municipal Road

On‑site Challenges: Narrow branch roads in old urban area cannot accommodate large truck‑mounted bitumen spreaders. Work points are scattered, mainly for reinforcement around manholes and bonding‑layer application for partial potholes. Frequent site transfer is required with small working area per spot. No dedicated storage room for equipment, all maintenance must be completed on‑site.

Selected Equipment: FND‑PR160 Hand‑push Bitumen Emulsion Spraying Machine

Targeted Solutions


1. Four‑wheel hand‑push design with net weight 66 kg. Operators can relocate the unit in narrow alleys without trailer transport, solving accessibility issues for heavy truck‑mounted equipment.

2. 22 L/min spraying flow fits fast spreading for small scattered spots, stable 1 MPa working pressure guarantees uniform thickness of bonding layer.

3. Inlet filter blocks impurities inside raw material and reduces unexpected downtime caused by nozzle clogging.

4. Built‑in 20L diesel cleaning tank enables one‑operator full cleaning for pump and pipelines after daily shift on‑site, no special storage room required, preventing blockage from solidified bitumen.


Solution 2|Rural Sub‑urban Road Shoulder & Crack Pre‑treatment Works

On‑site Challenges: Remote rural job‑site, raw emulsified bitumen stored in standard 200L drums. Repeated material pouring brings labour cost and material loss. Works include emulsion coating for cut crack surfaces and narrow‑width shoulder spreading. Professional maintenance personnel are limited on remote sites, simple cleaning & upkeep is highly required.

Selected Equipment: FND‑PR160 Hand‑push Bitumen Emulsion Spraying Machine

Targeted Solutions


1. Direct suction from external 200L raw‑material drums without intermediate pouring, saving labour and reducing emulsified bitumen waste.

2. Interchangeable dispersing sprinkler head completes two kinds of tasks: coating emulsified bitumen over cut crack faces and narrow‑width directional spreading along road shoulder. Single machine covers multi‑step procedures.

3. Gear pump together with built‑in safety valve maintains stable pressure for continuous outdoor operation. Fast diesel cleaning system flushes pump and hoses after work shift, lowering equipment maintenance difficulty under field conditions.1752485583609spray-1


We are a professional manufacturer of road maintenance machinery with in‑house full‑scale production workshop for road‑repair equipment.

✅ OEM configuration modification available: Customize nozzle quantity, platform frame and power unit to satisfy local working‑condition requirements worldwide.

✅ CE certification for customs clearance and international project tender compliance for complete machine.

✅ Standard whole‑machine warranty, global genuine spare‑parts supply.

✅ Overseas engineer on‑site technical support service available.

✅ FCL full‑container wholesale with project‑oriented volume discount.

✅ Complete tender document package support for overseas bidding projects.

✅ Defined production lead‑time to match overseas project schedules.

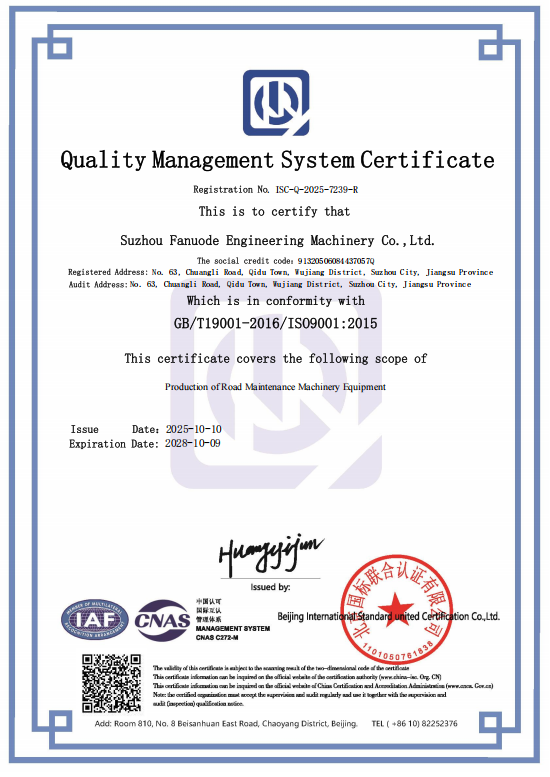

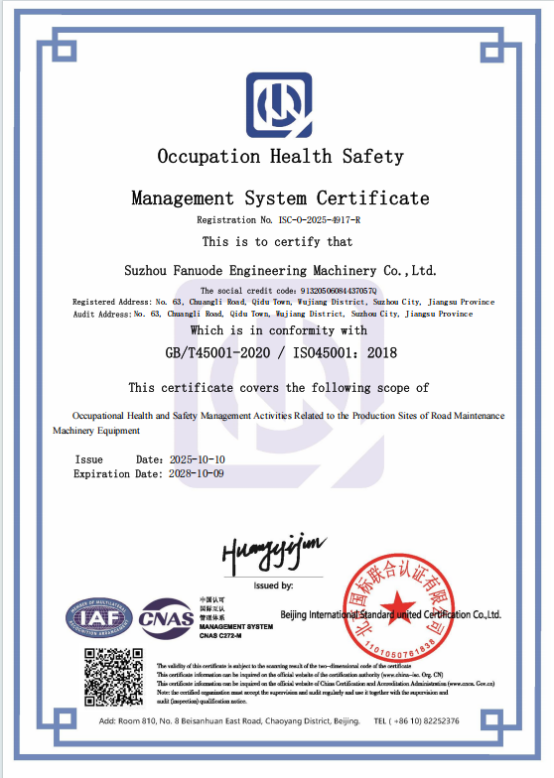

ISOISO3ISO2


1. Pre‑shipment machine test: Complete functional test for spraying pressure, flow rate and power system in factory. Test video will be provided for customer reference.

2. Container‑grade export packing: Anti‑rust export packaging, compatible for FCL full‑container & LCL less‑than‑container sea freight for long‑distance oversea delivery.

3. After‑sales spare‑parts supply: Long‑term supply of genuine wearing parts including engine components, pump assemblies, hoses and nozzles. Spare‑parts can be shipped in separate containers.

4. Technical support: English operation manual & online video troubleshooting guidance. Overseas engineer on‑site training service is assessable upon project evaluation.


B‑End Procurement FAQ


1. Q: Are you a road‑maintenance‑machine manufacturer or trading company?

A: We are original manufacturer with self‑owned road‑machinery workshop. All machines are produced in‑house. Factory inspection visit is welcome.

2. Q: Can you provide CE certificate for customs clearance & project tender?

A: Yes, full‑set CE documentation is supplied for customs clearance and international tender submission.

3. Q: What is MOQ for bulk order of asphalt crack repair machine?

A: Single unit order is acceptable. Volume discount is available for FCL full‑container orders. Please contact sales team for detailed quotation.

4. Q: Do you support OEM custom machine configuration?

A: Yes. Nozzle, power unit and supporting bracket can be modified according to site working requirements for OEM customisation.

5. Q: Can your engineer provide overseas on‑site installation guidance? What is the cost?

A: Overseas on‑site technical support is available. Service cost will be calculated separately based on target country and service duration.

6. Q: Do you supply long‑term spare‑parts for road repair equipment?

A: Yes, genuine wearing spare‑parts are supplied long‑term and can be exported independently.

7. Q: What discount for FCL full‑container project order?

A: Volume discount depends on machine list and purchase quantity inside container. Please contact our sales for project‑specific offer.

8. Q: How long is production lead‑time for wholesale project orders?

A: Standard lead‑time for single unit: 7‑10 working days. Lead‑time for FCL bulk orders will be confirmed according to production schedule and informed in advance.


Q1: What material can FND‑PR160 bitumen emulsion sprayer handle?

A: It works for ambient‑temperature bitumen emulsion for pavement bonding layer and bridge deck waterproofing. This unit is designed for cold emulsion application, NOT for hot‑applied bitumen.

Q2: Is spraying flow & pressure adjustable?

A: Rated spraying pressure is 1 MPa, max spraying output reaches 22 L/min. Flow rate can be adjusted via engine throttle to achieve different spreading thickness.

Q3: Is cleaning required after every shift?

A: Yes. Emulsified bitumen will solidify upon cooling. Always flush pump and pipelines with diesel after each work shift to prevent pipeline blockage.
