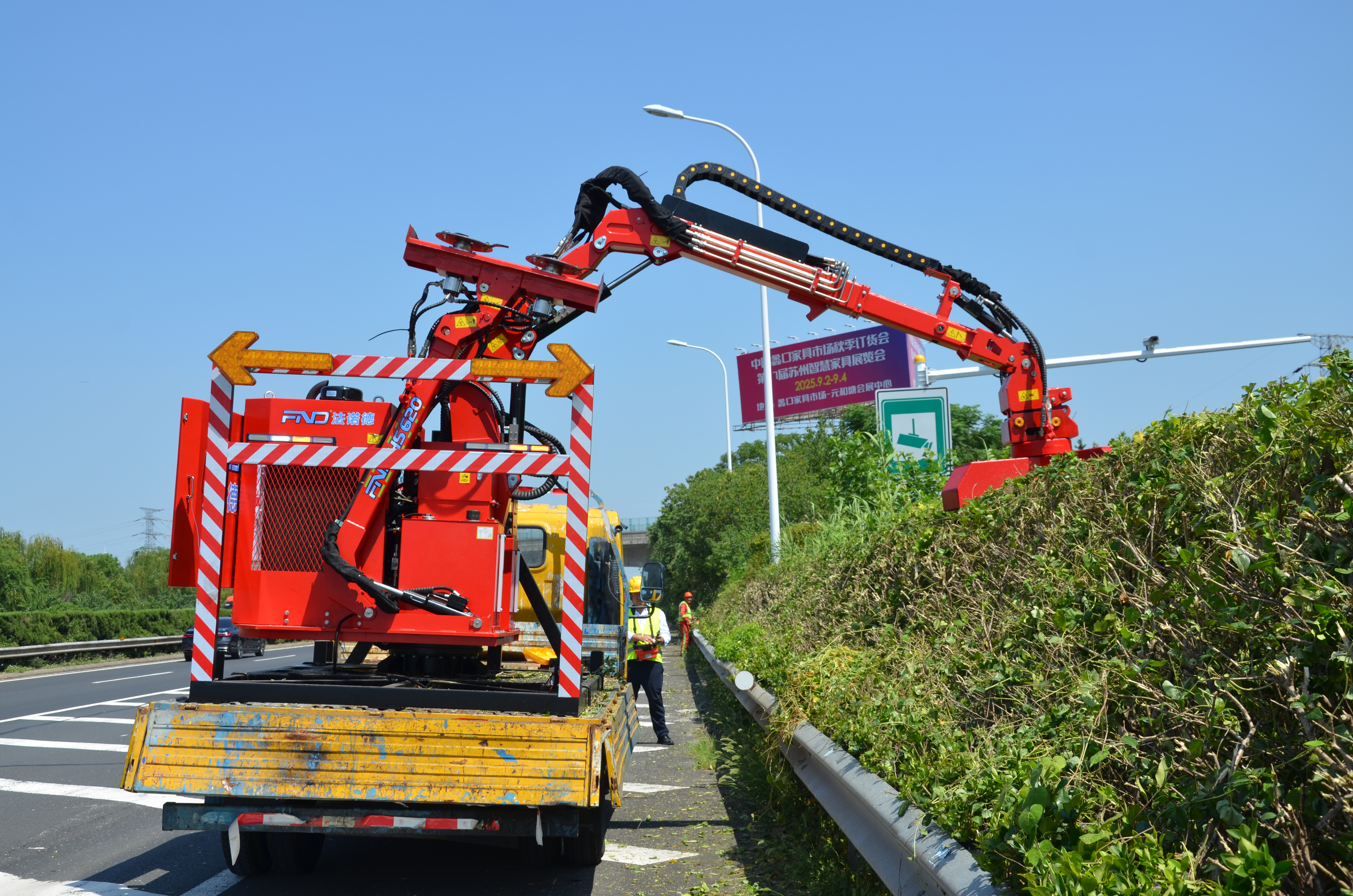

Managing miles of agricultural hedgerows, municipal boundaries, or commercial properties requires scaling up from handheld equipment to heavy-duty, mechanized solutions. A Vehicle-mounted Hedge Trimmer transforms a standard piece of heavy machinery into a high-production vegetation management tool. Purchasing an incompatible attachment can lead to hydraulic system failure, carrier vehicle instability, or inadequate cutting power, resulting in costly downtime and wasted capital.
This guide breaks down the technical specifications, carrier compatibility requirements, and cutting head configurations necessary to evaluate and select the right equipment for your operational needs. You will learn how to match hydraulic flow, choose the right cutting head for your target material, and ensure safe operation across varied terrain. We focus strictly on the mechanical and operational realities of running these attachments in the field.
Carrier Compatibility is Critical: A trimmer's performance is entirely dependent on the host vehicle’s hydraulic flow (GPM) and operating pressure (PSI).
Cutting Head Dictates Outcome: The choice between sickle bars, flail heads, and rotary saws determines whether you achieve a clean finish on light foliage or effectively mulch heavy brush.
Reach vs. Stability Trade-off: Maximum boom extension requires precise counterbalancing and weight distribution to prevent rollover risks on uneven terrain.
Safety Breakaways are Non-Negotiable: Advanced mechanical or hydraulic breakaway systems are essential to prevent catastrophic frame and boom damage when hitting immovable obstacles.
Defining the primary target material establishes baseline power and blade requirements. Cutting 1-inch soft new growth requires entirely different mechanics than shearing through 4-inch hardwood limbs. Lighter foliage permits faster ground speeds with reciprocating blades. Dense, woody brush demands heavier cutting heads with higher hydraulic torque to prevent stalling. You have to match the steel to the wood. If you take a light-duty sickle bar into a stand of mature osage orange or honey locust, you will snap teeth and bend the cutter bar within the first hour.
Target Material | Max Diameter | Recommended Cutting Head | Carrier Requirement |
|---|---|---|---|
Soft new growth, grasses, light hedges | Up to 1.5 inches | Sickle Bar | Low GPM, Compact Tractor/CTL |
Dense brush, woody shrubs, saplings | 1.5 to 3 inches | Flail Mower Head | Medium-High GPM, Mid-size Tractor/Excavator |
Hardwood limbs, mature tree branches | 3 to 5+ inches | Rotary Saw | High GPM, Heavy Excavator/Forestry Carrier |
You must distinguish between the physical cutter bar length, which dictates the working swath per pass, and the total articulating boom reach. A longer cutter bar covers more area but increases the weight at the end of the boom. The total boom reach determines how far from the carrier vehicle you can effectively operate. Clearing deep ditches or high canopies requires a boom that can extend 15 to 25 feet. However, every foot of extension multiplies the leverage exerted on the carrier's chassis. Operators must calculate the exact reach needed to clear the target zone while keeping the carrier's tracks or tires on stable, level ground.
Ditch banks, steep inclines, and overhead obstacles dictate the necessary boom reach and articulation angles. Operating on a flat highway shoulder allows for standard boom configurations. Navigating uneven agricultural field edges or narrow rural roads requires attachments with extensive vertical and horizontal articulation to maintain the cutting angle without repositioning the carrier. If you are working in tight suburban environments, a massive rear-mounted boom will swing into traffic or utility poles. You need to map out the physical constraints of your typical job site before looking at equipment specs.
Contrast the needs of seasonal farm maintenance against continuous, daily municipal highway clearing to determine the required durability class. Seasonal use might justify a lighter-duty attachment. Daily commercial operations require heavy-duty steel construction, oversized pins, and robust hydraulic cooling systems to withstand thousands of hours of continuous vibration and impact. A municipal crew running a machine eight hours a day, five days a week will destroy a farm-grade implement in a single season. Look at the thickness of the steel plating on the boom arms and the diameter of the pivot pins.
Rear-mounted systems utilizing a standard 3-point hitch are common for agricultural applications. These setups often rely on PTO-driven hydraulic pumps rather than direct tractor hydraulics. A dedicated PTO pump isolates the trimmer's hydraulic circuit, ensuring consistent flow and protecting the tractor's internal pumps from contamination or overheating during heavy use. Hooking up a 3-point system requires careful alignment of the draft links and top link to ensure the boom geometry operates correctly. Once mounted, the operator must secure the sway chains to prevent the heavy boom from shifting laterally during transport.
Mid-mount systems offer superior visibility for dedicated right-of-way maintenance tractors. The operator can monitor the cutting head without constantly looking backward. Mid-mount installations are complex, often requiring custom subframes that bolt directly to the tractor chassis. This limits the tractor's use for other tasks but provides the most stable platform for heavy cutting. Front-mount options provide similar visibility benefits but can obstruct forward travel if not stowed properly. They are typically reserved for specialized municipal carriers designed specifically for vegetation management.
Mount positioning is operationally critical. For municipal roadside maintenance, cutting must occur with the flow of traffic. In North America, this typically requires a right-hand mount. A tractor mounted hedge trimmer configured for the wrong side forces the operator to drive against traffic or operate the boom across the vehicle body, creating severe safety hazards. Always verify the required cutting side based on local traffic laws and the specific layout of the properties you maintain.
Bucket-mounted systems leverage the excavator's existing boom for superior reach and 360-degree articulation. This setup is ideal for reaching over fences, down steep embankments, or up into high canopies. The excavator's inherent stability and hydraulic capacity make it an excellent carrier for heavy-duty cutting heads. Because the excavator can rotate its house, the operator can trim a massive arc of vegetation without moving the tracks. This drastically reduces ground disturbance in sensitive areas.
For fleets that frequently swap attachments, quick-coupler setups offer massive efficiency gains over traditional pin-on systems. A bucket mounted hedge trimmer equipped with a quick-attach bracket allows an operator to switch from digging to trimming in minutes without leaving the cab. When using quick couplers, operators must ensure the hydraulic lines are routed correctly to prevent pinching when the bucket cylinder curls. Always wipe down the flat-face couplers before connecting to keep dirt out of the hydraulic system.
CTLs and skid steers benefit from front-mounted boom extensions that provide excellent maneuverability in tight commercial spaces. Unlike larger tractors, a CTL can pivot in place, allowing precise positioning of the cutting head around obstacles, buildings, and narrow pathways. The operator has a direct line of sight to the cutting head at all times. These attachments typically plug directly into the machine's auxiliary hydraulic circuit.
Operating extended booms on short-wheelbase skid steers presents specific weight distribution challenges. Extending a heavy cutting head far in front of the machine shifts the center of gravity forward, increasing the risk of tipping. Operators must strictly adhere to load limits and avoid sudden movements when the boom is fully extended. When traveling with the attachment, the boom must be retracted and carried as low to the ground as possible. Never drive across a steep slope with the boom extended on the downhill side.
Relying on the carrier’s auxiliary hydraulics is convenient but may not provide sufficient flow for large cutting heads. Installing a self-contained, PTO-driven hydraulic reservoir system guarantees the attachment receives the exact GPM and PSI required. This also prevents cross-contamination of hydraulic fluid between the carrier and the attachment. A dedicated PTO system includes its own oil tank, pump, and filtration system. This adds weight to the rear of the tractor, which actually helps counterbalance the side-reach of the boom.
Self-powered auxiliary engine units are viable for compact tractors, utility vehicles, or carriers with low internal hydraulic output. These units feature their own gas or diesel engines to drive the hydraulic pump, completely bypassing the carrier's limitations. They add significant weight and maintenance requirements but enable heavy-duty trimming on lighter vehicles. You have to maintain a separate engine, check its oil, and manage its fuel, but it saves the carrier vehicle's hydraulic system from thermal overload.
Calculating the required hydraulic flow for a hydraulic hedge trimmer for tractor or excavator is non-negotiable. Under-powering the attachment motor results in stalled blades and poor cut quality. Over-pressurizing can blow seals and destroy the motor. Always match the attachment's specified GPM and PSI ranges to the carrier's auxiliary output capabilities. If your machine outputs 15 GPM and the trimmer requires 25 GPM, the blades will barely spin under load. If your machine outputs 40 GPM and the trimmer is rated for 20 GPM, you will overheat the oil and blow the motor shaft seals.
Running high-flow hydraulic attachments for extended hours generates immense heat. Thermal management is critical. Carriers without adequate hydraulic cooling capacity will experience fluid degradation and pump failure. Dedicated oil coolers, either integrated into the attachment or added to the carrier, are essential for continuous, daily operation. Check the hydraulic tank temperature gauge regularly. If the oil gets too hot, it loses viscosity, which leads to metal-on-metal wear inside the hydraulic pumps and drive motors.
You must cross-reference the attachment weight at maximum extension with the carrier vehicle's tipping load specifications. A 500-pound cutting head exerts significantly more leverage when extended 15 feet away from the machine. Exceeding the safe operating load limits guarantees instability and potential rollover accidents. You have to calculate the moment arm. The further out you reach, the heavier that cutting head feels to the machine's chassis.
Maintaining safe operation often requires adding mass to the carrier. Wheel weights, fluid-filled tires, or rear counterweights offset the leverage of the extended boom. Proper counterbalancing ensures all tires or tracks remain firmly on the ground, maintaining traction and steering control. On tractors, this usually means loading the opposite side rear tire with calcium chloride or adding heavy cast-iron wheel weights. On excavators, you rely on the machine's factory counterweight, but you still must avoid swinging a fully extended boom over the side of the tracks on uneven ground.
Basic cable controls often result in jerky, imprecise movements, making it difficult to maintain a consistent cutting height. Electronic proportional joysticks provide smooth, metered control over boom articulation and cutting head angles. This precision drastically reduces operator fatigue and improves the overall quality of the cut during long shifts. Wiring a proportional joystick requires tapping into the carrier's electrical system, usually a 12V or 24V source. The joystick sends variable electrical signals to the hydraulic valve bank, allowing the operator to feather the boom movements rather than dealing with harsh on/off valve actuation.
Dual-moving blades reduce overall machine vibration, cut cleaner, and prevent clogging compared to single-moving blade configurations. In a double-reciprocating setup, both the top and bottom blades move in opposite directions, creating a scissor-like action that cleanly shears vegetation rather than tearing it. This reduces the strain on the hydraulic motor and leaves a much healthier cut on the plant material, which is important for maintaining formal hedges.
Sickle bars are optimal for clean, precise cuts on lighter material up to 1.5 inches in diameter. They are the preferred choice for shaping formal hedges, maintaining light agricultural boundaries, and clearing tall grasses where a manicured finish is desired. They operate quietly and do not throw debris like a flail or rotary head, making them safer for use near roads and pedestrian areas.
Their lighter weight and lower hydraulic demand make them suitable for smaller carriers. They cannot mulch debris. The cut material falls to the ground intact, which may require secondary cleanup operations if left in maintained areas. Sickle bars also require frequent blade sharpening and gap adjustment to maintain cutting efficiency. If the gap between the top and bottom blades gets too wide, the material will fold over instead of cutting.
Flail heads are designed for heavy, overgrown brush and rougher cuts where material needs to be pulverized. They excel in roadside maintenance and land clearing where the primary goal is volume reduction rather than aesthetic shaping. The spinning drum is fitted with heavy steel knives that smash and tear through vegetation at high RPMs.
Flail heads eliminate manual debris cleanup by mulching vegetation on contact. The trade-off is their higher hydraulic requirements and heavier weight. They demand robust carriers and generate significant flying debris, necessitating strict safety protocols. You will spend time replacing broken or missing flail knives. If a knife breaks off, the spinning drum becomes unbalanced, causing severe vibration that can destroy the drum bearings.
Multi-blade rotary saws are utilized for forestry applications and thick limbs that bind sickle bars. They can slice through branches 4 inches or larger. These heavy-duty heads are typically mounted on large excavators or dedicated forestry carriers for aggressive canopy management and right-of-way clearing. They act like giant circular saws on the end of a boom. They require massive hydraulic flow to maintain blade speed under heavy load.
Mechanical spring-loaded breakaways or automatic hydraulic auto-reset systems allow the cutter bar to swing back when encountering fence posts, trees, or boulders. This mechanism absorbs the impact energy, preventing catastrophic damage to the boom arms, pivot points, and the carrier vehicle's frame. Without a breakaway system, hitting a hidden steel post at three miles per hour will bend the main boom arm or rip the mounting subframe right off the tractor.
Managing boom spatial awareness while driving the carrier vehicle presents a steep learning curve. Operators must simultaneously monitor the cutting head, watch for ground obstacles, and control the vehicle's speed and direction. Comprehensive training on boom dynamics and blind spots is essential before deploying equipment in the field. The operator has to know exactly where the cutting head is in 3D space while keeping the carrier vehicle out of ditches and away from oncoming traffic.
Required safety guarding includes polycarbonate cab shields, such as forestry-grade glass, and attachment chain guards. These barriers protect operators from thrown projectiles like rocks, wood shards, and broken blades. Operating a heavy-duty trimmer without adequate cab protection is a severe safety violation. Standard tractor glass will shatter instantly if hit by a rock thrown from a flail head. You must install half-inch thick polycarbonate on the door and window facing the cutting side.
Standard operating procedures for working on inclines include keeping the boom uphill and avoiding sudden hydraulic movements. Extending a heavy boom downhill shifts the center of gravity past the tipping point. Operators must understand the carrier's stability limits and adjust their cutting approach based on the terrain grade. If the machine starts to feel light on the uphill side, immediately lower the boom to the ground to stabilize the chassis.
The most critical step is ensuring exact hydraulic and weight compatibility between the carrier vehicle and the trimmer attachment. Mismatched equipment leads to poor performance, blown hydraulic seals, and dangerous operating conditions. You must evaluate the terrain, the target material, and the carrier's capabilities before making a selection.
Schedule a hydraulic flow test on your intended carrier vehicle to verify actual GPM and PSI output at the auxiliary ports.
Consult with an equipment dealer to calculate exact counterweight requirements based on the maximum boom extension of your chosen attachment.
Inspect the vehicle mounted hedge trimmer for sale to confirm it includes an automatic hydraulic or mechanical breakaway system.
Install forestry-grade polycarbonate shielding on the carrier vehicle's cab windows facing the cutting side.
A: Flow requirements vary widely by cutting head type and size. Light-duty sickle bars may require 8-12 GPM, while heavy-duty flail heads often demand 20-40 GPM. Always verify the attachment's specific requirements against your tractor's auxiliary output.
A: Yes, mini excavators are excellent carriers due to their boom reach and stability. You must ensure the excavator's auxiliary hydraulic flow matches the trimmer's requirements and that the attachment weight does not exceed the machine's safe lifting capacity.
A: Sickle bar cutters typically handle material up to 1.5 inches in diameter. Flail heads can mulch brush up to 2-3 inches. For limbs exceeding 4 inches, rotary saw blade attachments are required.
A: Sickle bars are better for clean cuts on light material and shaping hedges. Flail heads are superior for heavy brush, roadside clearing, and situations where material needs to be mulched to eliminate cleanup.
A: Inspect the boom for stress fractures or bad welds. Check all pivot points and pins for excessive wear. Examine the hydraulic motor and hoses for leaks, and verify the condition of the cutting blades or flail knives.
A: They can be safe if operated correctly, but skid steers have a short wheelbase making them prone to tipping when a heavy boom is extended. Operators must use extreme caution, keep the boom low when traveling, and avoid extending it downhill.
A: A breakaway system allows the cutting head to swing backward upon hitting an immovable object like a stump or fence post. This prevents the impact force from bending the boom arms or damaging the carrier vehicle's frame.
