Winter-road anti-icing and anti-skid treatment is essential to guarantee traffic safety for municipal highways, expressways, airports and industrial parks. Conventional manual de-icing-agent broadcasting and legacy metal-hopper gritter hardware suffer from poor spread-rate control, inconsistent material distribution, salt-induced corrosion and heavy labor reliance. The XHS-50000 Polyethylene intelligently-tunable ice-melting broadcaster integrates corrosion-resistant polyethylene hopper, DC reduction-motor spiral-auger feeding assembly and dual-speed in-cab intelligent control system. It delivers stepless adjustment of spreading width and material discharge rate, compatible with salt, sand, gravel and granular de-icing compounds. The unit greatly streamlines full-set winter anti-icing workflows while cutting labor input, material waste and maintenance expenditure. This article compares legacy winter-maintenance workflows, interprets core structures, working principles and application value with specification tables, delivering technical references for winter-service equipment procurement.
Many municipal and highway-maintenance fleets still rely on manual distribution or outdated metal-hopper gritters. Cumbersome workflows drag down overall operational efficiency. Four critical drawbacks are listed below:
1. Uncontrollable spreading dosage and severe material waste. Manual scattering purely depends on workers’ subjective judgment, frequently causing local material accumulation or uncovered road segments. Old-generation hardware adopts fixed-gear output without real-time tuning against driving speed. Excessive de-icing salt corrodes pavement, while insufficient dosage leaves road surfaces icy and hazardous.
2. Poor anti-corrosion performance of metallic hoppers. De-icing salt and chloride-based de-icers are highly corrosive. Ordinary carbon-steel bins develop rust-through perforations within one-or-two winter seasons. Augers and discharge assemblies get eroded rapidly, shortening service life and pushing up repair costs.
3. Prone to material jamming on feeding assemblies. Traditional belt-or-chain-plate conveyors stick easily when handling damp or caked de-icing granules. Frequent shutdowns for cleaning interrupt emergency snow-fighting missions.
4. High-manpower demand under harsh working conditions. Manual salt scattering requires large field crews operating in freezing windy weather. Obsolete spreaders demand multiple operators for feeding, commissioning and discharge monitoring.
The table below outlines performance gaps between conventional broadcasting workflows and the XHS-50000 polyethylene intelligently-tunable de-icing broadcaster:
Comparison Item | Manual Scattering / Legacy Metal-hopper Gritter | XHS-50000 Polyethylene Intelligently-Tunable De-Icing Broadcaster |
Hopper Material | Carbon-steel, vulnerable to salt corrosion | High-density polyethylene, superior corrosion resistance |
Spreading-width Regulation | Unfixed for manual work; fixed-gear on old machinery | Stepless adjustment 0.6-12 m |
Feeding Mechanism | Belt / chain-plate conveyor, prone to damp-material sticking | Forced spiral-auger feeding with tunable speed |
Power Supply | External hydraulic system or independent generator set | Vehicle-battery powered DC12V/24V low-consumption drive |
Control Mode | Manual on-site tuning without cabin-based operation | In-cab dual-speed control with overload & explosion-proof protection |
Compatible Media | Limited to dry de-icing salt | Salt, fine sand, gravel and various granular de-icing agents |
Manpower Requirement | Multiple field-site outdoor operators | Single-operator full-control from truck cabin |
Assembly & Disassembly | Bulky, time-consuming fitting & removal | Modular spinner assembly for quick dismounting |
Auxiliary Accessories | No warning-lighting assembly | Standard vibrator motor, LED rear-view lamp, LED warning beacon |

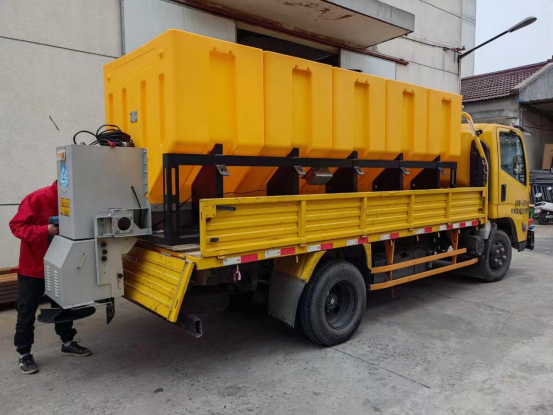

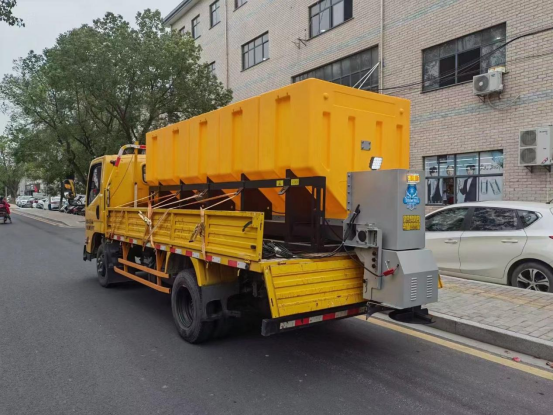

The XHS-50000 unit consists of five key assemblies: corrosion-resistant polyethylene hopper, spiral-auger feeding unit, DC-motor powertrain, polyester spinner broadcasting assembly and in-cab intelligent control module. Co-ordinated operation delivers stable, controllable granular-material dispersion and simplifies winter-snow-fighting workflows.
The 5 m³ hopper accepts maximum payload of 5700 kg. Molded polyethylene construction eliminates rust-hole risks caused by chloride-rich de-icing compounds. The V-shaped discharge chute adopts stainless-steel material for enhanced wear and corrosion resistance. Polyester adjustable baffles near outlets constrain material flow and assist spreading-width tuning. Total machine weight reaches 770 kg. It fits light-duty trucks with minimum cargo-bed length of 168 cm. Four-category standard receiver hooks enable secure mounting without destructive vehicle modification.
The auger features 16 cm outer diameter and 23 cm screw pitch, paired with gear-box reduction ratio 1:80 to deliver high-torque low-speed forced feeding. Maximum feed capacity hits 0.06 cubic meters per minute. Compared with belt conveyors, the spiral auger tolerates slightly damp granular materials and reduces sticking and blockage risks. A factory-fitted vibrator motor agitates the hopper during operation to prevent material bridging and sustain continuous discharge.
The full drive system draws power entirely from the host-truck storage battery, with standard DC12V configuration and optional 24V variant. - Auger drive motor: 800 W, supplies sufficient torque for material conveyance. -Spinner drive motor: 200 W, spins the 36.8 cm polyester spinner for material broadcasting. Low-energy-demand electric motors remove requirements for auxiliary generators, cutting overall weight and eliminating exhaust emissions for eco-friendly performance. The spinner sub-assembly is modular for fast-access maintenance.
The core intelligent feature lies within cabin-mounted dual-speed control unit integrated with explosion-proof and overload-protection functions. Operators adjust auger rotational speed and spinner speed from inside the cab without alighting. Spreading width can be steplessly tuned between 0.6 m-12 meters. When driving speed rises, operators boost auger and spinner output; at lower speeds, power output decreases accordingly to match real-road requirements and curb de-icer waste. Overload protection automatically cuts motor power when jamming occurs to safeguard motors and auger hardware.
Traditional complete de-icing broadcasting workflow: Arrive at site → Field-crew alight to adjust hardware → Multiple staff monitor discharge status → Start spreading → Stop vehicle for manual parameter reset → Halt operation to clear blockages → Dismantle equipment after missions.
By deploying XHS-50000 intelligently-adjustable de-icing broadcaster, field procedures get drastically simplified:
1. Simple on-board installation: Fasten unit via standard hooks onto truck cargo bed, connect vehicle battery, no welding or vehicle-body alteration.
2. Single-operator cabin-based operation: The truck driver completes all missions without field-staff working under freezing windy conditions.
3. Dynamic condition-oriented tuning: Adjust spreading width and discharge output on-the-move according to road classification and ice-snow severity. Built-in vibrator suppresses blockage-caused downtime.
4. Convenient post-mission maintenance: Salt-resistant polyethylene hopper enables easy water washing; modular spinner allows quick disassembly for cleaning and inspection.
Operational value: Reduce size of outdoor work crews, mitigate personnel safety risks under low-temperature weather; cut failure-caused downtime for faster emergency winter-response; meanwhile restrain de-icing-agent consumption to lower material-procurement expenses.
1. Multi-scene adaptability. Suited for emergency winter missions on expressways, national-provincial highways, municipal urban roads, airport taxiways, residential compounds and factory premises. It distributes de-icing salt, coarse sand and granular de-icers, fulfilling both anti-icing and anti-skid sand-spreading assignments.
2. Lower full-lifecycle cost. Salt-tolerant polyethylene hopper outlasts conventional metal bins, reducing hopper replacement and repair expenditure. Precise ste-variable spreading cuts de-icing-agent waste.
3. Enhanced operational safety. LED warning beacons and rear-view lamps improve visibility for night-time snow-emergency operations. Over-load and explosion-proof electronic controls secure electrical-system reliability in frigid surroundings.
4. Light-weight and low-energy profile. Powered directly by vehicle battery instead of separate generators, the machine keeps curb weight within reasonable limits without consuming excessive truck payload capacity.
The XHS-50000 Polyethylene intelligently-adjustable de-icing broadcaster simplifies winter snow-removal workflows not merely by adopting corrosion-resistant bins. It delivers holistic optimization covering anti-corrosive hopper material, forced spiral-auger feeding architecture, vehicle-battery DC powertrain and in-cab dual-speed intelligent control system.
It resolves four major pain-points of legacy broadcasting hardware: salt-induced metallicbin degradation, feeding-assembly blockage failures, material waste caused by uncontrollable dosage, and multi-person harsh-environment field operations. With ste-on-the-fly tuning of spreading width and discharge rate inside the driver cabin plus anti-blockage vibrator mechanism, only one operator can finish full-route anti-icing broadcasting. It forms a stable and efficient solution for municipal, highway and airport winter emergency maintenance.
