Crack grooving creates an optimal reservoir for sealant material. However, without precise, temperature-controlled application, this intensive preparation effort completely goes to waste. Premature sealant failure leads to immediate rework on the job site. It allows aggressive water infiltration. This moisture subsequently accelerates structural pavement degradation during successive freeze-thaw cycles.
Municipalities and commercial paving contractors cannot afford these repeated failures. They require dependable application methods. We outline the exact operational workflow following crack grooving below. You will discover a concrete framework for evaluating the machinery needed to execute these repairs profitably. By mastering these post-grooving steps, crews can ensure highly durable pavement interventions. Equipment selection directly dictates how well sealant performs in the field. Understanding this synergy eliminates guesswork and maximizes daily crew productivity.
Grooving creates a uniform reservoir that requires specific material flow rates and temperature stability from your filling equipment.
Proper trench preparation (cleaning and drying via heat lance or compressed air) is a non-negotiable step before material application.
Selecting between direct-fire and oil-jacketed melters depends directly on the type of hot pour crack filler specified and daily production volume requirements.
High-quality pavement crack sealing equipment minimizes material degradation, prevents applicator clogging, and normalizes labor costs across large-scale municipal or commercial projects.
The "rout and seal" method stands as the gold standard in pavement preservation. Grooving physically expands a natural fissure to a uniform width and depth. Industry guidelines typically specify dimensions ranging from 1/2" by 1/2" to 3/4" by 3/4". This specific square geometry drastically changes how sealant interacts with the pavement. It demands machinery capable of delivering a consistent, high-volume bead of melted material. A standard gravity-pour pot simply cannot keep up with this demand. You need a dedicated asphalt crack sealing machine to handle the required flow rates.
Material volume forecasting becomes highly critical after grooving. Routed cracks consume significantly more material than flush-filled unrouted cracks. Accurate capacity planning prevents unexpected mid-day work stoppages. Sizing your road crack filling machine correctly ensures your crew maintains steady momentum. A machine holding 60 gallons might suit parking lots. Conversely, extensive municipal roadways demand melters exceeding 200 gallons. Proper sizing keeps operators sealing rather than waiting for cold blocks to melt.
This stringent preparation yields exceptional outcomes. A properly routed and machine-filled crack effectively accommodates thermal expansion. Pavement naturally expands and contracts as seasons change. The created reservoir allows the sealant to stretch up to twice its original size without tearing. This targeted flexibility extends pavement life by up to 3 to 5 years compared to basic overbanding. The initial investment in routing directly amplifies the long-term effectiveness of the sealing operation.
Implementation reality dictates strict attention to cleanliness. Grooving actively generates heavy dust, dirt, and loose asphalt fragments. You cannot seal over this debris. High-pressure compressed air serves as the primary tool for reservoir clearance. Operators must direct a focused air stream deep into the routed channel. Blowing surface debris away is insufficient. The sidewalls of the groove must be entirely free of dust. Dust acts as a bond-breaker. It prevents liquid mastic from adhering to the solid asphalt walls.
Moisture eradication ranks equally high in importance. Absolutely no sealant will bond to wet asphalt. Crews must integrate a hot air lance into their daily workflow. This tool accomplishes two critical tasks simultaneously. First, it dries the groove rapidly. It evaporates hidden moisture trapped inside micro-fissures. Second, it slightly warms the surrounding pavement. This prevents thermal shock when introducing sealant heated to 400°F into a cold trench.
Handling this transition timing requires specific risk mitigation strategies. Specific failure modes emerge if crews mishandle the gap between cleaning, drying, and filling.
Adhesion Loss: Waiting too long after drying allows ambient moisture to settle back into the crack.
Bubbling: Applying sealant over unseen dampness causes water to boil instantly. Vapor forces its way up, leaving hollow bubbles in the cured seal.
Contamination: Delayed filling allows wind-blown debris to re-enter the pristine routed channel.
A tight operational sequence ensures success. The applicator operator should follow closely behind the heat lance operator. Maintaining a distance of just a few yards ensures the trench remains warm, dry, and clean during material placement.
Preparing the hot pour crack filler begins long before application. Operators must bring the material to the manufacturer-specified application temperature. This range usually falls between 375°F and 410°F. Precision heating matters immensely here. Continuous mechanical agitation prevents localized burning near the heat source. Paddles inside the melting tank must rotate steadily. They ensure homogeneous heat distribution throughout the viscous liquid. Skipping agitation creates cold spots. These cold spots eventually clog hoses and ruin pump stators.
Flow control and precise placement dictate the final seal quality. Operators use a heated applicator wand or a specialized banding shoe. The primary goal is filling the routed groove strictly from the bottom up. Injecting material deeply displaces trapped air. It prevents hidden voids beneath the surface. Operators then leave a slight overband, known as a strike-off, on the surface. This thin layer provides crucial edge protection against snowplow blades and heavy traffic shearing.
Pacing the operation separates novice crews from experienced professionals. The operator's walking speed must synchronize perfectly with the pump's output volume. Proper synchronization requires practice and careful observation.
Under-filling: Walking too fast pulls the bead thin. This causes severe depressions. Water eventually pools in these depressions and freezes.
Over-filling: Walking too slowly floods the pavement. This wastes expensive material. It also creates dangerous slick spots for motorcyclists and exposes thick edges to immediate snowplow damage.
Operational Mistake | Physical Consequence | Corrective Action |
|---|---|---|
Inconsistent wand height | Wavy, uneven overband appearance | Maintain a steady 2-inch hover above the pavement surface. |
Ignoring material temperature gauges | Sealant cures prematurely or burns entirely | Monitor thermostatic controls every 30 minutes during operation. |
Dragging the shoe too quickly | Air pockets trapped beneath the surface | Match walking pace to the natural extrusion rate of the pump. |
Skipping hose recirculation | Line freezing during short work pauses | Return wand to the tank and engage pump recirculation immediately. |

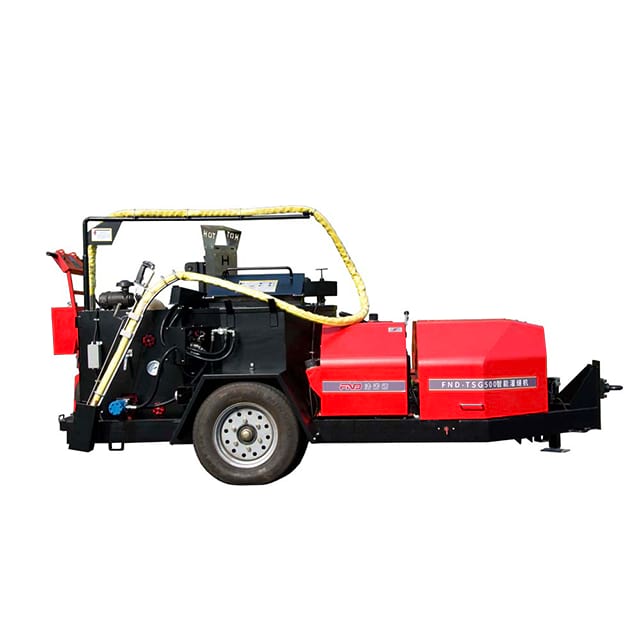

Using a reliable Asphalt Crack Filling Machine streamlines these variables. Features like trigger-activated flow control help operators maintain exact pacing. Mastering these mechanics ensures the routed joint remains sealed through harsh weather cycles.
Selecting the right machinery directly impacts project efficiency. You must first evaluate heating technologies. The choice generally comes down to direct-fire versus oil-jacketed melters.
Direct-fire machines apply a flame directly to the melting vat. They carry a lower upfront cost. They suit basic, non-polymer modified materials perfectly. However, they present a much higher risk of material charring. Oil-jacketed machines surround the melting vat with thermal transfer oil. This configuration is absolutely essential for premium rubberized filler materials. It ensures indirect, uniform heat distribution. It protects delicate elastic polymers from scorching.
Next, you must evaluate pump and hose systems. Gravity-fed systems work adequately for small parking lots. However, high-yield municipal work requires pressurized systems. Heated hoses equipped with specialized applicator wands define professional pavement crack sealing equipment. Heated lines prevent liquid mastic from solidifying during short pauses. They eliminate the need to flush lines constantly. This technology drastically boosts daily linear footage output.
Capacity and scalability require a structured framework for decision-making. Match your melter tank capacity to your specific operational crew size and lane-mile targets.
Small Scale (60–100 gallons): Ideal for two-person crews tackling residential streets and medium commercial lots. They offer excellent maneuverability.
Medium Scale (125–250 gallons): Best for county highway departments. They balance material capacity with reasonable towing requirements.
Large Scale (400+ gallons): Built for interstate highway maintenance. They support dual-hose operations and massive daily material throughput.
Maintainability cannot be overlooked during procurement. High-volume projects punish equipment daily. Prioritize machines featuring easy-access cleanout ports. Look for reliable burner ignition systems that perform well in windy conditions. Verify that replacement wear parts, like pump stators and heating elements, remain readily available from the manufacturer. Downtime waiting for obscure parts paralyzes production.
Thermal degradation of sealant remains a prevalent operational challenge. Holding melted mastic at application temperature for extended periods physically breaks down its elastic polymers. The material loses its ability to stretch. It becomes brittle upon curing. Top-tier equipment utilizes intelligent thermostatic controls to prevent this degradation. These systems monitor material and oil temperatures independently. They cycle burners on and off automatically, safeguarding the chemical integrity of the filler.
Operator safety and ergonomics demand rigorous attention. Handling 400°F liquid presents inherent burn risks. Evaluate equipment features designed specifically to reduce fatigue and enhance safety. Anti-splash loading lids protect workers when dropping solid blocks into the molten tank. Balanced, lightweight applicator wands prevent shoulder strain during ten-hour shifts. Fume mitigation systems and extended exhaust stacks direct noxious smoke away from the operator's breathing zone.
We must establish transparent assumptions regarding machinery limits. Even the most advanced machinery cannot compensate for poor environmental conditions. You must enforce strict compliance with application guidelines.
Do not apply hot filler on frozen ground. The extreme temperature differential causes immediate material failure. Never apply sealant during active precipitation or on visibly wet surfaces. Finally, applying material into improperly routed or uncleaned cracks guarantees premature debonding. Machinery enhances skilled execution. It does not replace fundamental pavement preparation standards.
The successful transition from a freshly routed crack to a permanently sealed joint relies on strict adherence to a proven workflow. Total moisture removal, precise temperature control, and consistent material placement form the foundation of lasting pavement repair. Skipping any preparation step compromises the entire operation.
Decision-makers should approach equipment procurement logically. Audit your typical project scope thoroughly. Calculate your average linear feet per day. Identify the specific specified material types your contracts demand. Use this data to select the optimal machine size and the appropriate heating method. Matching the tool to the exact task ensures maximum daily productivity.
Contractors and fleet managers must take proactive next steps. Review detailed equipment spec sheets immediately. Scrutinize pump output rates, heating efficiency, and manufacturer warranty support. Align your chosen machinery with your specific operational targets. Investing in the right technology ensures your crews can execute routed crack sealing with confidence and durability.
A: While not strictly mandatory for all equipment, heated hoses prevent material from curing inside the line during work pauses. They drastically reduce downtime on large commercial or municipal sites. Without them, operators must frequently flush lines or risk permanent clogs.
A: Curing typically takes 15 to 45 minutes, depending heavily on ambient temperature and groove depth. If immediate traffic reopening is required, crews apply detackifying agents like Black Beauty slag or specialized liquid sprays to prevent tire tracking.
A: No. Hot-applied machines are specifically engineered for solid mastic or rubberized blocks. Cold pour requires entirely different, unheated pumping systems. Furthermore, cold pour is generally not recommended for routed, high-traffic municipal repairs due to lower durability.
