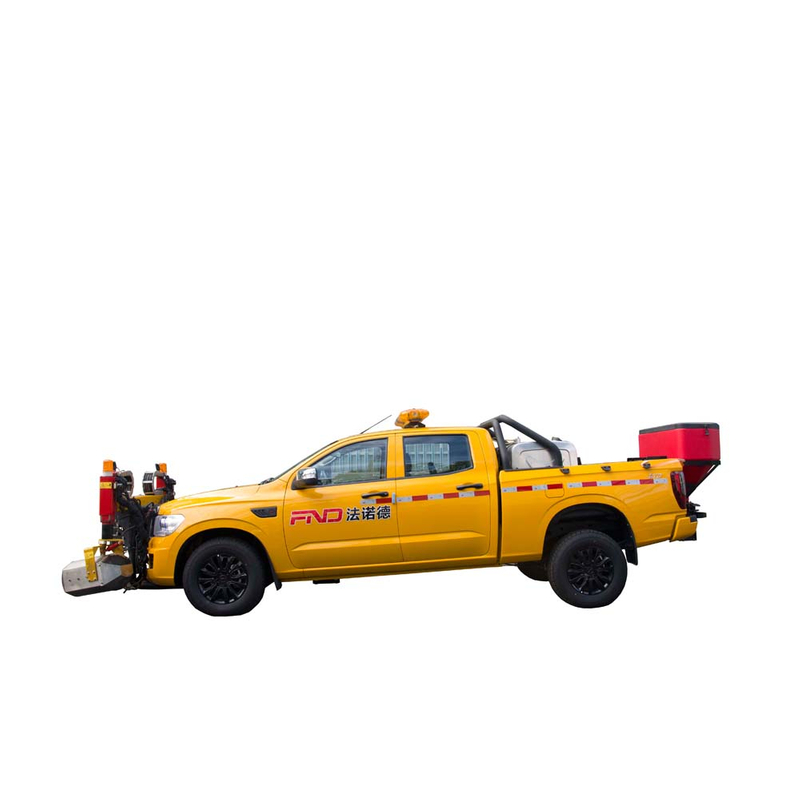

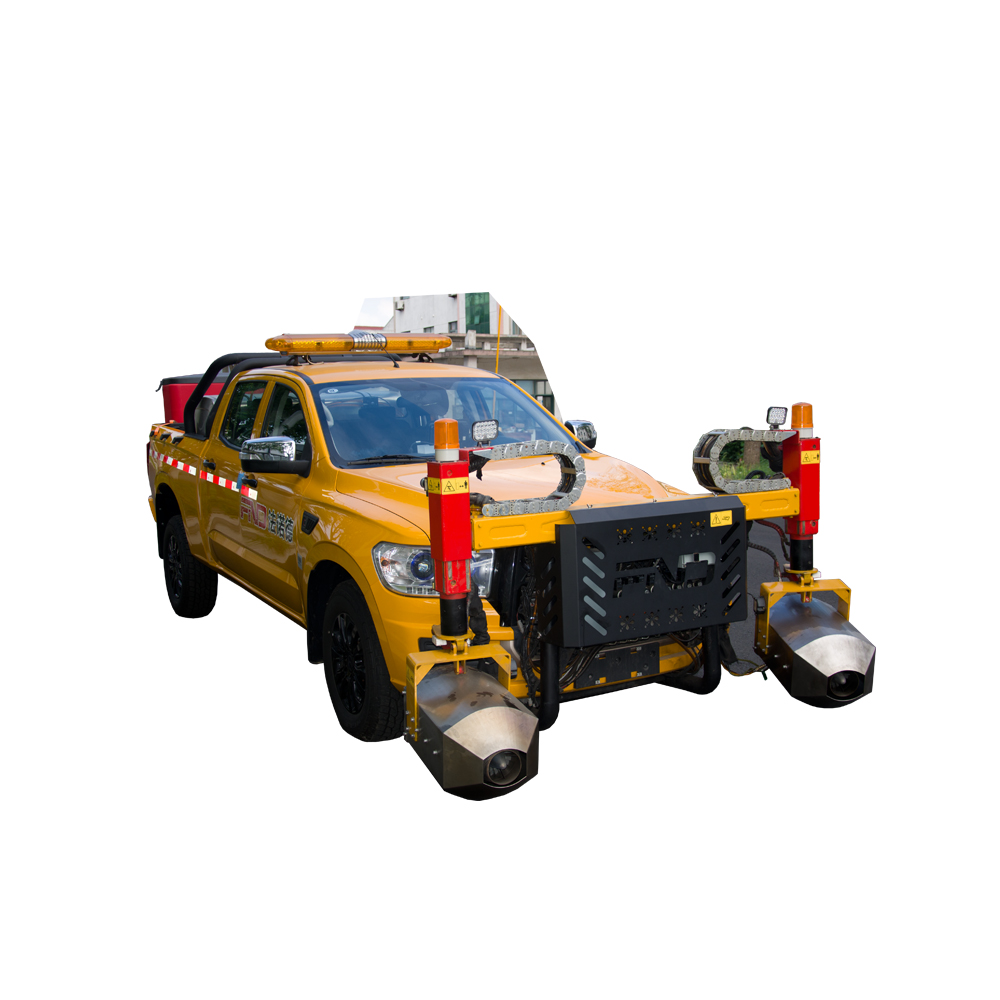

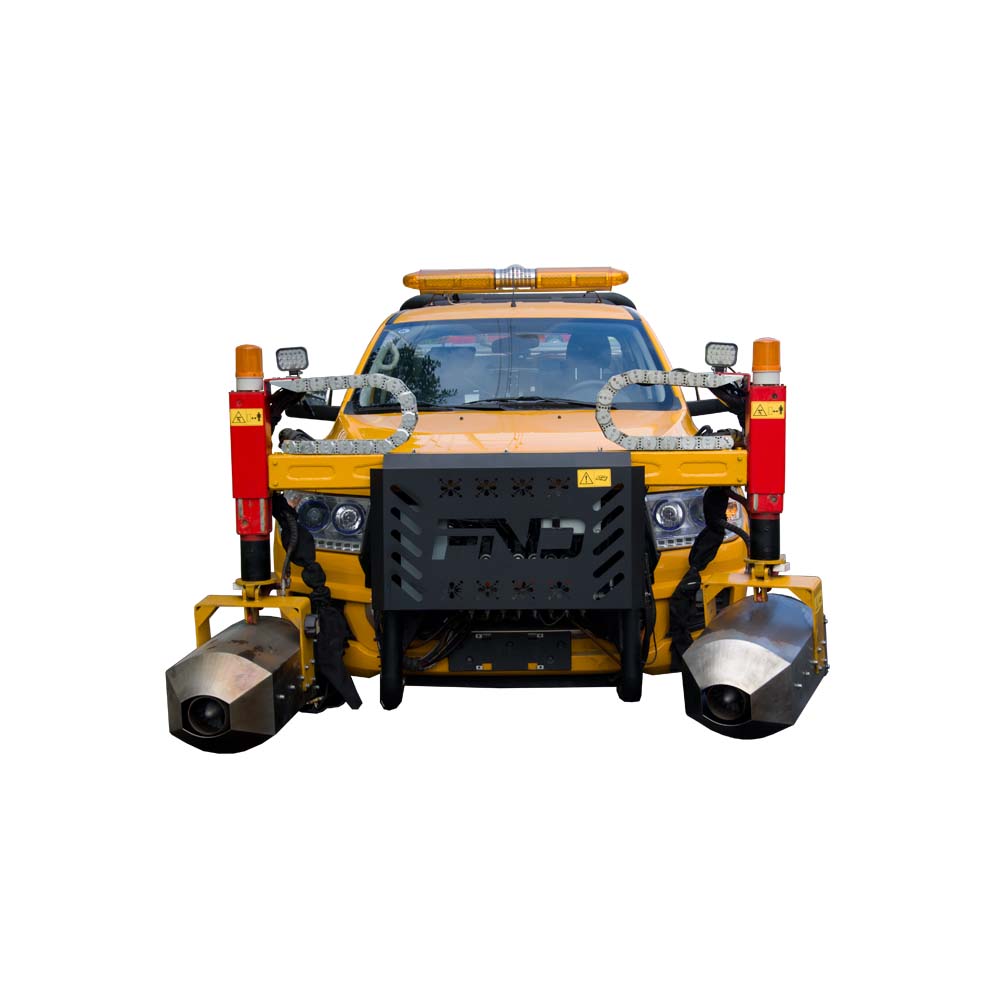

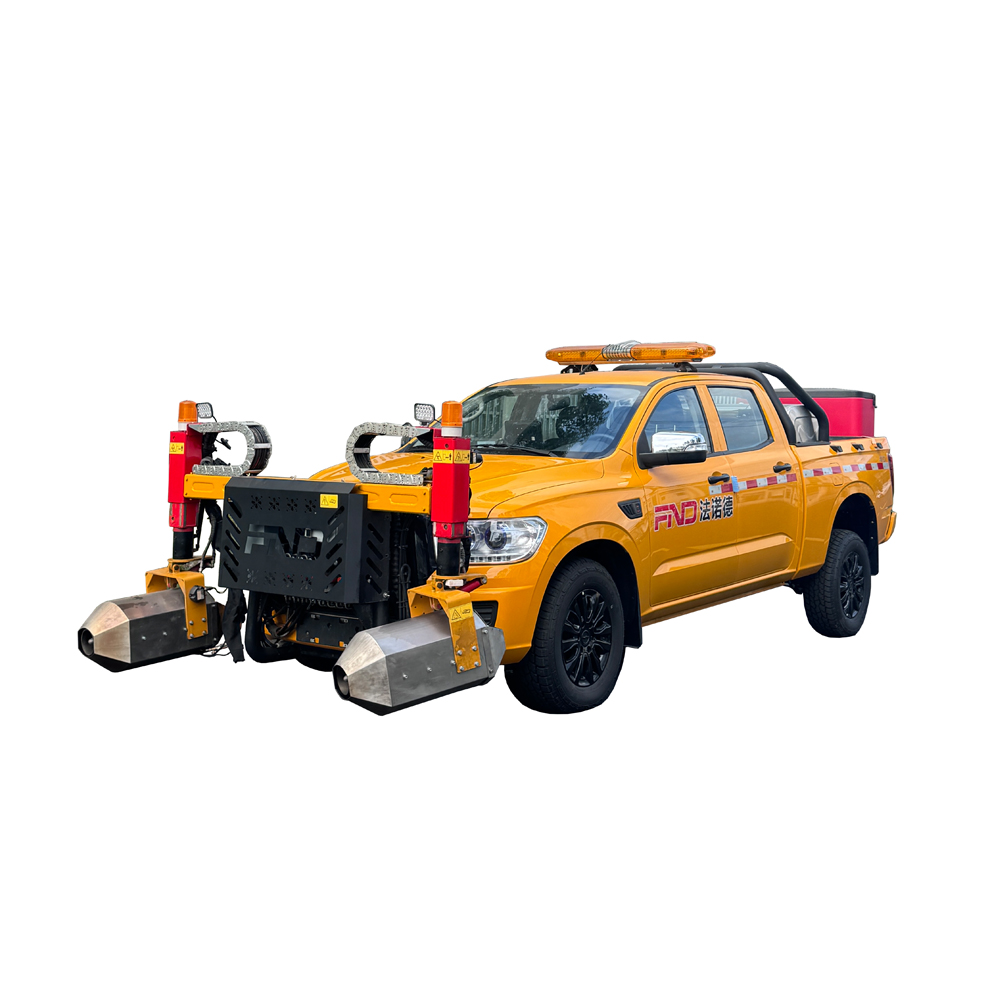

Equipped with a four-wheel-drive pickup truck chassis and a detachable front arm, this vehicle offers exceptional flexibility and maneuverability—ideal for emergency snow blowing as well as general transportation use. Powered by an intelligent control system, the front arm can perform four-dimensional movements: extension, elevation, rotation, and swaying, along with a one-touch deployment and retraction function.
Depending on operating conditions and requirements, the system can be equipped with either a single or dual turbojet engines; the temperature of the hot air discharged from the nozzle can reach up to 800°C, while the temperature upon reaching the ground can also range between 80–120°C. The exhaust jet can generate winds of intensity levels 8–10, capable of blowing away snow up to 100 mm in thickness; a single turbojet engine can produce wind speeds exceeding 5–8 m/s, effectively clearing ice, snow, dust, gravel, and other debris from the ground.
The FND450A-2000A turbojet engine uses conventional diesel fuel and features easy refueling; its average hourly fuel consumption is approximately 1.38 kg/(kgf·h), resulting in lower operating costs. The engine delivers a thrust of up to 240 kg, provides strong exhaust airflow, and has a maximum snow blowing operational speed of 5–15 km/h.
The rear-mounted snow-melting spreader equipped with patented technology features multiple functions, intelligent control, adjustable spreading width and density, long service life, easy operation, as well as safety and environmental friendliness.
Item | Unit | Specification |
Chassis | ||
Gross Vehicle Weight | kg | 2830 |
Overall Dimensions (L × W × H) | mm | 5629 × 1885 × 2670 |
Engine Power | kW | 88 |
Rated Passenger Capacity | / | 3 |
Fuel Tank Capacity | L | 700 |
Snow Blower Assembly | ||
Working Width | m | 6–12 |
Working Speed | km/h | 5–15 |
Blowing Thrust | kgf | 240 |
Blowing Air Temperature | ℃ | 80–120 |
Average Fuel Consumption | L/h | 300 (at full throttle) |
Vertical Adjustment Range | mm | 140 |
Forward Tilt Angle | ° | 0–30 |
Rotation Angle | ° | 0–180 |
Horizontal Extension Range | mm | 1080 |
Deicing Spreader | ||
Hopper Capacity | m³ | 0.32 |
Spreading Motor Power | W | 450 |
Vibration Motor Power | W | 20 |
Control Mode | / | Remote Control / Wired Control Switch |
Dimensions | mm | 1120 × 600 × 1210 |
The equipment features high operational efficiency and is equipped with a front-mounted twin turbojet engine, providing robust power, a strong airflow, high operating temperatures, high speed, and exceptional maneuverability and convenience. The temperature at the ground-level discharge outlet can reach as high as 80–120 °C, while the exhaust nozzle can generate winds of intensity levels 5–8; the thrust can exceed 240 kg, enabling it to blow away 100 mm thick snow, with a maximum snow-blowing speed of 15 km/h. The wind range of the twin turbojet engine can extend beyond 5–8 meters.
This equipment is easy to operate and can be handled by a single operator. It features a forearm mechanism based on proprietary patented technology, enabling four-dimensional intelligent adjustment—including vertical and lateral movement, forward/backward tilting, and left/right rotation—thereby meeting the requirements for snow removal operations under various working conditions. Both the forearm and the spreading unit are equipped with wireless remote control, possess memory functions for both operating positions and travel positions, and feature a one-touch deployment and retrieval function.
The equipment consumes minimal fuel, utilizing standard diesel; refueling is convenient, with an average hourly fuel consumption of 300 L, a long operating range, and the capability to operate continuously for 3 hours, or resume operation after a 20-minute pause.
Equipped with a multi-purpose front-mounted twin turbojet engine capable of rapidly clearing snow, ice buildup, and debris from road surfaces; the rear-mounted unit features a deicing spreader that can distribute deicing agents, coarse salt, fine salt, dry sand, or specialized deicing compounds; it utilizes a four-wheel-drive pickup truck chassis with a detachable front arm, offering exceptional flexibility and mobility—perfect for emergency snow removal during inclement weather and for routine transportation in normal conditions, ensuring the vehicle remains operational throughout the entire year.
The intelligent high-tech equipment features include: one-touch deployment and retrieval function, one-touch quick startup, one-touch gear shift operation, one-touch automatic fire suppression and oil cutoff system, safety super-control protection system, visualized operational management system, remote GPS positioning and monitoring system, and after-sales service management system.
Comprehensive after-sales support: 24/7 service, lifetime maintenance warranty, free training, certified operation procedures, and a safe, reliable system featuring imported components for key hydraulic systems, electrical systems, sensors, and bearings, as well as integrated warning lights and audible alarms.
