Winter de-icing and snow clearance is critical to maintain traffic capacity for expressways, airports and national & provincial highways. Conventional rotary brooms and snow-plough machinery can only tackle loose snow, with limited performance against compacted snow, thin road ice and icy ruts. The FND series micro turbo-jet thermal snow-removal unit integrates four coordinated power subsystems: turbo-jet thermal power unit, truck-chassis propulsion power, hydraulic actuation power and rear-mounted spreader power. It delivers high-volume high-temperature high-velocity airflow for snow-blowing, and supports combined snow blowing, ice melting and de-icing agent spreading. This article dissects the complete power architecture, compares power-scheme differences among various snow-clearing machines, interprets working principles of each power module with specification tables, and explores the technical fundamentals behind high-volume high-efficiency snow removal, offering technical references for winter-maintenance equipment selection.
Mainstream snow-fighting equipment falls into mechanical snow-sweeping and thermal snow-melting categories. Limitations within power architectures directly constrain field performance. Four major pain points are listed below:
1. Single-sided power output of mechanical snow-removers. They rely on chassis engine to drive snow ploughs and rotary brooms for physical clearance only, without ice-melting capacity. Compacted snow and thin ice remain on pavement and may re-freeze.
2. Excessive fuel consumption on legacy thermal snow-melting gear. Old boiler-type thermal snow-melting units suffer low thermal efficiency, heavy fuel burn and bulky structures, lacking mobility for emergency response scenarios.
3. Power interference among multi-function actuators. Some integrated snow-fighting machines share one central power source for blowers, spreaders and boom adjusters. Concurrent multi-actuator operation triggers power diversion and reduces airflow volume and working thrust.
4. Insufficient intelligent power modulation. Fixed power output fails to adjust thrust and hot-air volume according to snow depth and ice conditions, leading to either energy waste or incomplete snow clearance.
The table below compares power-system performances of different snow-removal hardware:
Comparison Item | Snow-plough / Rotary-broom Mechanical Snow-clearer | Legacy Boiler-based Thermal Snow-melting Equipment | FND Turbo-jet Thermal Snow-removal Unit |
Primary Power Source | Vehicle chassis engine | On-board boiler heating system | Turbo-jet engine + chassis power + independent hydraulic power |
Snow-removal Principle | Physical pushing & brushing | Hot airflow generated by boiler combustion | High-speed high-temperature high-pressure airflow from turbo-jet for blowing & ice ablation |
Ice-melting Capacity | None, loose-snow only | Limited with heavy thermal loss | Strong; pavement surface temperature reaches 80-120 °C to melt compacted snow and thin ice |
Effective Working Width | 3-5 m | 4-6 m | 6-12 m |
Operating Speed | 10-20 km/h | 3-8 km/h | 5-15 km/h |
Acceptable Fuel | Automotive diesel | Diesel / heavy fuel oil | Standard commercial diesel |
Manoeuvrability | Moderate, medium footprint | Poor, bulky heavy build | Excellent, 4WD pickup chassis with detachable front working boom |
Multi-task Capacity | Snow pushing & sweeping only | Thermal snow-blowing only | Combined snow-blowing, ice melting & de-icing agent spreading |
Power Regulation | Fixed gear setting without dynamic tuning | Manual fire-power adjustment | Intelligent electronic control with one-click multi-mode power switching |
The complete machinery power setup consists of four relatively independent yet interoperable sub-systems: turbo-jet snow-blowing power unit, pickup-chassis travelling power unit, boom-actuation hydraulic power unit and rear-mounted de-icing spreader power unit. Joint collaboration delivers high-volume high-efficiency snow-blowing performance.
The turbo-jet power assembly acts as the heart of the whole machine. Adopting FND450A-2000A micro turbo-jet engine, it generates massive high-temperature high-speed airflow. This turbo-jet powerplant burns regular diesel fuel. Nozzle outlet temperature peaks at 800 °C, while pavement-level temperature holds 80-120 °C, generating gale-force wind equivalent to Beaufort scale 8-10. Max thrust reaches 240 kgf with effective airflow coverage of 5-8 meters. It can disperse snow layers up to 100 mm thick, break apart compacted ice crust, sweep away thin ice, gravel and road debris.
Value highlight: Distinct from mechanical sweeping, the turbo-jet unit combines high-volume airflow purging and thermal ablation. It removes snow while melting thin pavement ice and prevents refreezing of residual ice.
Key specifications for turbo-jet snow-blowing assembly:
Parameter | Unit | Value |
Engine Model | - | FND450A-2000A |
Fuel Type | - | Standard commercial diesel |
Turbo-jet Thrust | kgf | 240 |
Nozzle Outlet Temperature | °C | 800 |
Pavement-surface Operating Temperature | °C | 80-120 |
Effective Airflow Working Width | m | 5-8 |
Max Processable Snow Thickness | mm | 100 |
Max Snow-blowing Travel Speed | km/h | 5-15 |
Max-throttle Fuel Consumption | L/h | 300 |
Continuous Operating Duration | h | 3 |

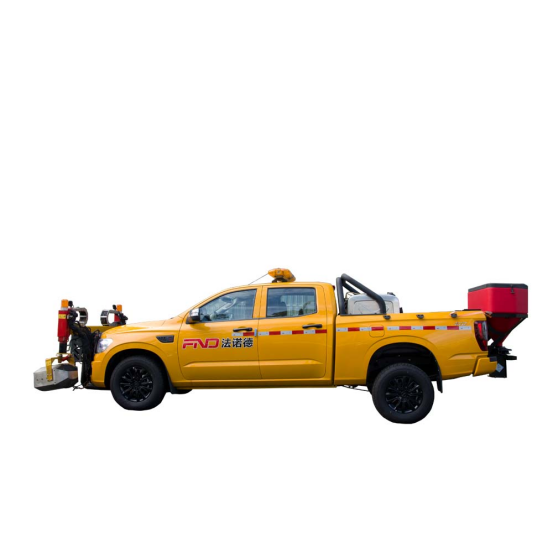

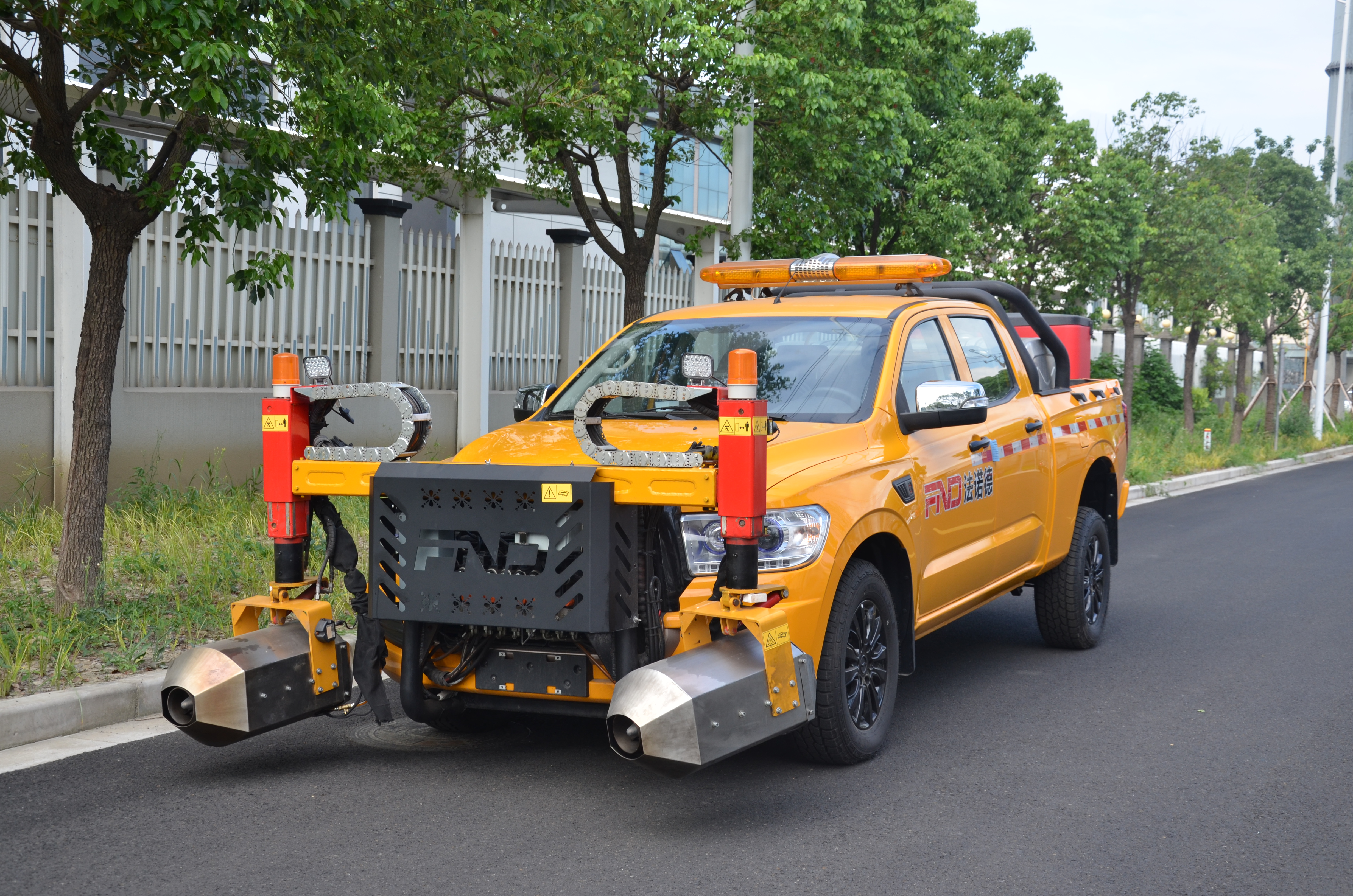

Built on a four-wheel-drive pickup chassis with rated engine power 88 kW, the chassis powertrain handles site transit and travelling operation. Four-wheel-drive guarantees stable running on snow-covered slippery pavements. The 700-litre large-capacity on-board diesel tank supplies fuel for both vehicle driving and turbo-jet burner, sustaining long-duration continuous missions.
Gross vehicle mass hits 2830 kg with overall dimension 5629×1885×2670 mm. Its compact footprint enables flexible access to airport taxiways, national-provincial highways, ramps and service areas. The front-mount snow-blowing boom is fully detachable. Once removed, the pickup reverts to standard cargo-carrying capacity, realizing “emergency snow clearance in winter, general haulage off-season” and maximizing annual equipment utilization rate.

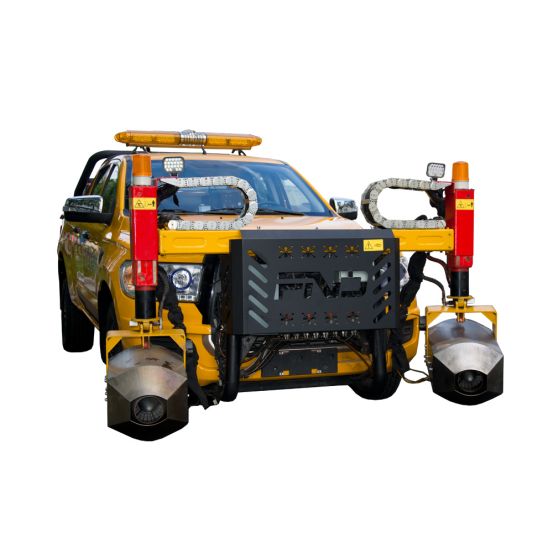

The hydraulic power system powers the front dual turbo-jet nozzle boom, enabling four-dimensional movements: vertical lifting, horizontal stretching, forward tilting and azimuth rotation. -Vertical adjustment stroke: 140 mm, optimizing nozzle ground clearance against varying snow depth; - Horizontal outreach stroke: 1080 mm, expanding overall working coverage; - Forward tilt angle: 0-30°, rotation angle: 0-180°, adapting to bends, ramps and road shoulders.
The hydraulic assembly supports wireless remote control with position memory and one-click boom retraction. Critical hydraulic components are imported for stable power output under frigid icy conditions. Nozzles are constantly held at optimal blowing angles to maximize airflow efficiency and avoid power waste.
The patent-protected rear de-icing spreader adopts independent motor power supply without consuming turbo-jet or chassis output, eliminating power competition among multiple actuators. The spreader is fitted with 450 W spreading motor and 20 W vibration motor, with 0.32 m³ hopper capacity. It dispenses de-icing agent, coarse salt, fine sand and special anti-icing materials.
The thermal snow-blowing module clears heavy snow and ice crust, while the spreader follows to dispense anti-icing substance and suppress pavement re-freezing. Two operations run simultaneously to achieve integrated workflow of snow removal, ice ablation and anti-icing treatment. Spreading width and density can be remotely tuned with dynamically adjusted motor power output.
Multiple power modules are not operating in isolation. An on-board intelligent visualization control system orchestrates turbo-jet burner, chassis propulsion, hydraulic boom and spreader motors:
1. One-click mode switching: One-touch turbo-jet startup, one-click boom retraction, one-click fire-protection fuel cut-off. Fuel supply to turbo-jet will be automatically cut off under abnormal conditions to secure power-system safety.
2. Condition-oriented power matching. The control unit links turbo-jet performance and spreader-motor RPM to vehicle travelling speed. Turbo-jet power rises for deep snow and drops for light snow to save fuel.
3. Remote power-condition monitoring. GPS telemetry collects real-time data including turbo-jet temperature, thrust, fuel consumption, hydraulic pressure and motor status, allowing maintenance teams to monitor power-system performance remotely.
Conventional snow-fighting machinery mostly adopts open-loop power output running at full power regardless of real-world conditions. This unit applies closed-loop intelligent management, matching high-volume hot-air output with actual snow-ice conditions and balancing productivity and fuel economy.
1. Boosted operational productivity. High-volume high-temperature turbo-jet airflow removes 100 mm snow and thin ice in one pass at driving speed of 5-15 km/h, eliminating repeated back-and-forth sweeping and shortening winter emergency snow-removal timelines.
2. Year-round equipment usability. Independent chassis propulsion allows detaching front snow-blowing boom. The pickup serves for regular transport outside snow seasons and prevents long-term asset idleness.
3. Complete safety protection. Power-system suite includes override protection, automatic fire-suppression fuel cut-off and audio-visual alarms. Imported hydraulic, electrical and sensor components guarantee stable power delivery under low-temperature environments.
4. Reliable after-sales support. 24-hour technical support, free operator training and lifetime repair service cover turbo-jet burners, hydraulic assemblies and spreader motors.
The outstanding high-volume snow-blowing performance of FND-series micro turbo-jet thermal snow-removal hardware is not simple component stacking. It originates from synergy of four power sub-systems: turbo-jet thermal snow-blowing power, 4-wheel-drive travelling chassis power, boom-manipulator hydraulic actuation power and spreader motor power. The turbo-jet engine delivers core high-volume high-temperature high-pressure airflow for snow and ice clearance. The chassis provides mobility. Hydraulic modules ensure precise nozzle attitude tuning. Independent spreader power accomplishes anti-icing treatment. All power modules are centrally managed by intelligent electronic control.
Compared with traditional mechanical sweepers and outdated thermal snow-melting devices, this power-system architecture solves the bottleneck of compacted-ice removal, while balancing mobility, multi-function capability and operating cost. It delivers an innovative technical solution for emergency winter snow clearance for airports, expressways and national-provincial arterial roads.
