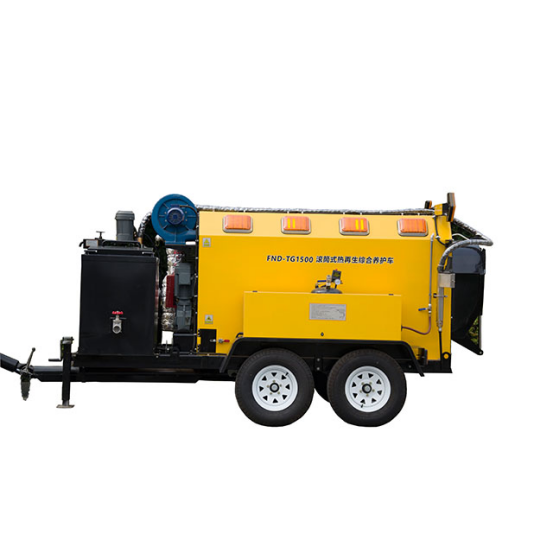

Potholes, alligator cracking, pavement humps and manhole-surround damages are frequent asphalt-pavement distresses on expressways, national-provincial highways and municipal roads. Conventional road-repair workflows heavily rely on hot-mix asphalt supplied from stationary batching plants, suffering from long-distance material haul-offs, high costs for waste-asphalt removal & disposal, multi-unit mobilization, long construction cycles and prolonged lane-closure durations. The FND-RZS1500L trailer-mounted drum-type hot-recycling mixing plant is an on-site mobile asphalt-mixing unit. Supported by 360° rotary drum heating, 100% in-place reclamation of reclaimed asphalt pavement (RAP), Siemens PLC intelligent temperature control and fast trailer-towed relocation, it regenerates waste asphalt and mixes virgin hot-mix materials directly at distress sites for patching works. This machinery cuts repair durations from multiple dimensions including material supply, working-sequence arrangement, labor allocation and site mobilization, meanwhile lowering comprehensive maintenance expenses on raw-material procurement and waste disposal. This article compares conventional patching workflows against mobile hot-recycling mixing solutions, interprets underlying logic for schedule & cost reduction with specification tables, and delivers technical references for road-maintenance project procurement.
Standard pothole-repair workflow consists of distress cutting & breaking, waste-material excavation & haul-away, long-distance delivery of virgin hot-mix asphalt, on-site paving & compaction, and traffic-control removal. Five major drawbacks restrict project performance:
1. Material supply constrained by stationary batching plants causes unpredictable timelines. Hot-mix asphalt must be produced from fixed mixing stations. Long-haul transportation triggers temperature drop of asphalt mixtures. Repair work has to pause when batching plants shut down, dragging distress-handling cycles significantly.
2. Dual-fold expenses for waste-asphalt disposal. Milled waste asphalt concrete requires truck-out transportation and landfill treatment, generating both haulage fees and waste-disposal charges, accompanied by massive raw-material waste.
3. Multi-equipment & multi-crew collaboration pushes manpower and scheduling overhead. Breaking rigs, waste dumpers, hot-mix transporters and compactors need simultaneous site arrival with multiple work teams. Equipment relocation, traffic-safety setup and lane-barrier deployment consume large volumes of productive working hours.
4. Prolonged lane occupation brings secondary social costs. Single-pothole repair occupies traffic lanes for hours, triggering heavy congestion on urban arterials and expressways.
5. Unstable construction quality triggers rework and raises full-life-cycle expenditure. Temperature loss during transit and poor bonding between old pavement and new patch material easily induce premature secondary damage. Repeated patching further extends timelines and increases capital investment.
The table below contrasts conventional repair procedures and FND-RZS1500L trailer-mounted drum hot-recycling mixing unit:
Comparison Item | Traditional Asphalt-Pothole Repair Workflow | FND-RZS1500L Trailer-Mounted Drum Hot-Recycling Mixing Unit |
Source of Asphalt Mixture | Hot-mix delivered from distant batching plant, subject to plant operation status | On-site RAP regeneration / virgin hot-mix production, independent of stationary mixing plants |
Treatment for Waste Asphalt | Hauled off-site for landfill, incurring haul-off & disposal costs | 100% on-site recycling, zero waste-material export |
On-site Equipment Fleet | Multiple machines: breaker, waste dumper, hot-mix truck, compactor | Single trailer-mounted host plus small-size compaction tools |
Complete Cycle for Single Pothole | 2-4 hours (including material transit & waiting) | 40-70 min, hot-mix produced directly at repair spot |
Lane-closure Duration | Long-time traffic-lane occupation | Greatly shortened occupation, suitable for emergency rush-repair on high-traffic corridors |
Manpower Requirement | Multiple crews for breaking, haul-off and paving | Limited operators under centralized intelligent machine control |
Mobilization Mode | Convoy-style multi-vehicle relocation with complex scheduling | Trailer-towed by ordinary truck, maximum towing speed up to 80 km/h |
Bonding-layer Application | Manual emulsion-asphalt spraying with inconsistent quality | Integrated emulsion-asphalt spraying system for standardized bonding treatment |
Night-time Working Condition | Extra lighting hardware required | Built-in 360° foldable remote-controlled LED lamp plus flash warning beacons for night-time emergency repair |

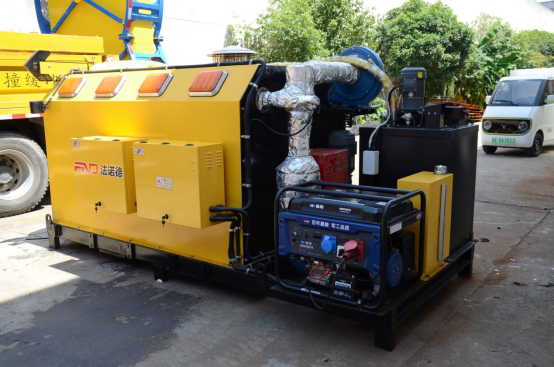

The FND-RZS1500L trailer-mounted drum-type recycler integrates six key assemblies: drum mixing-heating module, power-generation unit, asphalt supply assembly, Siemens PLC intelligent control system, trailer-travelling chassis, lighting & warning subsystem. Co-ordinated operation enables on-site hot regeneration and fresh-mix batching to shorten schedules and cut comprehensive costs.
The core component is a 1500-litre rotary mixing kettle fitted with Italian Riello 120 kW diesel-fired burner. 360° rotary drum delivers uniform heating supported by double-layer ceramic-fiber thermal insulation. The first batch takes 15-20 minutes for heating; subsequent batches only consume 10-15 minutes. Single-batch processing capacity reaches 800-1000 kg asphalt mixture.
Schedule benefit: No waiting for hot-mix delivery from batching plants. Qualified hot-mix is generated right at distress locations to eliminate transit-induced time loss. Cost benefit: Broken waste-asphalt chunks are fed directly into rotary drum for thermal regeneration. 100 % reuse of reclaimed asphalt pavement removes double-fold expenditure on virgin-material purchase and waste-asphalt disposal.
Operators can select either 100 L heat-transfer-oil-heated hot-asphalt tank, 25 L emulsion-asphalt spray system, or integrate both assemblies. The emulsion-asphalt spray unit applies tack-coat onto pothole sidewalls to strengthen bonding between existing pavement and regenerated mixtures. It also supplements asphalt binder for aged RAP materials to lower re-repair frequency and avoid recurring schedule & capital loss. Piping is equipped with diesel-flushing function to prevent pipeline blockage.
The machine adopts Siemens PLC touch-screen control paired with imported thermocouple temperature sensors. Dual-logic control based on time plus temperature prevents asphalt-mixture ageing and segregation. The drum rotates at low speed during heating-regeneration phase and speeds up for reversed discharging, completing full material release within 0.5-1 minute. Over-load protection reduces unexpected breakdown-caused downtime. Centralized operation eases operator workload and cuts rework triggered by manual mis-operation.

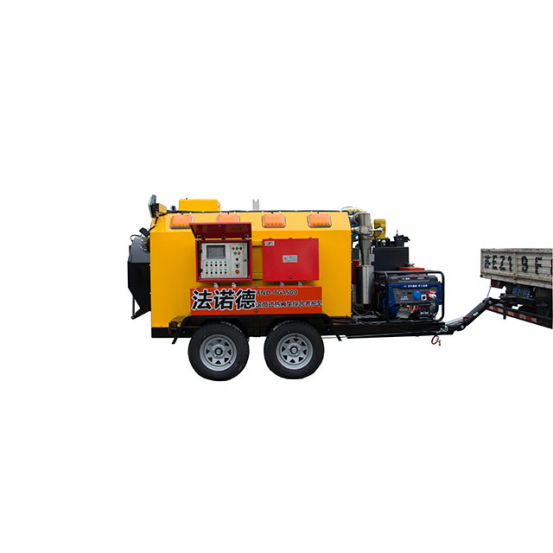

Equipped with torsion-bar shock-absorbing rear axle and off-road vacuum tyres, the trailer chassis features height-adjustable towing hitch with maximum towing speed up to 80 km/h. Fast highway relocation is achievable without special heavy-duty transport trucks. Foldable rotary remote-controlled high-power LED lighting delivers 360° shadow-free illumination. Eight DC12V strobe warning lamps and dual-arrow traffic-indication beacons are factory-fitted. Night-time emergency repair can be launched immediately after arrival without additional lighting-warning hardware, fully utilizing narrow maintenance windows and compressing total project timelines.
Major time waste of conventional repair roots in hot-mix transportation and batching-plant startup delays. The mobile hot-recycling mixer travels directly to distress sites, regenerates waste asphalt or mixes virgin batches on-site. Produced hot-mix is discharged for paving immediately. It eliminates the full workflow of “plant loading-long-haul transit-site unloading” and mitigates temperature degradation during transportation. Remote-zone repair and off-season maintenance can proceed regardless of stationary-plant shutdown status, drastically shortening overall project cycles.
Broken waste-asphalt fragments, which are treated as solid waste requiring paid haul-off and landfill in traditional workflows, are fed into rotary drum for thermal regeneration. After temperature adjustment and binder supplementation, recycled mixtures become qualified patching materials for backfilling potholes. It curtails procurement volume for virgin hot-mix asphalt and fully abolishes waste-asphalt haul-away and landfill-disposal charges, lowering comprehensive maintenance expenditure from raw-material source.
Traditional repair requires coordinated dispatch of breakers, waste dumpers and hot-mix transporters. This trailer-mounted hot-recycling plant integrates heating, asphalt regeneration, mixing, emulsion-asphalt spraying, night-lighting and warning functions. One single host completes hot-mix preparation; only small-size breaking tools and compactors are required for full-cycle pothole repair. Less equipment dispatching, fewer vehicle relocations and downsized work-teams reduce labor and fleet-scheduling costs, meanwhile cutting preparatory time consumed by multi-unit site arrival.
Built-in lighting-warning assemblies support night-time rush-repair missions. PLC-driven precise temperature control guarantees regenerated-mix quality, and emulsion-asphalt tack-coat improves patch durability to reduce secondary-damage re-work probability. Many road-maintenance projects suffer timeline expansion caused by repeated patching. Reliable one-shot repair minimizes recurring intervention and indirectly reduces long-term maintenance costs.
1. Mitigated traffic-related social costs. Shortened lane-occupation time for pothole repair reduces long-term road closure on expressways and urban main roads, easing traffic-congestion-triggered social losses.
2. Eco-friendly performance. In-place recycling of waste asphalt concrete cuts quarrying demand for fresh aggregate and asphalt, reduces landfill waste and lowers carbon-emission footprint.
3. Versatile distress adaptability. It addresses potholes, alligator cracking, pavement humps and manhole-surround defects, and supports small-area fresh-asphalt paving. Multi-scene capability improves overall equipment utilization rate.
The FND-RZS1500L trailer-mounted drum-type mobile hot-recycling mixing unit shortens road-repair cycles and lowers maintenance costs not merely by boosting heating-mixing speed, but by reconstructing the material-supply logic of conventional patching workflows. Four pivotal pillars drive optimization: on-site mixing & regeneration independent of stationary batching plants, 100 % RAP recycling to eliminate waste-disposal expenditure, multi-function single-unit design minimizing multi-fleet mobilization overhead, intelligent temperature control plus night-working hardware enabling all-weather emergency response. It simultaneously cuts time-loss and capital spending caused by material transit waiting, waste-asphalt haul-off, multi-equipment scheduling and repetitive re-pairing. Suited for emergency maintenance on expressways, national-provincial highways and municipal pavements, this equipment delivers an integrated high-efficiency solution for rapid asphalt-pavement restoration.
