Introduction: Crack Repair Determines Long-Term Road Service Life
Highways, municipal urban roads, airport aprons, industrial parks and county rural roads suffer constant damage from vehicle load, seasonal temperature fluctuations and rainwater infiltration. These factors trigger transverse cracks, longitudinal fissures, alligator cracking and broken pavement around manholes. Neglected cracks allow rainwater to seep into road subbase, wash away base aggregate, and rapidly expand into large potholes and pavement subsidence, driving up expensive full-depth resurfacing costs later.
The most cost-effective preventive solution is injecting hot crack sealant into fissures to block moisture and stabilize pavement structure. However, the type of asphalt joint filling machinery directly impacts construction speed, labor expenses and project profit. Three mainstream pavement crack repair tools dominate the global road maintenance market: truck-mounted towable hot pour caulking rigs, full-electric autonomous pavement joint sealing all-in-one vehicles, and compact walk-behind towed asphalt fissure filler units.
The three categories differ drastically in tank capacity, power supply, mobility, applicable construction scenarios, upfront purchase fees and daily maintenance costs. Many engineering contractors, municipal road bureaus and property management teams often make improper purchases, facing issues like bulky rigs stuck in narrow residential alleys or compact filler machines halting frequently for refills on highway mass repair jobs. This article analyzes hardware configurations, functional drawbacks and matching working conditions of three core Fanode pavement sealing apparatuses, supported by an intuitive specification comparison chart, helping buyers select suitable equipment and avoid unnecessary capital waste.
Core Specification Comparison Chart of Three Pavement Crack Restoration Tools
Comparison Item | FND-G500 Truck-Towed Hot Pour Caulking Rig | FND-DG400 Autonomous Self-Propelled Pavement Sealing Vehicle | FND-G120 Walk-Behind Compact Asphalt Fissure Filler Unit |
|---|---|---|---|
Melter Kettle Capacity | 500 Liters | 400 Liters | 120 Liters |
Total Machine Weight | 1.2 Tons | 1600 KG | 450 KG |
Mobility Mode | Fixed on light truck cargo bed / towed by freight vehicle | Independent electric drive with integrated operator cabin | Manual push + small trailer dual transit mode |
Transit Speed & Endurance | Max tow speed 45km/h, unlimited range powered by tow truck fuel | 60km full-battery range, top driving speed 55km/h | Only short-distance manual movement, no long-distance transfer capacity |
Standard Melting Duration | 35 mins for initial 100kg batch, 20 mins per 14kg continuous refill | 45 mins for full-tank sealant melting | 30 mins full tank melting under ambient temperature |
Core Power Assembly | 5KW Honda gasoline generator, Riello 105000-350000Btu diesel burner | 2.8KW Honda generator + full vehicle electric travel drive system | 2KW compact Honda generator, compatible with mains power preheating |
Standard Heated Hose | 6m 220V full electric heating delivery hose, optional 7m extended version | 6m bend-resistant electric heated discharge hose | 4.5m lightweight insulated heating tube |
Temperature Control System | 3-channel Omron LCD thermostat, separate monitoring for hose, sealant and thermal oil | Dual digital Omron temperature panel, synchronous three-way temperature detection | Microcomputer auto constant temperature controller, dual digital display screen |
Primary Applicable Projects | Mass crack remediation on expressways, national & provincial highways, long trunk road maintenance | Routine crack patrol repair on urban arterial roads, full airport maintenance, narrow old town alleys | Scattered minor patch work on residential parking lots, factory internal roads, rural country lanes |
Standout Advantages | Large kettle enables non-stop long-hour construction, lifting boom eases operator burden, double-layer thermal insulation boosts heating efficiency | Independent drive eliminates tow truck demand; single worker completes driving & sealing operations; low feed chute cuts loading difficulty | Ultra-lightweight 450KG body, two-person portable, lowest procurement & fuel cost, mains preheating reduces gasoline consumption |
Functional Limitations | Relies entirely on freight trucks for transit; poor turning flexibility in narrow old alleys & residential compounds | Smaller tank requires frequent sealant refills for extra-large highway repair projects | Minimal capacity unsuitable for continuous long-distance highway crack treatment, only for scattered spot repairs |
Safety Standard Accessories | Boom locking mechanism, 8 DC12V strobe warning lights, bi-directional arrow guide lamps | Full-vehicle LED safety indicator system, full-body thermal insulation protective plates | Built-in toolbox, hose fixing buckles, anti-splash feeding baffle |

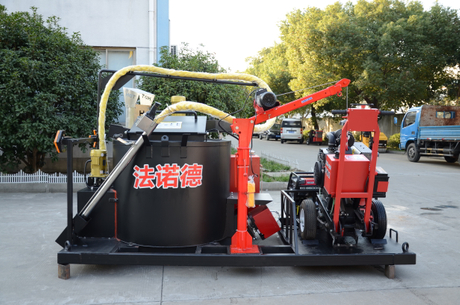

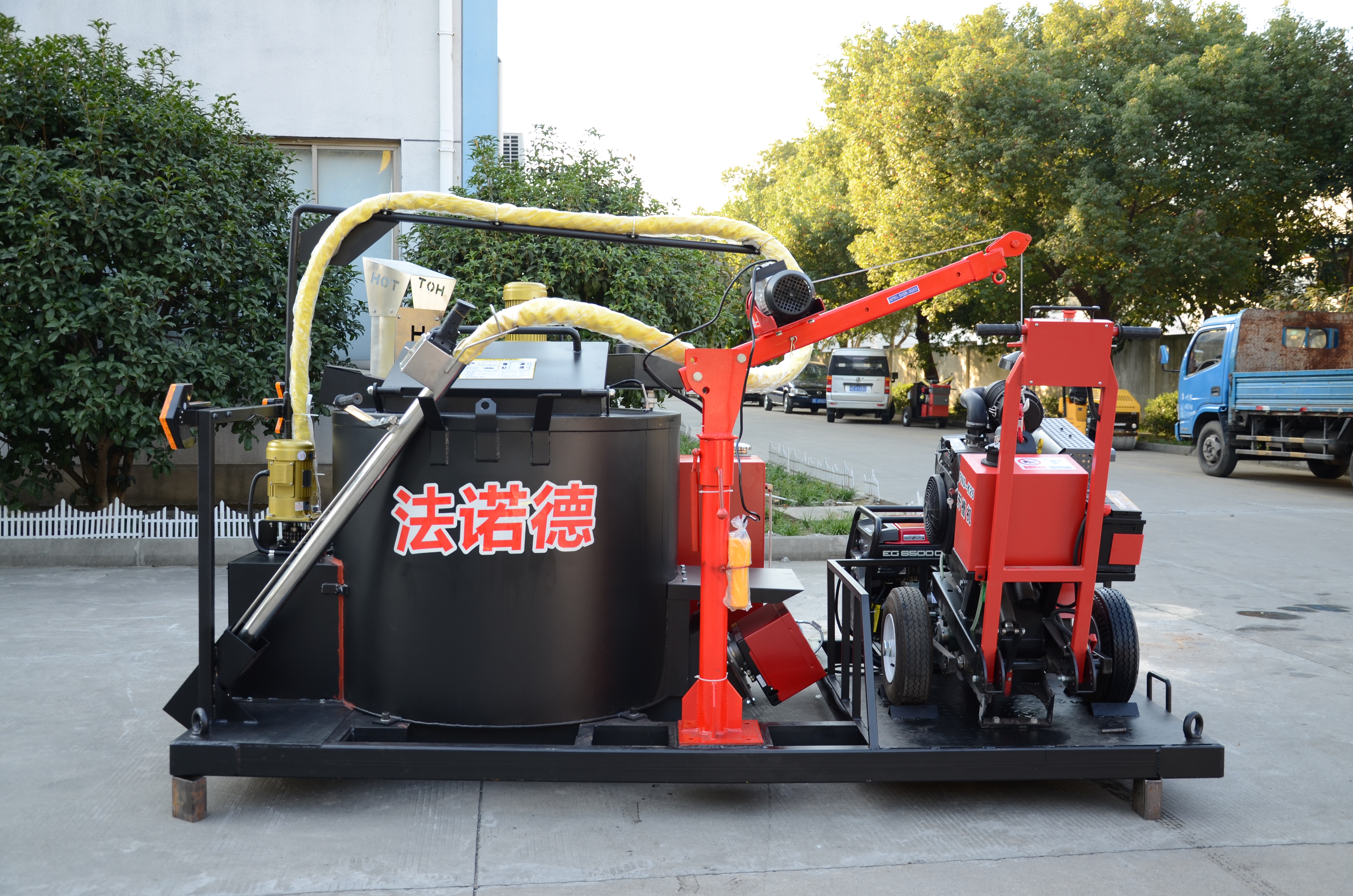

1. FND-G500 Truck-Towed Hot Pour Caulking Rig: Core Workhorse for Large-Scale Trunk Road Maintenance
This freight truck-mounted hot asphalt crack melter applicator serves as standard equipment for expressway maintenance corporations and provincial road operation bureaus, with its 500L large-volume melting kettle as the core competitive strength. It stores massive hot sealant in one batch to sustain hours of uninterrupted joint sealing, minimizing downtime for refilling and perfectly matching hundred-kilometer-level concentrated crack repair contracts on national and provincial highways.
The rig adopts mature indirect thermal oil constant temperature heating technology paired with an Italian Riello heavy-duty diesel burner. The flame burns fully at a 45° inclined angle inside the combustion chamber without direct contact with the kettle wall, completely preventing sealant carbonization and scorching failure. Three independent Omron thermostats allow separate setting and real-time monitoring of electric heating hose, crack filler and heat transfer oil temperatures, with auto power-off protection triggered once temperature exceeds factory preset safety thresholds. The standard 6-meter extended high-temperature delivery hose rotates 270 degrees freely, handling horizontal, vertical and irregular branched pavement cracks smoothly. A hydraulic lifting boom is pre-installed to suspend the sealing wand during operation, removing the need for constant manual gripping and relieving arm fatigue during all-day shifts.
Power comes from an original Honda 5KW gasoline generator with stable low-noise performance, fitting remote job sites without mains electricity access. A 110L large-capacity diesel tank supplies round-the-clock fuel for the burner. The integrated truck frame can be secured on light truck cargo beds or towed via a hitch; the maximum towing speed is limited to 45km/h to protect internal pipelines and temperature sensors from bump damage.
Ideal Scenarios: Provincial highway maintenance tenders, dedicated expressway crack restoration projects, joint sealing supporting national & provincial highway medium-large renovations, mass patch repair on wide industrial park main roads. Limitations include bulky dimensions and zero self-propelled function, creating access barriers in narrow old communities and side streets; deploying this rig for small scattered repairs wastes fuel and labor resources.

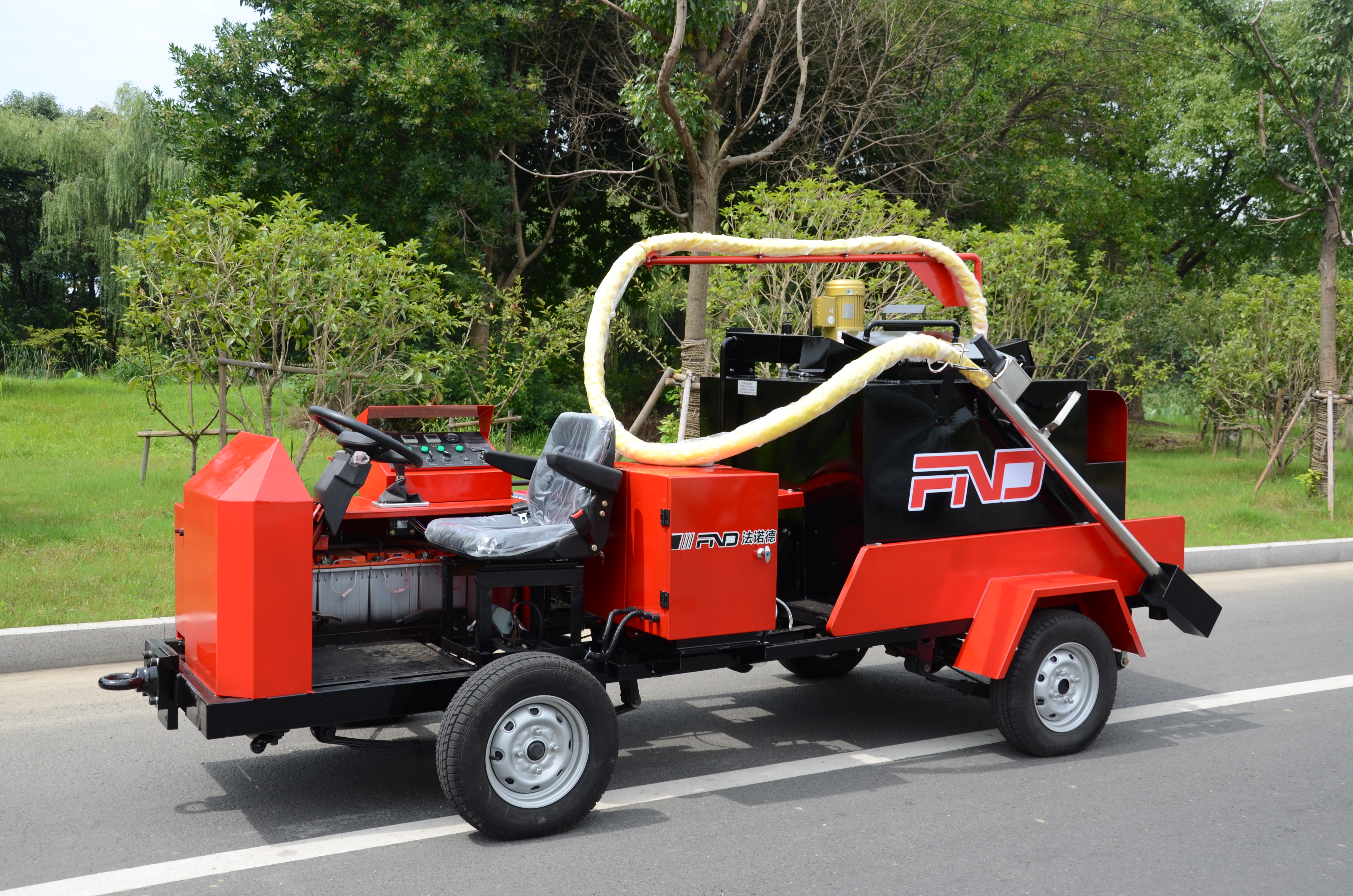

2. FND-DG400 Autonomous Self-Propelled Pavement Sealing Vehicle: Flexible Choice for Municipal & Airport Construction
This electric self-driving bitumen fissure sealing machinery is tailor-made for urban road operation scenarios, removing total reliance on towing trucks. The unit integrates an operator cabin and automatic electric travel system, delivering a 60km full-charge range with a top speed of 55km/h. It navigates urban ring roads, tight old-town lanes, airport aprons and perimeter access roads with effortless steering, eliminating the need to dispatch separate freight vehicles and cutting fleet scheduling expenses.
A low-center, low-feed-chute ergonomic design equips the filling port with heatproof anti-splash baffles. Operators load hot sealant while standing on ground level without climbing, avoiding scald injuries from splashing high-temperature compound. An integrated electronic flow control switch is built into the sealing wand handle, allowing crews to start and stop the feed pump instantly to adjust output volume and eliminate waste from overflowing sealant. Double-layer full thermal insulation wraps the melting kettle and delivery pipelines, keeping exterior machine surface cool and raising overall construction safety.
The dual digital Omron liquid crystal thermostat displays real-time temperatures of thermal oil, crack filler and heating hose. Indirect thermal oil heating delivers even heat distribution without localized overheating that burns sealant. The standard 6m bend-resistant electric heating tube withstands repeated twisting and folding to adapt to complex crack layouts across city pavements. Full-vehicle LED traffic warning lamps are equipped to alert passing vehicles from long distances during night emergency repair work.
Ideal Scenarios: Daily routine crack inspection & sealing for municipal road authorities, full-spectrum airport pavement maintenance, continuous repair on narrow historic urban lanes, long-term upkeep of large commercial parking lots. Its drawback lies in the 400L smaller kettle capacity compared to towed models, requiring frequent sealant refills and extending construction timelines for continuous long-distance highway crack remediation.

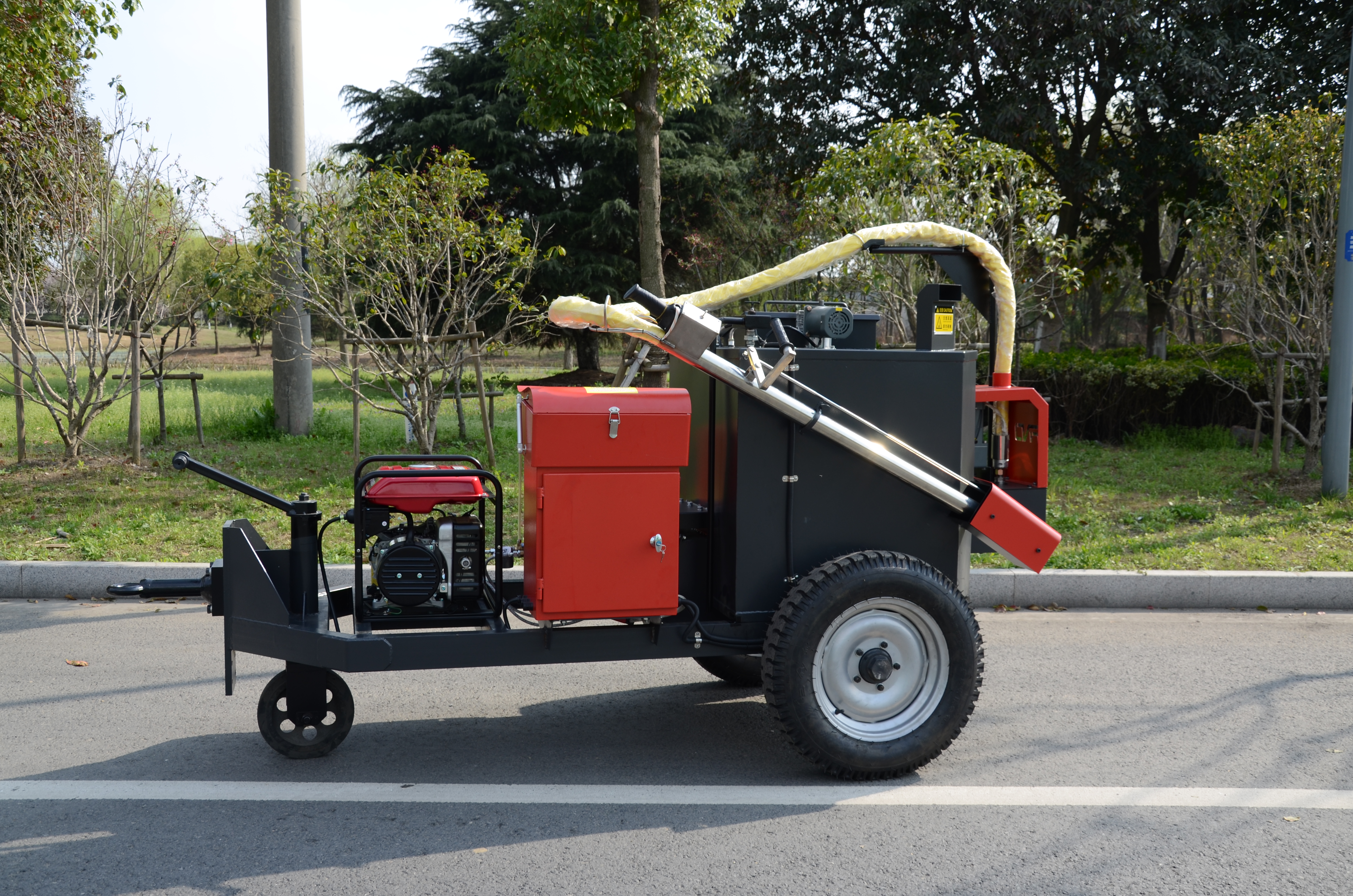

3. FND-G120 Walk-Behind Compact Asphalt Fissure Filler Unit: Cost-Effective Option for Small-Scale Scattered Repairs
This lightweight portable asphalt crack filling apparatus targets short-term minor repair projects, weighing only 450KG. Two workers can push, load and transport the unit effortlessly, either manually for short-distance jobs or hitched to small trailers for remote transfer. Its compact body fits directly inside pickup trucks and small box vans for convenient haulage, making it a popular pick for property management teams and township road maintenance stations.
It is powered by a 2KW Honda gasoline generator with an exclusive mains power transfer switch. On job sites with grid electricity (industrial parks, residential compounds), crews can shut down the generator and rely entirely on mains power for preheating the melting kettle, slashing gasoline consumption and daily operational costs. A 250W Taiwan Wanxin mixing motor features built-in overload protection to prevent jamming from cold solidified sealant and extend machine service life. The 4.5m lightweight heating hose suits short scattered crack spots, with integrated hose storage buckles to organize tubes after work and reduce pipeline abrasion.
The 120L mini melting kettle fully liquefies sealant within 30 minutes under ambient temperature, with a 30L thermal oil reservoir enabling fast temperature rise and short startup waiting time. A side-mounted heat preservation compartment holds the sealing wand during work breaks to stop internal sealant cooling and pipeline clogging. A full matching toolbox is embedded onboard, storing all inspection and replacement parts for quick on-site troubleshooting.
Ideal Scenarios: Scattered crack patch work in residential communities and factory yards, minor rural country road maintenance, short-notice emergency pavement repair contracts. Obvious limitations include tiny tank volume incapable of handling continuous mass highway crack sealing, with low efficiency for long-hour large-area construction, only suitable for isolated spot fixes.
Standard Equipment Selection Guidance for Accurate Matching
1. Large-scale concentrated maintenance on expressways, national and provincial trunk roads: Prioritize the FND-G500 Truck-Towed Hot Pour Caulking Rig. The 500L high-capacity kettle minimizes refilling downtime, the lifting boom cuts labor fatigue, and truck-supported long-distance transit adapts to ten-thousand-square-meter daily sealing projects.
2. Daily continuous construction for municipal road bureaus and airport ground teams: Select the FND-DG400 Autonomous Self-Propelled Pavement Sealing Vehicle. Independent electric travel removes tow truck requirements, enabling smooth navigation through narrow urban roads, with single-person full-process operation ideal for multi-route daily inspection repairs.
3. Small scattered patch jobs for property parks, factories and rural lanes: The FND-G120 Walk-Behind Compact Asphalt Fissure Filler Unit delivers optimal cost-performance. Ultra-lightweight transit reduces transport hassle, low upfront purchase and fuel maintenance fees, while mains preheating further compresses operational overhead for low-volume projects.
Brand After-Sales Support & Warranty
Suzhou Fanuode Engineering Machinery specializes in R&D and manufacturing of hot pour pavement crack repair equipment. All three asphalt fissure restoration machines come with complete unit warranty service. Built-in electrical control components enjoy 1-year free replacement and repair coverage, with factory original spare parts delivered rapidly worldwide. Global clients gain access to 24/7 one-on-one online technical guidance to remotely resolve common faults with temperature control systems, diesel burners, feed pumps and electric travel assemblies. Every pavement sealing rig undergoes a 72-hour continuous load test before delivery, paired with full bilingual operation manuals and fault diagnosis guides to facilitate deployment for overseas engineering contractors and municipal procurement departments.
