Introduction
Asphalt pavements on municipal roads, highways and industrial parks worldwide suffer from chronic aging defects including potholes, alligator cracking, rutting and damaged areas around manhole covers. For decades, the conventional mill-and-replace patching workflow dominated road maintenance, yet this outdated method features massive raw material waste, prolonged construction schedules, high carbon emissions and soaring long-term operational costs. By contrast, truck-mounted asphalt recycling machinery revolutionizes pavement restoration with on-site reclamation technology. Based on real-world operation data of the FND-RZS1000/1500L model, this article compares the two restoration solutions across construction workflow, capital expenditure, eco-friendliness and pavement durability, offering clear selection references for global road contractors, municipal maintenance authorities and highway management teams.
1 Core Construction Workflow of Two Pavement Repair Methods
1.1 Traditional Milling & Full Replacement Patching
Conventional pavement rehabilitation adopts fragmented multi-stage operations:
1. Jackhammers and milling machines strip all damaged asphalt layers;
2. Special waste haulers transport discarded asphalt long distances to landfills;
3. Pre-order virgin hot mix asphalt from centralized batch plants;
4. Insulated delivery trucks ship hot mixtures to job sites;
5. Manual spreading and layered compaction via compactors.
This workflow demands coordination of multiple heavy vehicles and a crew of 6–8 workers. 100% of waste asphalt is discarded without recycling, leading to chaotic site management and extended project timelines.
1.2 Integrated On-Site Hot Recycling Workflow
With a Hot Recycled Asphalt Mixer, all restoration procedures are completed directly on the damaged pavement, eliminating back-and-forth haulage of waste and new aggregates:
1. Crushed old asphalt chunks are fed straight into the machine’s mixing drum;
2. A 360° rotating double-insulated drum heats aged mixtures at constant temperature via imported industrial burners;
3. Emulsified asphalt or hot bitumen is added on demand to replenish lost binders in reclaimed stock;
4. An intelligent controller regulates mixing speed, with fully discharged recycled mix ready for paving within 0.5–1 minute.
The all-in-one unit integrates heating, stirring, rejuvenator spraying and automatic discharging, achieving 100% on-site recycling of reclaimed asphalt pavement (RAP).

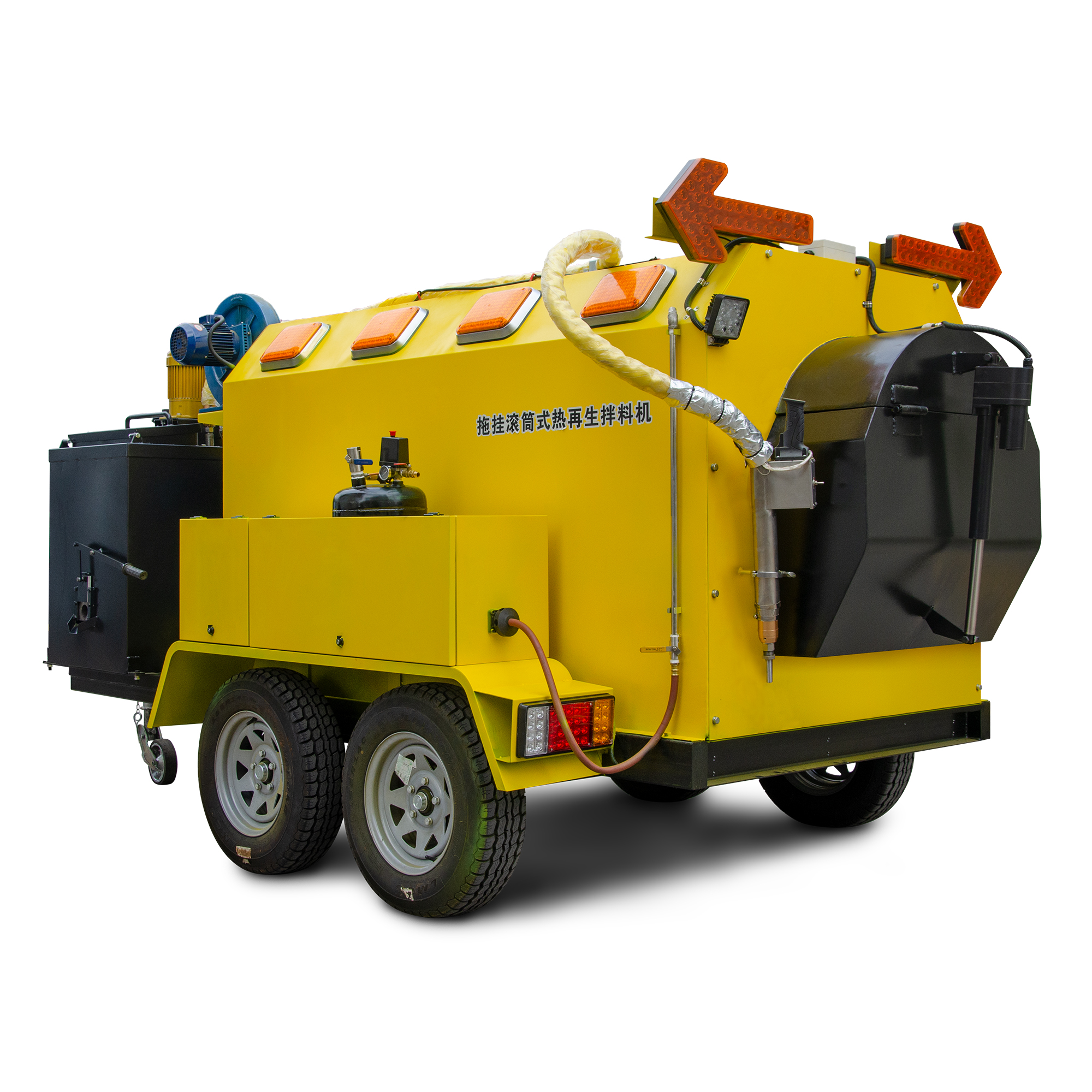

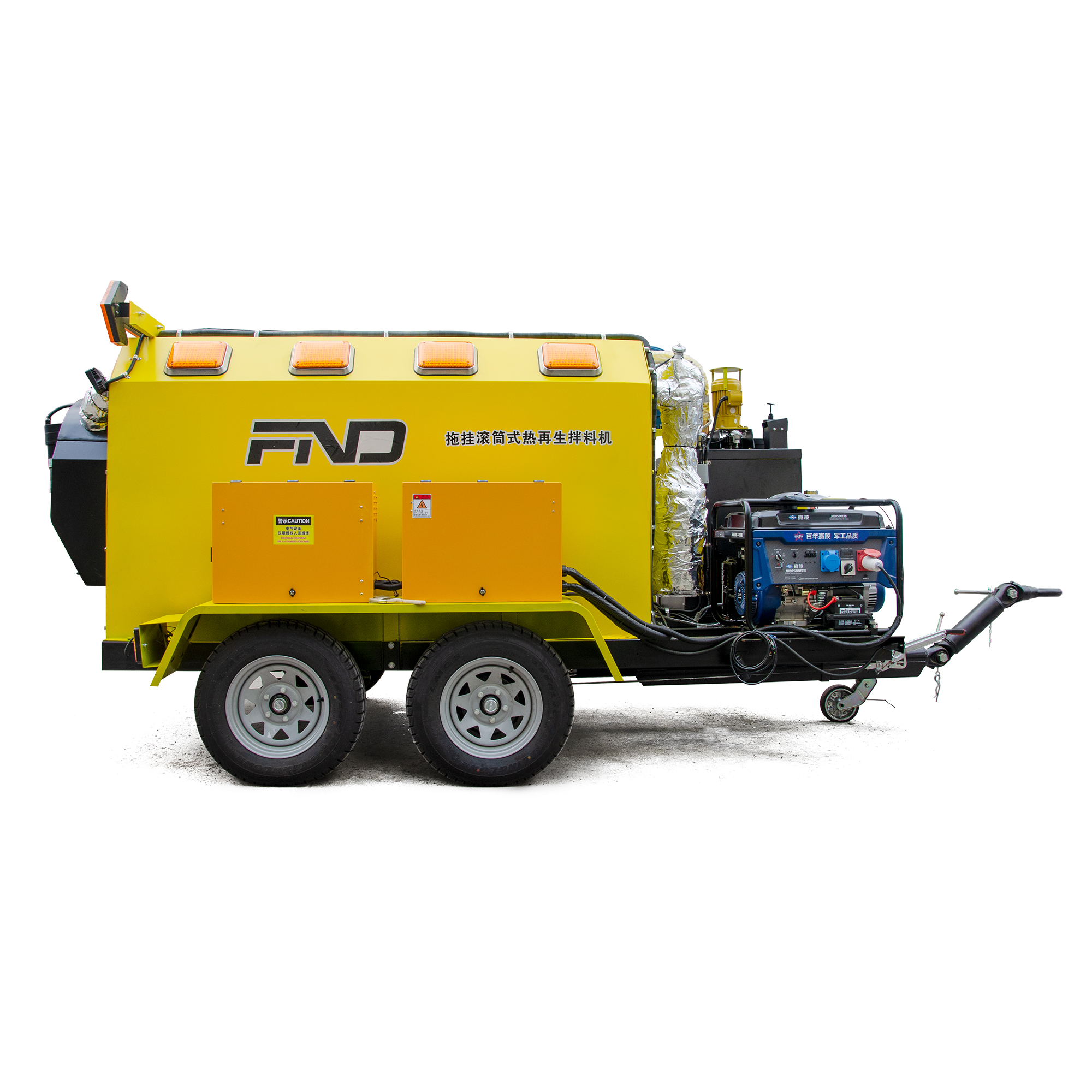

2 Core Technical Advantages of FND-RZS1000/1500L Asphalt Hot Recycling Mixing Equipment
Developed for light truck mounting, this mobile asphalt processing unit outperforms stationary Hot Recycling Asphalt Mixing Plants with compact dimensions and all-weather adaptability, featuring these key upgrades:
1. High-Efficiency Constant-Temperature Heating System
The drum lined with double ceramic thermal insulation works with an Italian Riello 120kW diesel burner for uniform 360° heat distribution. The first batch only takes 15–20 minutes to heat, while follow-up loads finish within 10–15 minutes, far faster than competing machinery. A Siemens PLC intelligent temperature control system paired with imported thermocouples avoids asphalt scorching via low-speed mixing to prevent aggregate segregation and rapid reverse discharge to eliminate residual buildup.
2. Dual Optional Rejuvenator Injection System
Operators can install a 25L emulsified asphalt spray assembly, a 100L thermostatic hot bitumen tank, or both integrated units. The adjustable binder dosage creates seamless thermal bonding between recycled material and original pavement, eradicating recurring cracks caused by cold joints in traditional repair jobs.
3. Self-Powered Truck-Mounted Integration
Equipped with a standalone 6.5kW generator, the unit requires no external industrial power supply. Measuring 3800×2050×1750mm with a weight of 2500/2800KG, it fits pickup trucks and 1–4 ton flatbeds, easily accessing narrow urban alleys, rural lanes and highway verges with limited working space.
4. Full Safety Suite for Night Emergency Operations
A foldable 360° rotatable remote-controlled LED lighting array, 8 LED strobe warning lamps and dual directional arrow markers deliver zero-blind illumination for round-the-clock emergency maintenance on dim road sections.
5. Bi-Directional Drum Operation Logic
Forward rotation handles heating and recycling, while reverse rotation enables fully automatic discharge. A single batch processes 800–1000KG of recycled asphalt mix, minimizing post-job cleaning and maintenance labor.
3 Head-to-Head Comparison: Hot Recycling VS Traditional Patching
Comparison Item | Traditional Milling & Replacement Patching | Truck-Mounted Mobile Hot Recycling Restoration |
Waste Asphalt Treatment | 100% hauled to landfills, total resource loss | 100% on-site reclamation via Hot Reclaimed Asphalt Mixer, zero construction waste |
Raw Material Expense | Full purchase of virgin aggregate & bitumen, high material overhead | Only small amounts of rejuvenating binder required, over 40% reduction in raw material costs |
Auxiliary Construction Vehicles | Milling machines, waste haulers, hot mix tankers, compactors | Only asphalt recycling unit + small compaction roller |
On-Site Labor Requirement | 6–8 worker crew for segmented tasks | 2–3 operators; one staff can fully operate a Hot Recycle Asphalt Mixing Machine |
Material Waiting Downtime | Reliant on batch plant schedules, hours of idle waiting for hot mix | Continuous feeding & discharging with no production halt |
Carbon Footprint & Pollution | Heavy fuel consumption & exhaust emissions from multiple transit trucks | No long-distance haulage, low-carbon eco-friendly construction |
Pavement Bond Durability | Cold joints trap moisture, trigger recurrent cracking quickly | Thermal fusion between recycled mix and original surface doubles repair service life |
Night Emergency Compatibility | Batch plants cease operation overnight, no hot mix available | Complete lighting & warning systems support 24/7 road maintenance |
4 Suitable Application Scenarios for Each Restoration Solution
4.1 Cases Where Traditional Milling Replacement Is Recommended
Traditional full removal is only viable when the road subgrade suffers deep collapse, full-thickness pavement deterioration, or full road reconstruction. If the base layer loses bearing capacity completely, old asphalt cannot be reclaimed and full resurfacing is mandatory.
4.2 Scenarios Ideal for Mobile Hot Recycling Units
A portable Hot Recycling Asphalt Mixing Plant serves over 90% of routine aged pavement rehabilitation tasks:
1. Isolated potholes, alligator cracking, rutting and manhole-edge damage on highways & arterial roads;
2. Minor surface restoration for municipal streets, parking lots and campus driveways;
3. Time-critical emergency road repairs and overnight maintenance shifts;
4. Construction zones with strict waste haulage and emission restrictions;
5. Long-term regular pavement upkeep projects with tight annual maintenance budgets.
5 Conclusion: On-Site Hot Recycling Is The Long-Term Optimal Choice for Aged Pavement Rehab
Traditional milling patching only temporarily fixes surface damage, plagued by material waste, excessive labor fees, long project timelines and short repair lifespans — conflicting with global sustainable infrastructure standards. Mobile asphalt recycling machinery (marketed under varied aliases including Hot Reclaimed Asphalt Mixer and Asphalt Hot Recycling Mixing Equipment) eliminates all core pain points of conventional restoration through on-site RAP reclamation, integrated intelligent control and flexible all-shift operation.
For international municipal departments and road maintenance contractors, investing in a truck-mounted drum recycling unit cuts recurring maintenance expenditure, accelerates construction progress and complies with global green infrastructure regulations. It stands as the most cost-effective long-term solution for small & medium-scale aged asphalt pavement renovation projects.
