From Principles To Applications: A Detailed Explanation of How Road Crack Filling Machines Solve Pavement Crack Problems

From Principles to Applications: A Detailed Explanation of How Road Crack Filling Machines Solve Pavement Crack Problems

1. Introduction: Pavement Cracks – Core Bottlenecks in Modern Road Preventive Maintenance​

Asphalt pavements of municipal roads, highways and rural roads are constantly affected by vehicle load, temperature variation, rain infiltration and freeze-thaw cycles, causing diverse crack diseases. Unprocessed tiny cracks will gradually lead to base softening, potholes, pavement settlement and other severe damages, shortening road service life and bringing potential traffic risks. Traditional manual repair methods suffer from low compactness, poor bonding effect and low efficiency, failing to meet refined road maintenance standards.

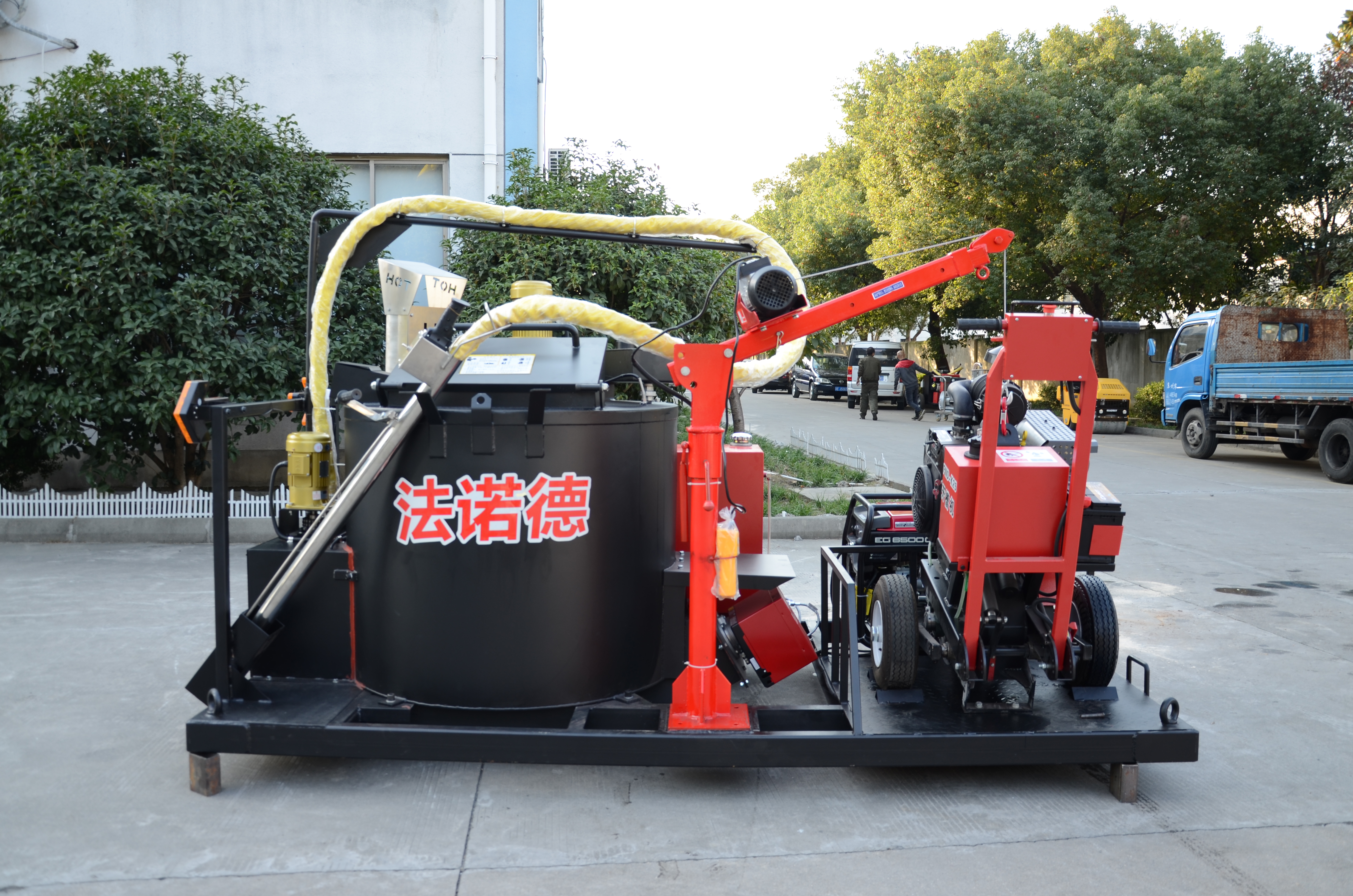

As professional core equipment for road preventive maintenance, pavement crack repair systems realize standardized sealant melting, constant-temperature heat preservation and precise filling, which have become essential facilities to solve pavement crack problems and extend road service life.

2. Working Principle and Core Technology of Pavement Crack Remediation Apparatus​

The core working mechanism of professional road joint sealing machinery includes intelligent constant-temperature melting, precise hydraulic pumping, adaptive filling and integrated waterproof sealing. It heats asphalt sealants to the optimal construction temperature, injects molten high-elasticity materials into cracks evenly, and forms an integrated waterproof and anti-crack protective layer after curing to block water erosion and restrict crack expansion.

2.1 Constant-Temperature Melting Technology

Equipped with a double-layer thermal insulation tank and intelligent temperature control system, the unit stably heats sealants within 180℃–220℃, avoiding material aging and poor fluidity. All models support a unified 45-minute standard melting cycle, greatly improving pre-construction efficiency.

2.2 Precise Hydraulic Filling Technology

The high-pressure hydraulic pumping system delivers stable material output, adapting to cracks of 2mm–50mm in width and depth. The flexible nozzle realizes full filling without voids or intermittent leakage, ensuring flat pavement after repair.

2.3 Curing and Waterproof Anti-Cracking Technology

The cured high-elasticity sealant closely bonds with crack side walls and adapts to pavement thermal expansion and contraction. It effectively avoids secondary cracking of repaired cracks and forms a long-term waterproof and structural protection layer.

3. Full-Series Product Specification Comparison

The company's full-range road crack treatment equipment covers multiple tank capacities and walking types, adapting to all road maintenance scenarios. All devices adopt a unified 45-minute melting time with stable and consistent construction quality.

4. Core Structural Modules and Functional Advantages​

4.1 Intelligent Constant-Temperature Melting Module

Equipped with thickened thermal insulation tank and full-intelligent temperature control system, this assembly maintains stable construction temperature, realizes rapid melting and long-term heat preservation, and reduces energy consumption.

4.2 High-Precision Hydraulic Pumping System

Wear-resistant hydraulic components ensure stable flow and pressure. The flexible steering nozzle adapts to curved and irregular cracks, achieving zero-dead-angle full filling.

4.3 Integrated Pre-Treatment Function

Built-in air blowing and dust removal mechanism thoroughly cleans impurities inside cracks, ensuring tight bonding between sealant and pavement substrate and improving repair durability.

4.4 Diversified Mobile Structure

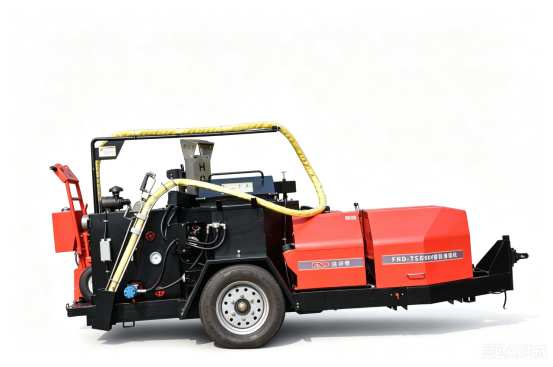

Four walking types fully cover all scenarios. Small electric models are flexible for narrow roads, while large towed and truck-mounted platforms support long-distance and large-area continuous construction.

5. Multi-Scenario Engineering Application Cases​

5.1 Municipal Main Road Fine Maintenance Case

A 7-year-old urban trunk road suffered from widespread 2–12mm transverse and longitudinal cracks with water seepage risks. The project adopted a 350L intelligent self-propelled pavement remediation machine. After 45-minute rapid melting and adaptive filling, 7.5 kilometers of cracks were repaired within 2 days. The repaired pavement remained flat without secondary cracking, peeling or water seepage after one year of seasonal operation, greatly improving road stability.

5.2 Provincial Expressway Large-Section Maintenance Case

A 38-kilometer provincial expressway had severe deep cracks and base softening caused by long-term heavy-load rolling. A 500L truck-mounted road sealing apparatus was deployed for uninterrupted continuous operation. The equipment achieved a daily working distance of over 4,500 meters and completed full-section maintenance in 13 days. The repaired layer adapts to high-frequency pavement deformation, reducing the annual disease recurrence rate by more than 50% and cutting long-term maintenance costs.

5.3 Rural Highway Complex Pavement Maintenance Case

A rural highway network featured narrow roads, complex curves and scattered irregular cracks, inaccessible to large machinery. 120L and 200L electric flexible sealing units were applied for single-person precise operation. The lightweight and flexible systems solved the problems of difficult machinery access and poor manual repair quality, realizing full-coverage crack remediation and stabilizing rural road pavement structure.

6. Construction Specifications and Problem Countermeasures​

6.1 Standard Construction Key Points

Strictly control the melting temperature at 180℃–220℃; complete crack cleaning and drying pretreatment; adjust pumping flow according to crack size for full filling; avoid early traffic opening before sealant curing.

6.2 Common Problems and Solutions

Insufficient bonding and peeling: Caused by incomplete cleaning and improper temperature control. Solution: Strengthen pretreatment and implement standard 45-minute constant-temperature melting.

Secondary cracking after repair: Resulting in insufficient filling compactness. Solution: Optimize flow parameters and adopt high-elasticity sealant.

Pavement unevenness and glue overflow: Caused by unstable operation. Solution: Adopt uniform low-speed construction and clean residual glue timely.

7. Industry Trend and Equipment Value​

Road maintenance is transforming from passive post-repair to refined preventive maintenance. This series of pavement crack disposal solutions solves the defects of traditional manual construction with standardized efficiency, full-scenario adaptability and high stability. In the future, intelligent identification, unmanned operation and energy-saving upgrading will further improve maintenance precision, supporting high-quality development of traffic infrastructure.

8. Conclusion​

Pavement crack is the most common road disease. Full-series road crack sealing systems with 120L–500L capacity and four walking modes adopt unified 45-minute rapid melting technology, realizing efficient and high-quality crack repair for municipal, highway and rural road scenarios. Verified by practical engineering cases, the machinery effectively improves pavement stability, extends road service life and reduces comprehensive maintenance costs, serving as core professional tooling for modern road preventive maintenance.

Suzhou Fanuode – Intelligent Maintenance for Lasting Roads.

Contact us today – we'll match you with the right model.
