Subject to heavy traffic load and temperature cycling, asphalt pavements develop various distresses including cracks, potholes, alligator cracking and rutting. Complete rehabilitation covers slotting pretreatment, crack sealing and in-place pothole patching. In the past, maintenance agencies purchased separate individual machines, resulting in cumbersome dispatching, disconnected workflows and poor cross-machine compatibility. The all-in-one highway-maintenance hardware suite integrates pavement slotting implement, asphalt crack-sealing rig and trailer-mounted hot-recycling batching platform. It delivers full-range operations from crack preparation, sealant pouring to in-place pothole rehabilitation. This article explains functions, division-of-labor and cooperative workflow of each module, compares against fragmented traditional workflows, and provides scenario-based configuration guidance for municipal, expressway and arterial-highway maintenance projects.
In legacy pavement repair practices, slotting, crack-sealing and pothole patching are finished by separate machines deployed independently, bringing multiple operational pain-points:
1. Complicated dispatching & high relocation cost. Crack treatment and pothole repair require multiple machinery units with repeated haul-off, increasing fleet-management workload.
2. Disconnected procedures extend construction cycles. Slotting, cleaning, sealing and patching are performed in separate site visits. Long waiting intervals prolong lane-occupation and disturb public traffic.
3. Inconsistent repair quality from poor equipment matching. Mismatched parameters across different-brand hardware raise risks of sealant failure and recurring pavement damage.
4. Uneven asset utilization. Single-purpose machines sit idle outside matching-distress assignments and inflate overall procurement cost.
Comparison table between fragmented single-unit workflow and integrated all-in-one maintenance suite:
Comparison Item | Traditional Fragmented Single-machine Operation | All-in-one Integrated Highway-maintenance Equipment Suite |
Equipment Configuration | Slotter, crack-sealer and patching hardware procured & dispatched separately | Combination of slotting unit, crack-sealing unit and hot-recycling batching unit for coordinated work |
Field Dispatching | Multiple machines arrive in batches with complex scheduling | Integrated fleet for unified relocation with seamless procedure transition |
Workflow Continuity | Disconnected procedures with long waiting gaps | Closed-loop continuous operations: slotting-sealing-pothole repair |
Distress Coverage | Single machine handles only specific defects | One suite addresses cracks, potholes and alligator cracking in one go |
Re-failure Risk | Quality fluctuation caused by mismatched machinery parameters | Process-matched integrated hardware lowers post-repair distress recurrence |
Asset Utilization | High idle ratio for single-function machinery | Flexible split-usage; supports standalone or combined deployment |
The complete solution contains three core assemblies: pavement slotting pretreatment unit, asphalt crack-sealing unit and trailer-mounted on-site hot-recycling batching unit. The whole suite can run as connected repair pipeline; meanwhile every machine can be detached for independent special-purpose assignments.

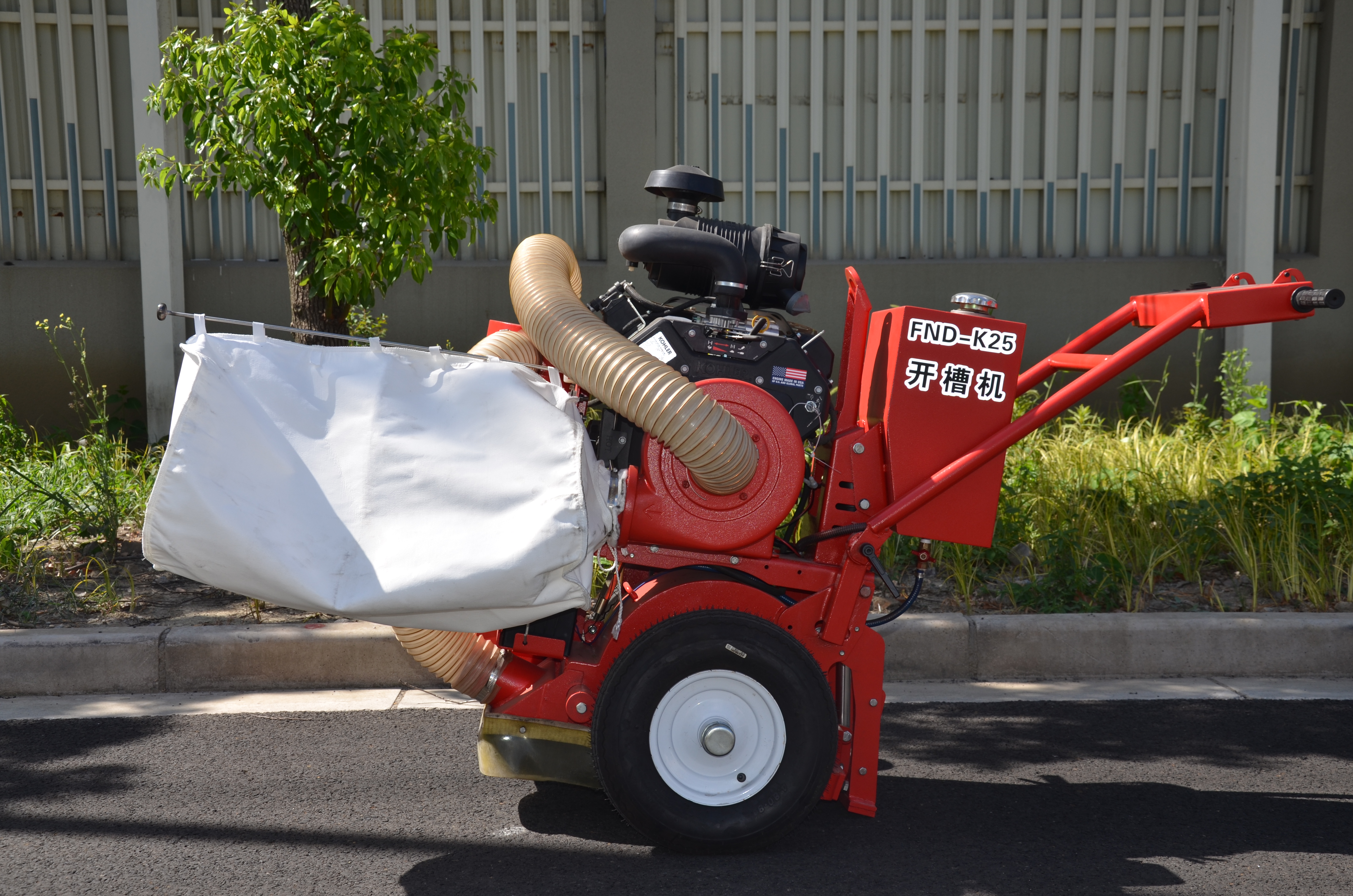

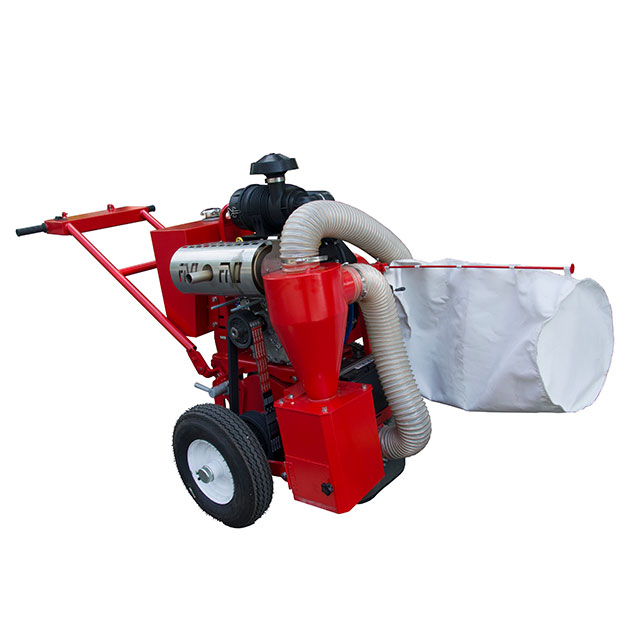

This module serves as pre-processing hardware for crack-sealing projects. It mills regular grooves along irregular pavement cracks on asphalt or concrete roadways, removing aged debris inside fissures and creating clean, well-defined substrate for subsequent sealant injection. Powerful power-train enables adjustable slot width and depth. Optional dust-collection attachment captures flying debris during operation to cut down site dust pollution. Emergency-stop mechanism triggers rapid shutdown under unexpected conditions for operator safety.
Application note: Designed for pre-treatment of structural pavement cracks; not for large-scale pothole filling.

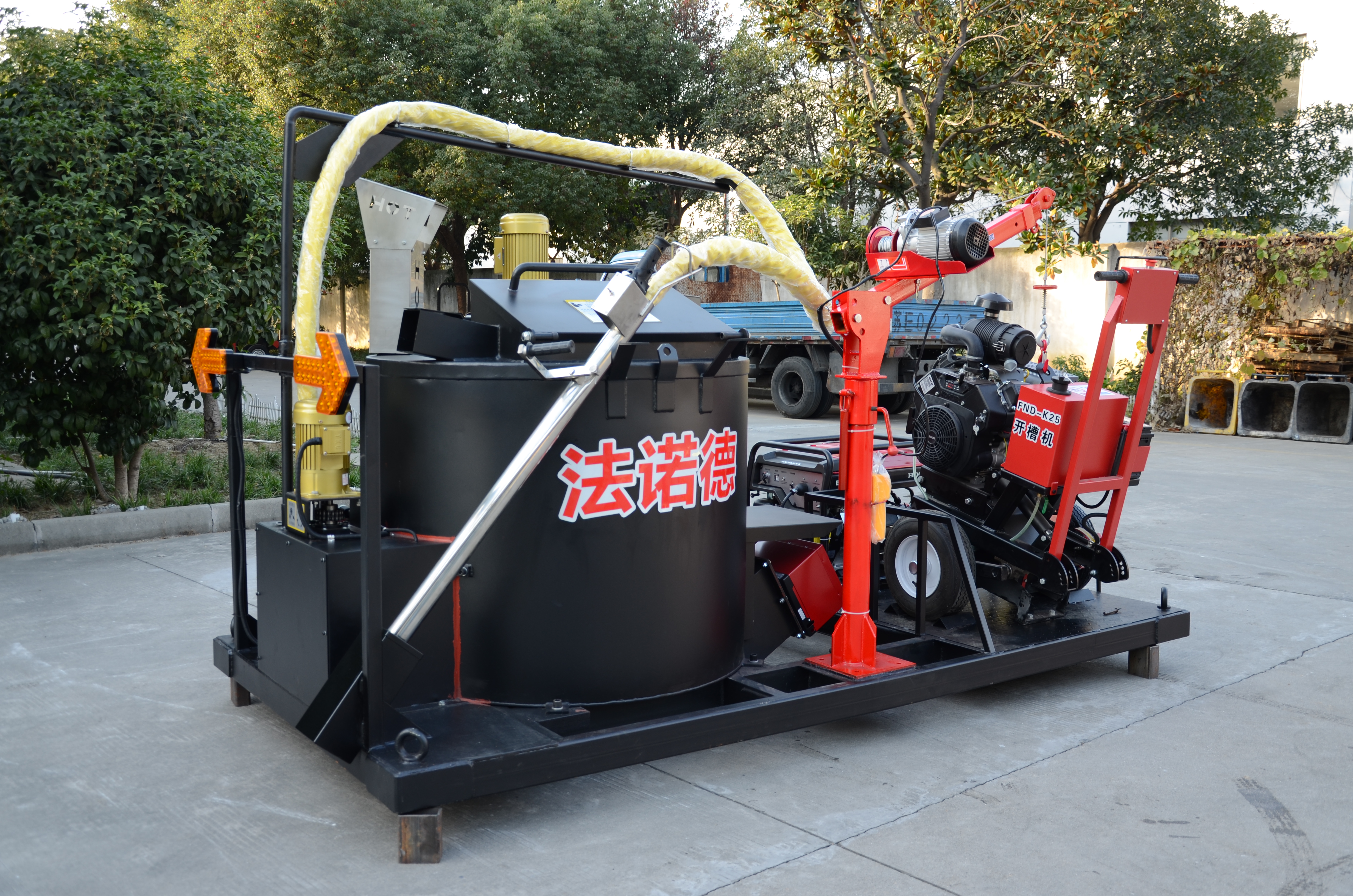

The push-type asphalt joint-sealing rig executes sealant pouring after slot-preparation. It adopts indirect thermal-oil constant-temperature melting technology to avoid local over-burning of sealant. Dual digital temperature controllers monitor real-time temperature for melting tank and heated discharge hose. Electric trigger integrated on pouring nozzle enables on-spot flow control and reduces sealant waste. It supports both push-along and towed mobility, fitting crack remediation on expressways, arterial highways and urban streets.
Application note: For waterproof sealing of varied pavement cracks to stop water infiltration into base courses and slow crack propagation; not suitable for large-size pothole defect remediation.

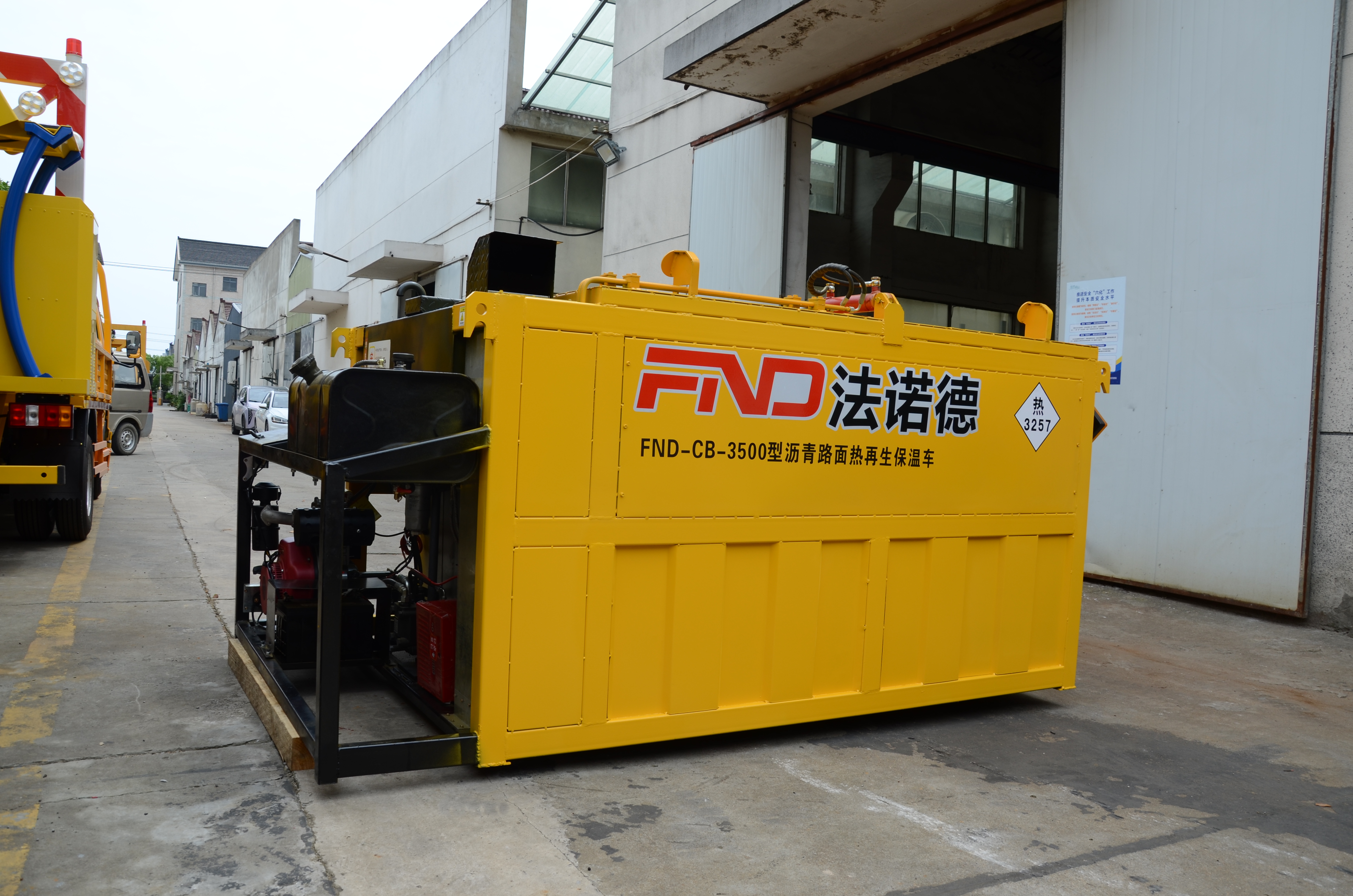

The trailer-towed hot-recycling mixer acts as core hardware for pothole distress rehabilitation. It accepts milled reclaimed asphalt pavement for 100 % on-site thermal regeneration and can also produce brand-new hot-mix asphalt concrete from virgin aggregates. Built-in emulsion-asphalt spray assembly applies tack-coat to enhance bonding between old pavement and fresh patch material. Integrated lighting and warning beacons support off-peak night-time emergency repair. The trailer-style chassis allows fast relocation behind ordinary cargo trucks.
Application note: Targets potholes, alligator cracking and manhole-surrounding defects. Can cooperate with slotting & sealing machines to finish full closed-loop rehabilitation.
1. Locate and mark pavement cracks and pothole distresses through site inspection;
2. Slotting unit: Perform crack grooving and dust-removal pre-treatment;
3. Crack-sealing unit: Inject hot-pour sealant for waterproof crack closure;
4. Hot-recycling batching unit: Collect waste asphalt, execute thermal regeneration, discharge hot-mix for paving and compaction on pothole zones;
5. Site cleanup, remove traffic-control barriers and reopen traffic lanes.
Equipment Unit | Core Function | Typical Target Distress | Compatible Partner Hardware | Supports Stand-alone Operation |
Pavement Slotting Pretreatment Unit | Crack grooving & debris cleaning pre-processing | Varied pavement cracks | Crack-sealing unit | ✅ Yes |
Asphalt Crack-sealing Unit | Inject sealant for crack waterproof closure | Structural pavement cracks | Slotting pretreatment unit | ✅ Yes |
Trailer-mounted Hot-recycling Batching Unit | RAP regeneration & hot-mix output for pothole patching | Potholes, alligator cracking, manhole-surrounding damage | Slotting unit, crack-sealing unit | ✅ Yes |
Expressways suffer from massive co-existing cracks and potholes. Full-suite coordinated deployment is recommended. Hardware executes slotting, sealing and pothole rehabilitation successively for one-pass distress remediation. Built-in lighting-warning assemblies enable night-shift off-peak work to shorten lane-occupation and mitigate traffic disturbance.
Arterial highways feature dense cracks plus scattered potholes. Flexible configuration is feasible: deploy slotter + sealer for crack-concentrated zones; dispatch hot-recycling mixer separately for sporadic potholes instead of mobilizing the whole suite to cut dispatching overhead.
Urban streets are dominated by fine cracks and small-size potholes with constrained working space. Compact push-type slotting and sealing rigs adapt to narrow urban corridors. The trailer-mounted hot-recycling unit is called-out only when concentrated pothole defects occur. Machines can be split for on-demand mobilization outside winter-snow seasons to reduce idle time.
Practical tip: Full-suite deployment does not require three machines on-site every time. Select single-unit or two-machine combinations flexibly according to real-world distress types to avoid resource waste.
1. Closed-loop workflow guarantees repair quality. Matched full-set technology reduces construction defects caused by incompatible third-party hardware and lowers later-stage re-work probability.
2. Flexible deployment controls dispatching expenditure. Supports full-pipeline combined work or detached standalone special-purpose assignments, improving overall equipment asset-utilization rate.
3. Broad distress-handling capacity. One equipment portfolio covers mainstream asphalt-pavement defects including cracks and potholes, removing redundant investment for multiple dedicated machinery.
4. Multi-road-network adaptability. Fits expressways, national-provincial arterials, municipal and county-level rural roads, supporting daytime routine work and night-time emergency off-peak repair.
1. Perform separated daily upkeep for each unit: inspect cutters and power assembly for slotting machines; clean hoses thoroughly after every mission for crack-sealing rigs to prevent sealant solidification blockage; clear drum residues for hot-recycling mixer upon completion.
2. Before full-suite projects, inspect power, piping and control systems of all machines to avoid workflow interruption triggered by single-device failure.
3. For long-term storage, store consumable spare parts separately and keep hardware dust-proof and moisture-protected.
The all-in-one highway-maintenance equipment suite consists of three core modules: pavement slotting pretreatment unit, asphalt crack-sealing unit and trailer-mounted on-site hot-recycling batching unit. It solves classic pain-points of legacy maintenance hardware including single-function limitation and disconnected construction sequences. It can either operate as integrated closed-loop pipeline completing “slotting-sealing-pothole regeneration repair”, or be split into individual units for special-purpose assignments. Suitable for crack & pothole remediation on expressways, arterial highways, municipal and county-level roads, it balances repair quality, dispatching flexibility and asset-utilization, forming a cost-effective hardware solution for comprehensive asphalt-pavement upkeep.
