Views: 0 Author: Site Editor Publish Time: 2026-09-29 Origin: Site
Winter anti-icing road-maintenance covers diverse scenarios including municipal streets, industrial parks and airport access roads, which demand spreading salt, anti-skid sand and granular de-icing compounds. Conventional metal-hopper gritters frequently suffer from salt-induced corrosion, material jamming and poor multi-media adaptability. The XHS-3000 rear-hitch granular broadcaster adopts corrosion-resistant polyethylene hopper, dual-stage spiral-auger feeding and optional vibratory anti-bridging module. Powered by truck-board DC battery without auxiliary generator, it handles salt, fine sand and granular de-icers and delivers stepless spreading width ranging from 1-12 meters. This article illustrates operating principles, compares performance for different spread media, and specifies on-site operation rules plus routine & off-season maintenance procedures. It delivers practical guidance for winter-service equipment selection, field deployment and asset preservation.
Rear-mounted gritters are widely fitted on pickups and light-duty trucks for winter anti-icing, yet they reveal obvious limitations when processing varied granular materials:
1. Corrosion damage to metal bins: Carbon-steel hoppers get corroded rapidly by salt-based de-icing media, shortening service-life and raising repair expenses.
2. Poor material compatibility: Simple feeding assemblies work fine with dry salt but tend to jam or bridge when handling sand or damp granules.
3. Cumbersome power setup: Certain models require standalone generators, adding gross weight and consuming vehicle payload capacity.
4. Low spreading precision: Fixed-gear adjustment causes material waste and uneven surface coverage.
5. Complicated upkeep: Salt-sand residues trapped in metal gaps are hard to clean; improper off-season storage accelerates hardware deterioration.
Comparison table between conventional small gritters and XHS-3000 rear-hitch granular broadcaster:
Comparison Item | Traditional Carbon-steel Rear-mounted Gritter | XHS-3000 Truck-mounted Rear-hitch Granular Broadcaster |
Main Hopper Material | Carbon-steel, vulnerable to salt corrosion | High-density polyethylene, chloride-resistant, rust-free |
Compatible Spread Media | Mainly dry de-icing salt | Salt, fine sand, gravel and varied granular de-icing agents |
Anti-blockage Solution | No active bridge-breaking, damp materials prone to arching | Optional vibrator plus dual-stage forced spiral-auger feeding |
Power Source | Some variants need external generator | Vehicle-board DC12V / 24V battery supply, low power draw |
Spreading Adjustment | Fixed gears with limited tuning range | In-cab stepless control, continuous 1-12 m spreading width |
Mount & Dismount | Ordinary brackets, time-consuming installation | Class-4 standard receiver hitch for fast mounting on light-duty trucks |
Cleaning Complexity | Residues trapped in metal crevices, hard cleanup | Smooth polyethylene interior for quick water-washing |
Five core assemblies work in synergy: polyethylene storage hopper, dual-stage spiral-auger feeding unit, optional vibratory anti-bridging module, polyester centrifugal spinner and truck-mounted electronic controller. Full workflow: material loading & storage → (vibration bridge-breaking) → metered auger conveying → material dropping onto high-speed spinner → centrifugal wide-area broadcasting.

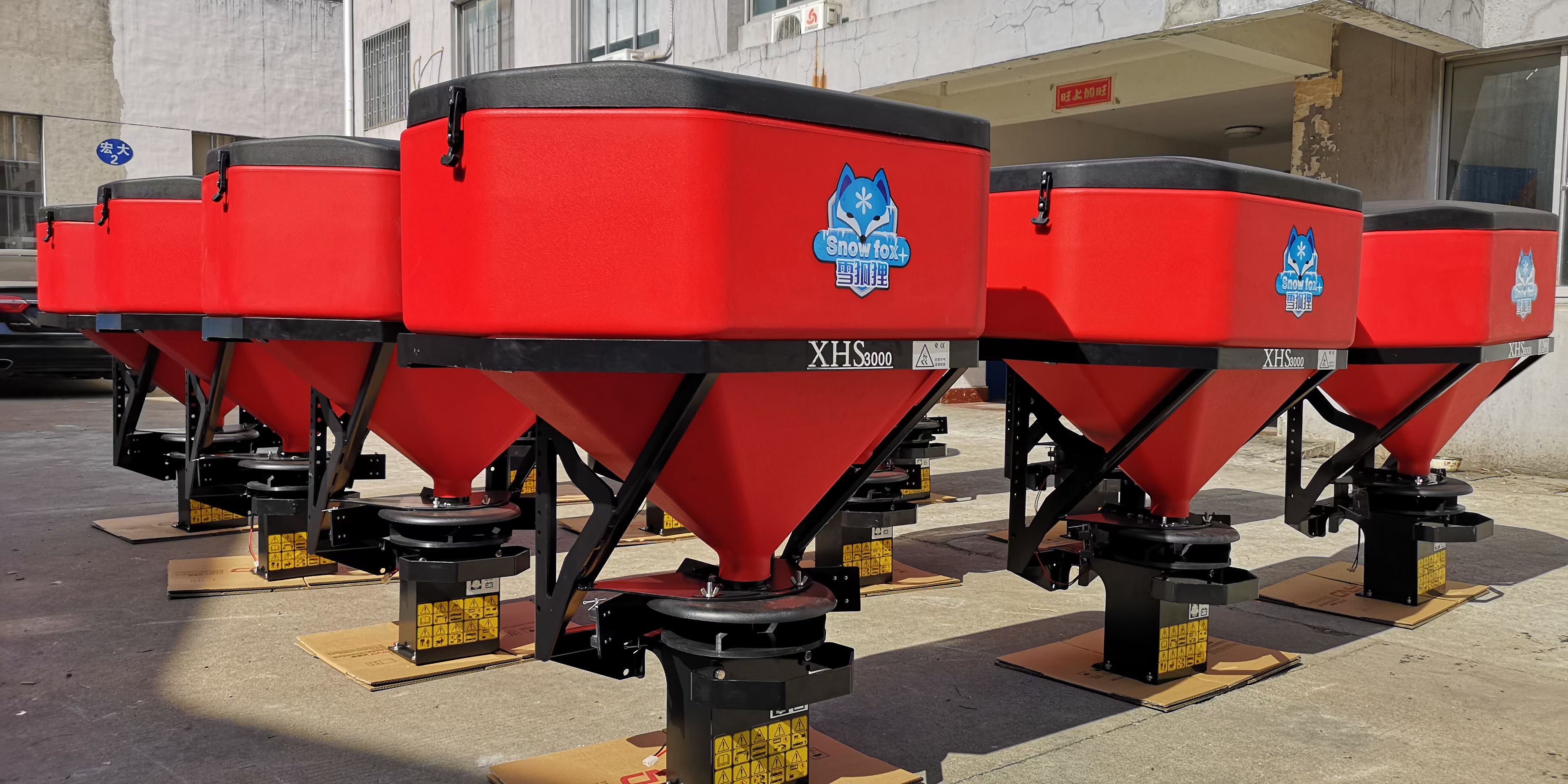

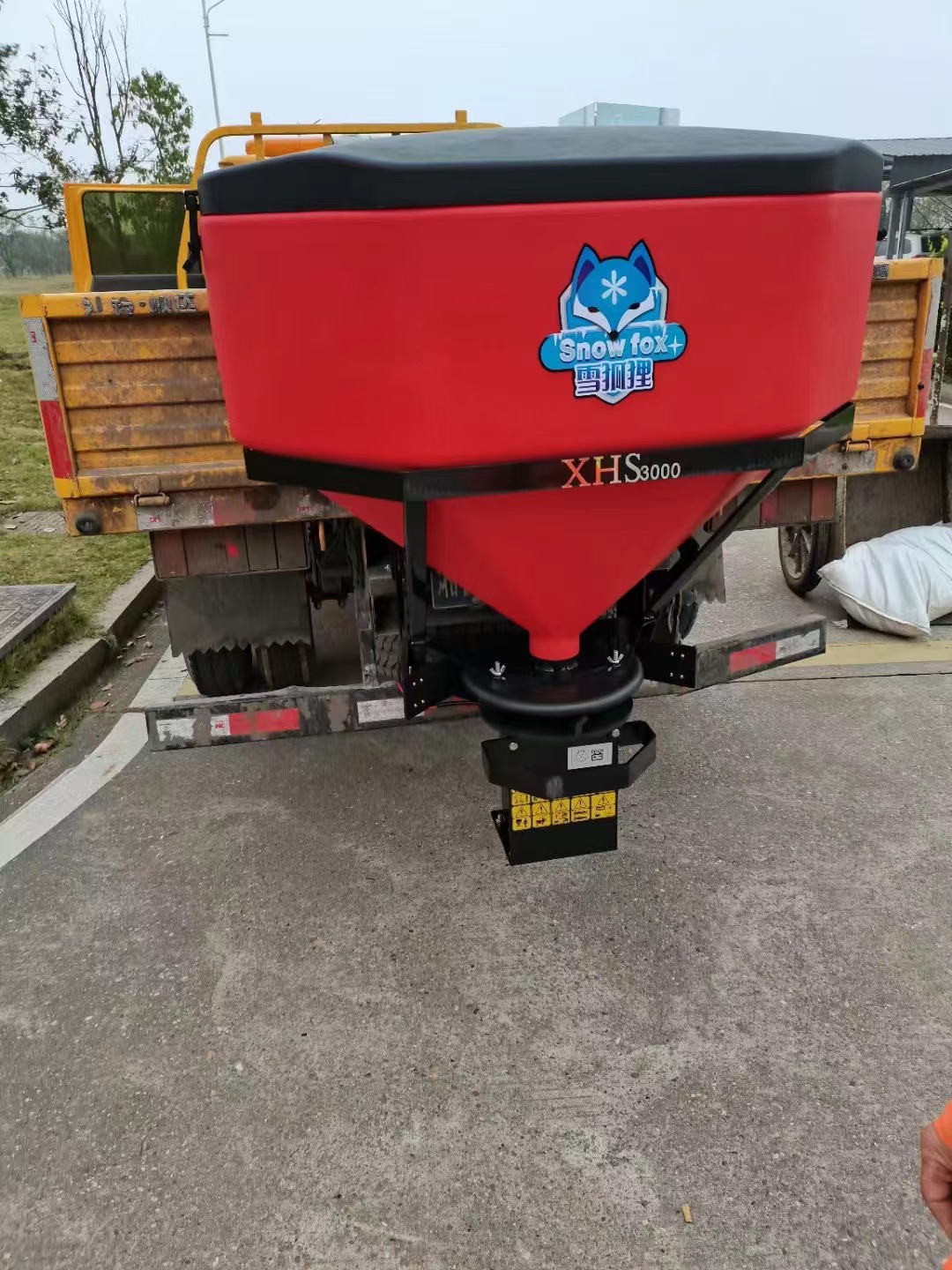

One-piece molded HDPE hopper with V-shaped tapered geometry guides granules toward bottom discharge outlets. The material resists chemical attack from salt and chloride de-icers without weld-joint rust-through. A top protective cover keeps rain-snow out and mitigates material caking. Equipped with standard receiver-hitch connectors, it fastens directly onto pickup or 1-4-ton light-truck cargo beds without destructive vehicle modification.
High-torque DC reduction motor drives dual-stage spiral augers for stable metered delivery. Superior to belt conveyors, forced auger transport tolerates slightly damp granules and poorly-flowing sand. Auger rotary speed can be steplessly adjusted via cabin controller to regulate material output per unit time.
For high-humidity operating conditions, an optional vibrator motor creates high-frequency micro-oscillations at hopper bottom. It breaks caked material and eliminates outlet arch-bridging for steady feeding of sand and damp salt, lowering field shutdown frequency. Vibration can be switched off when processing perfectly dry salt granules.

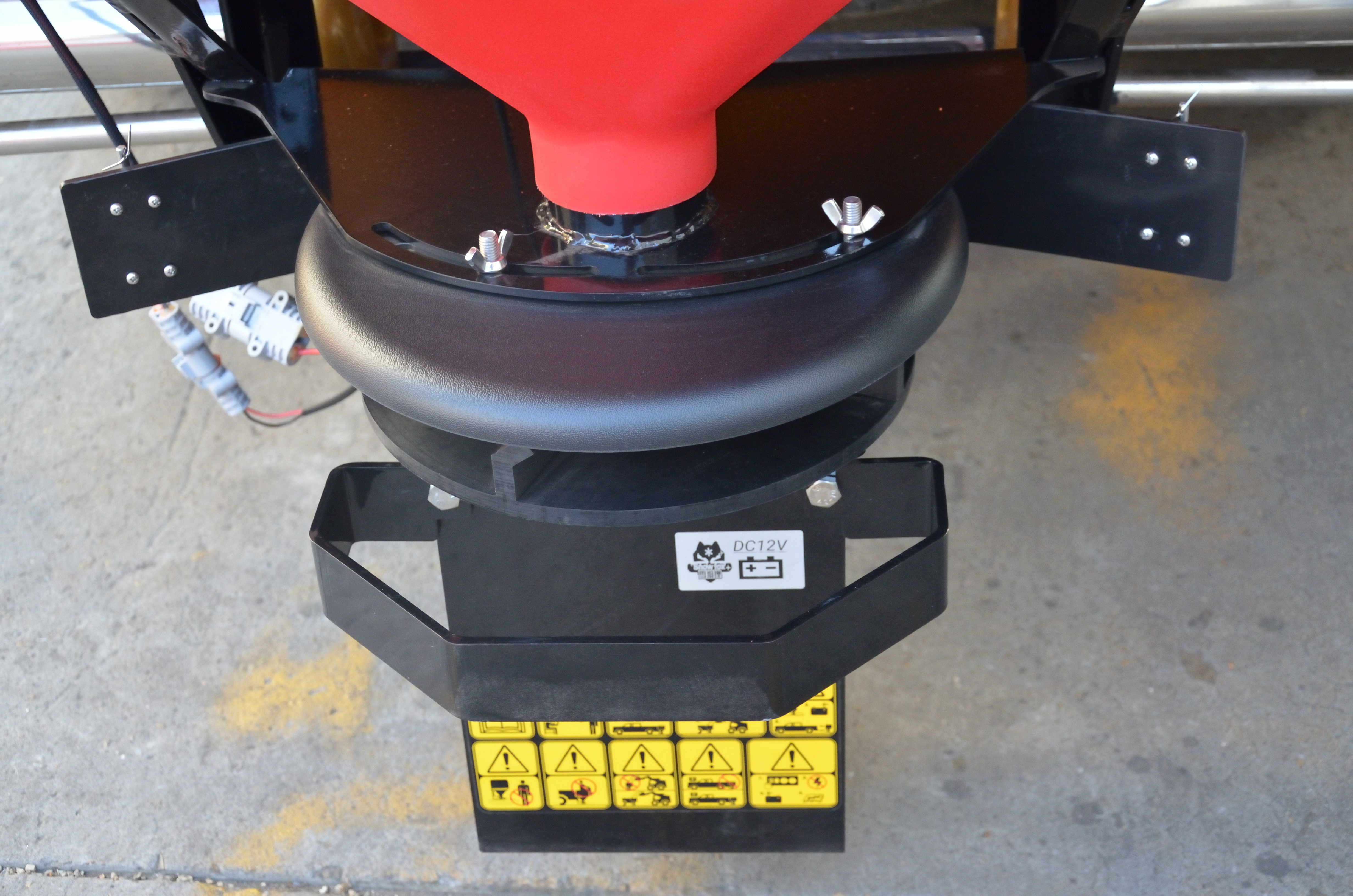

Granules fall onto fast-rotating polyester spinner and get thrown outward by centrifugal force. Adjustable side deflectors deliver continuously-tunable spreading width from 1 m to 12 m. Salt-abrasion-resistant polyester spinner adopts modular quick-release design for post-mission flushing and residue removal.
The whole unit draws power directly from vehicle 12V / 24V battery with no external generator required. The integrated controller offers overload and explosion-proof protection. Operators inside the vehicle cabin independently tune auger feed-rate and spinner rotary speed to govern discharge volume and broadcast width. Motor power gets cut off automatically upon material jamming to safeguard auger and drive hardware.
Different granular materials demand adjusted machine parameters to achieve satisfactory spreading results:
Spread Media | Material Property | Recommended Machine Setting | Typical Application Scenario |
De-icing Salt Granules | Good flow performance, prone to moisture-induced caking | Vibration off for dry salt; activate vibrator under damp conditions; medium auger speed | Pre-emptive anti-icing on city roads and bridge decks |
Fine Anti-skid Sand | Poor flow tendency, easy sedimentation | Enable vibration; moderately raise auger speed; widen spinner throw range | Anti-skid treatment on ramps and icy bridge surfaces |
Granular De-icing Compound | Low specific gravity, variable particle shape | Reduce auger rotary speed to limit output and suppress particle drift | Emergency anti-icing for airport taxiways and municipal arterials |
Service life heavily relies on proper upkeep after salt-media operations. Three-tier maintenance workflow covers post-mission care, mid-season periodic inspection and off-season long-term preservation.
1. Fully empty all granular media from hopper; never store salt or sand inside the bin overnight.
2. Rinse hopper, auger and spinner with clean water to flush away salt residues that accelerate component corrosion.
3. Dry motor wiring plugs and inspect cables for abrasion or insulation damage.
1. Retighten loose fasteners, especially bolts securing spinner and auger assemblies.
2. Listen for abnormal noise from vibrator and feed motors; power off for troubleshooting upon unusual sound.
3. Apply dielectric protective grease to electrical connectors to prevent oxidation under cold-humid field conditions.
1. Thoroughly rinse the whole unit and fully dry hopper plus all moving assemblies.
2. Apply lubricant grease to augers and bearing points.
3. Dismount the electronic controller and store it indoors in dry environment. Cover the whole broadcaster with waterproof tarp and store under shelter; avoid open-air outdoor stacking.
Troubleshooting hint: Intermittent discharge usually originates from damp-material bridging, enable vibrator first. Zero output requires checking fuses, wiring terminals and foreign-object jamming inside auger chamber.
1. Multi-material single-unit capability: One rear-hitch broadcaster handles salt, sand and granular de-icers, removing the need for multiple dedicated spreaders and cutting procurement investment.
2. Corrosion-proof polyethylene hopper lowers maintenance cost: Resists chloride-salt erosion and reduces repair & replacement compared with carbon-steel alternatives.

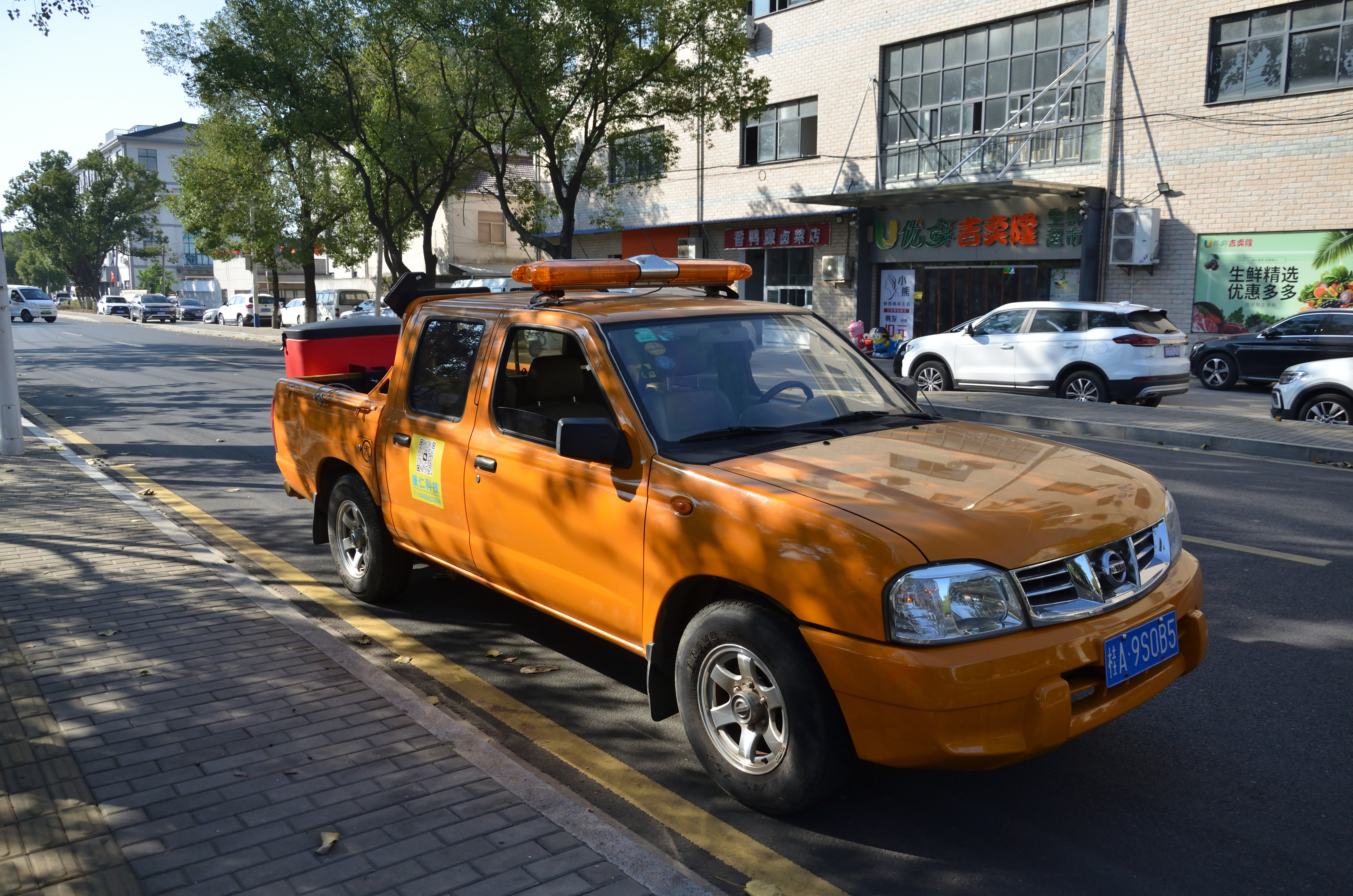

3. Battery-powered lightweight design: Fast mount-dismount for pickups and light-duty trucks. Hardware can be quickly detached in non-winter months so the host truck resumes regular cargo-haulage, improving annual asset-utilization rate.
4. In-cab stepless adjustment: Feed-rate and spreading width adapt to travelling speed, minimizing de-icer waste and enhancing winter-maintenance cost-efficiency.
The XHS-3000 truck-mounted rear-hitch granular broadcaster achieves multi-media compatible spreading via combined design of corrosion-resistant polyethylene hopper, dual-stage forced spiral-auger feeding, optional vibratory anti-bridging module, polyester centrifugal-spinner assembly and truck-board DC electronic control. It resolves classic pain-points of small-size gritters including salt-corrosion, material blockage and limited-media adaptability. Strict compliance with tiered maintenance procedures guarantees long-term stable field performance. Suited for light-duty trucks in municipal, park and airport winter emergency anti-icing assignments, it delivers a cost-effective solution for small-and-medium-scale road-maintenance projects.
