High stakes of work zone safety leave fleet managers facing a tough operational dilemma every day. You must constantly choose between dedicating expensive truck units or relying on trailer-based systems. A wrong choice risks lives, increases downtime, and damages operational efficiency on busy highways. Recently, highway safety compliance has shifted dramatically toward stricter regulations. Modern MASH standards now heavily influence equipment procurement across the industry. This regulatory shift increases the pressure on road crews and management alike. You need to confidently balance fleet flexibility with maximum worker protection in active traffic lanes. This guide provides a transparent, evidence-based framework to simplify your decision. It directly helps procurement and safety officers evaluate both equipment options objectively. You will discover which attenuator configuration best aligns with your specific operational needs and capital budget. We will explore structural differences, real-world deployment scenarios, and strict safety mandates to ensure your team stays protected.
Truck Mounted Attenuators (TMAs) offer superior maneuverability and deployment speed, making them the standard for mobile, stop-and-go operations (e.g., striping, sweeping).
Towed (Trailer) Attenuators provide maximum fleet flexibility and lower initial capital expenditure, as they can be hitched to standard host vehicles without requiring permanent chassis modification.
Compliance is non-negotiable: Regardless of the type chosen, modern fleets must ensure equipment meets MASH (Manual for Assessing Safety Hardware) TL-3 standards for high-speed highway use.
Understanding the engineering basics helps you make better procurement choices. We briefly establish these baseline definitions here. This section focuses heavily on how internal architecture dictates field usage.

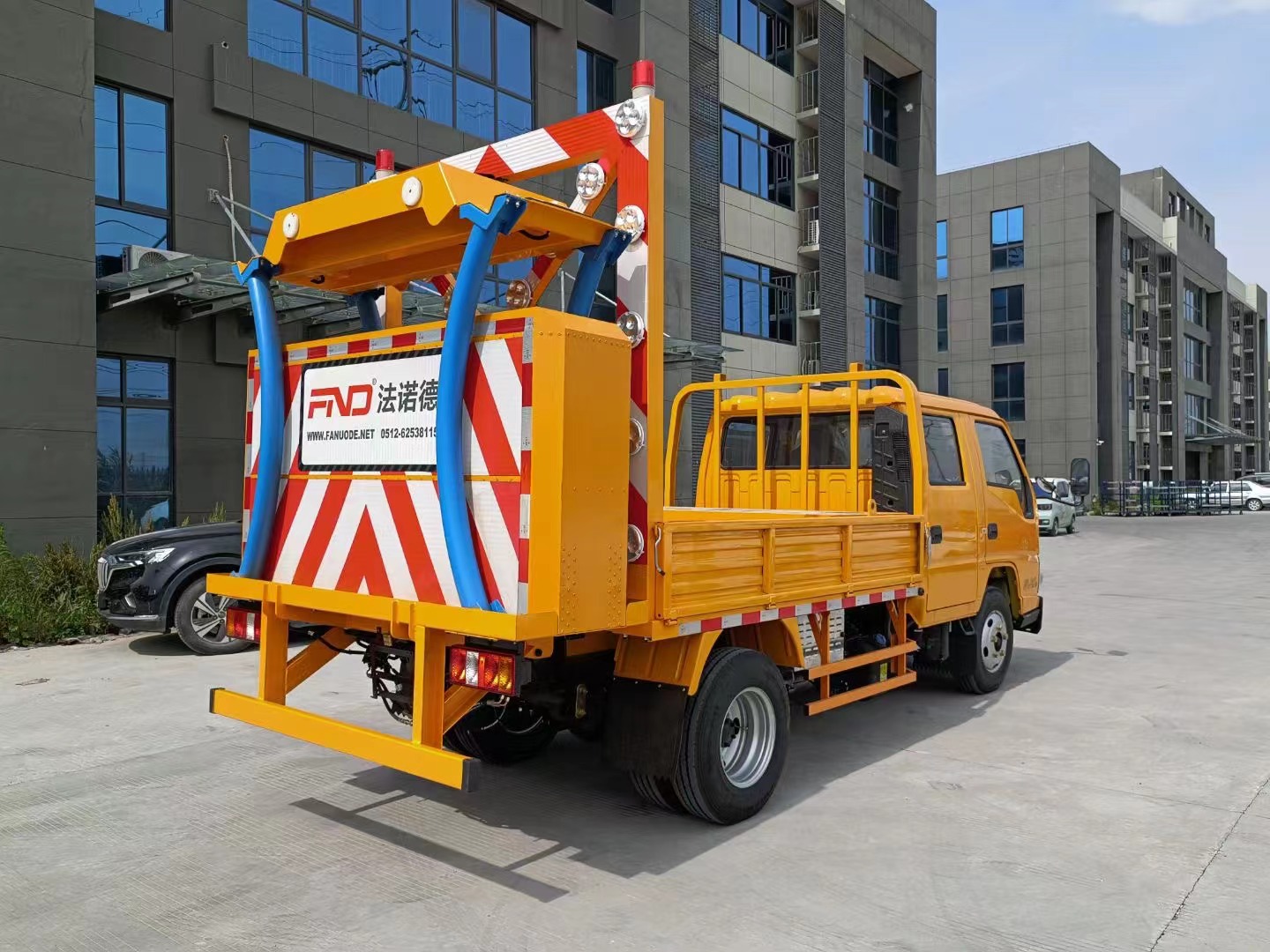

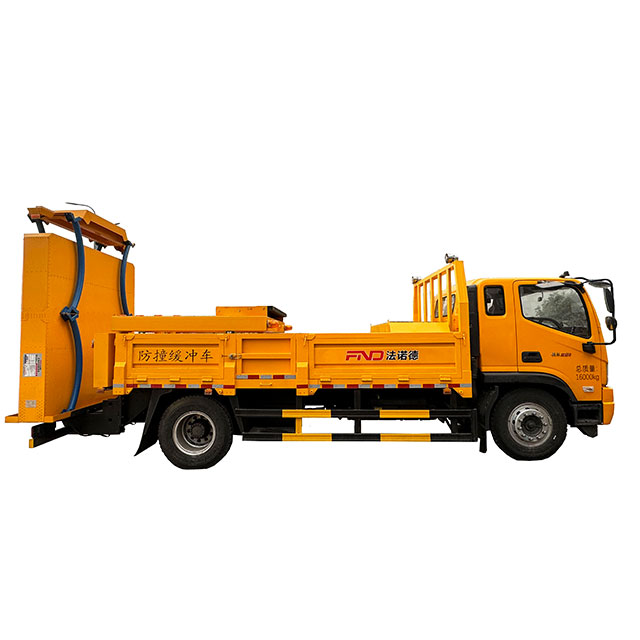

A Truck Mounted Attenuator acts as a highly specialized crash cushion. Engineers bolt this energy-absorbing cartridge directly to the heavy frame of a host vehicle. They mount it using heavy-duty steel backing plates and hydraulic lifts. This creates a fully rigid connection between the truck and the safety cushion. The rigid mount provides immense stability during sudden, high-speed impacts. It completely prevents the equipment from jackknifing when a rogue vehicle strikes it. Furthermore, operators can perform complex driving maneuvers effortlessly. Backing up requires no special articulation skills. You drive and operate the setup as one single, cohesive heavy-duty vehicle.
A towed unit operates as a fully self-supporting safety system. It rolls on its own heavy-duty axles and tires. Crews connect it to the host truck via a robust pintle hook and lunette ring. This connection creates a flexible, articulated joint between the truck and the cushion. Modularity stands out as its absolute primary advantage. You can deploy it quickly and drop it off on the shoulder in minutes. Fleet managers easily swap these trailers between different dump trucks on demand. It does not permanently claim a chassis. This keeps your heavy trucks free for other hauling tasks when safety duty finishes.
Choosing the right equipment requires a strict head-to-head decision framework. You must evaluate the most critical buying dimensions for your fleet. We avoid claiming one setup is universally better. Instead, we map features to real operational outcomes.
Dedicated truck units tie up a heavy chassis permanently. You weld and bolt the safety structure to the frame. If the truck engine fails, the crash cushion sits completely idle. The mechanic works on the engine while your safety asset gathers dust. You lose both operational assets simultaneously.
Conversely, trailer units offer incredible daily adaptability. If a host truck requires routine maintenance, you simply unhitch the trailer. You immediately hitch it to a backup dump truck. This rapid swapping minimizes costly downtime on the job site. Your safety barriers remain active. You keep your workers protected while the mechanic repairs the broken truck.
Mobile operations thrive on deployment speed and tight movements. A fixed Truck Mounted Attenuator works perfectly in crowded urban work zones. It completely eliminates the dangerous risk of trailer jackknifing. Drivers navigate narrow city streets confidently. They treat the entire setup as a single rigid truck.
Towed units present noticeably different driving challenges. They require highly skilled drivers to back up safely. An articulated trailer feels cumbersome in congested or restricted areas. Geometrically complex work zones amplify this driving difficulty. You often need spotters walking alongside the trailer. This slows down your mobile deployment times significantly.
Purchasing dedicated truck units requires a massive initial budget. You must buy both the specialized heavy-duty chassis and the crash cushion. You pay for permanent factory installation and hydraulic wiring. This high entry barrier strains limited municipal budgets.
Towed units offer a much more accessible entry cost. You only purchase the towable trailer unit itself. However, trailers inevitably introduce their own separate mechanical maintenance demands. You must regularly inspect and service trailer brakes. You replace tires, fix lighting harnesses, and lubricate the hitch. Suspension components will inevitably degrade over time and require replacement.
Equipment Capability Comparison
Operational Feature | Dedicated Truck Unit | Towed Trailer Unit |
|---|---|---|
Reversing Maneuverability | Excellent (Rigid Frame) | Poor (Articulated Hitch) |
Fleet Asset Flexibility | Low (Permanently Attached) | High (Easily Swapped) |
Initial Capital Cost | High (Includes Truck Chassis) | Low (Trailer Only) |
Deployment Speed | Instant (Drive and Park) | Moderate (Requires Hitching) |
We provide a clear shortlisting logic based on specific contracting profiles. You should match the equipment directly to your daily workflow.
You should choose fixed units for mobile or rolling lane closures. These dynamic jobs move constantly down the highway.
Pavement marking and line striping.
Continuous pothole patching.
Roadside herbicide spraying and sweeping.
You also need them for operations requiring frequent reversing. Tight turnarounds favor a rigid, predictable frame. High-speed, high-volume highway projects prioritize immediate structural rigidity. The solid mount prevents side-deflection during angled impacts. It keeps the heavy truck securely in the blocking lane.
You should specify a trailer for completely stationary work zones. Crews park the unit at the barrier entrance for a full shift. It acts as a static shield for the bridge repair crew.
Evaluate your fleet diversity. Contractors with multi-use trucks benefit greatly from trailers.
Assess your heavy chassis availability. You cannot afford to dedicate a dump truck strictly to safety duty.
Consider your rental strategy. Short-term projects require safety compliance without massive capital investments.
Rental scenarios heavily favor towed units. You rent the trailer for three months and return it. You avoid buying an expensive specialized truck for a single summer project.
Highway safety regulations govern every equipment decision you make. You must understand strict industry safety frameworks before purchasing anything.
Many state jurisdictions are actively phasing out older NCHRP 350 units. The Federal Highway Administration updated testing protocols significantly. Buyers must now verify MASH Test Level 3 (TL-3) ratings for highway equipment. This strict certification is absolutely mandatory for operations at or above 62 mph (100 km/h).
MASH represents the current gold standard in crash testing. Engineers designed MASH to account for heavier modern vehicles. The tests utilize large pickup trucks weighing 5,000 lbs. They crash these heavy trucks into the cushions at highway speeds. You must ensure your equipment passes these updated, severe impact tests.
Both equipment configurations share one critical safety assumption. Towed and fixed units strictly require the host vehicle to meet minimum weight requirements. Safety engineers mandate this heavy ballast to save lives. Often, the host truck must weigh between 15,000 and 20,000+ lbs.
This massive weight prevents dangerous roll-ahead distances upon impact. When a rogue vehicle strikes the cushion, kinetic energy pushes the host truck forward. Lighter trucks fail to stop this violent forward momentum. They roll into the active work zone. Workers downstream remain highly vulnerable without proper host truck ballast. You must load sandbags, steel plates, or concrete blocks to meet this weight.
We speak directly to the experience of fleet managers here. You must understand the hidden friction points of equipment adoption.
Adopting trailer units creates immediate driver training hurdles. Towed units require specific backing-up protocols. Drivers must learn how to reverse an articulated vehicle safely. Spotters become necessary in tight, congested spaces.
Furthermore, jurisdictions often require different commercial licensing endorsements. A standard fixed unit driver might only need a Class B CDL. Adding a heavy trailer might push the combined weight past regulatory thresholds. You might suddenly need Class A CDL drivers for your trailer setups. You must verify local licensing laws before buying.
Fixed units take up a single, predictable footprint in your yard. You park the heavy truck, and you are entirely done. Towed trailers require totally separate parking logic.
Trailers consume additional yard space when unhitched. They require flat, stable ground to prevent tipping. You also must implement strict anti-theft measures for standalone trailers. Thieves target unhitched construction trailers frequently. You must purchase heavy-duty pintle locks and wheel boots to secure them.
Violent impacts destroy the energy-absorbing aluminum cartridge. The cushion sacrifices itself completely to save lives. You expect to replace the cartridge after any severe hit.
However, rigid frames can sometimes suffer deep chassis damage in severe impacts. The rigid connection transfers intense kinetic energy directly to the truck frame. A severe crash can bend the host truck chassis permanently. This ruins the expensive truck. Conversely, trailer impacts often stay isolated. The structural damage usually limits itself to the hitch and the trailer body. The expensive host truck usually survives intact.
The choice comes down to a very clear operational tradeoff. You must weigh maneuvering agility against maximum fleet adaptability. A Truck Mounted Attenuator deploys flawlessly in dynamic, mobile setups. Meanwhile, a trailer setup preserves your truck assets for other hauling duties.
Audit your upcoming project types thoroughly.
Separate your stationary bridge jobs from your mobile striping workflows.
Review your host-vehicle availability and current driver licensing tiers.
Calculate specific upfront financial impacts for both equipment configurations.
We strongly advise you to consult with a dedicated equipment specialist today. Request a short-term rental quote to field-test a towed unit first. You can easily compare its handling against your fixed units. Gather feedback from your drivers before committing to a permanent purchase.
A: Yes, but it requires significant driver skill and ground spotters to avoid jackknifing. The trailer articulates at the hitch, making reverse movements difficult in narrow lanes. This specific operational difficulty is a major reason mobile operations strongly prefer fixed, rigid units.
A: Yes, it requires a heavy-duty chassis. Usually, you need a Class 6 commercial truck or higher. The vehicle must easily handle the equipment weight. More importantly, it must provide the massive stopping mass required during a high-speed highway impact.
A: Yes, leading safety manufacturers produce towed models that are fully MASH TL-3 compliant. However, they only meet this safety standard when hitched properly. You must connect them to a host vehicle of the correct weight and specification to prevent dangerous roll-ahead distances.
